Item no.
EX-1189HMVS-3
7 Ports USB 3.2 Gen 1 Metal HUB with 1.5A Charging Power for Smartphones and Tablets
Product information

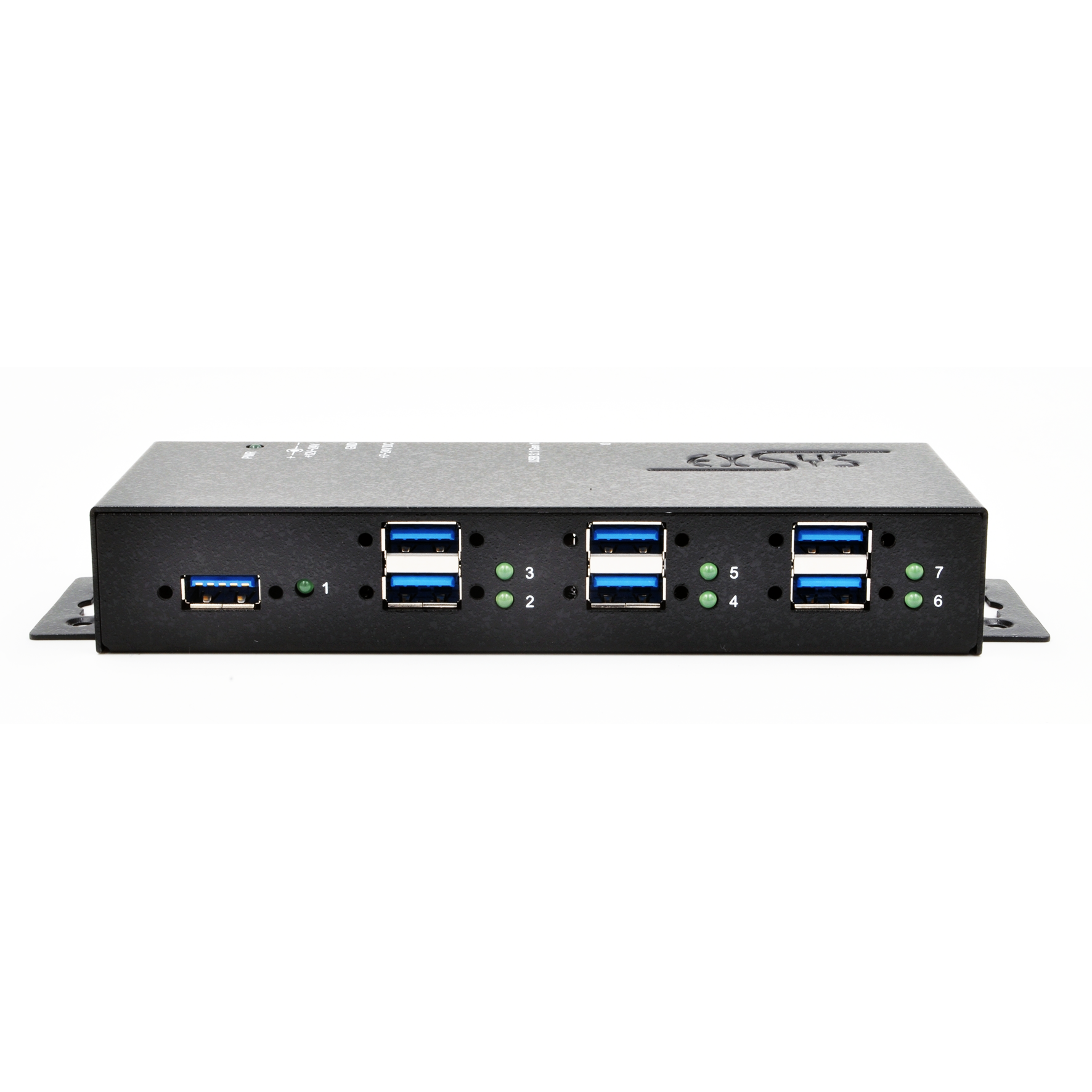

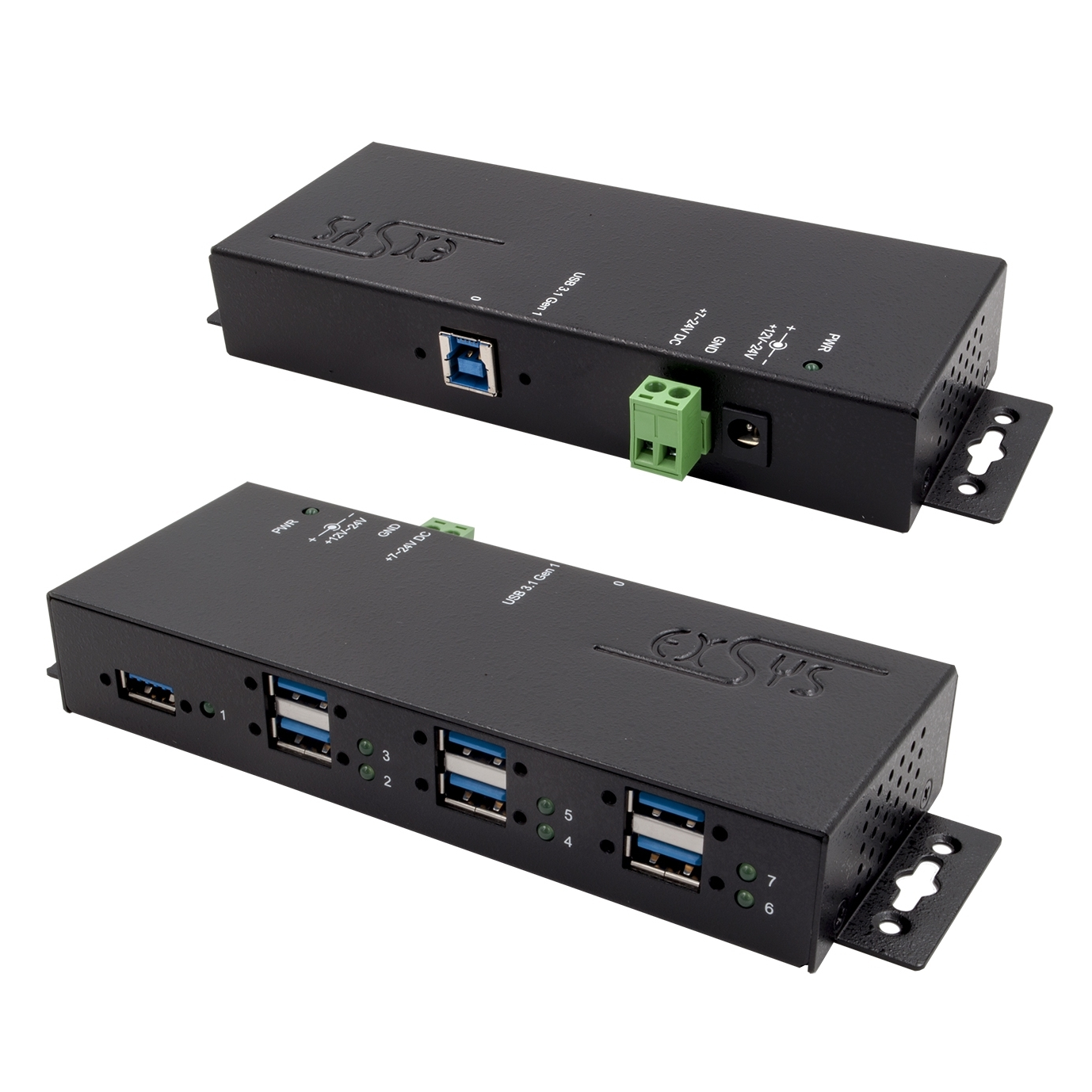

The EX-1189HMVS-3 provides 7 USB 3.2 Gen 1 (previously called USB 3.0) screwable downstream ports with 15KV ESD surge protection for each output. In doing so, it simultaneously provides 1.5A power for up to 4 ports for charging iPhone, iPad, smartphone and tablet. The included EX-K1571V cable can be attached to the EX-1189HMVS-3 with thumbscrews without a screwdriver. It can be used in automation, industrial and office applications. Thanks to its special housing, the EX-1189HMVS-3 can be screwed to the wall, under a table or in a 19" cabinet (optional with EX-6099).
- USB 3.2 Gen 1 Metal HUB with 7 ports
- 15KV ESD Surge Protection for all 7 ports

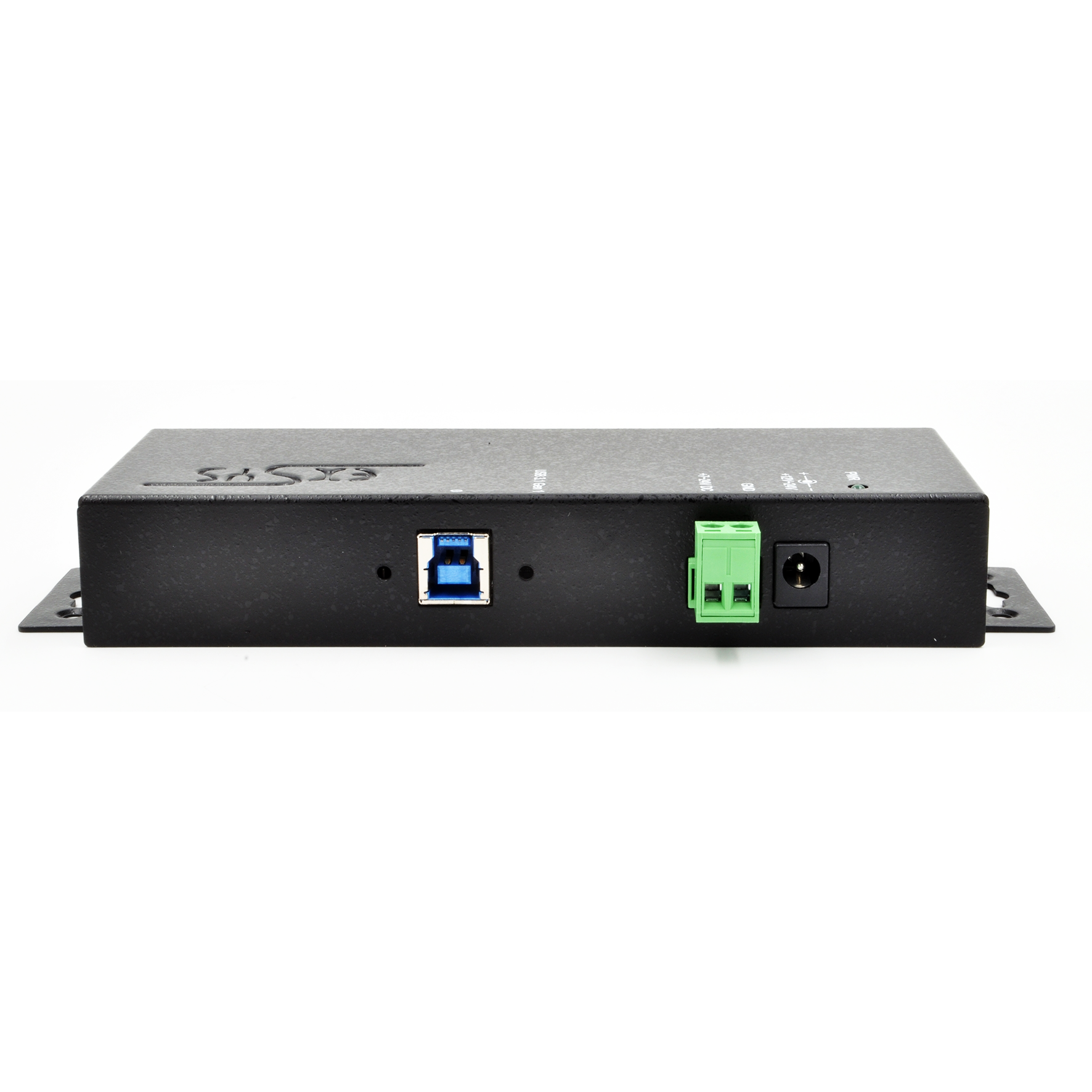

- Power 12V/3A with DC-Jack or +7V to +24V with Terminal Block
- Power supply optionally also from the USB-BUS +5V (Bus-Power)
- Automatic recognition of the data transfer rate for the attached external devices
- Supports simultaneously 1.5A current on maximum 4 ports
- Support BC v1.2: SDP/CDP/DCP Charging Modes
- Rugged metal housing
- 7x USB Operating Display
- 1x LED Power Display
- Internal jumper for individual control of power supply:
- - ENA = bus power operation possible
- - DIS = operation with power supply only (self power)

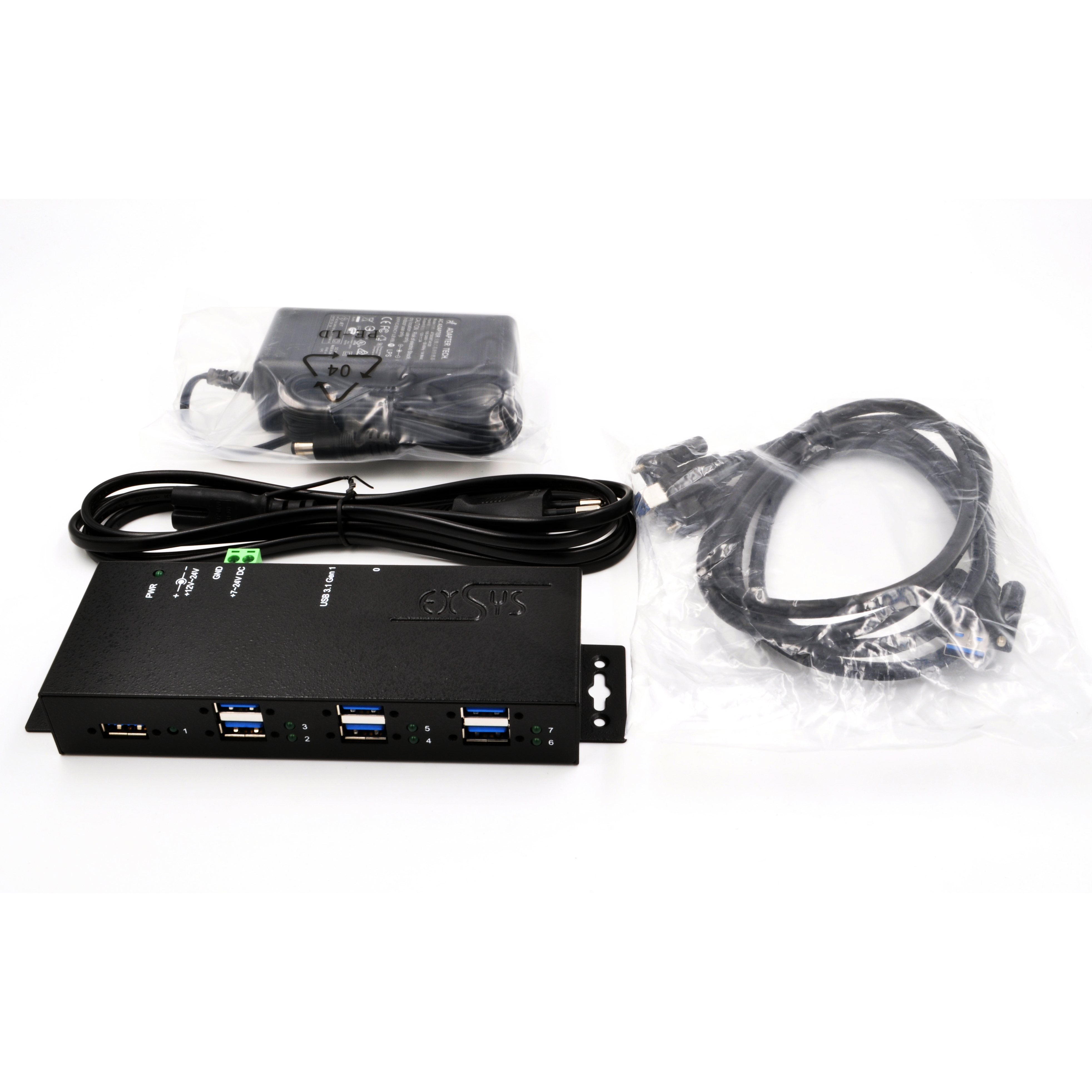

Packaging contents:
- EX-1189HMVS-3, USB 3.2 Gen 1 cable 1.5m, Power Supply 12V/3A, Manual
