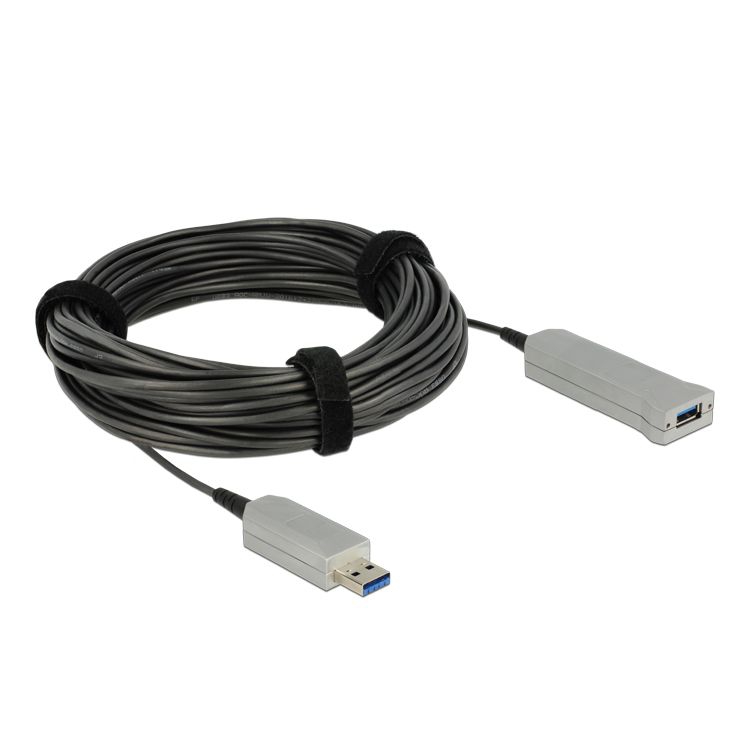

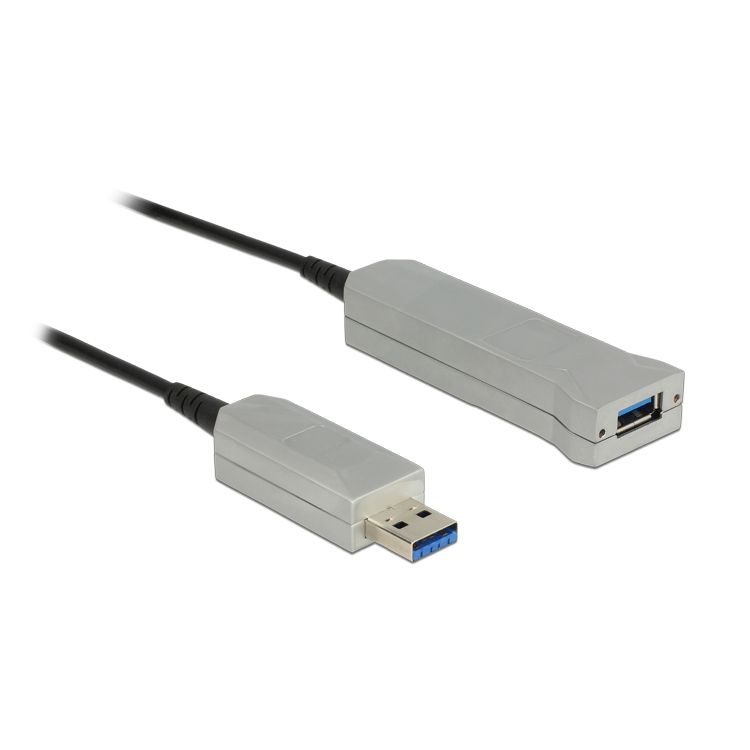

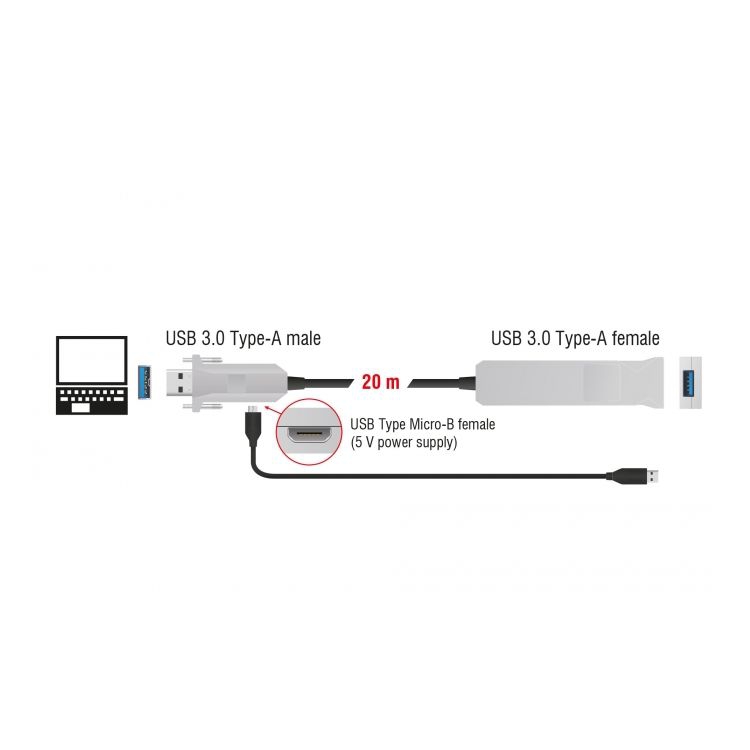

Active Optical Cable USB 3.0-A male to USB 3.0-A female 20 m

Active Optical Cable USB 3.0-A male to USB 3.0-A female 20 m

Highlights

Designed with VL812 (USB 3.0 Compliant Hub, TID# 330000026)

Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)

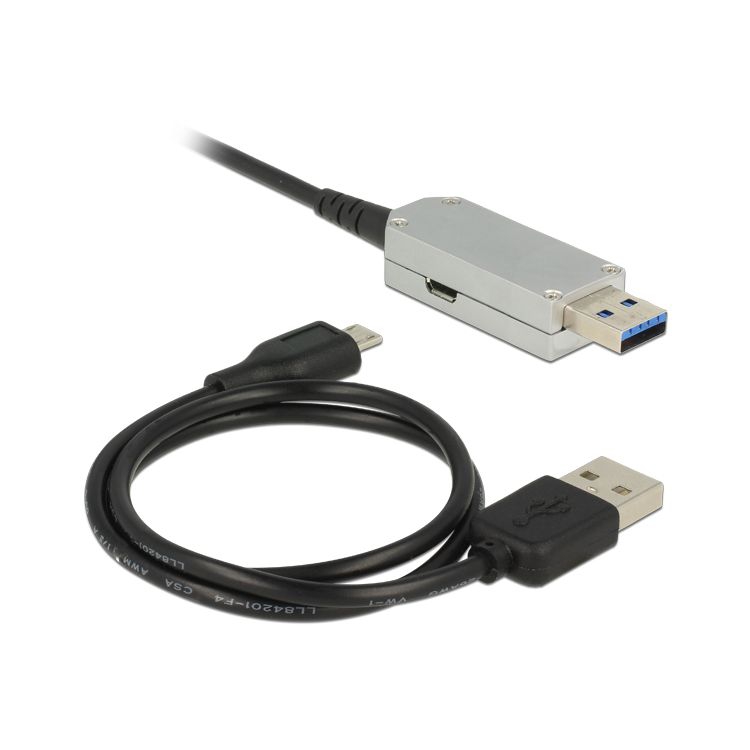

Boost the USB Bus-Power Voltage

Provides USB 3.0 cable port lock mechanism

USB 3.0 cable port connectors

One upstream USB 3.0 cable port (Standard B-type Receptacle), TID# 360000002

One downstream USB 3.0 cable ports (Standard A-type Receptacle), TID# 360000003

No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support

Introduction

U3H101 is a high-performance one-port Universal Serial Bus (USB) 3.0 compliant Hub (Boost the USB Bus-Power Voltage), extending your USB 3.0 signals an additional 8 meters.

One upstream port and one downstream ports support not just SuperSpeed transfer, but are also backwards compatible with previous USB specifications and offer support for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

U3H101 allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

Technical Specifications

USB 3.0 Compliant Hub

Compliant to Universal Serial Bus 3.0 Specification Revision 1.0

Compliant to Universal Serial Bus Specification Revision 2.0

One up-stream port supports Super-speed(SS), high-speed (HS) and full-speed (FS) traffic

One down-stream ports support Super-speed(SS), high-speed (HS), full-speed (FS), and low-speed (LS) traffic

Supports USB 3.0 low power states

USB Bus Power

Designed with high-efficiency, synchronous step-up converter to guaranteed 2.1A output current at VOUT = 5V

Provides USB 3.0 cable port lock mechanism
