Adapter USB 3.0 to Gigabit LAN 10/100/1000 Mbps

DELOCK

€34.97*

1 in stock

PDF-Datasheet

Item no. A-USB3-98

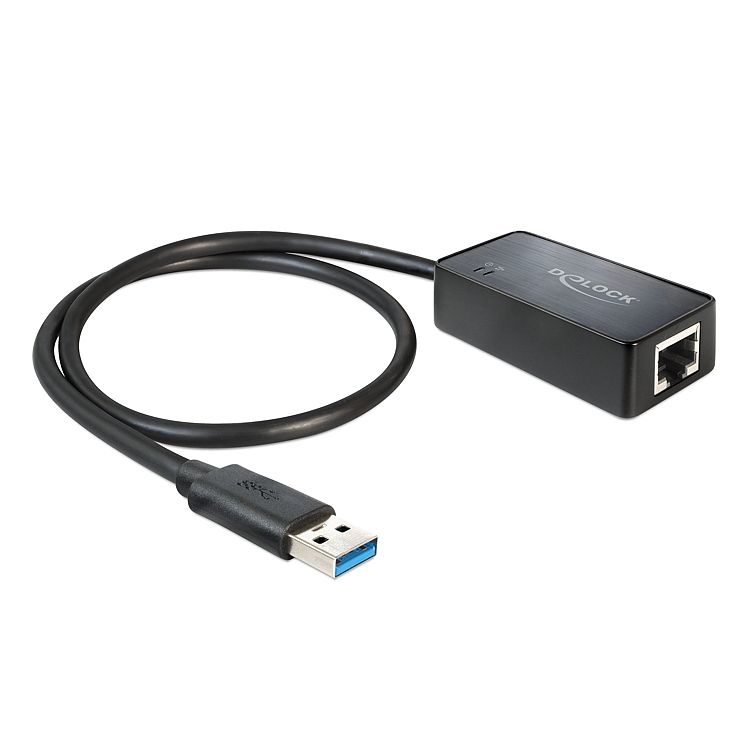

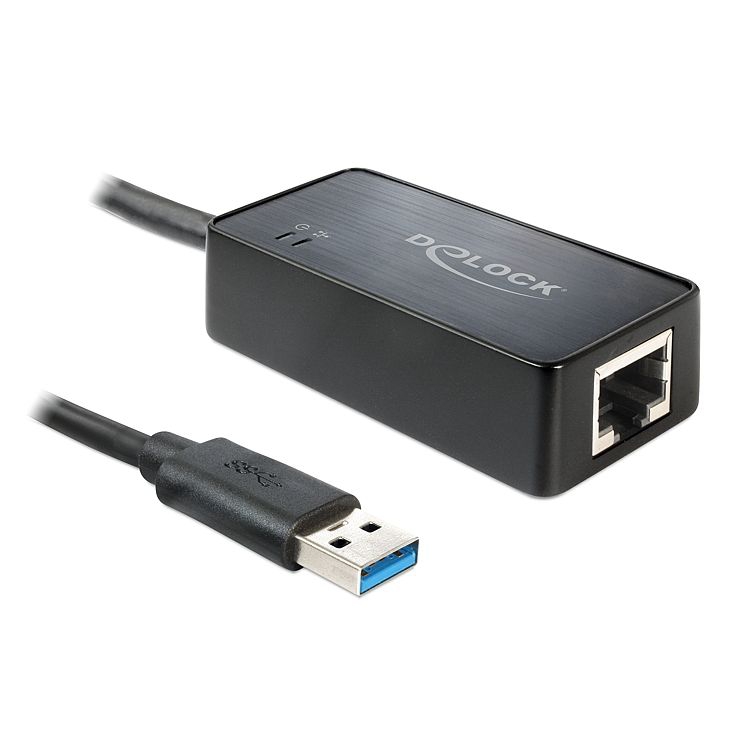

Adapter USB 3.0 to Gigabit LAN with long USB cable of 50cm, 10/100/1000 Mbits/s with Full/Half Duplex, works BusPowered

Key features

The adapter by Delock expands a PC or laptop by one network interface via the USB Type-A interface.

Technical details

Connectors:
1 x USB 5 Gbps Type-A male
1 x Gigabit LAN RJ45 jack
Chipset: ASIX AX88179
Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
Compatible with:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
Supports Auto MDI-X (automatic detection of standard or crossover network cable)
Supports Wake On LAN (WOL)
Supports IEEE 802.3az (Energy Efficient Ethernet)
Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
Downwards compatible to USB 2.0
LED indicator for link and activity
USB bus powered
Cable length without connectors: ca. 50 cm
Dimensions (LxWxH): ca. 68 x 30 x 18 mm.
