Item no.
C2-15-10

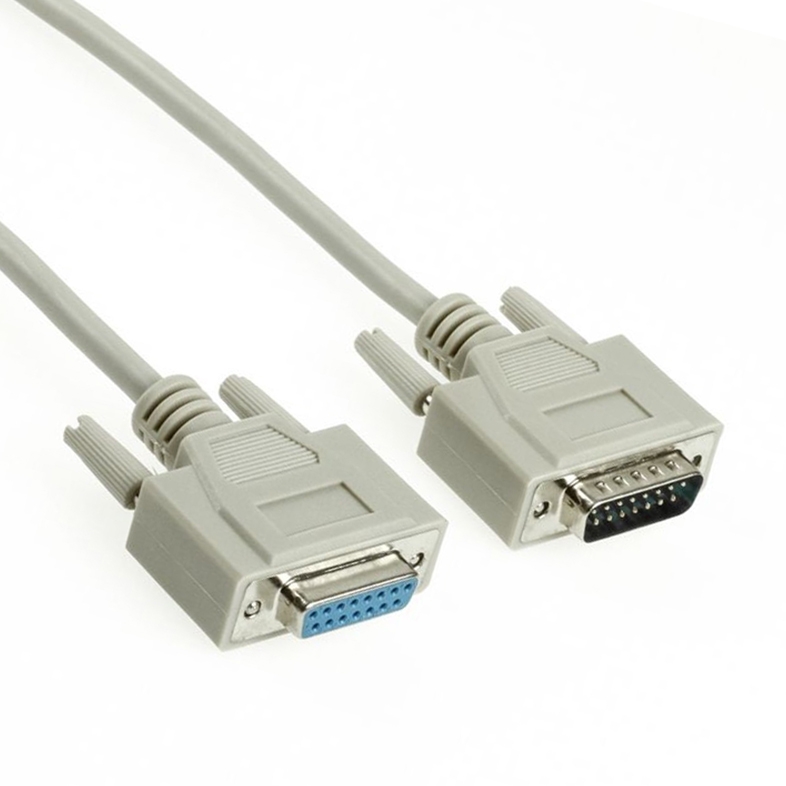

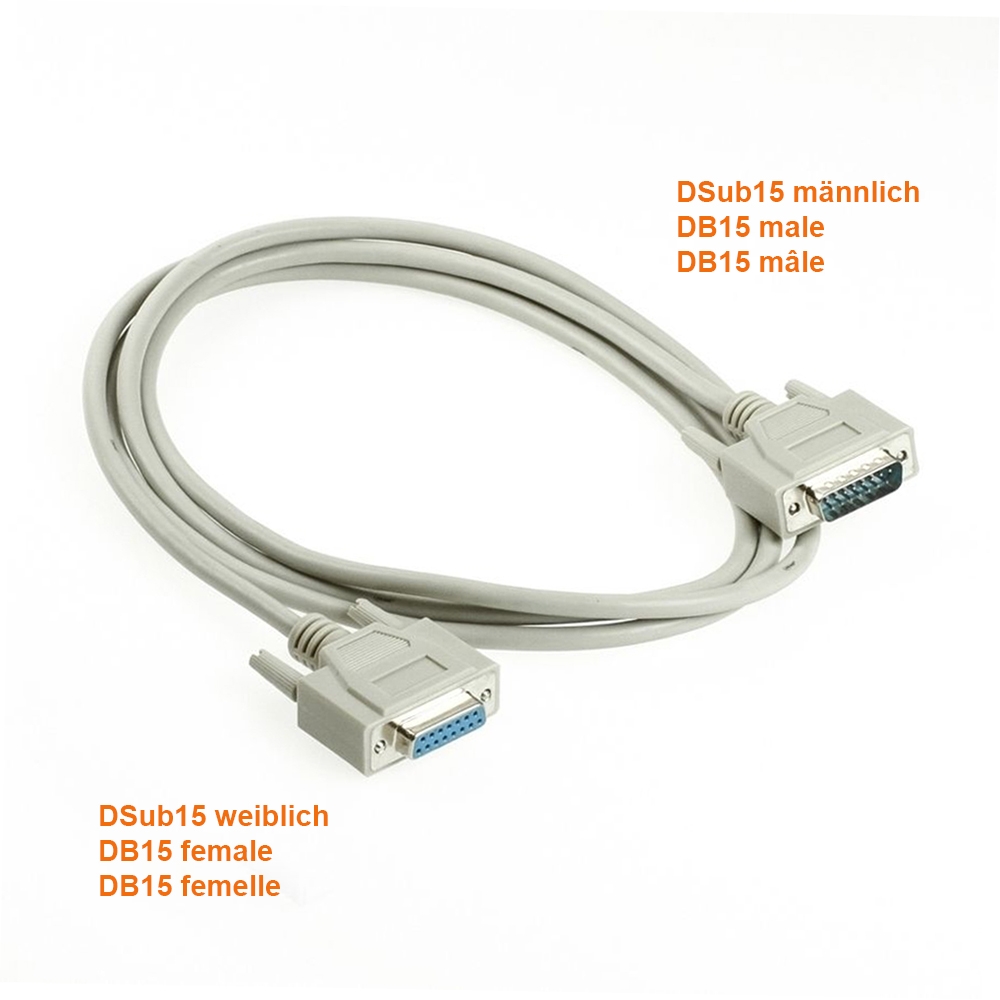

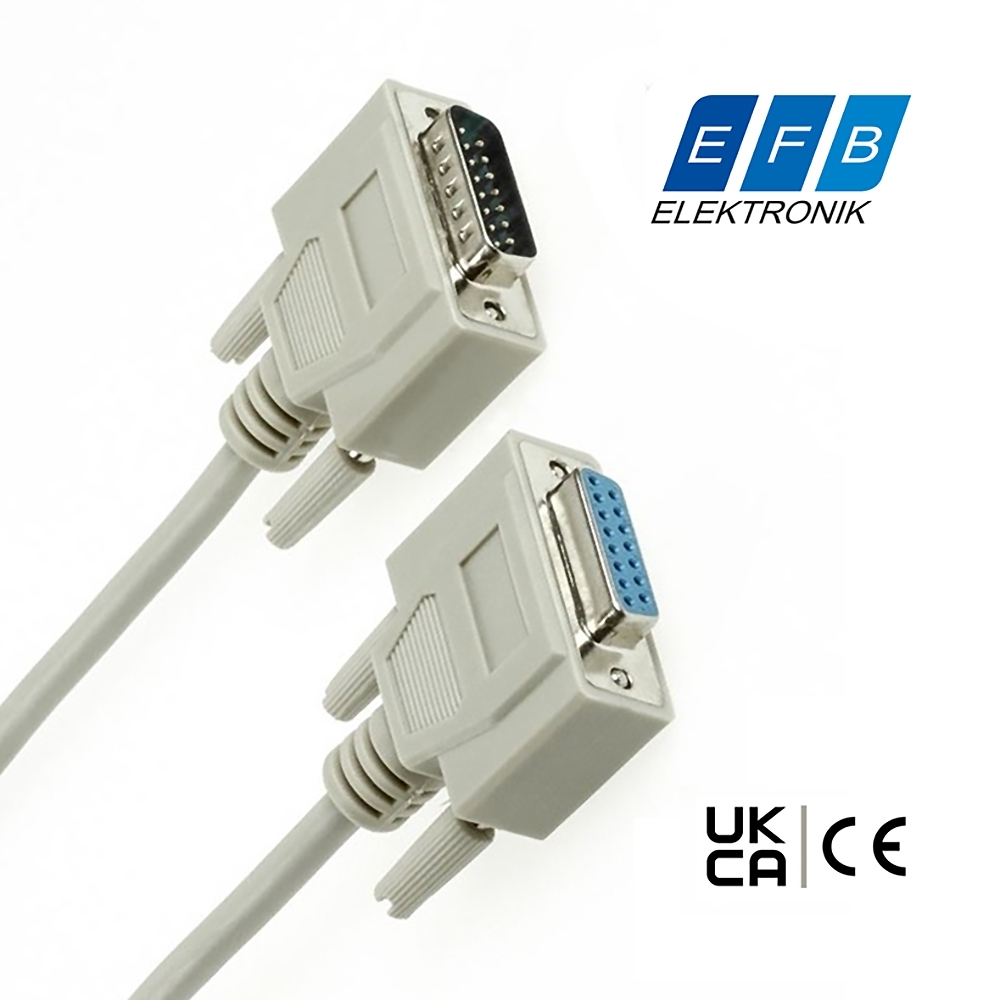

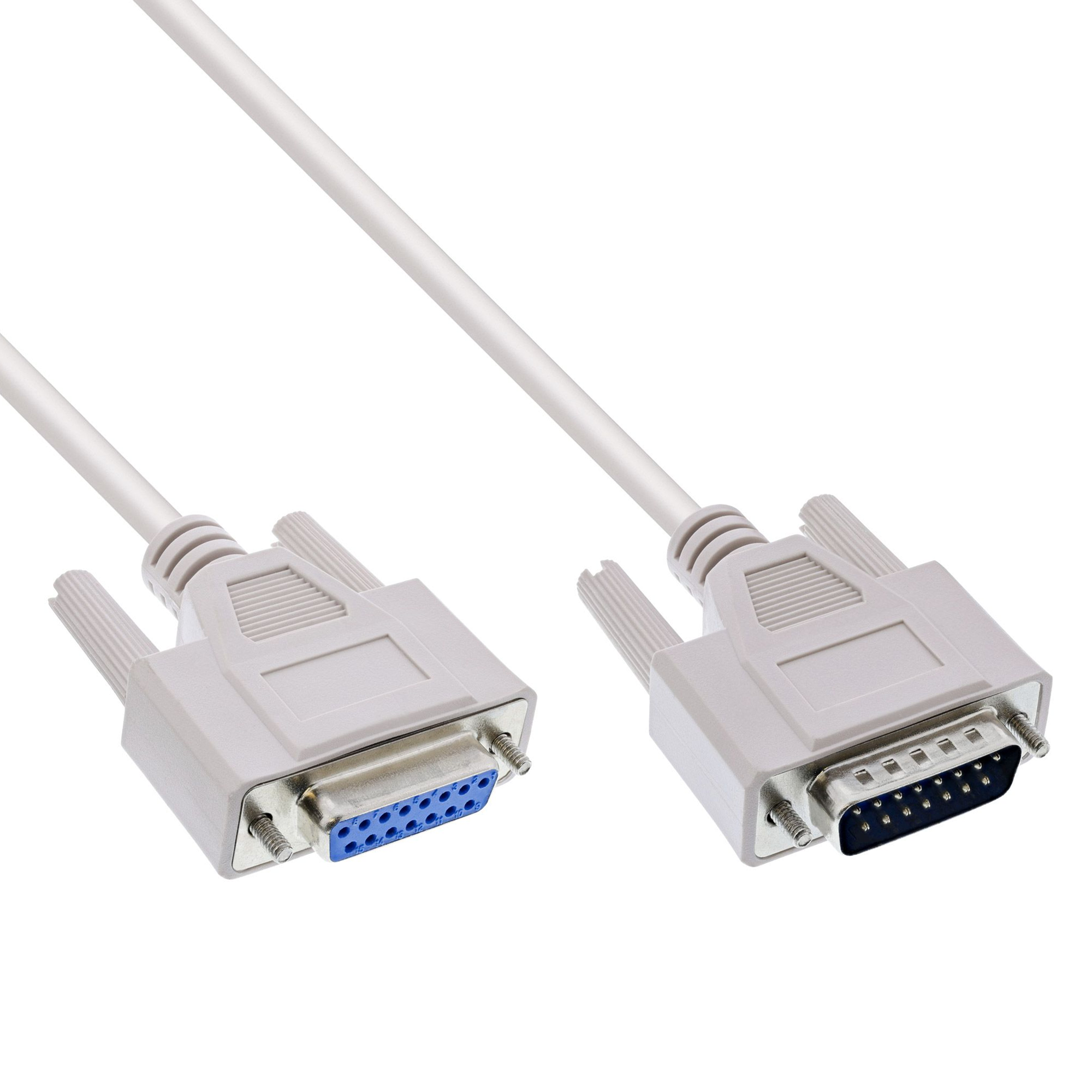

Cable DB15 male to DB15 female, 10m, screws on both sides, e.g. for joystick extension
Technical data
- 15-pin data cable male/female
- also called X.21 cable (X21)

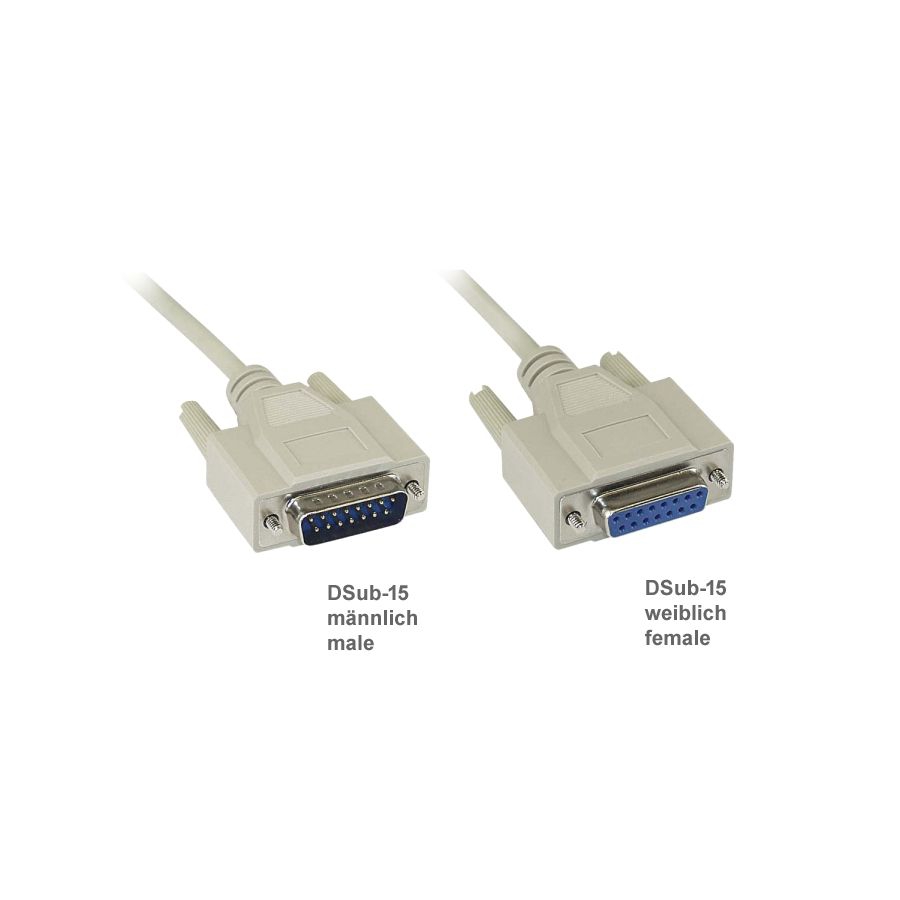

- plugs: DB15 male to DB15 female
- with long screws on both sides
- screw type UNC 4-40
- moulded high quality plugs
- gold-plated contacts
- shielded (aluminium foil shield)
- cable outer diameter approx. 6mm

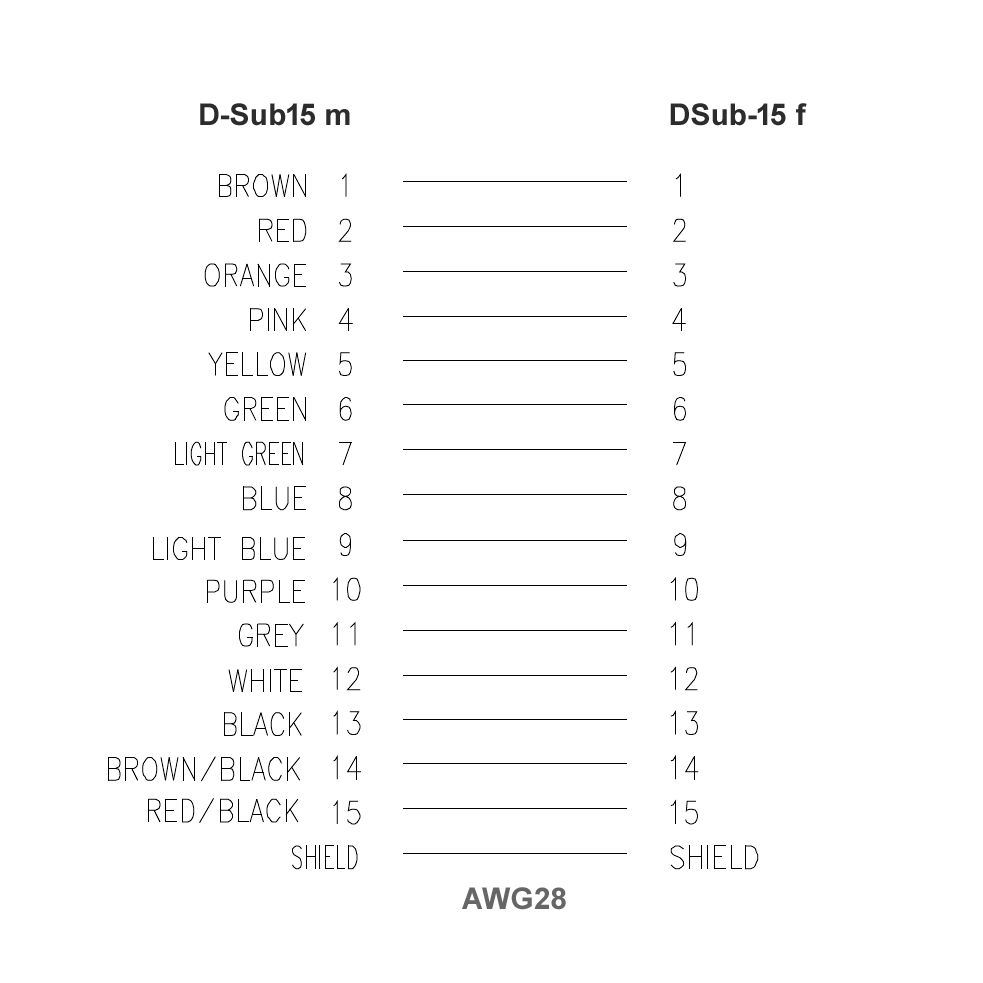

- all 15 contacts connected 1-to-1
- colour: grey
- 15x AWG 28 (CU)
- substitute areas: metrology, optical industry, automotive, automotive measuring instruments, automation
- CE, WEEE, RoHS compliant
