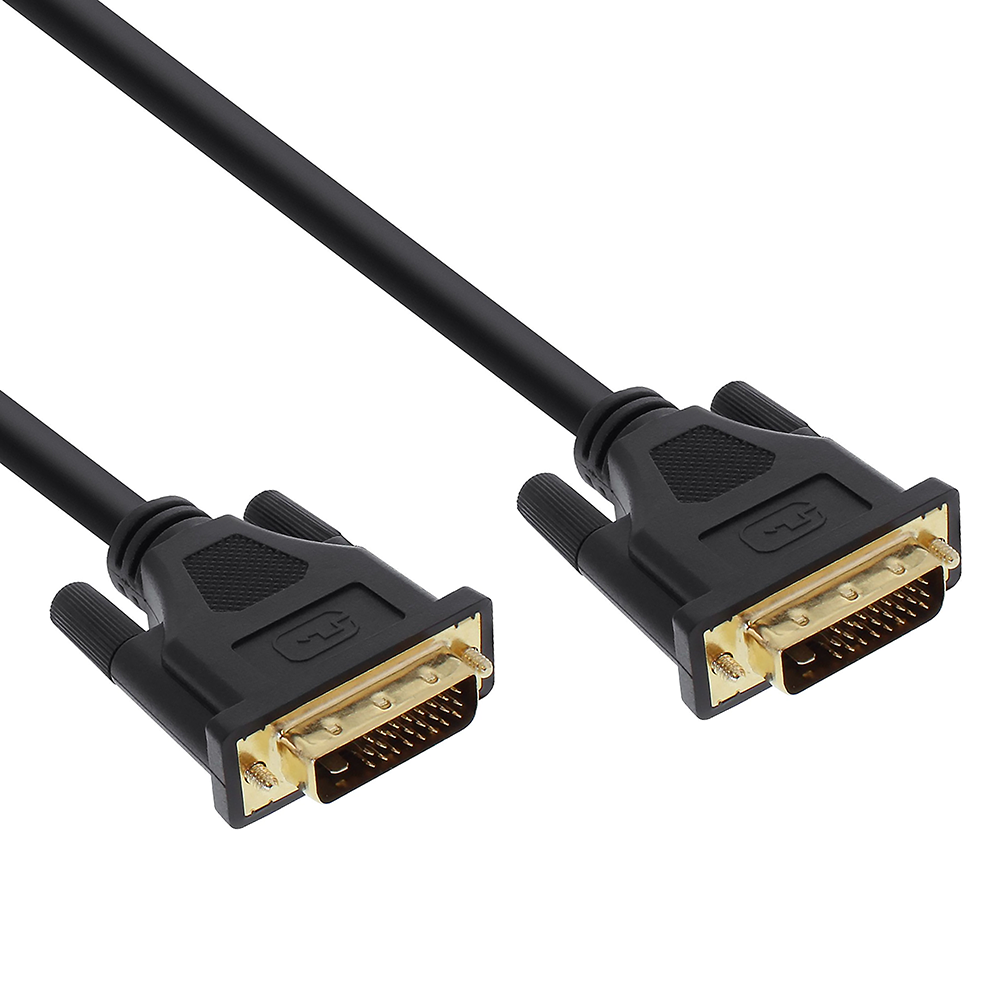

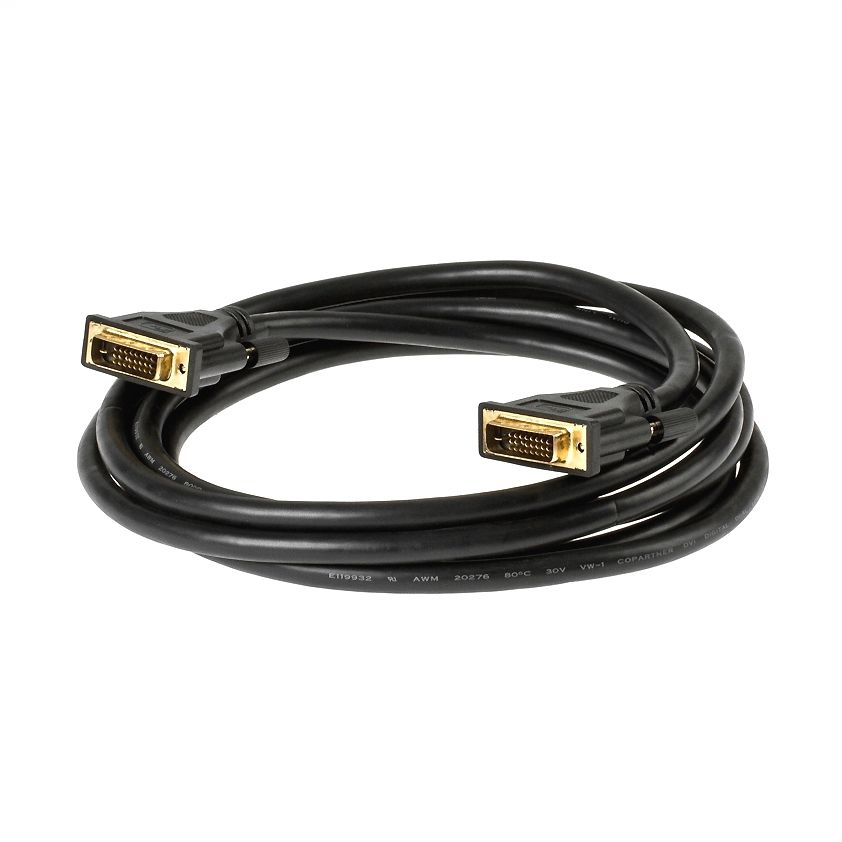

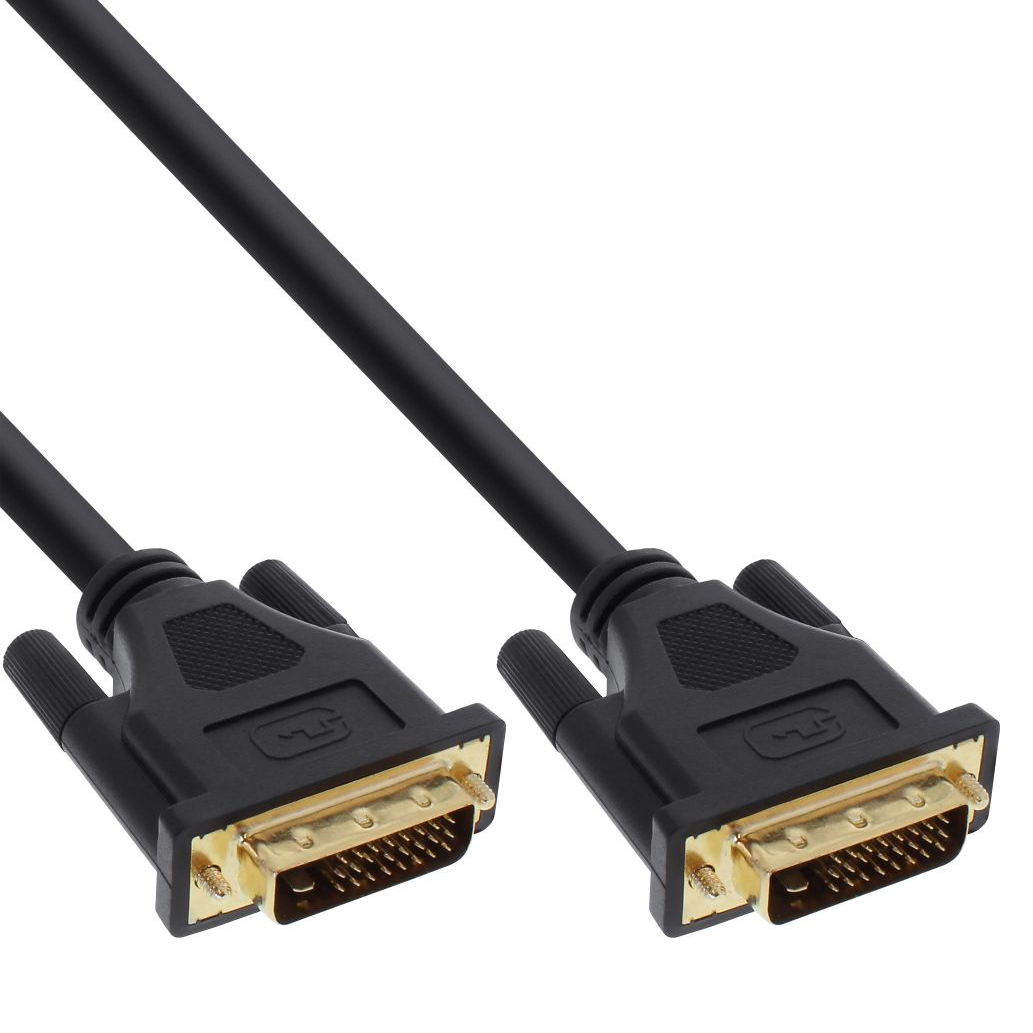

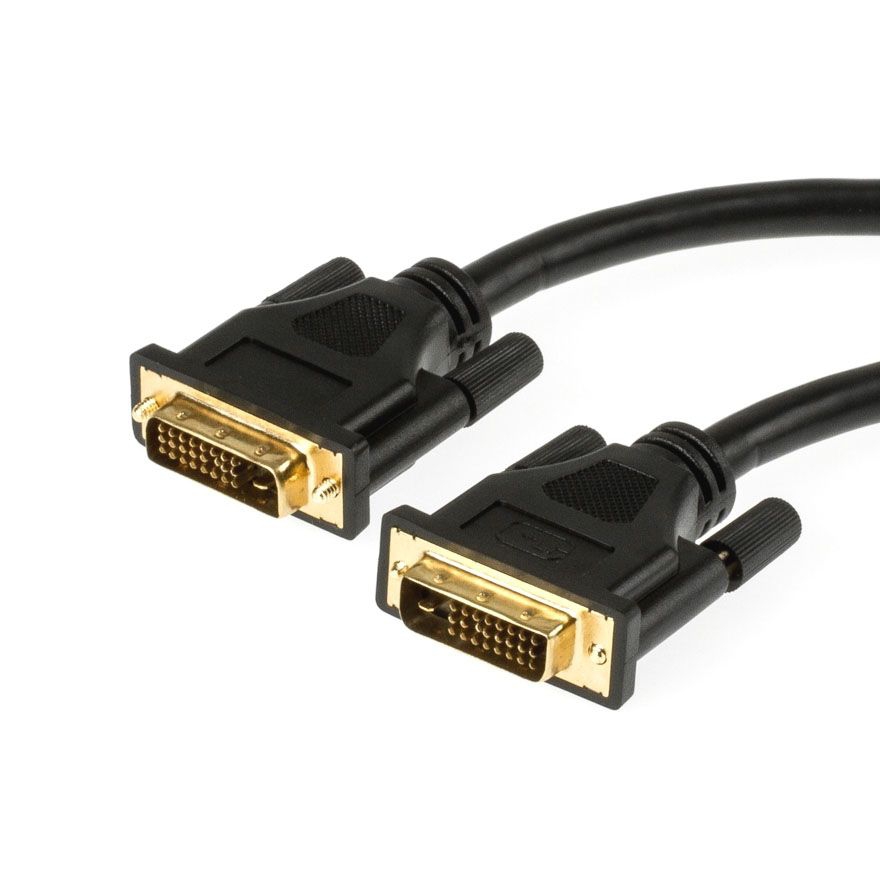

DVI cable DVI-D DUAL-LINK 24+1 3m BLACK

INLINE

€14.28*

45 in stock

PDF-Datasheet

Item no. CD-DD-030-BK

DVI monitor cable, DVI-D DUAL LINK, only digital, 24+1 on both ends, 3m, colour: black

Technical details

DVI connection cable male/male
Length: 3 metres | 3m

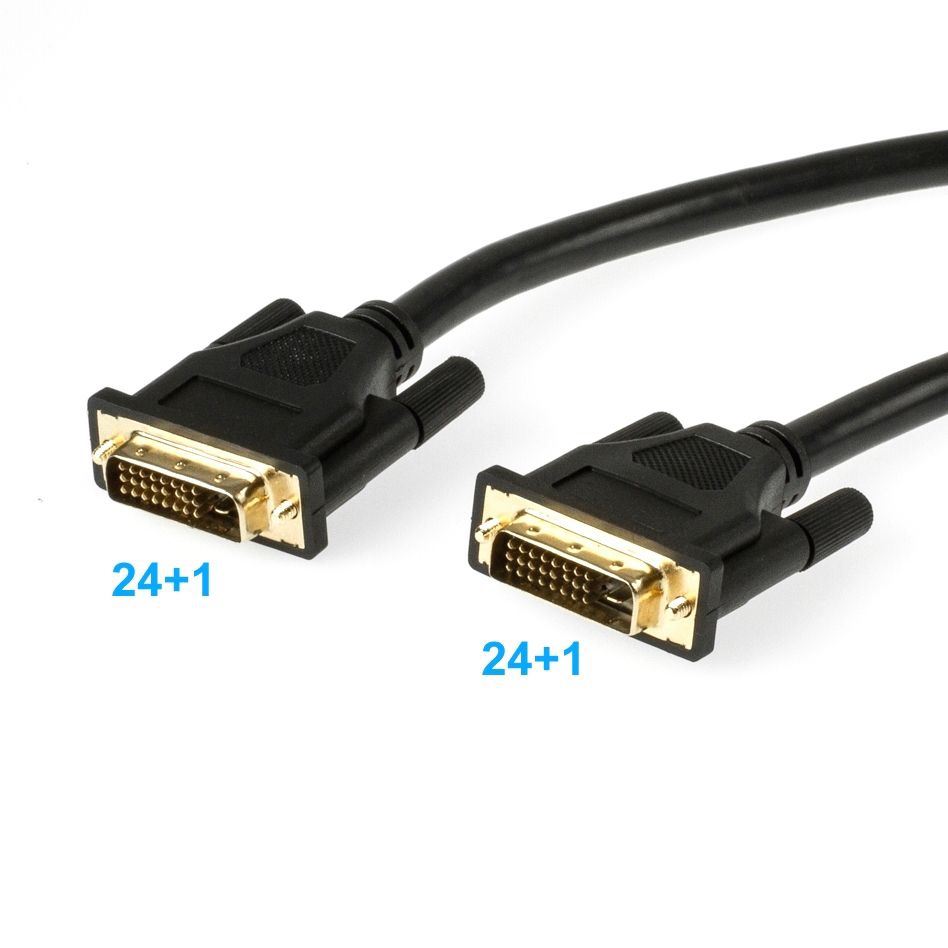

Type 24+1 connector on both sides (24 pin contacts + one flat contact)
DVI-D cable DUAL LINK for purely digital video transmission
PREMIUM quality
Double shielded with AL foil and braided shield for best EMC values
Gold-plated contacts with high conductivity for optimum transfer of even fine (low-level) signals
High-end UL 20276 cable material, e.g. E324703 or E119932
Ideal for all DVI connections incl. HDTV, set-top boxes, etc.
transmits the full bandwidth, uncompressed, and reproduces the digital signal on the HD display
supports hot-plug of the display
Single-link bandwidth from 165Mhz (4.95GBit/s) to dual-link 340Mhz (10.2GBit/s) are supported
Supports HD 1080i resolutions
Moulded connectors with moulded strain relief
Cable outer diameter: approx. 8.6mm
Customs tariff number 85444290, Made in PRC
Colour: black
Weight: 215gr (without packaging)
CE, WEEE, RoHS compliant (complies with EU environmental protection standard)
