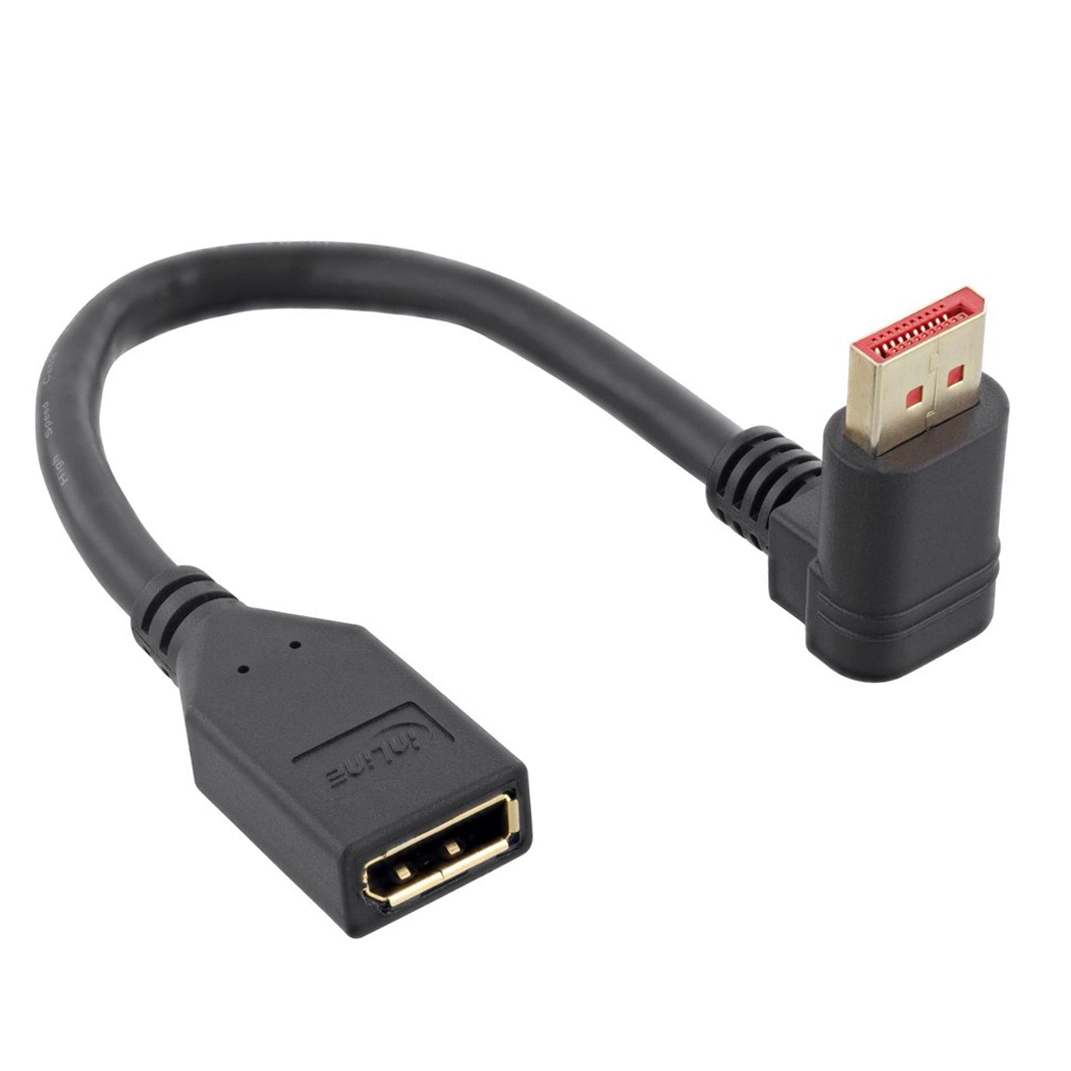

DisplayPort™ extension, 90° ANGLED UP plug, 15cm

DR. ZELLMER

€8.96*

10 in stock

PDF-Datasheet

Item no. DP-XUP-015

DisplayPort™ extension with 90° ANGLED UP plug, 8K4K, DisplayPort™ 1.4 specification, male/female, gold-plated contacts, length approx. 15cm

Key features

short and angled DisplayPort™ extension cable
PREMIUM Quality
DisplayPort™ male to DisplayPort™ female (20pin connectors)
SPECIAL FEATURE: DisplayPort™ plug angled UP 90°
space-saving adapter solution
suitable for very high resolutions: 8K4K
therefore very universally applicable
Displayport™ 1.4 specification
length approx. 15cm
gold-plated contacts
plug also gold-plated on the outside
triple shielding (foil shielding and braided shielding)
delivery includes 1 protective cap on the DisplayPort™ plug
colour: black, contact carrier: red
digital transmission of audio and video signals
CE, WEEE, RoHS compliant: 2015/863/EG as well as 2011/65/EG (RoHS III)

Supported resolutions

UHD-II/FUHD 7680x4320 (8K4K) @30Hz RGB/4:4:4 and @60Hz RGB/4:2:0 or DSC
UHD 3840x2160 @120Hz RGB/4:4:4 8bit HDR OFF
UHD 3840x2160 @120Hz RGB/4:2:2 12bit HDR ON
UHD 3840x2160 @60Hz RGB/4:4:4 12bit HDR ON
FullHD 1920x1080
HD 1280x720
