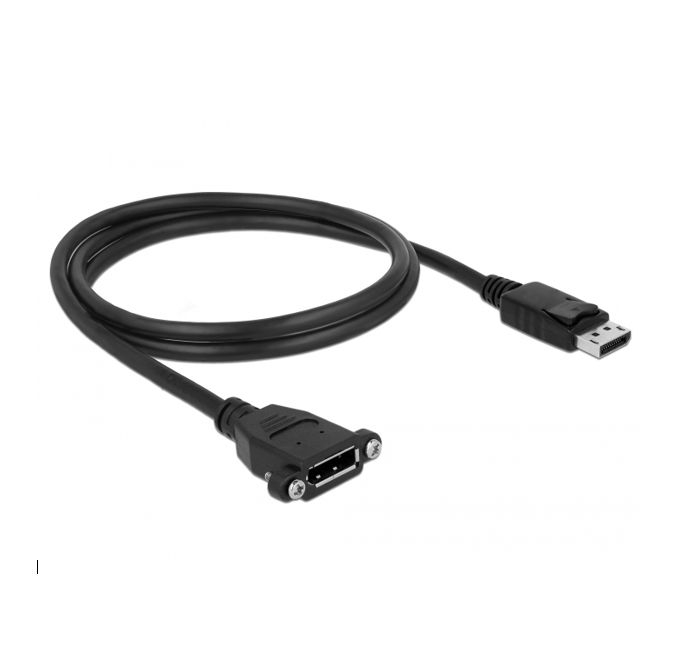

DisplayPort panel mount cable, DP female with screws to DP male, 1m
























DisplayPort panel mount cable, 1m, DisplayPort female with screws to DisplayPort male, Displayport 1.2 compatible, 4K 60Hz, screw spacing 27 mm
Key features
- DisplayPort™ Panel Mount cable

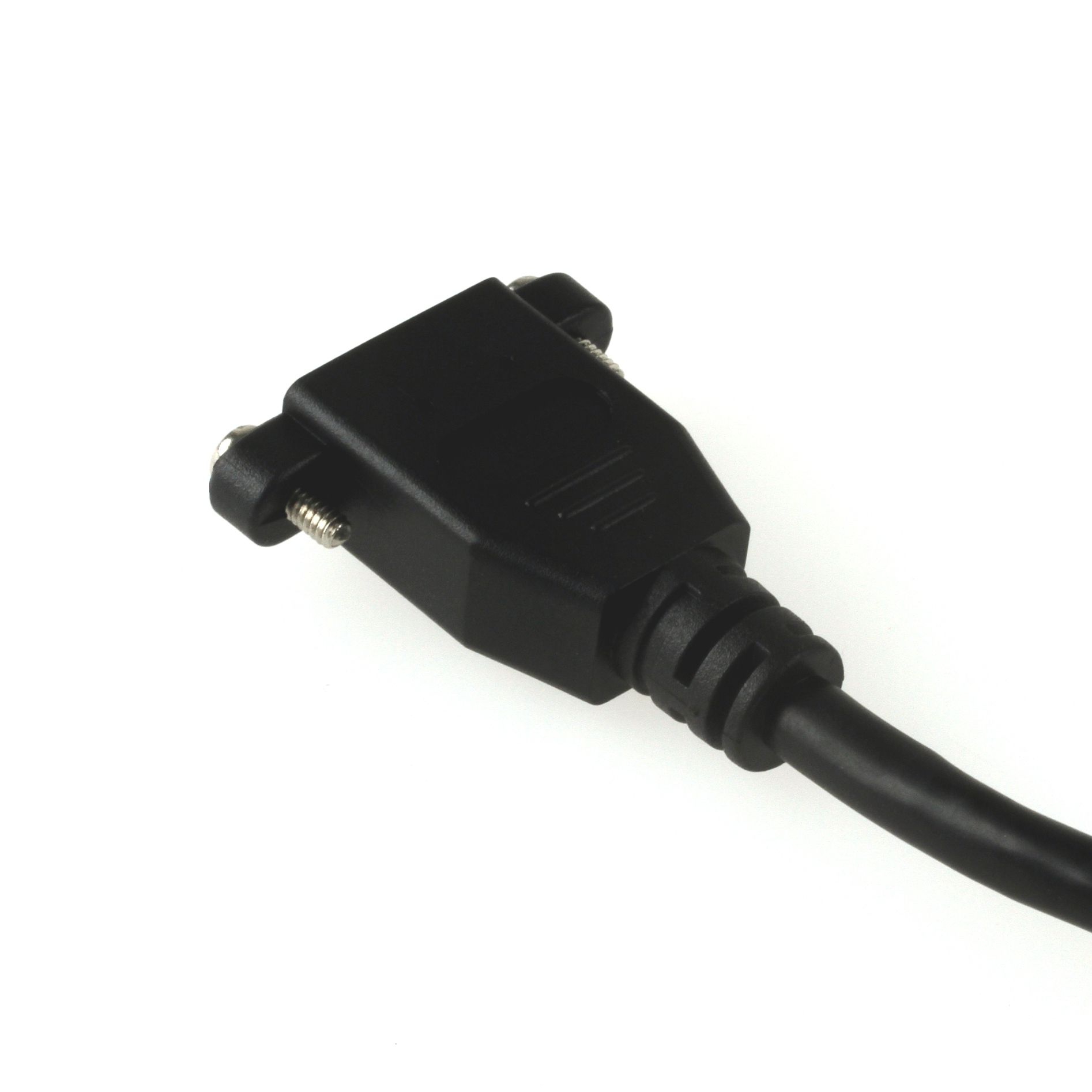

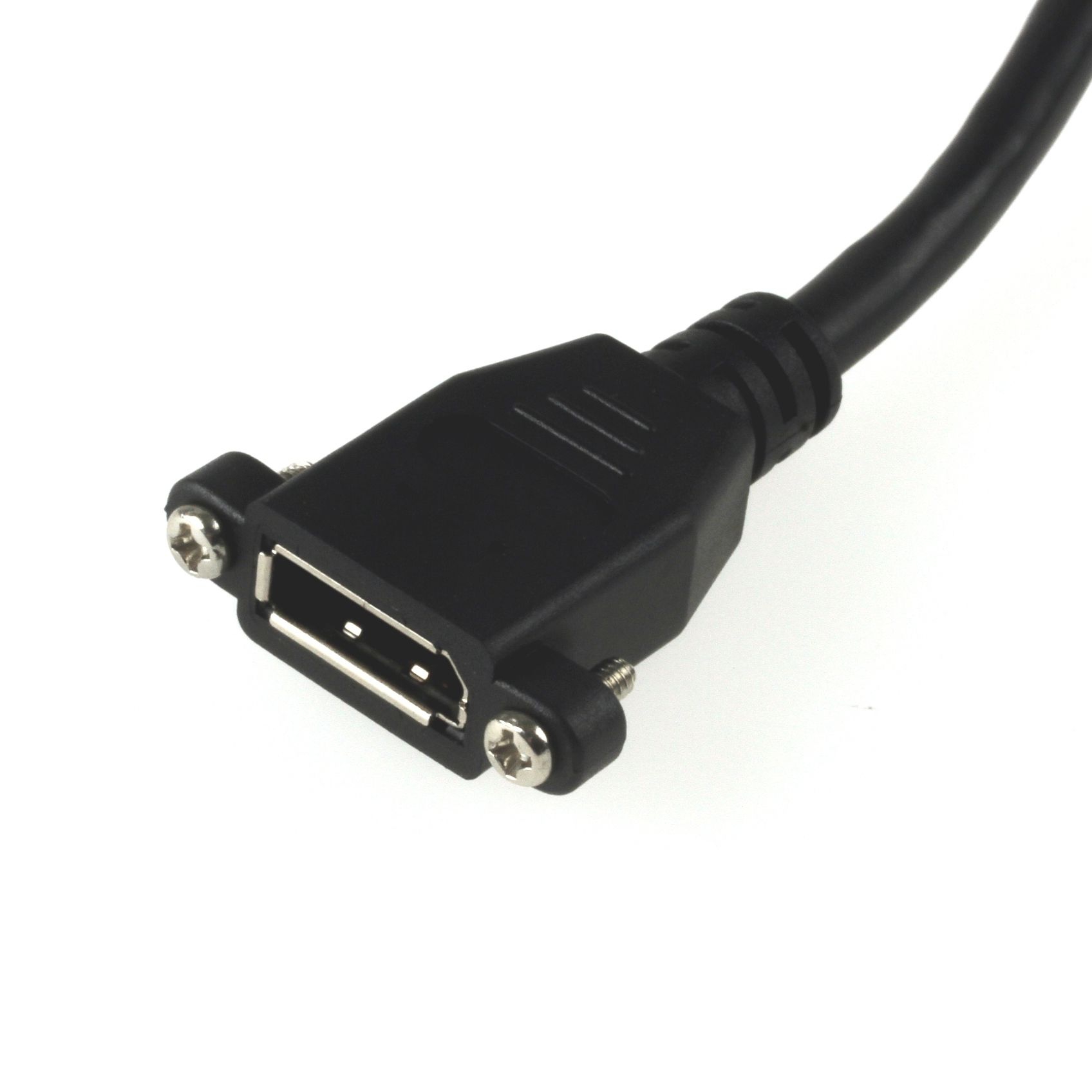

- 1x DisplayPort™ Socket, screw-on (20 pin, female)

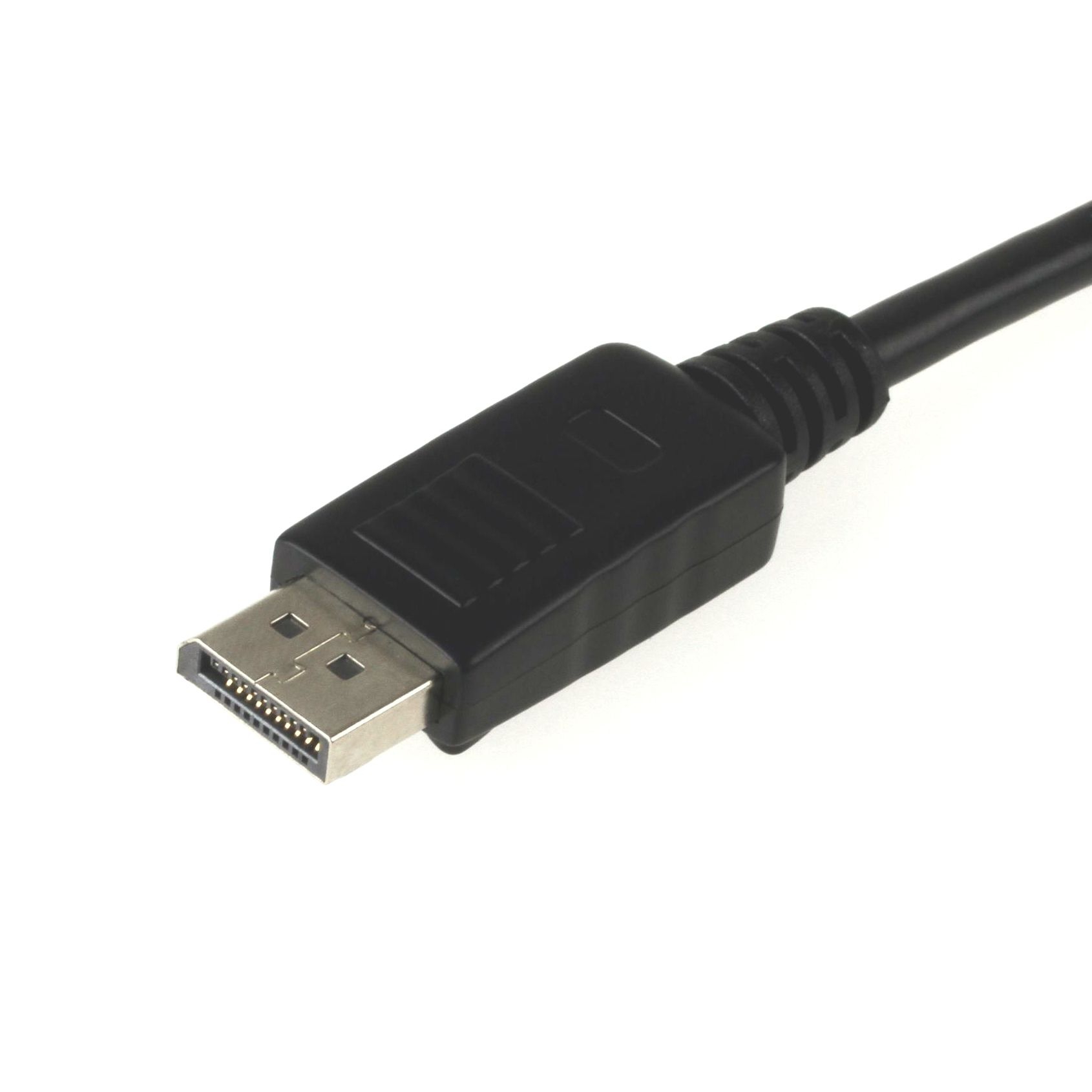

- 1x DisplayPort™ Plug (20 Pin, male) with lock
- 2 screws included (pre-assembled)
- screw distance approx. 27mm
- Screw type UNC 4/40
- RoHS 2011/65/EU compliant
- Length 1 meter | 1m
- compatible to DisplayPort 1.2 specification
- Colour: black
- Cable material: DisplayPort Cable E342987 UL AWM STYLE 20276 80°C 30V VW-1
- Wire gauge: 30 AWG
- Cable diameter approx. 6mm
- Data transfer rate up to 21.6 Gb/s
- Rack Mount / Panel Mount DisplayPort Cable

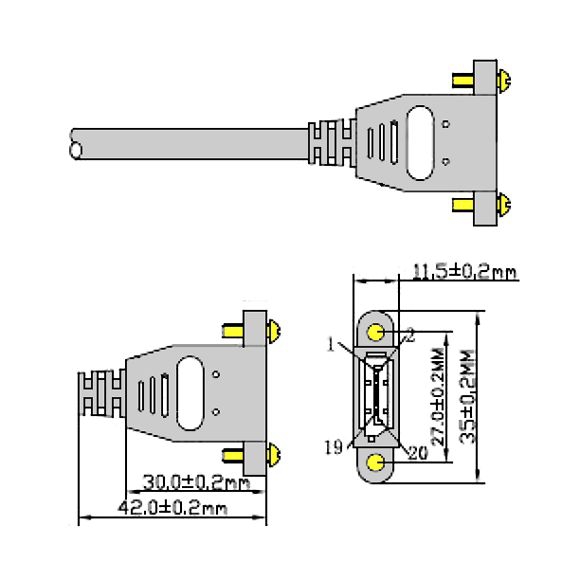

- Installation opening: approx. 18 x 7 mm, bore approx. 27 mm Hole spacing

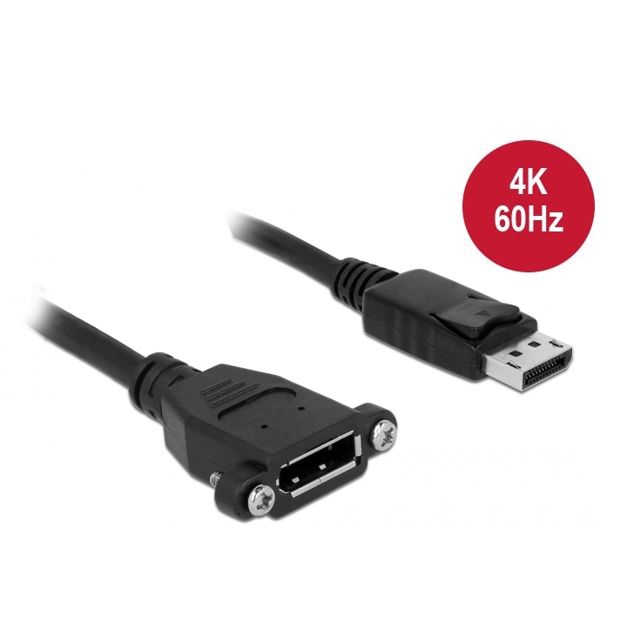

- Resolution up to 3840 x 2160 @ 60 Hz (depending on system and connected hardware)
- Tariff No. for DisplayPort cable: 85444290
- Weight: 61gr
