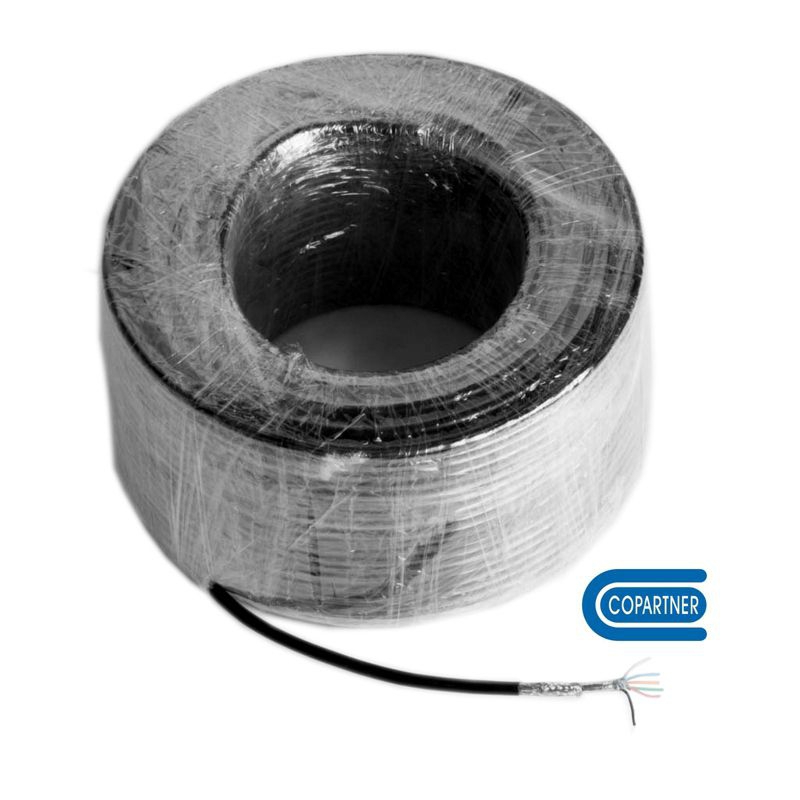

Firewire 400 cable material on reel 100m black
€236.81*
The product is currently not available. We will be happy to notify you by email when the product is back in stock.
Firewire cable material, cable on reel 100m (without plugs), for the production Firewire cables IEEE-1394a (4 or 6 pin), UL, diameter 5.4mm, color: black
Not available via the shop / Minimum order quantity: 30 rolls (3 km) / Delivery time: approx. 6 months
TIP: Our 10 m CF-66W-100-BK cable uses the same COPARTNER cable material.
Key features

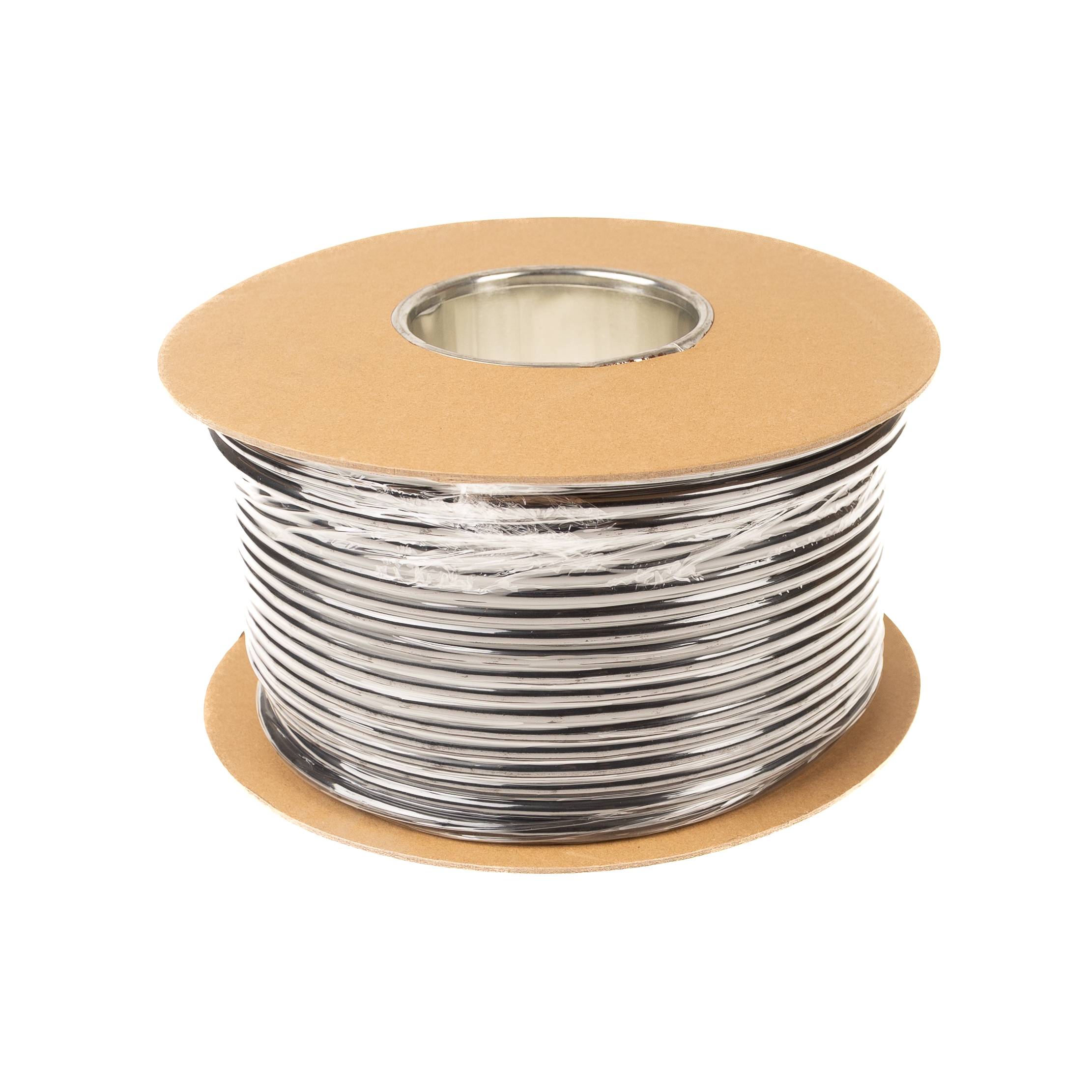

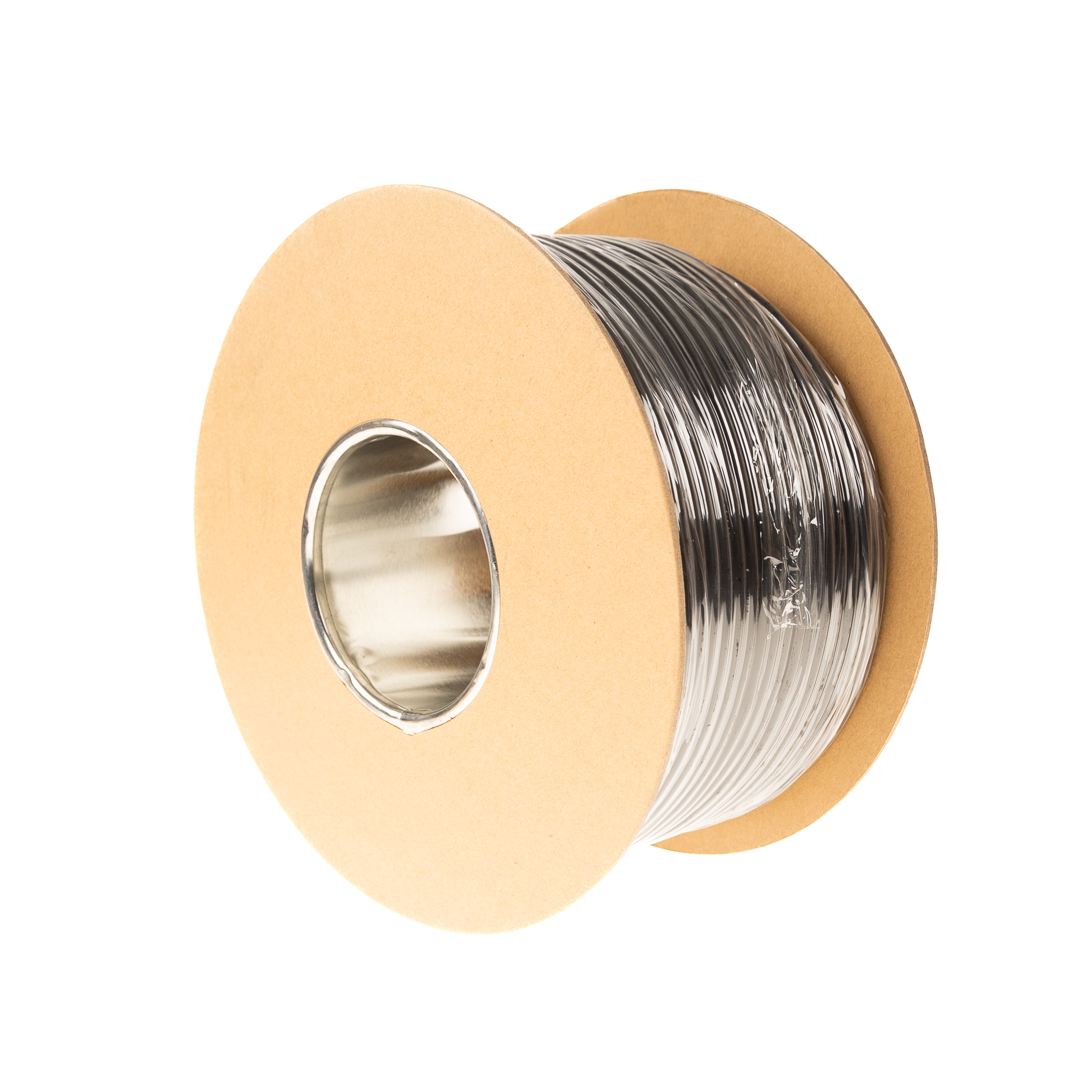

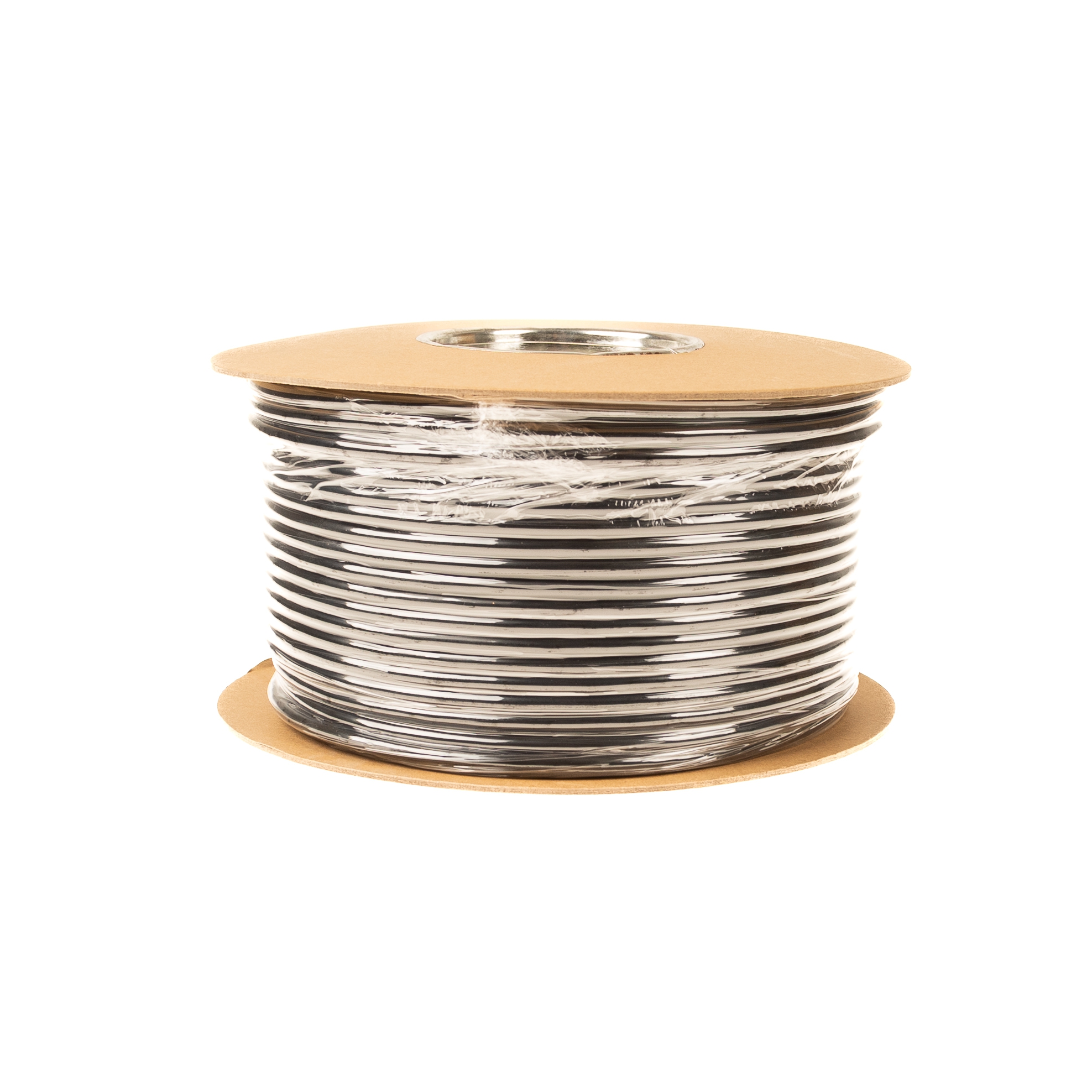

- 100m roll of Firewire cable material (without connector)
- IEEE 1394a / Firewire 400
- for the assembly of Firewire cables with 6-pin connector or 4-pin connector

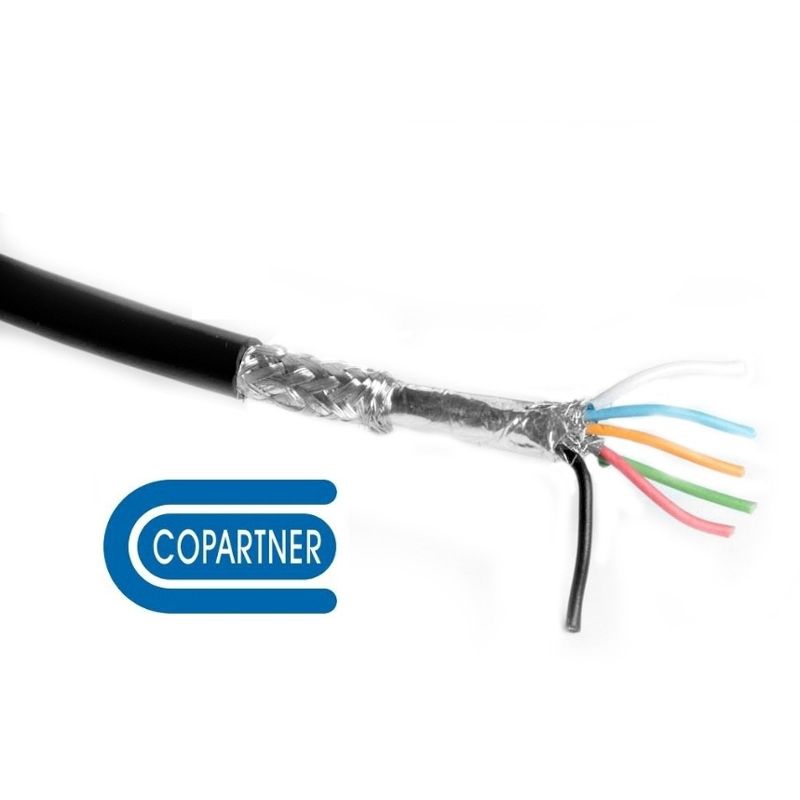

- cable manufacturer: Copartner Technology Corporation

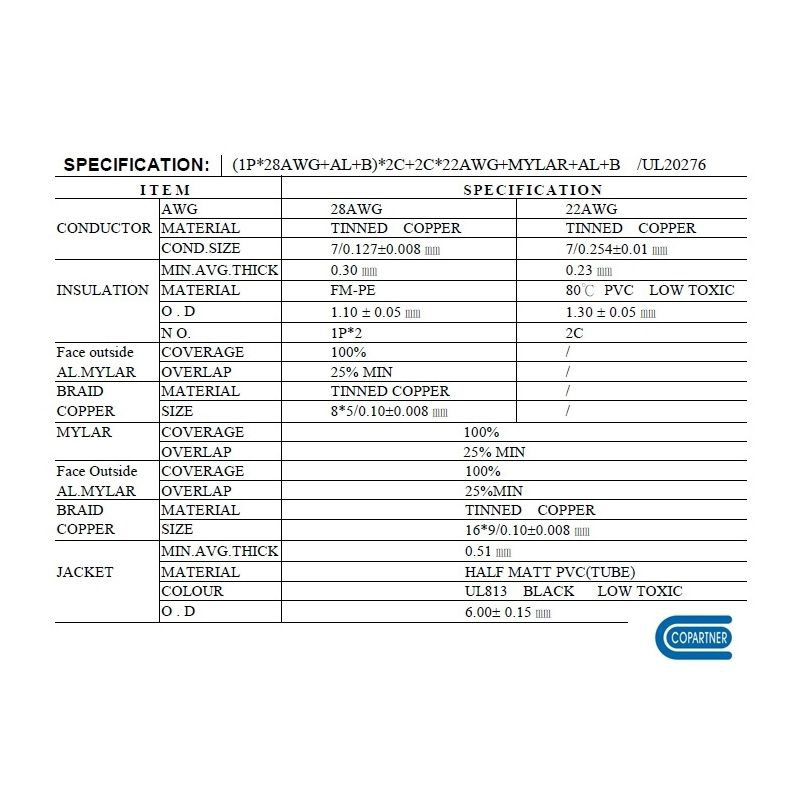

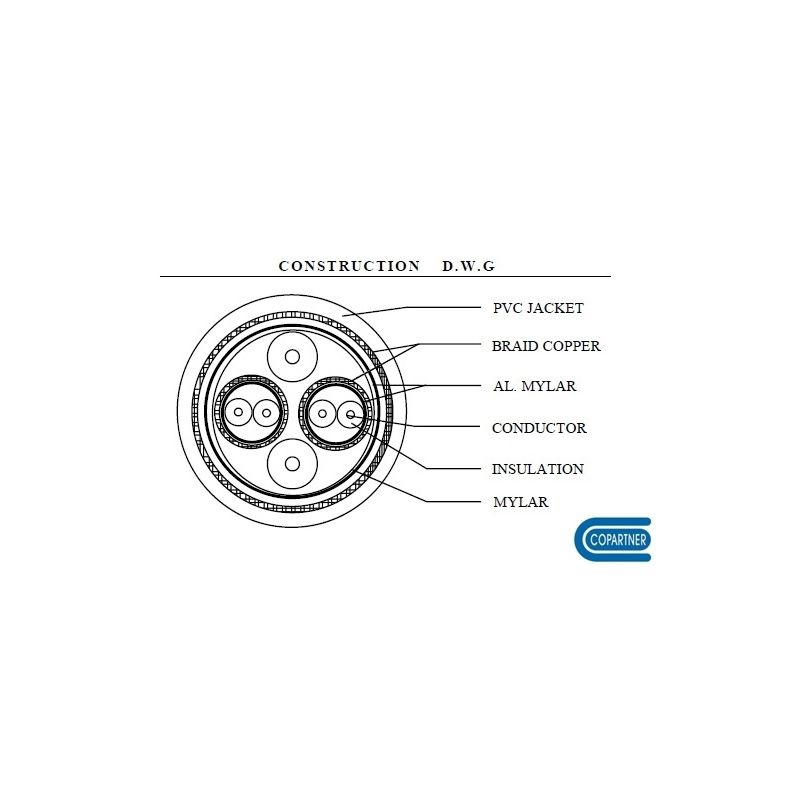

- spezifikation: (1P*28AWG+AL+B)*2C+2C*22AWG+MYLAR+AL+B /UL20276
- UL cable material / labelling e.g.: E119932 AWM 20276 80°C 30V VW-1 COPARTNER
- stranded copper (tinned copper) with 28 AWG and 22 AWG (i.e. thicker BusPower cables)
- outer diameter 6.00 plus/minus 0.15 mm
- outer jacket PVC semi matt
- colour: black

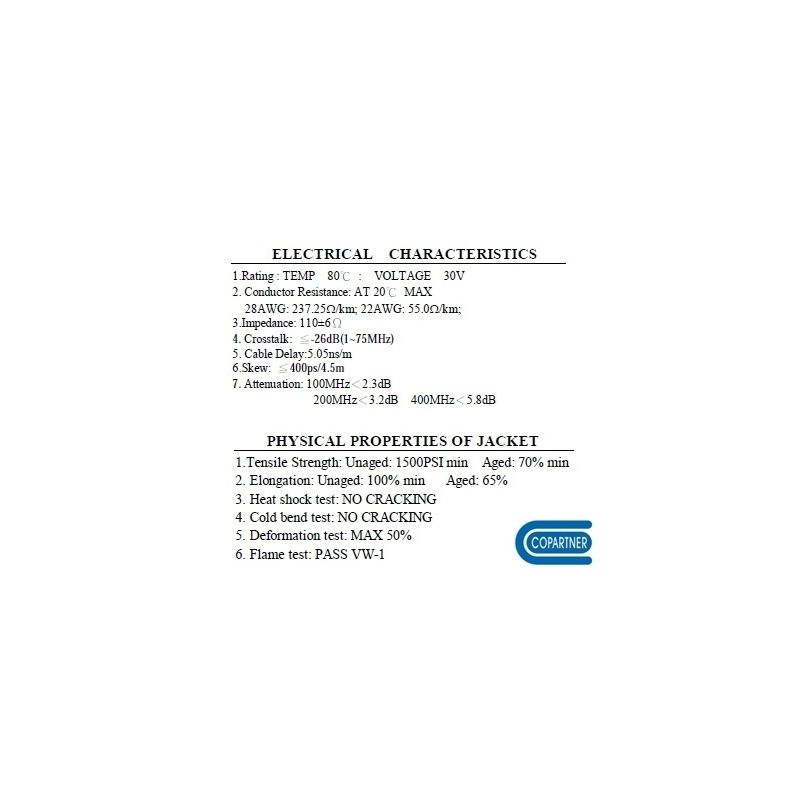

- further technical data see pictures
- link to the manufacturer's website: https://www.copartner.com.tw (external link)
- weight of the roll (without packaging): 5.5kg

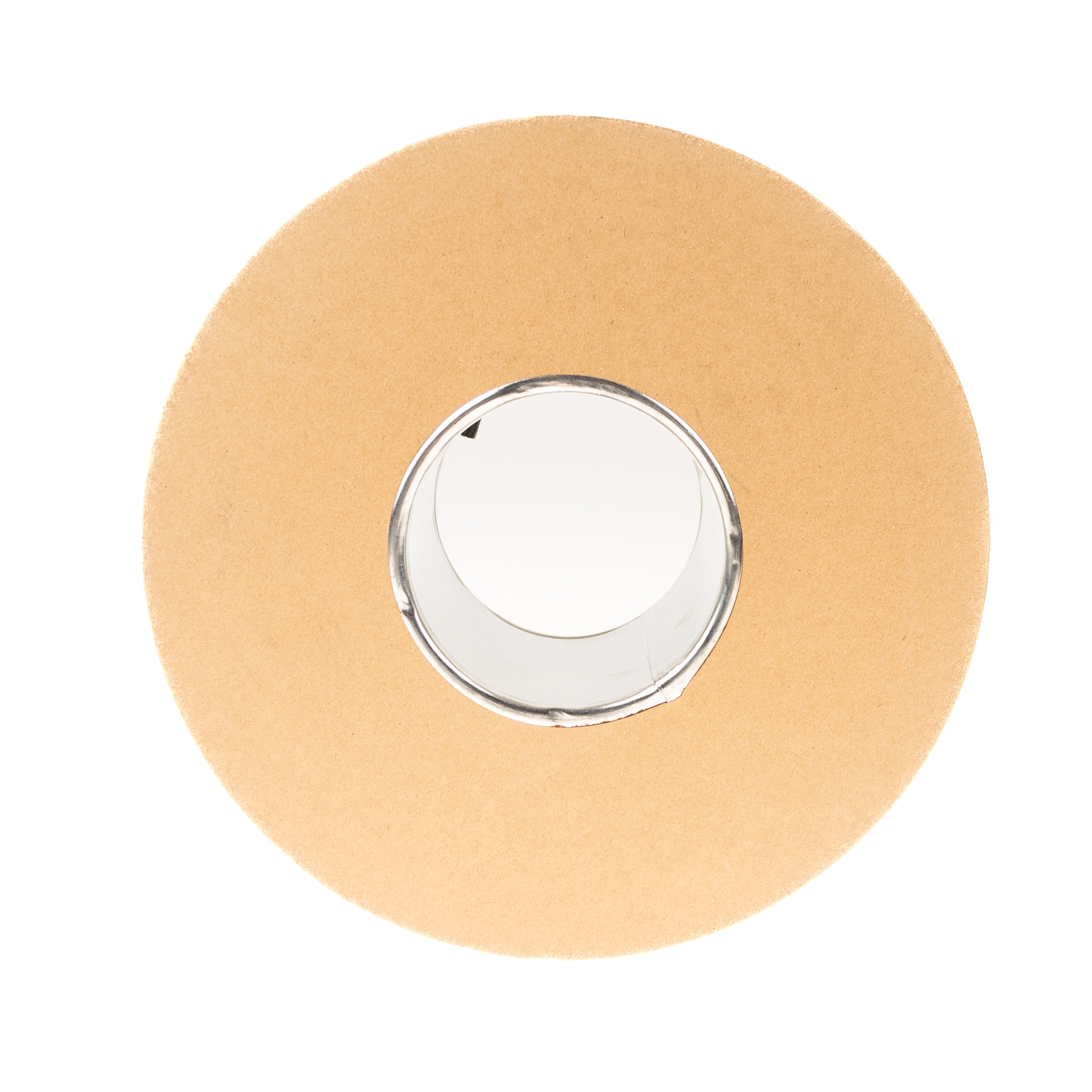

- usually supplied on a transport-friendly cardboard reel with metal core
- CE, RoHS compliant
