Firewire 400 plug 6-pin solder type

DR. ZELLMER

€1.70*

137 in stock

PDF-Datasheet

Item no. Y-F6

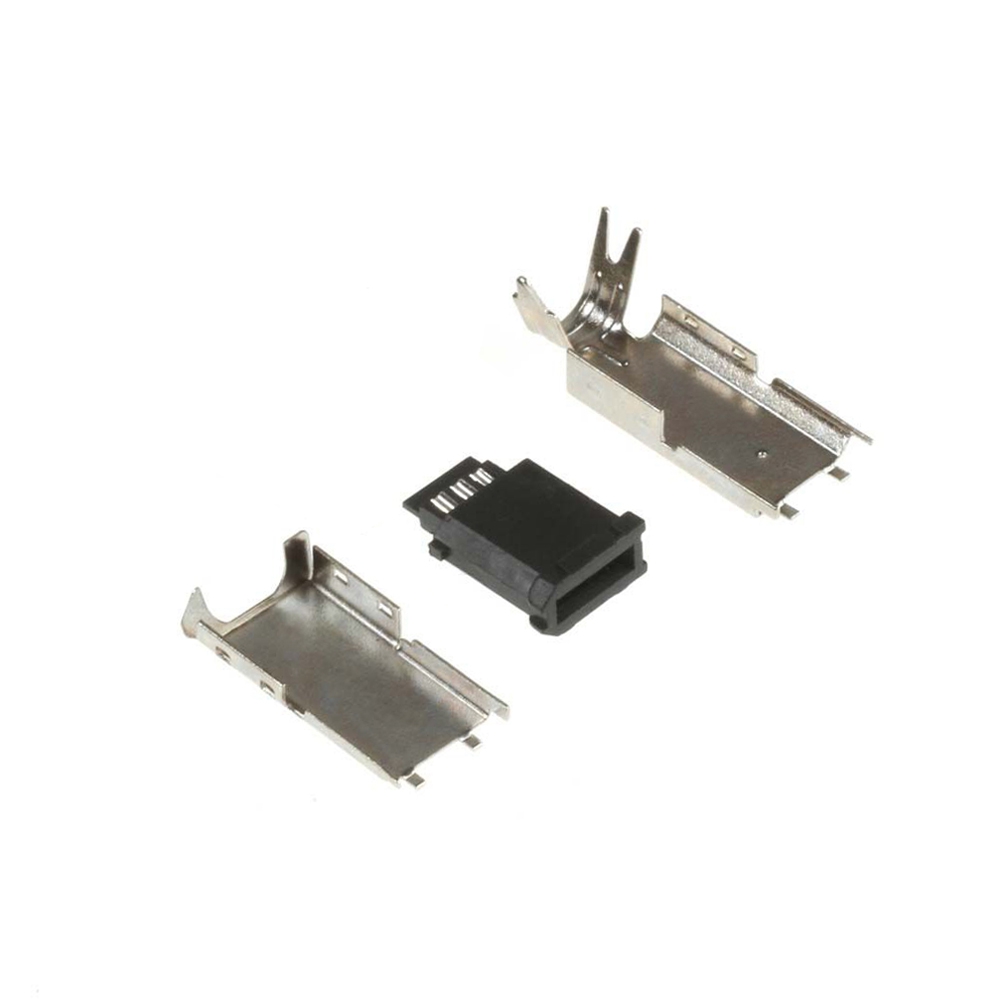

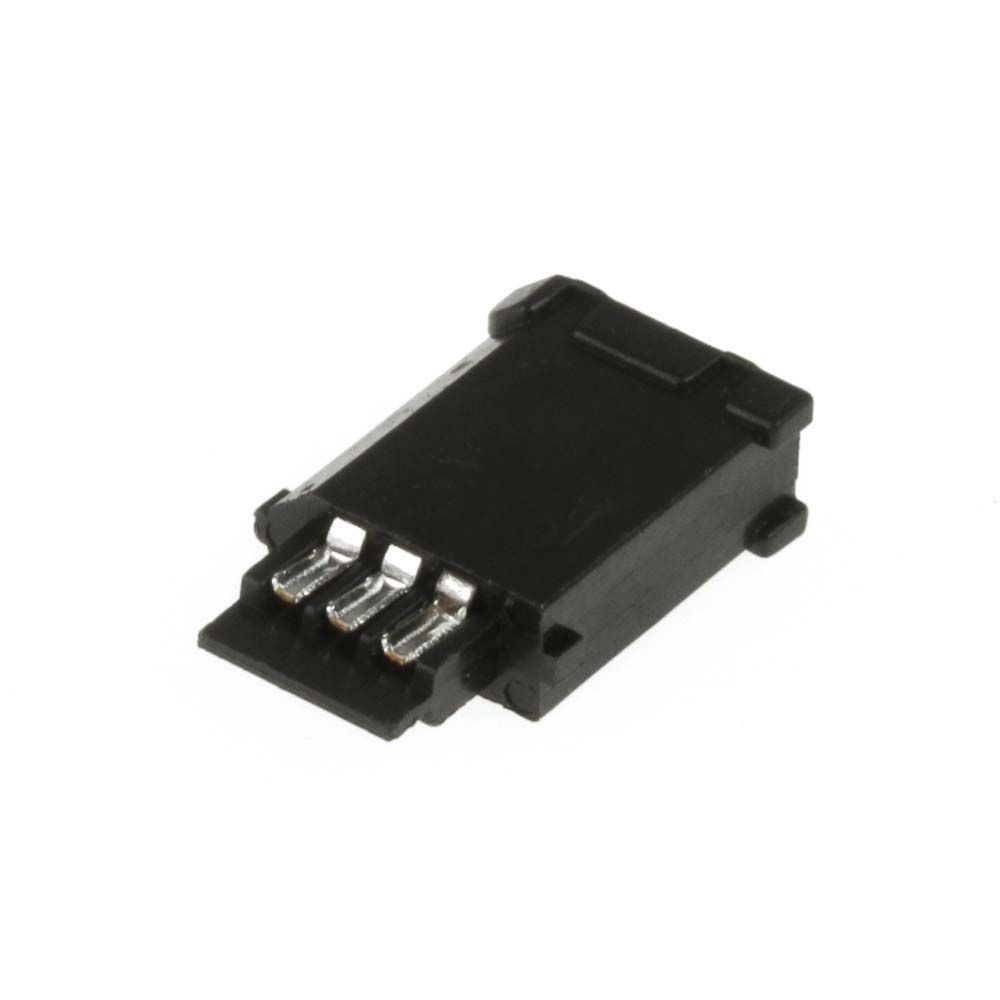

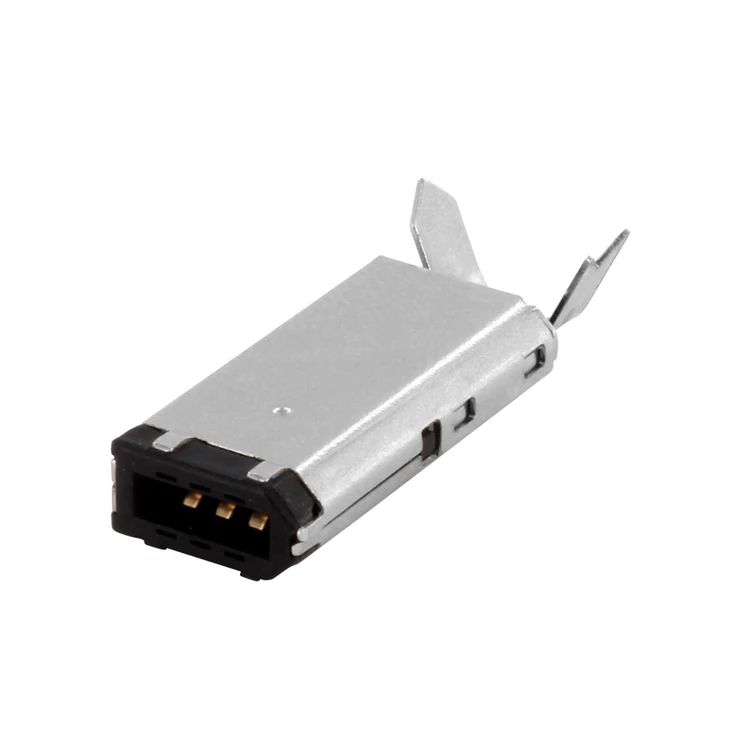

Firewire 400 plug solder, 6 pin male version, for IEEE1394a / Firewire 400, type: male (without hood)

Key features

6-pin connector for Firewire 400
IEEE1394a compatible
version for soldering
solder connector pre-tinned
gold plated contacts
with lugs for strain relief
tariff number for firewire connectors: 85366990 (connectors for voltage less/equal 1000 V)
Delivery without hood (hoods are no longer available, use heat shrink tubing if necessary)
Weight: 0,00324 kg
Made in PRC
CE, RoHS compliant

Details

Operating Current (Nom.): 1 A
Operating Temperature: -40°C to 70°C
Insulation Resistance (Min.): 100 MΩ
Contact Resistance (Max.): 30 mΩ
Dielectric Strength: 500 Vac
Insertion Force (Max.): 15 N
Extraction Force: 9,8 N
Material (Terminal): brass, tin plated
Material (Housing): steel, nickel plated
Flammability Class: UL 94 V-0
Material (Insulation): PBT
Material (Contact Area): brass, gold plated
