NULL Modem cable 2x DB9 female with Cross Over Pinout 2m

INLINE

€5.95*

12 in stock

PDF-Datasheet

Item no. CNULL-100

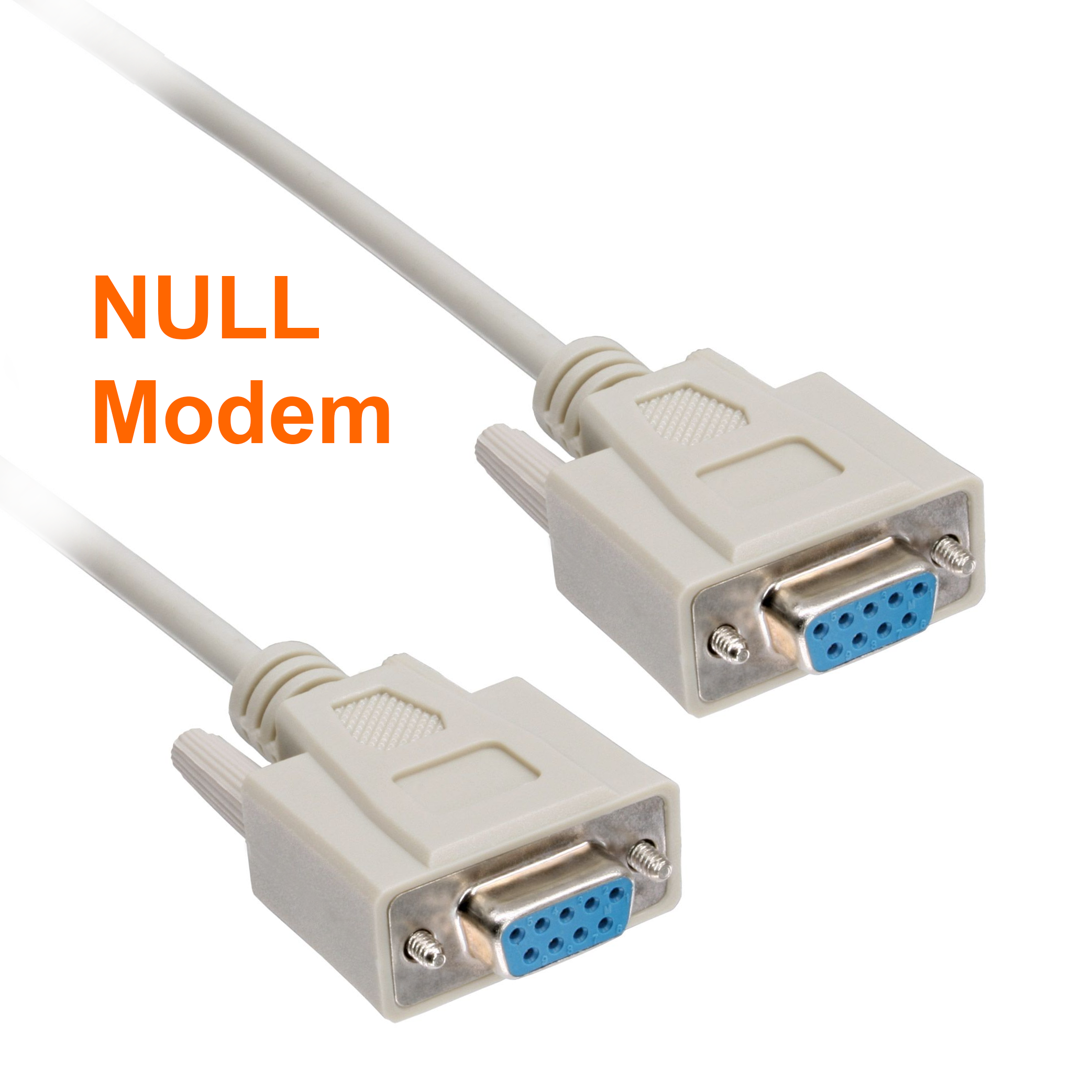

NULL Modem cable, 2m, DB9 female to DB9 female, serial/RS232,pinout: 1-7+8, 2-3, 3-2, 4-6, 5-5, 6-4, 7+8-1, shell-shell, grey

Key Features

NULL MODEM cable
DB9 female to DB9 female
molded plugs with strain-relief

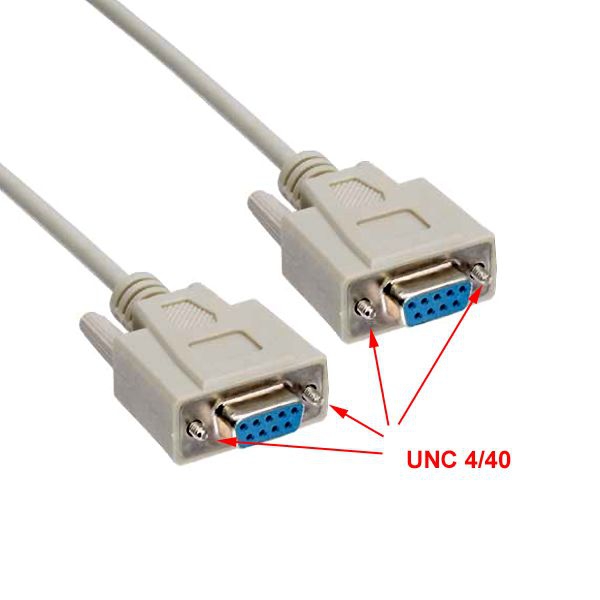

molded thumbscrews UNC4-40 slotted
shielded (aluminue foil)
flash gold on contacts

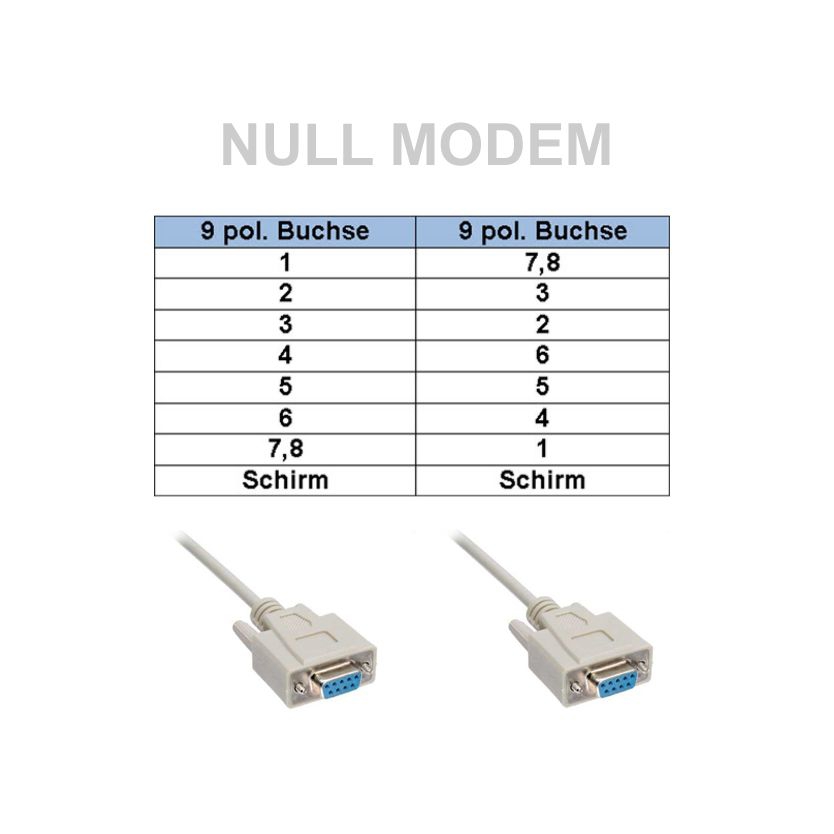

pinout: 1-7+8, 2-3, 3-2, 4-6, 5-5, 6-4, 7+8-1, shield-shield
colour: grey/beige
CE, WEEE, RoHS compliant
