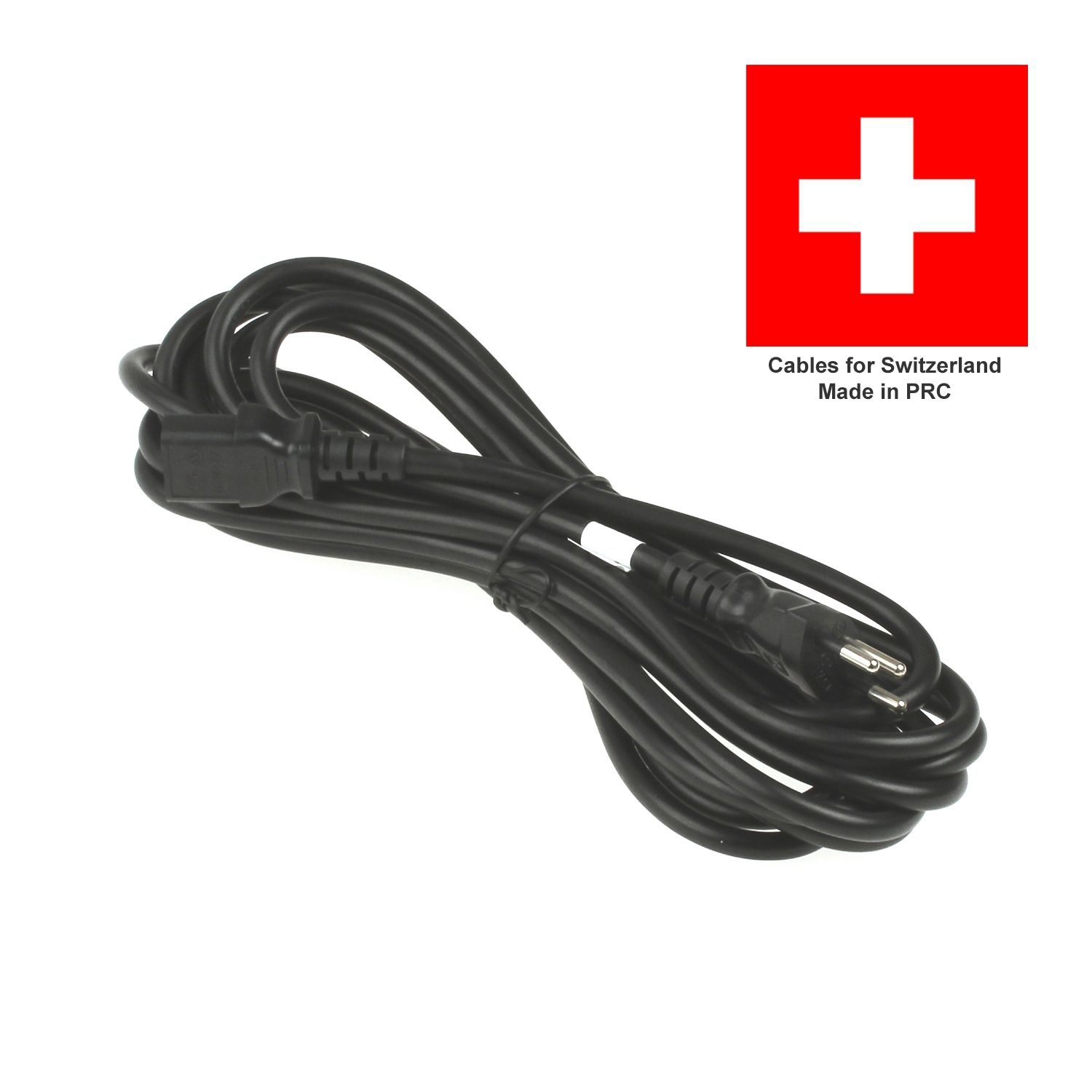

Power cord for Switzerland, 220V, S.E.V., 3m, black, RoHS compliant (power cable with C13 plug), H05VV-F
Key Features
- Power cord Swiss / Mains Cable Switzerland (CHE)
- for Switzerland, Liechtenstein and Rwanda

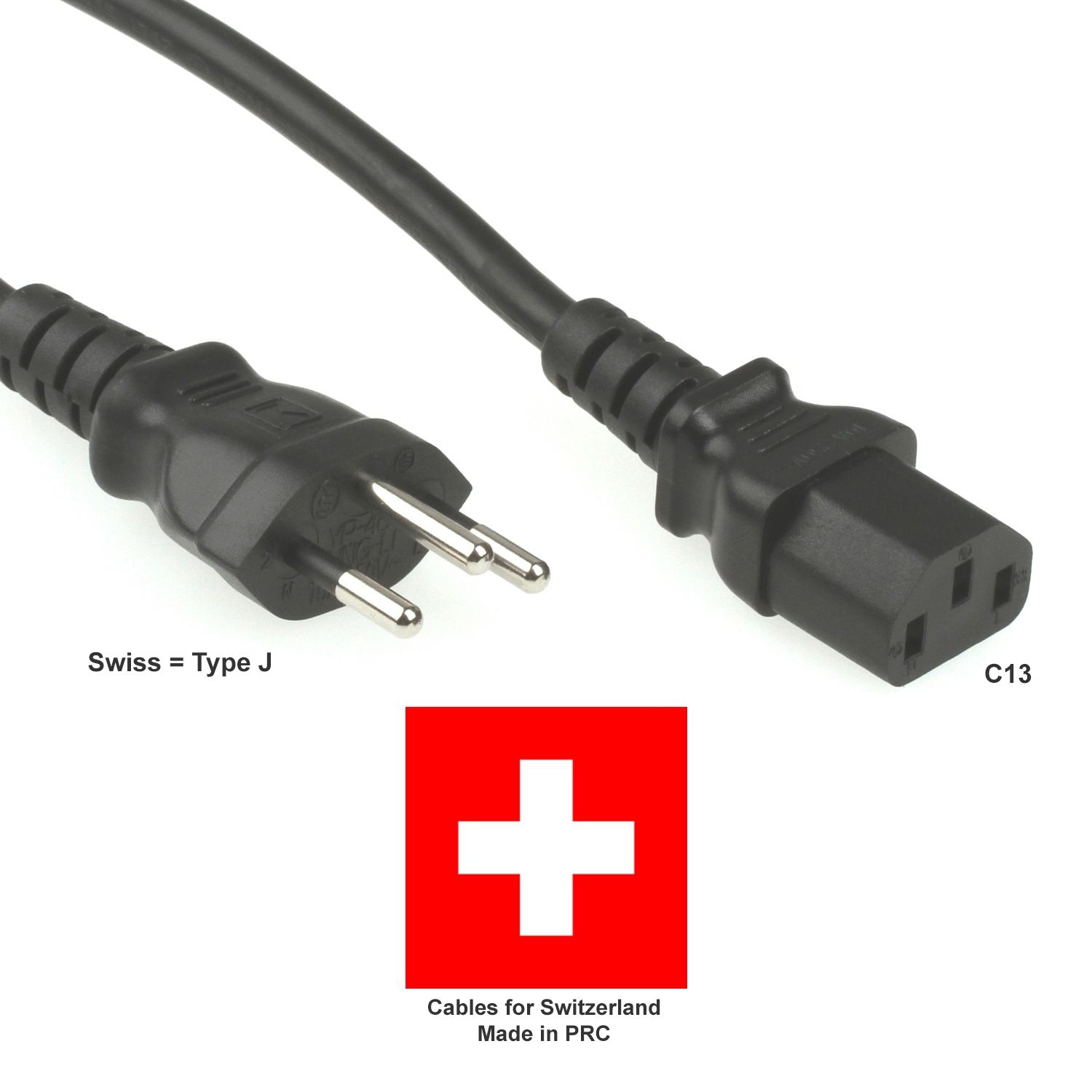

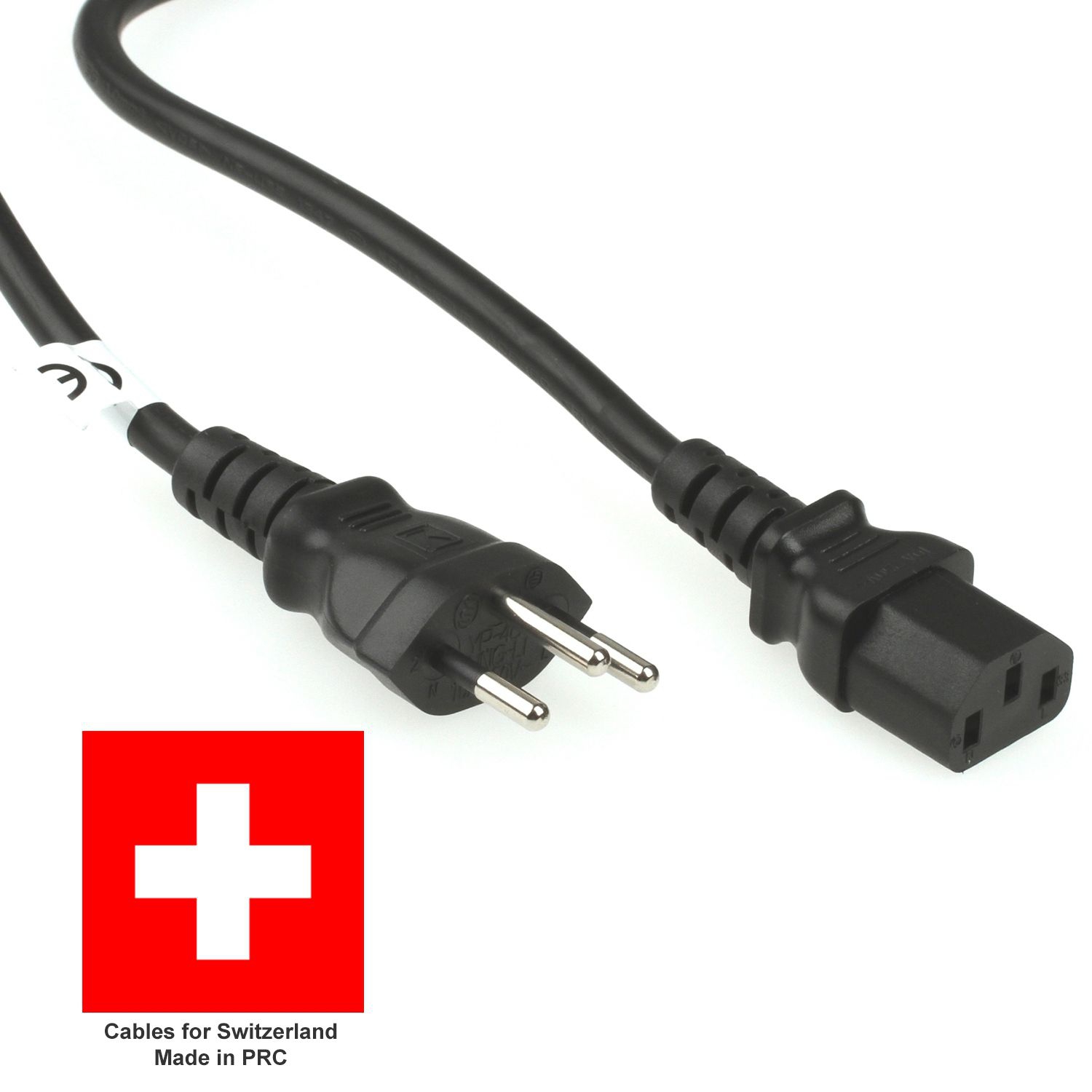

- Connectors: Type J (3pin part insulated) to C13
- Length: 3m
- X section: 3 x 1mm²
- Material: H05VV-F
- Approval: SEV
- RoHS compliant

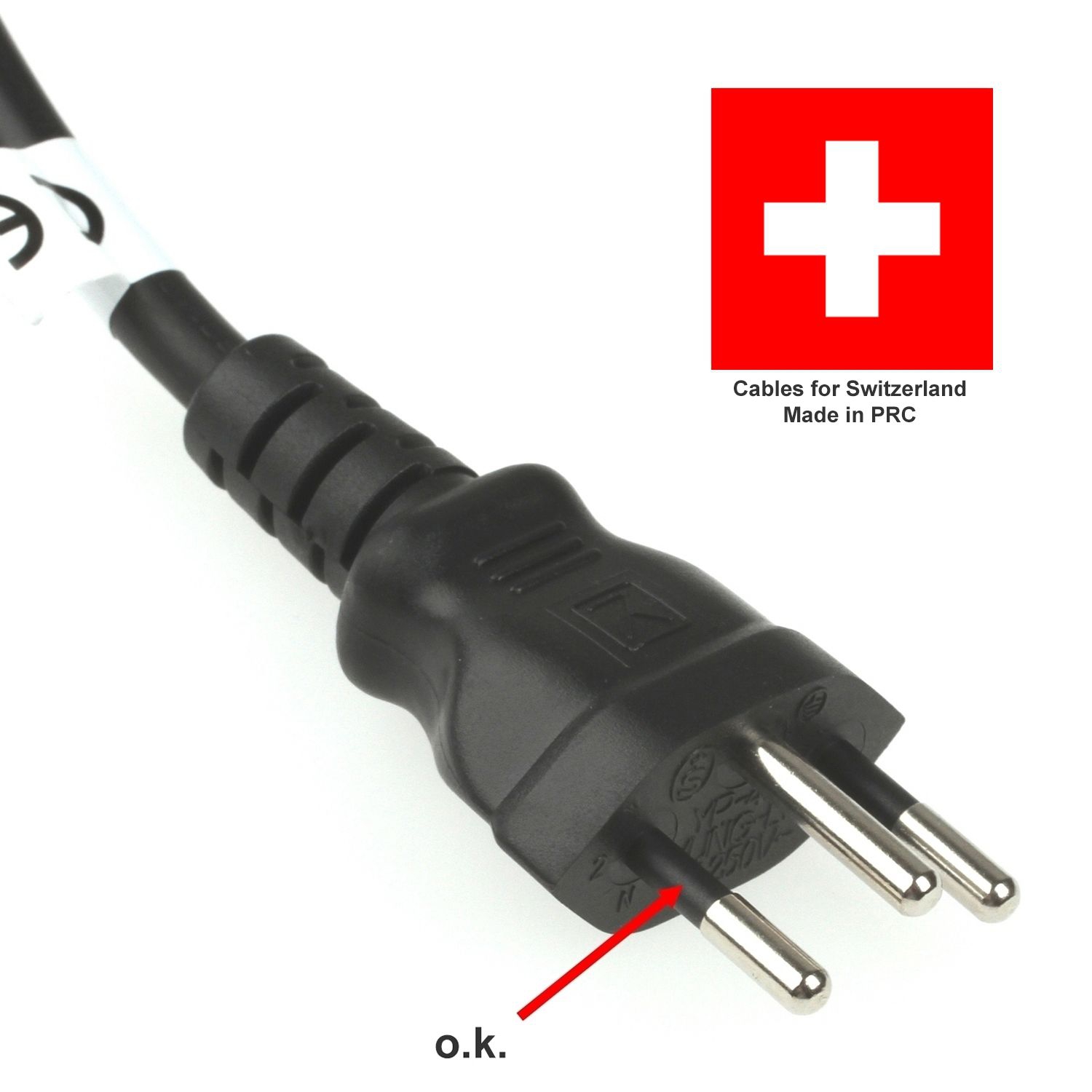

In 2012 Switzerland introduced safety plugs which will be compulsory from 2016. It is now required that the L & N pin are partially insulated to protect from electric shocks. The manufacture and import of the non-protected connectors has been banned since 2012. From 01.01.2016 the use of non-protected plugs will be illegal.

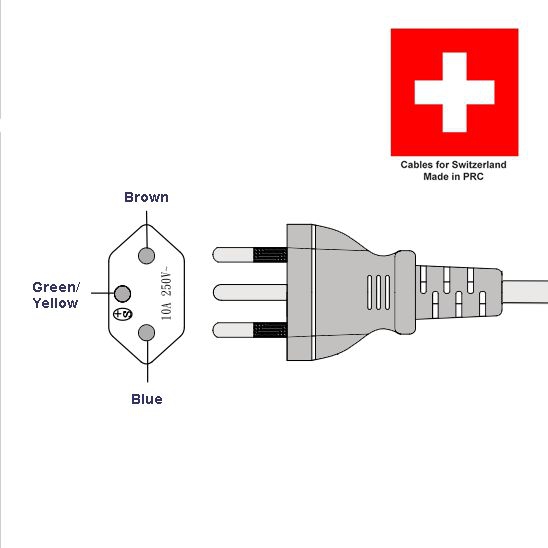

The Swiss standard SN SEV 1011:2009 type 12 is rated at 10A. It is similar to the Brazilian type N but is not compatible as the earth pin is set at a different position.

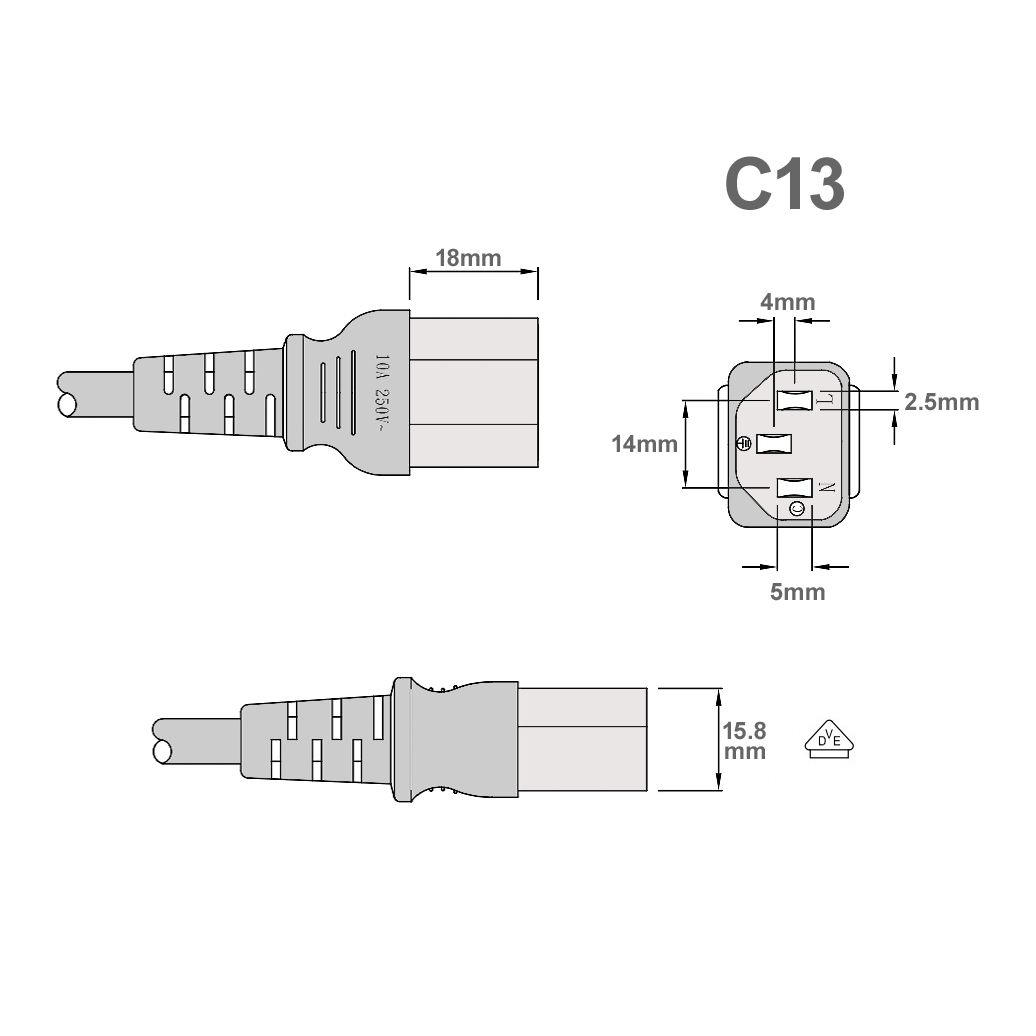

The appliance coupler IEC 60320-C13 is used to connect equipment that doesn't produce excessive heat when in use. The maximum pin temperature should not exceed 70°C and the maximum current is 10A.
