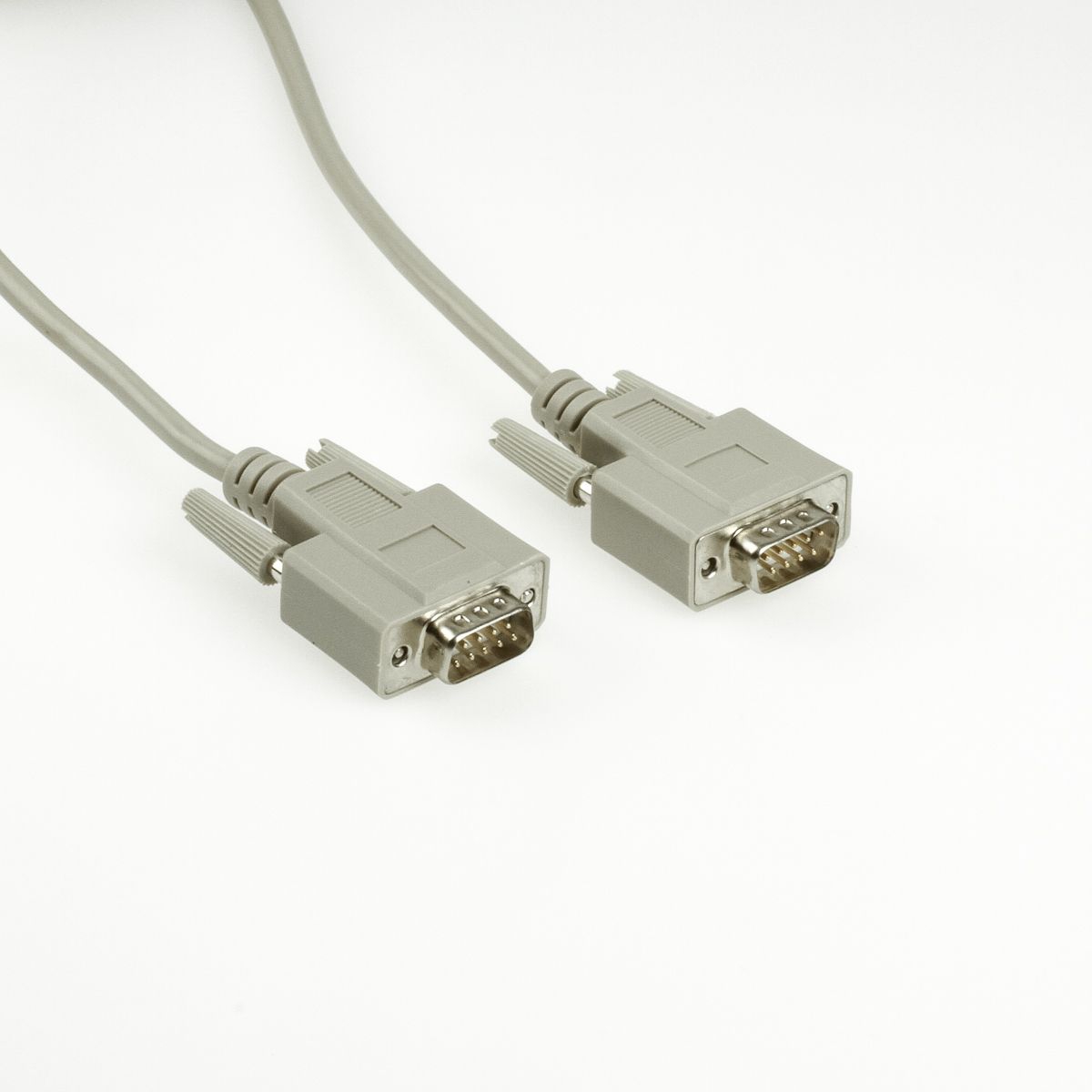

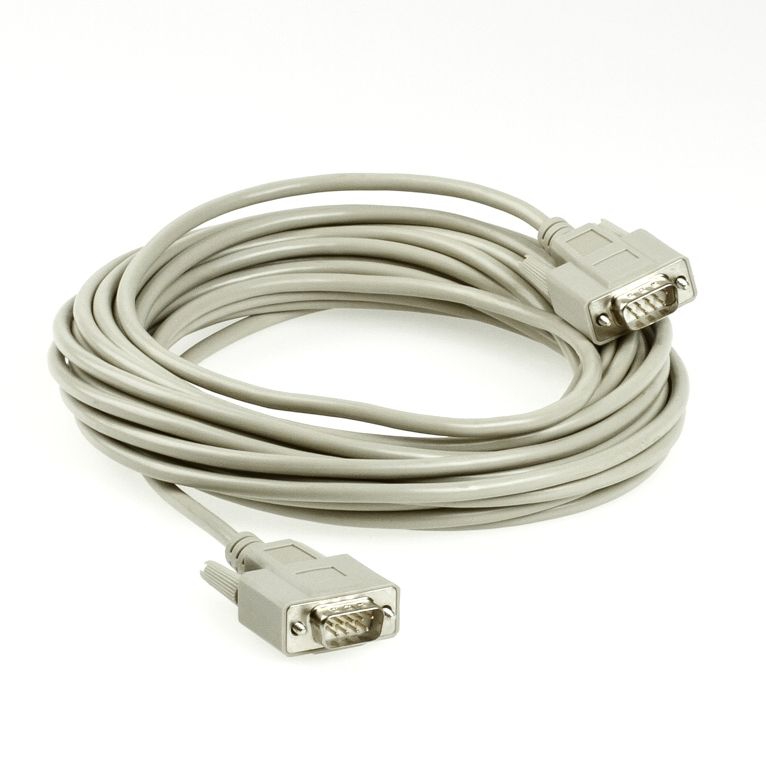

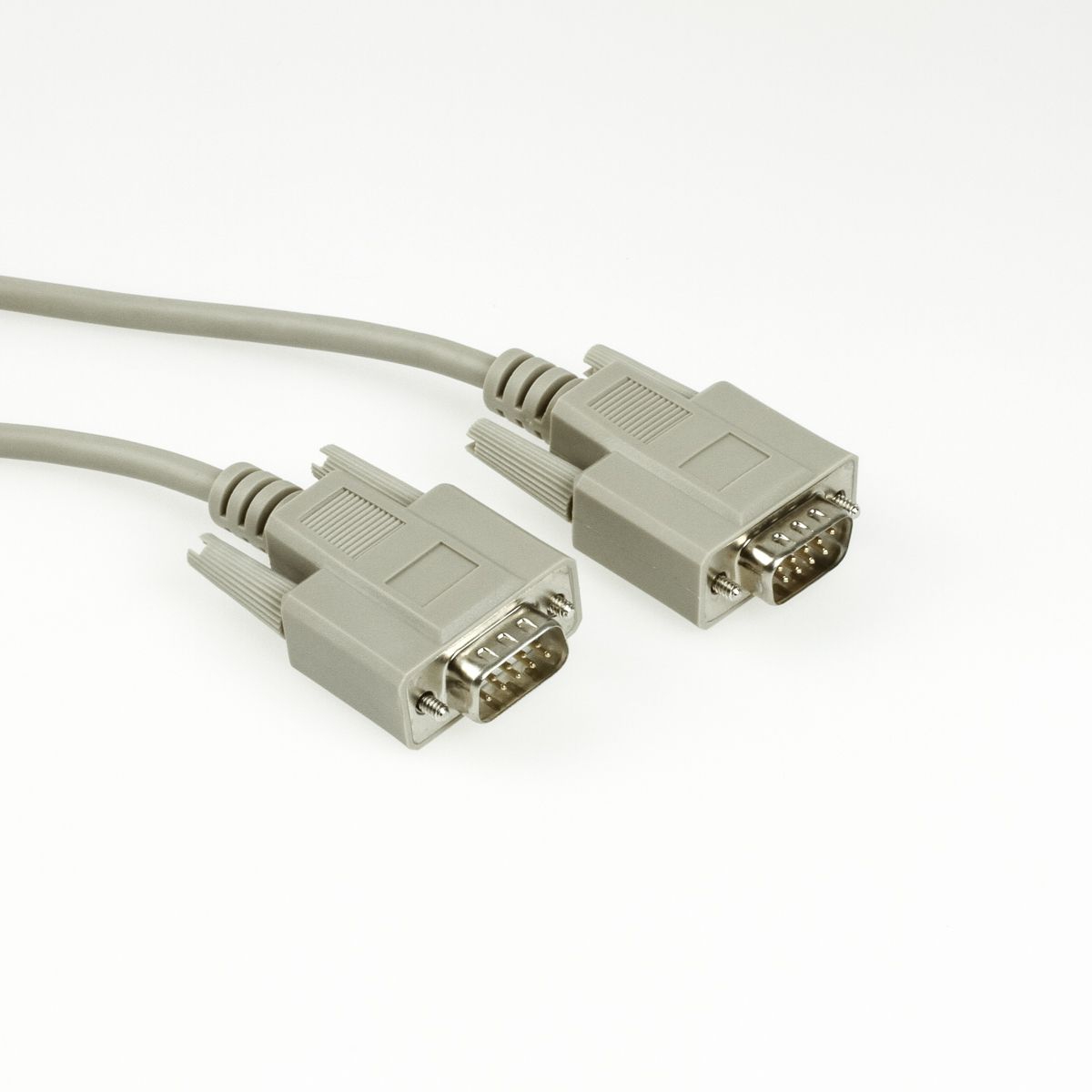

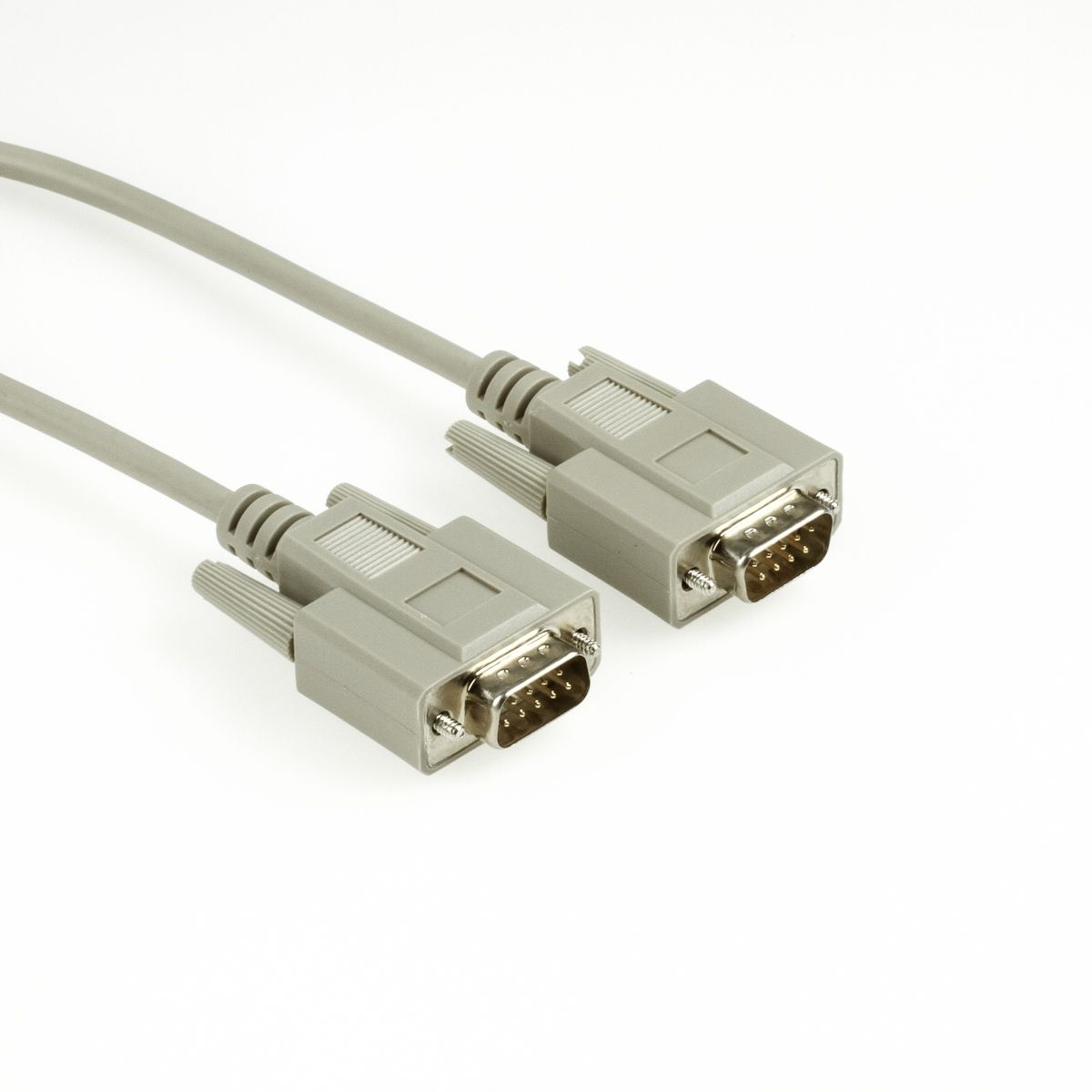

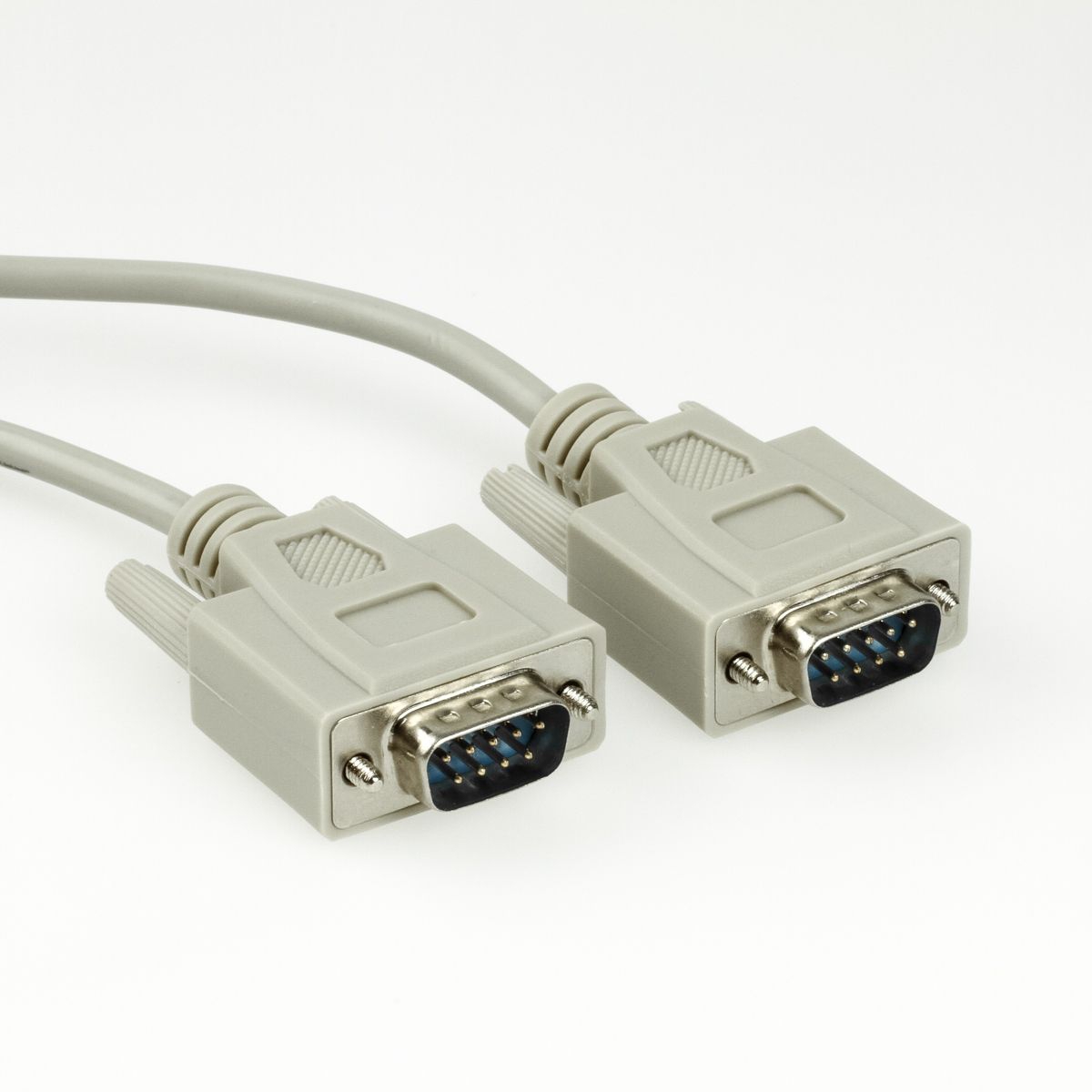

Serial cable DB9 male to DB9 male, 10m, e.g. for RS232
Serial cable 2x DB9 male, 10m, shielded, connection 1-to-1 all 9 pins, e.g for RS232, switch boxes
Key features
- data cable DSub-9 male to DSub-9 male
- length: 10 metres | 10m
- e.g. f. RS232 / COM connection
- moulded connectors
- moulded strain relief
- 2x DSub-9 plug with 9 contact pins (also known as DB9)

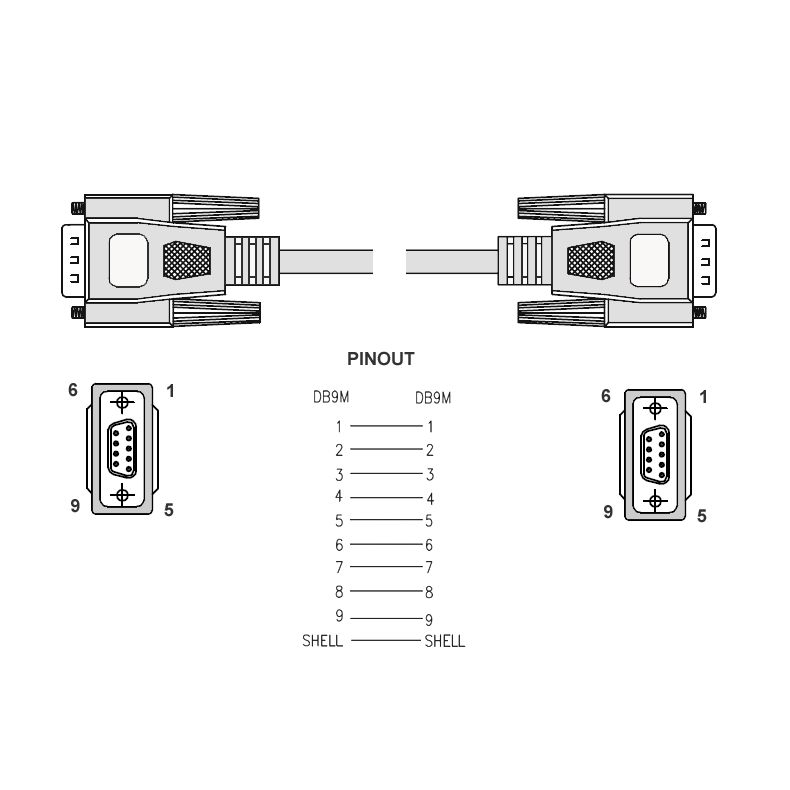

- all 9 contacts connected 1-to-1 (1-1, 2-2, 3-3, 4-4 ... 8-8, 9-9)
- gold-plated contact pins
- long hand knurled screws (with slot for screwdriver)
- UNC 4-40 screw thread (according to market standard)
- cable diameter approx. 5mm
- shielded (foil shielding)
- colour: grey-beige
- weight: about 352gr
- customs tariff no. for serial data: 85444290
- CE, WEEE, RoHS-compliant (in accordance with current EU environmental directives)
