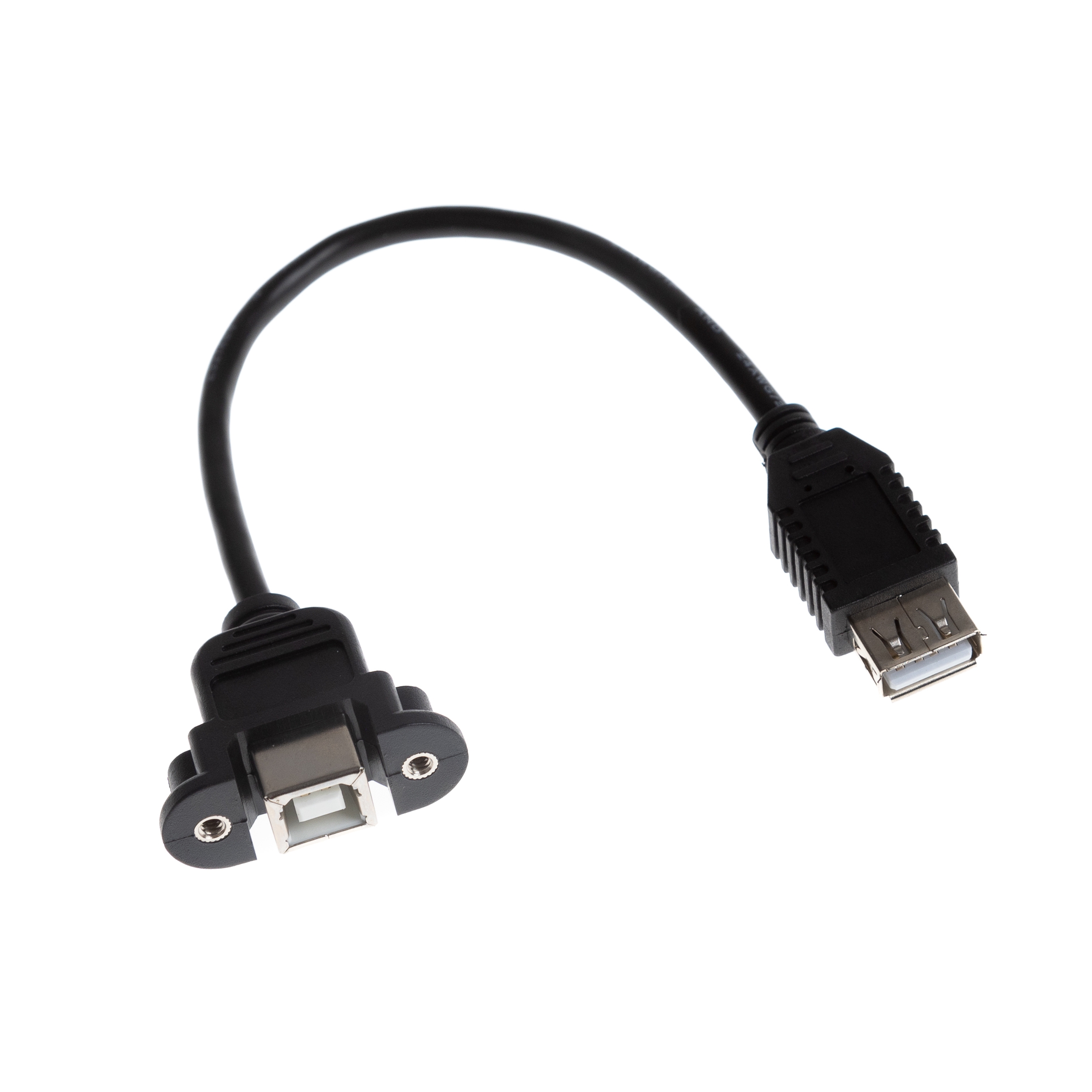

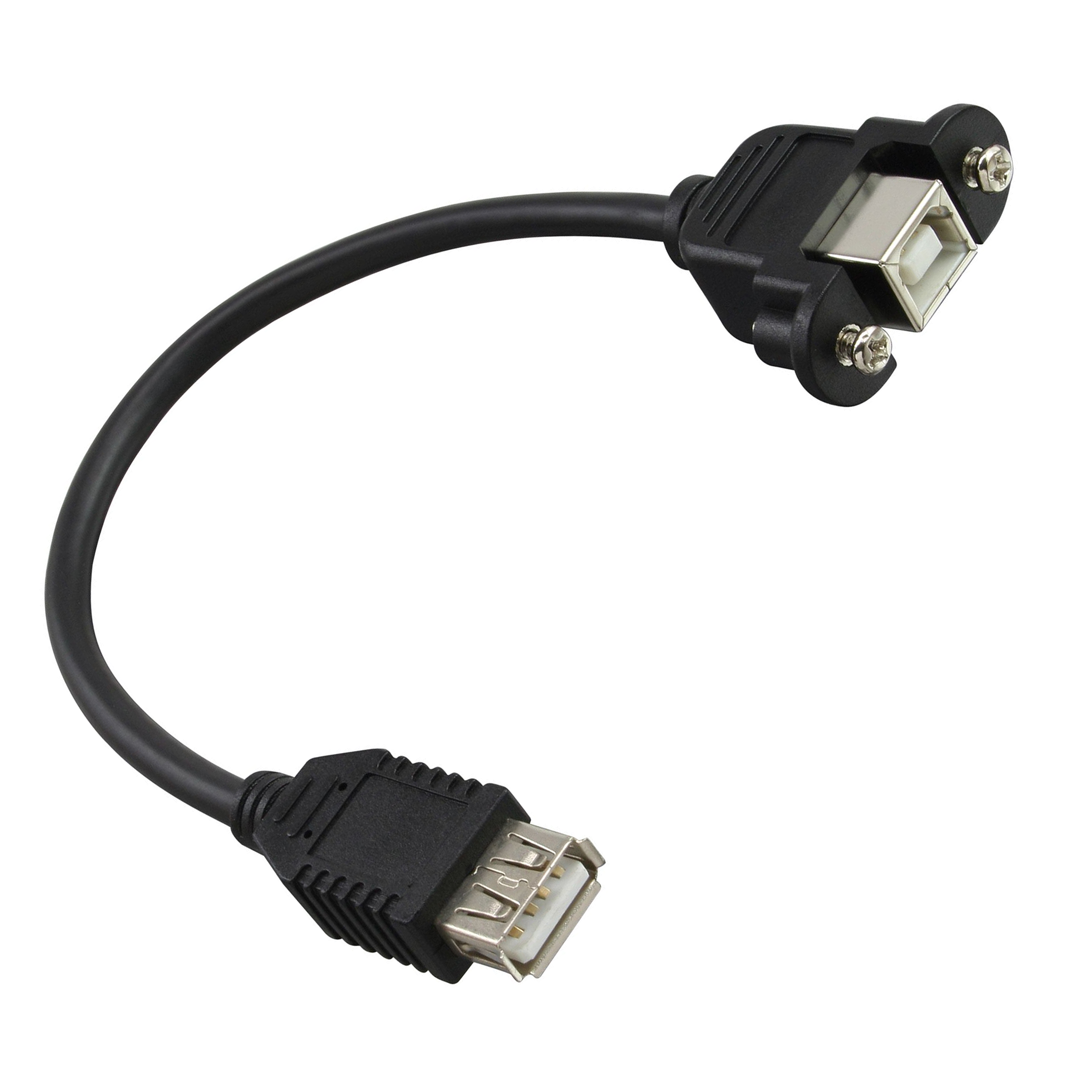

USB 2.0 Panel Mount Cable, B female with screws to A female, 20cm
USB 2.0 Panel Mount Cable for industrial applications: USB B female (mountable with 2 screws) to USB A female, length: about 20cm, screws included
Key features
- Short USB 2.0 panel mounting cable with screw-on A socket
- SPECIAL FEATURE: B female to A female version

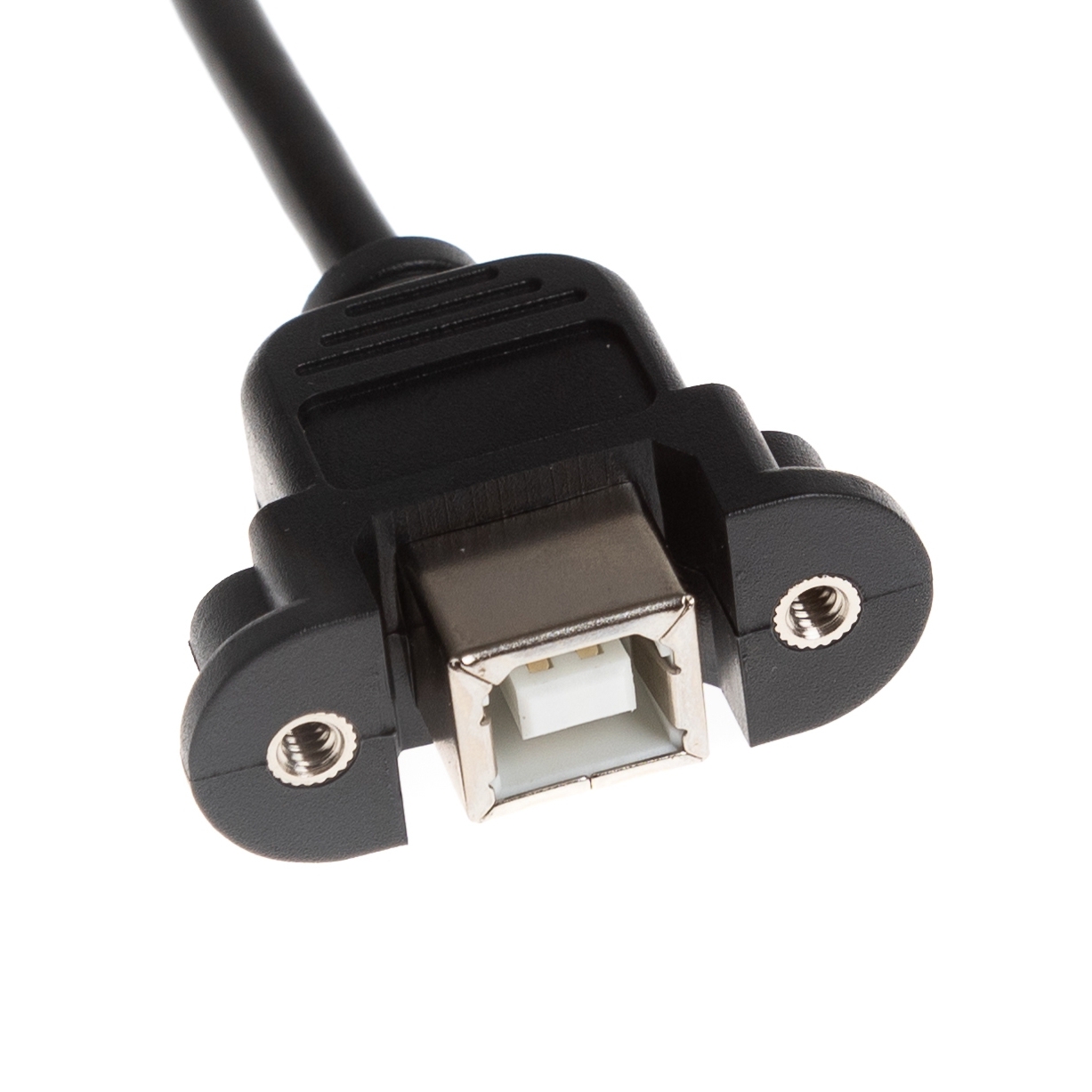

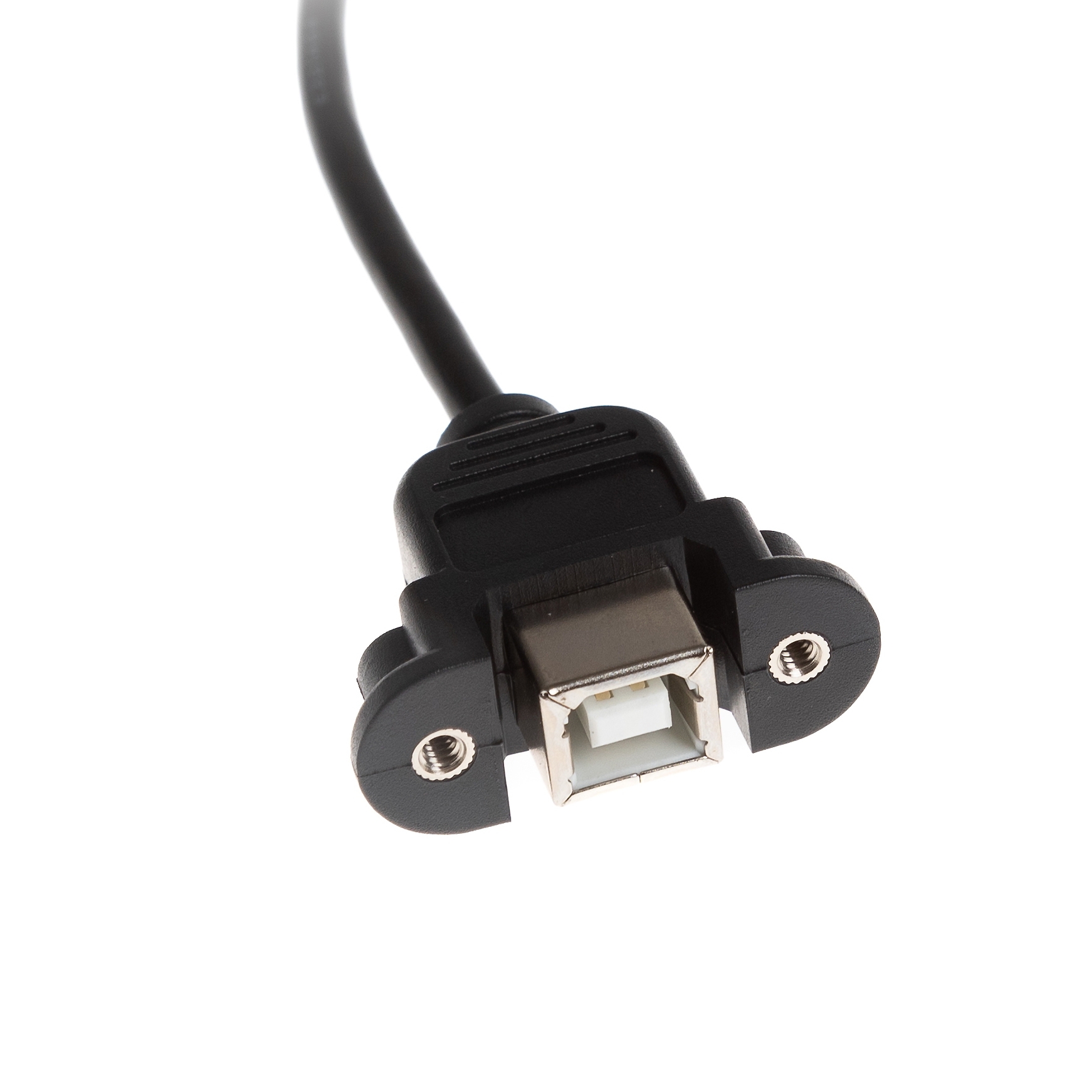

- Connection 1: USB 2.0 B panel-mount socket (female, recessed nuts on the side)

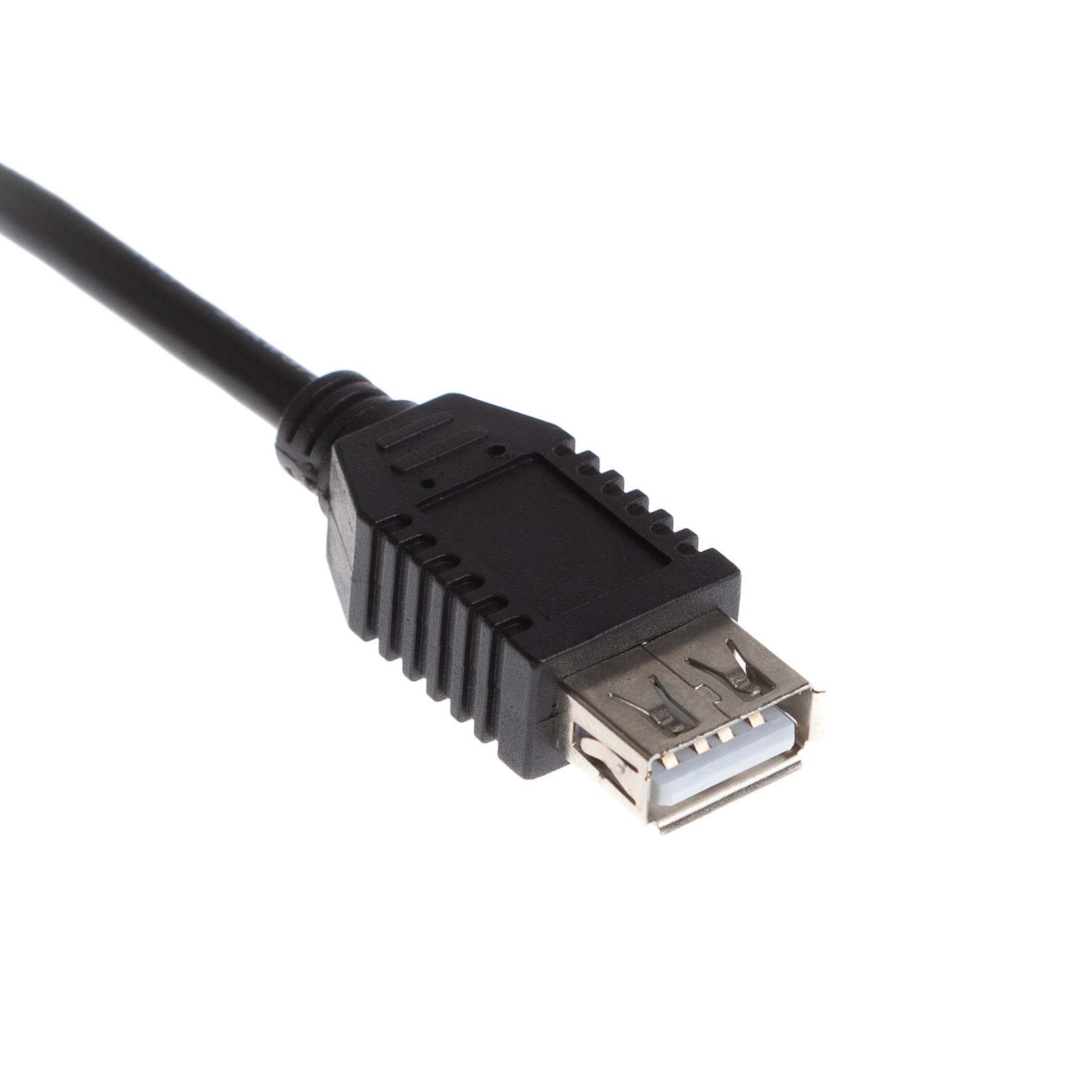

- Connection 2: USB 2.0 A socket (female)

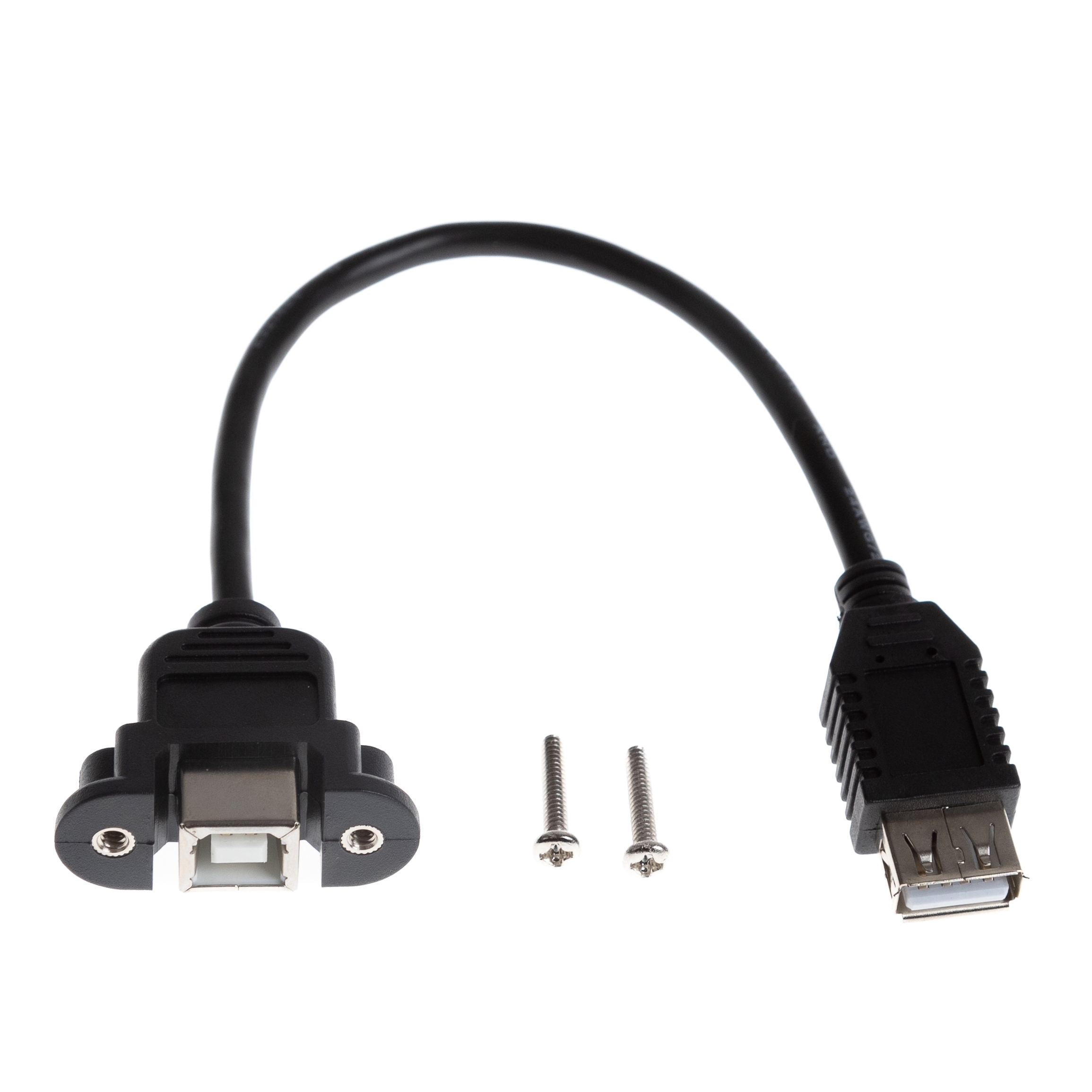

- scope of delivery: Cable incl. 2 screws (screw type UNC 4-40, length approx. 15mm)
- screw spacing / hole spacing: 25mm
- double-shielded cable (foil shield and braided shield)
- data wires twisted pair
- wire gauges: 28 AWG/1P and 24 AWG/2C
- conductor material: copper (CU)
- USB 2.0 compatible + downward compatible with USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
- colour: black
- length: about 0.2 metres | 20cm
- customs tariff no.: 85444290
- e.g. for industrial applications, rear panel brackets, internal USB extensions
- CE, WEEE, RoHS compliant
