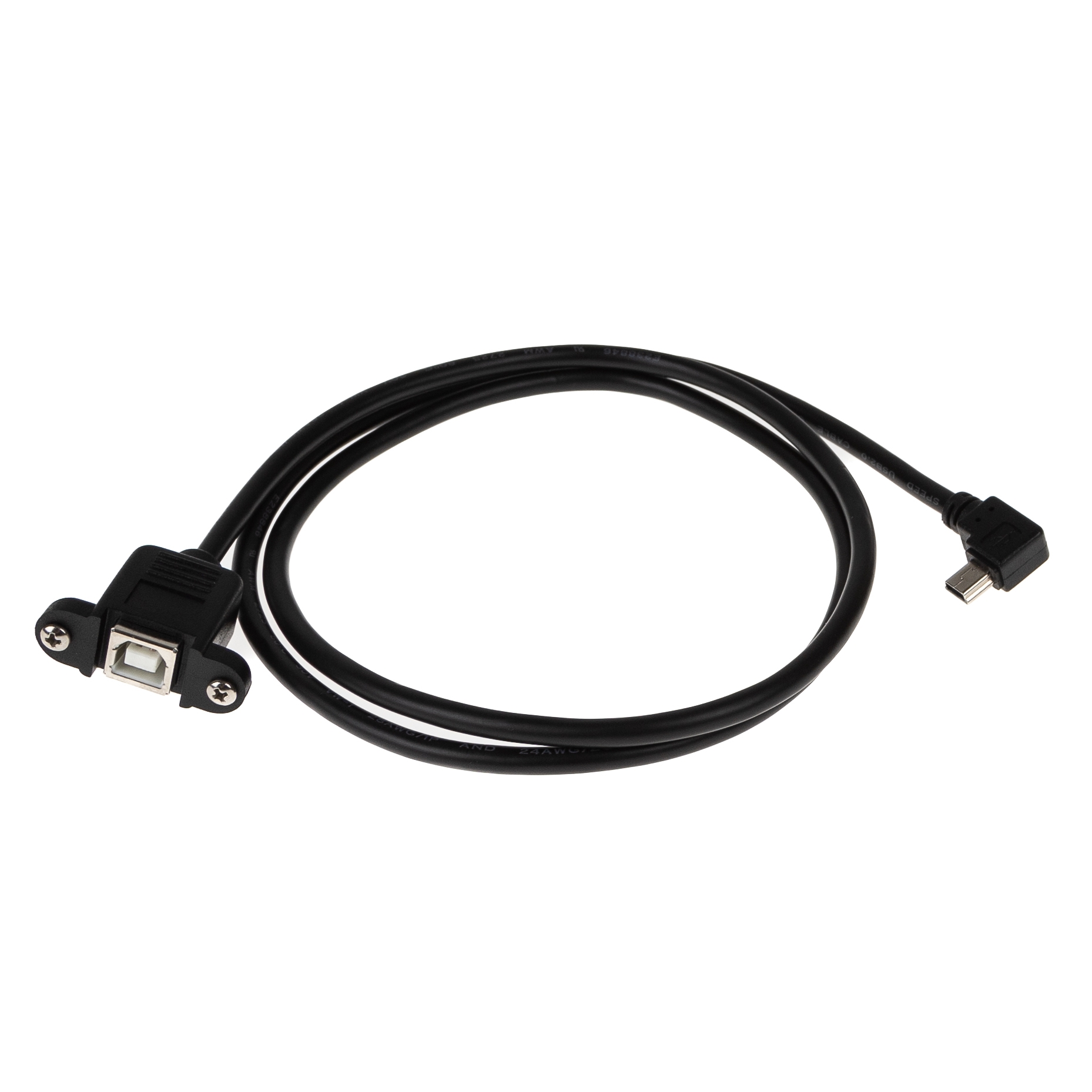

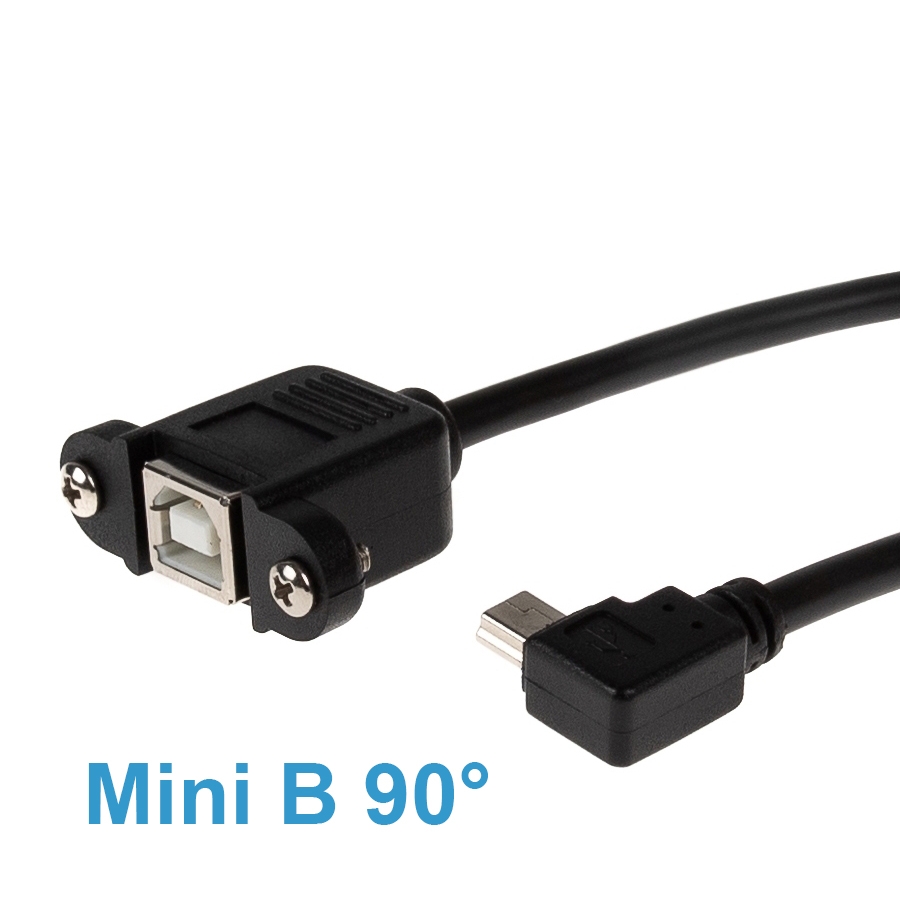

USB 2.0 Panel mount cable, USB B female with 2 screws to USB Mini B ANGLED male, 1m

DR. ZELLMER

€10.46*

The product is currently not available. We will be happy to notify you by email when the product is back in stock.

To continue, enter the characters shown above

Item no. LEN-10

USB 2.0 Panel mount cable for industrial applications: USB connector type B female (mountable with 2 screws, UNC 4-40) to USB plug Mini B ANGLED male 90°, UL cable material, double shielded, length: 1m

Key features

USB 2.0 Panel-Mount Cable

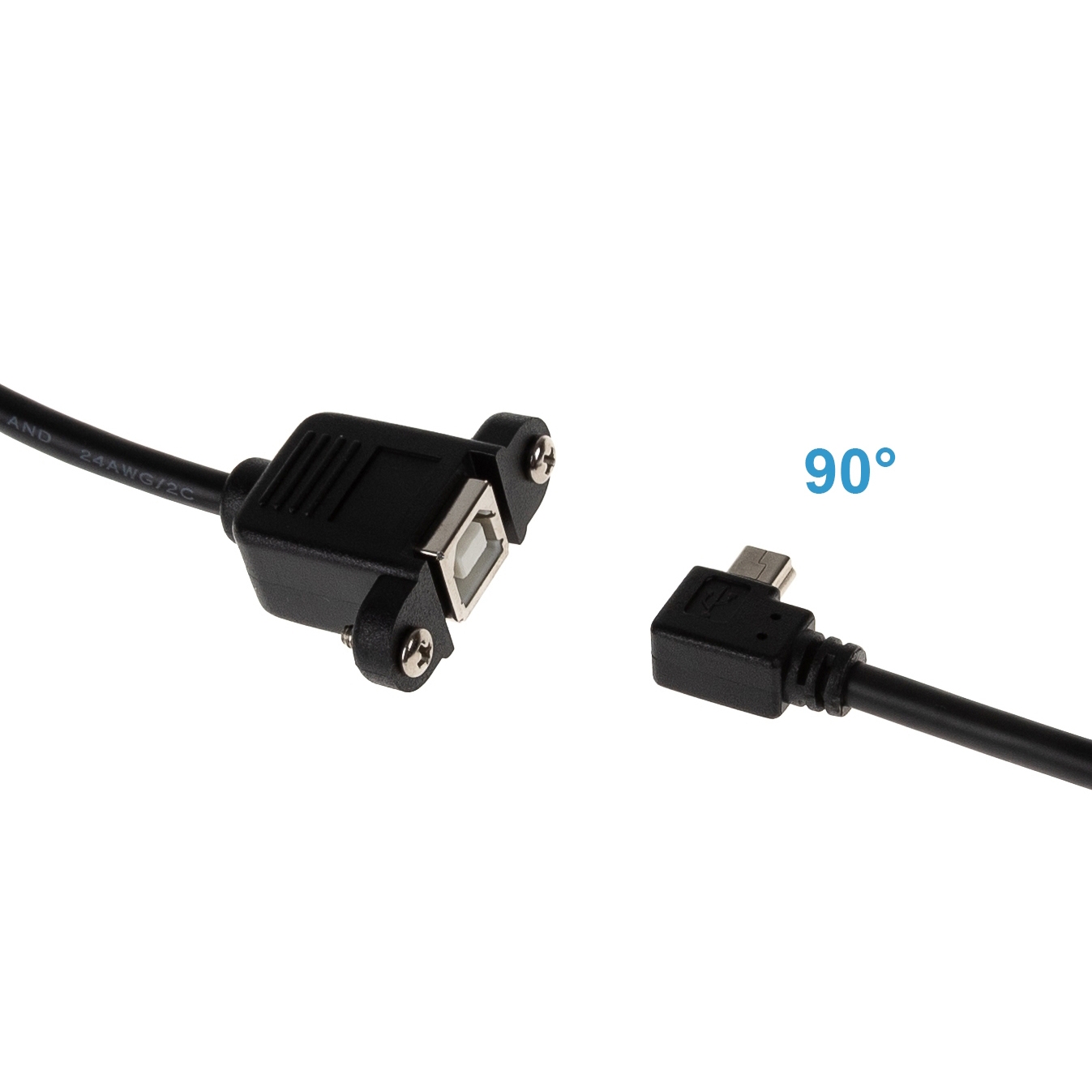

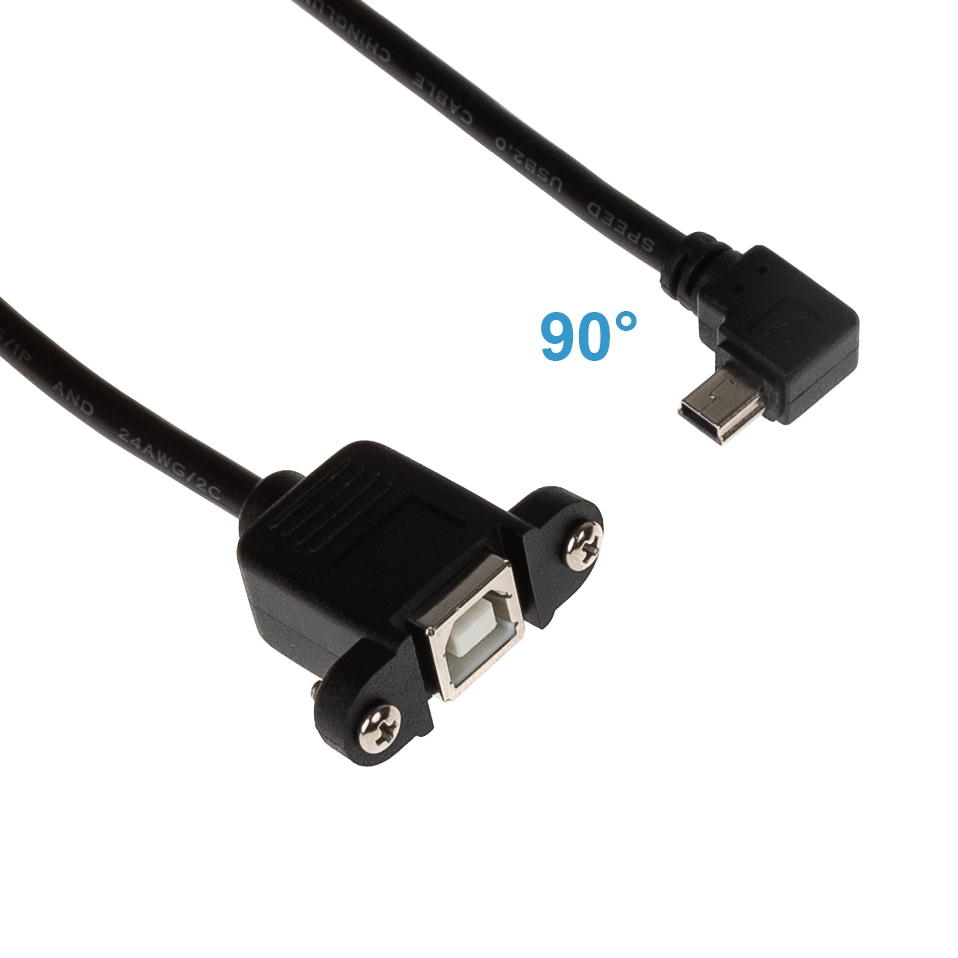

special mounting cable with angled Mini B plug 90°

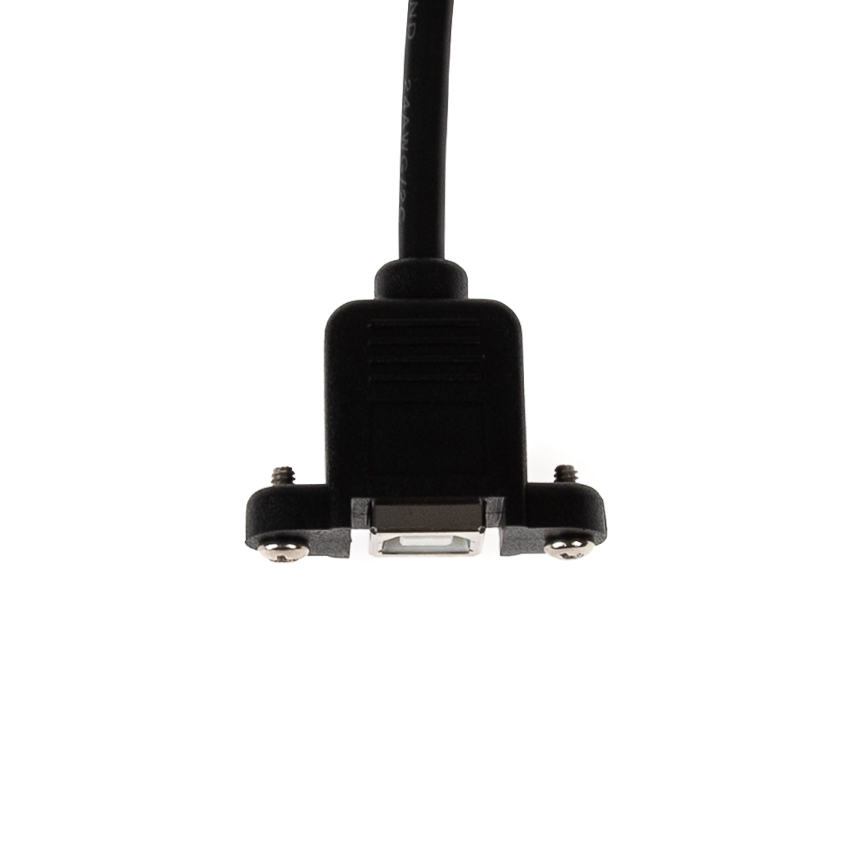

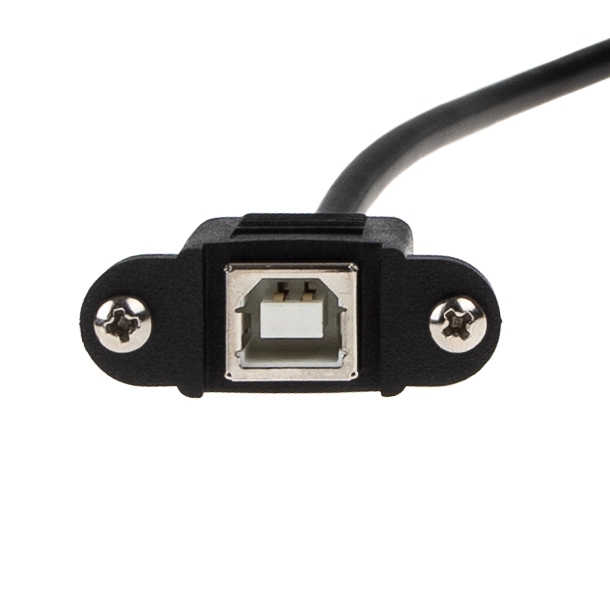

Connection 1: Screw-on USB 2.0 B socket (with 2 embedded UNC 4-40 nuts) - FEMALE

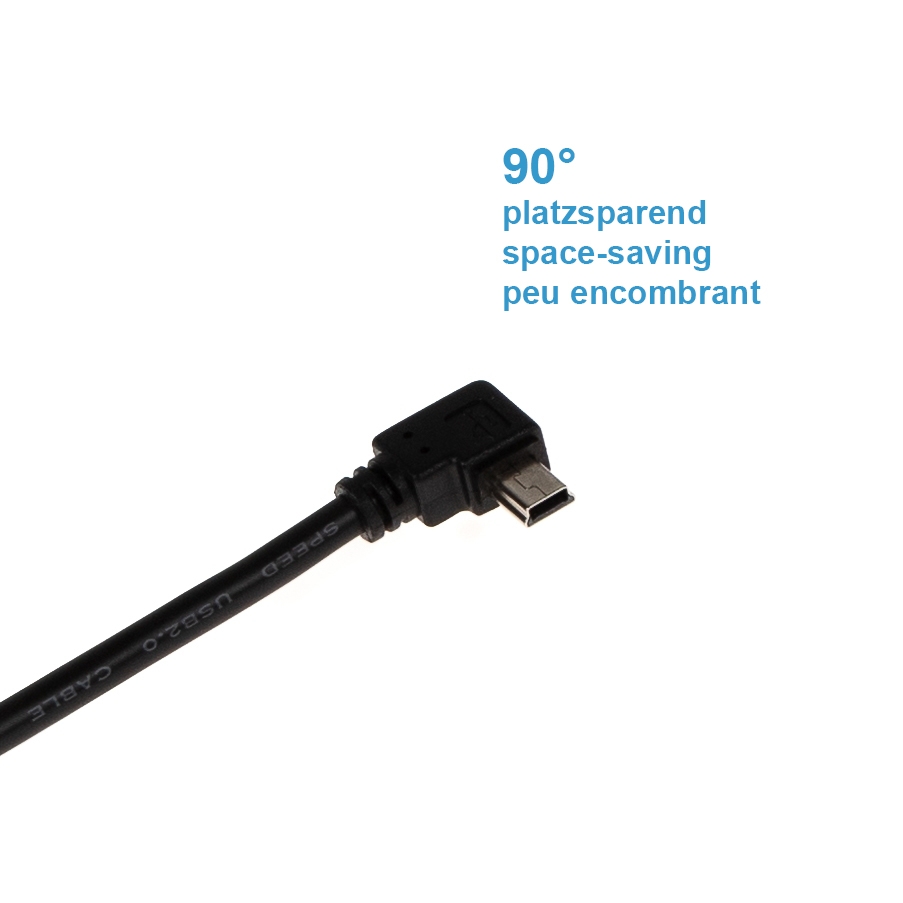

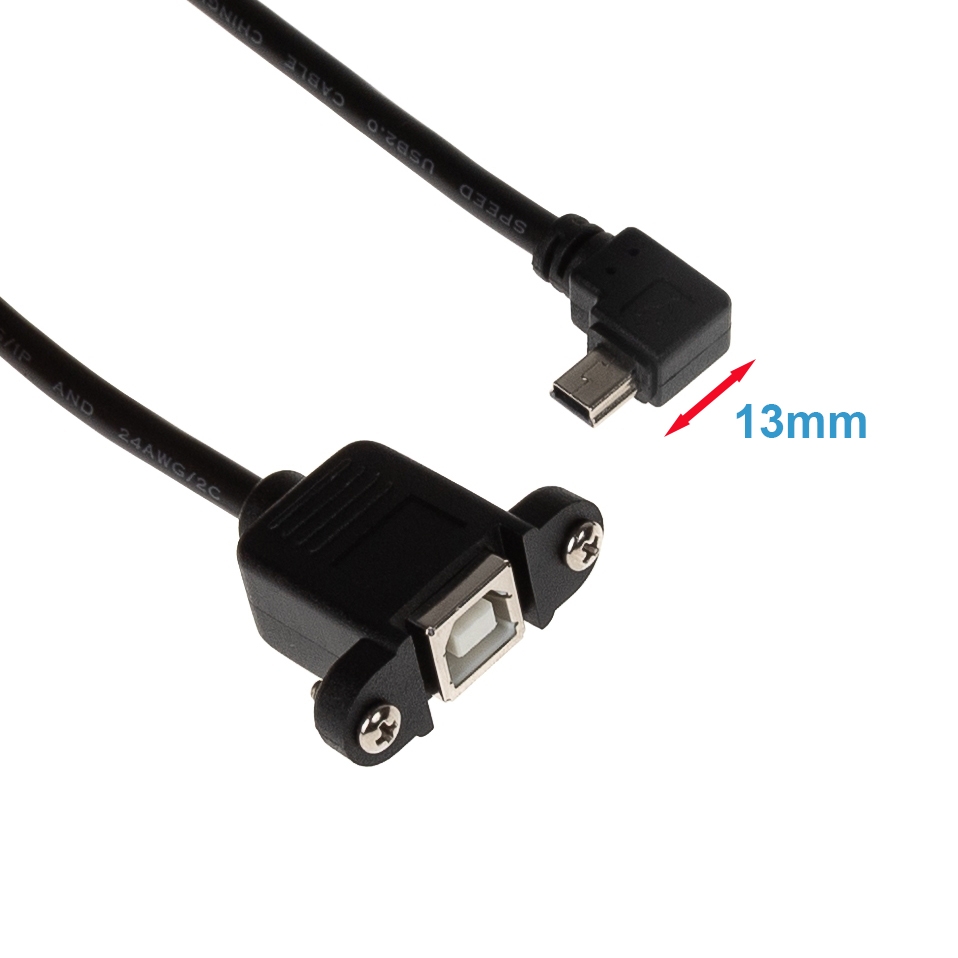

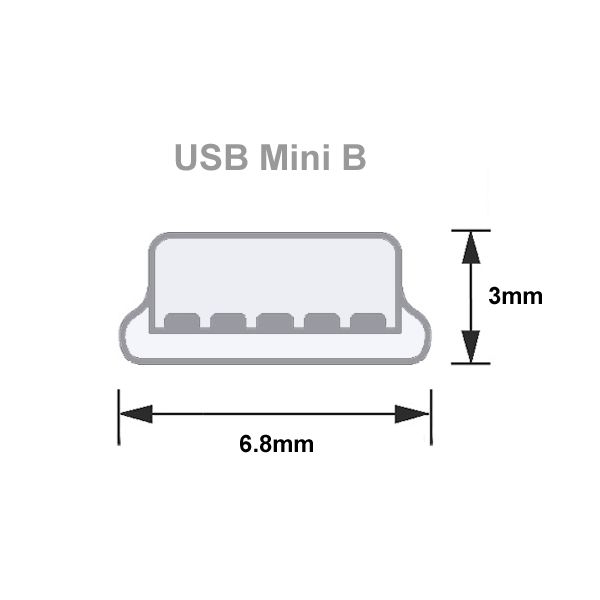

Connection 2: USB 2.0 Mini B plug 90° angled - MALE
Length: approx. 1m
Screw type: UNC 4-40 (2 mounting screws included)

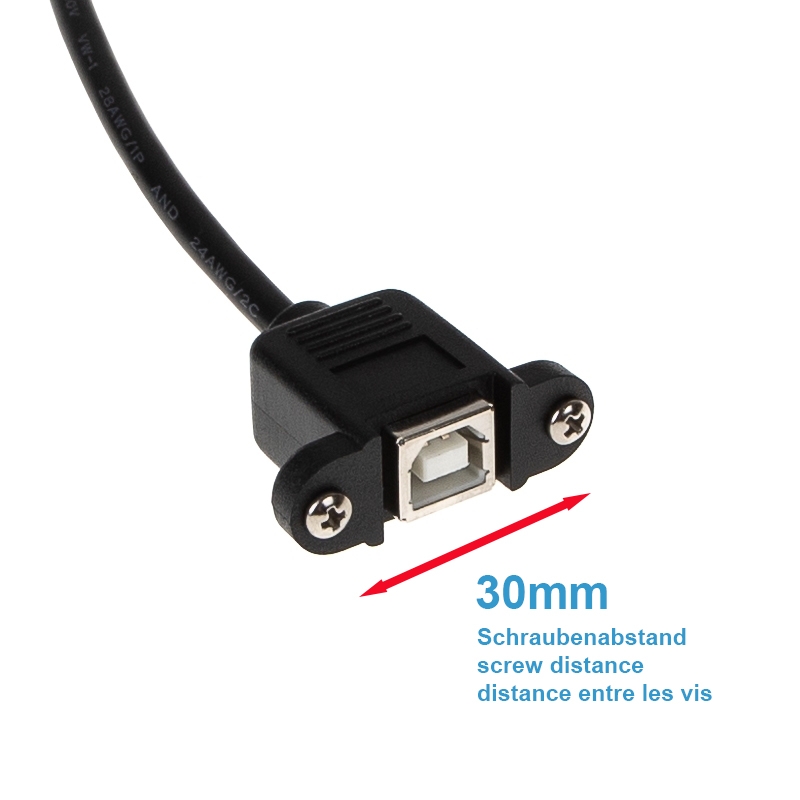

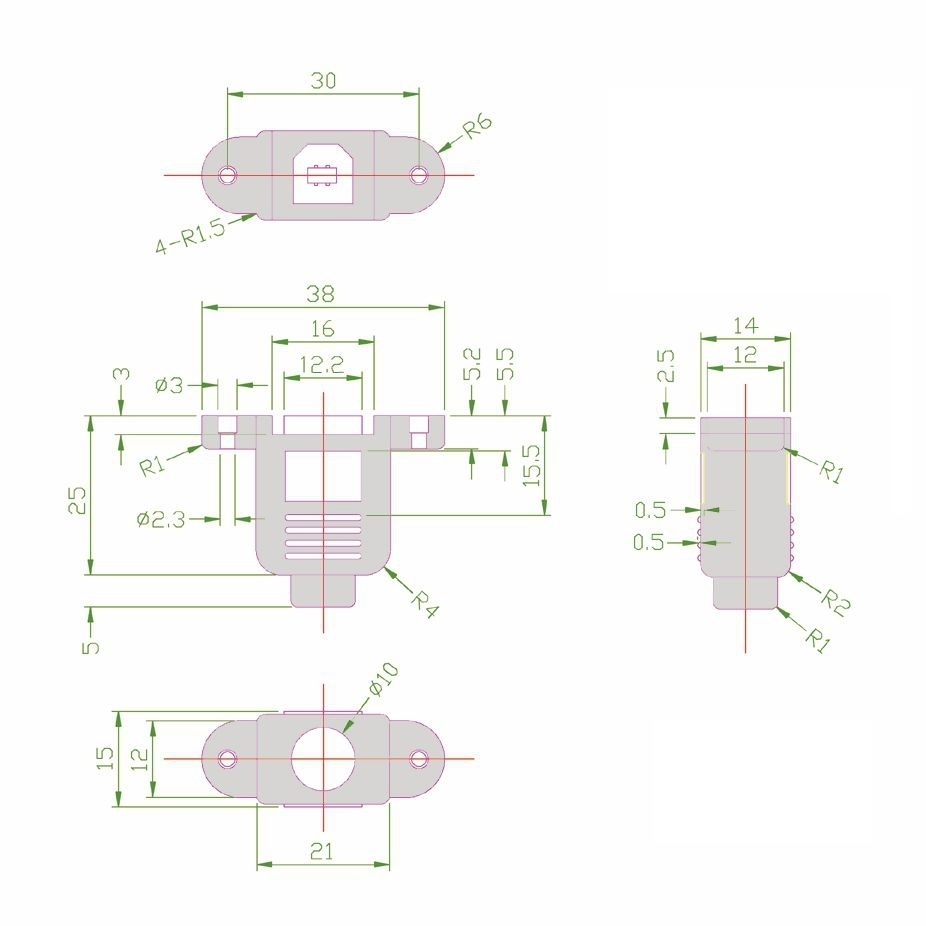

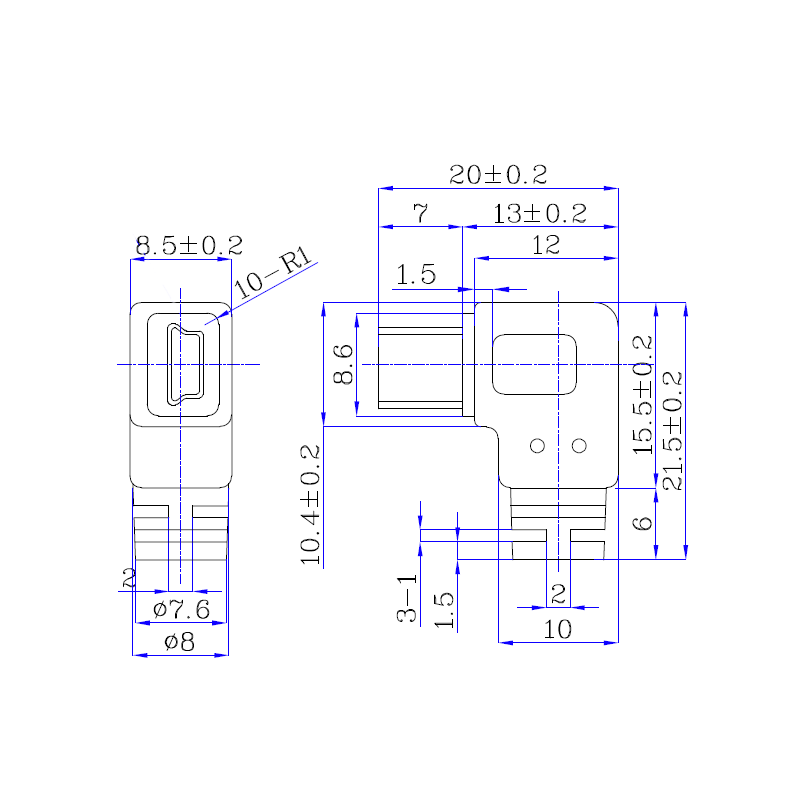

Screw spacing: 30mm (see drawing)
PREMIUM quality
UL 2725 cable material from brand manufacturers e.g. E238846 CHINGLUNG
Gold-plated contacts
Cable material with double shielding (foil shield + braided shield)
Shielded connectors
Data: 28 AWG/1P (twisted pair), copper (CU)
Power 5V: thicker with 24 AWG/2C, copper (CU)
USB 2.0 compatible + backwards compatible with USB 1.1
Suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
Cable diameter approx. 5mm
Colour: black
Alternative product designations: rack mount, USB REAR
Customs tariff no. for USB Panel-Mount cables: 85444290
CE, WEEE, RoHS-compliant (Restriction of Hazardous Substances, environmental protection standard)
