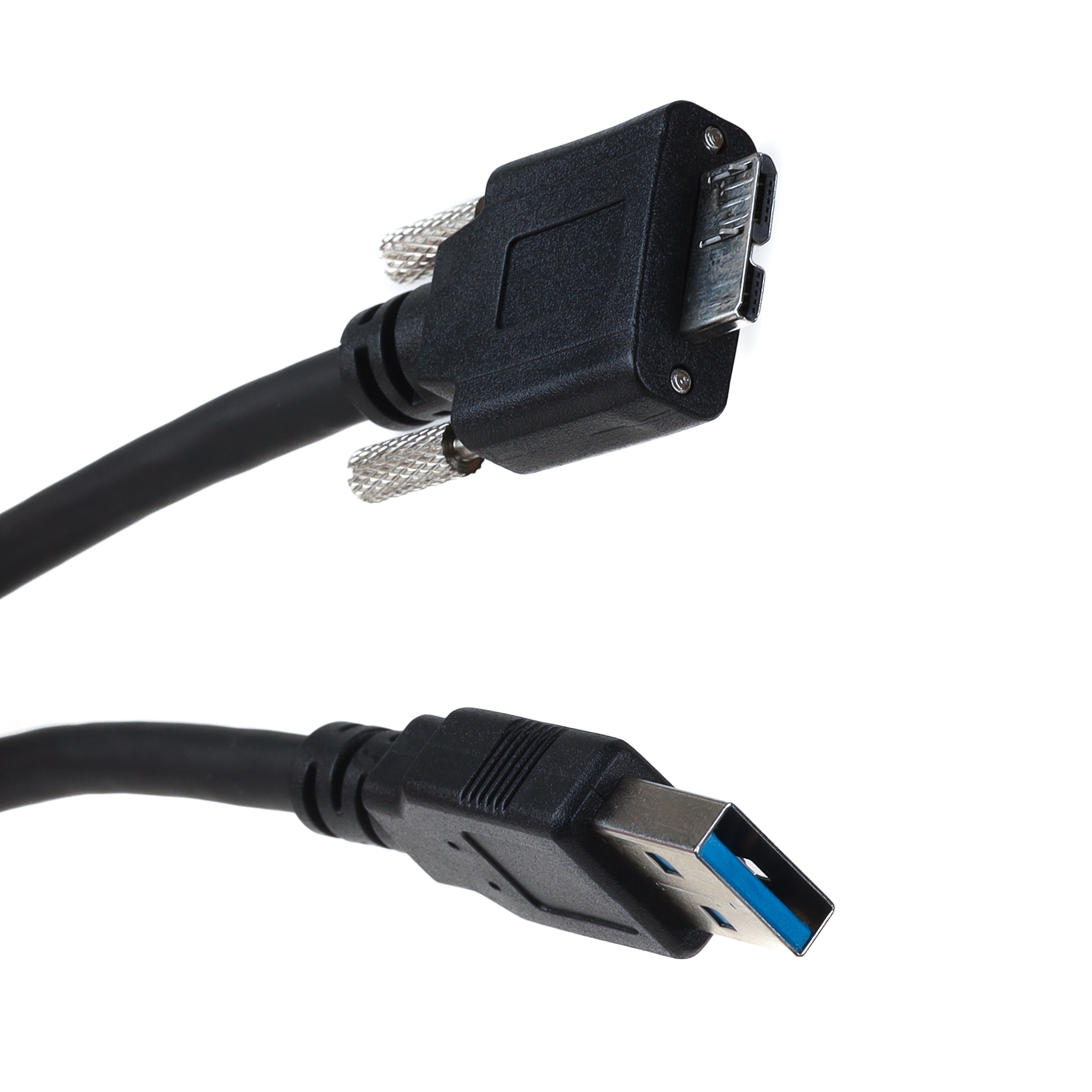

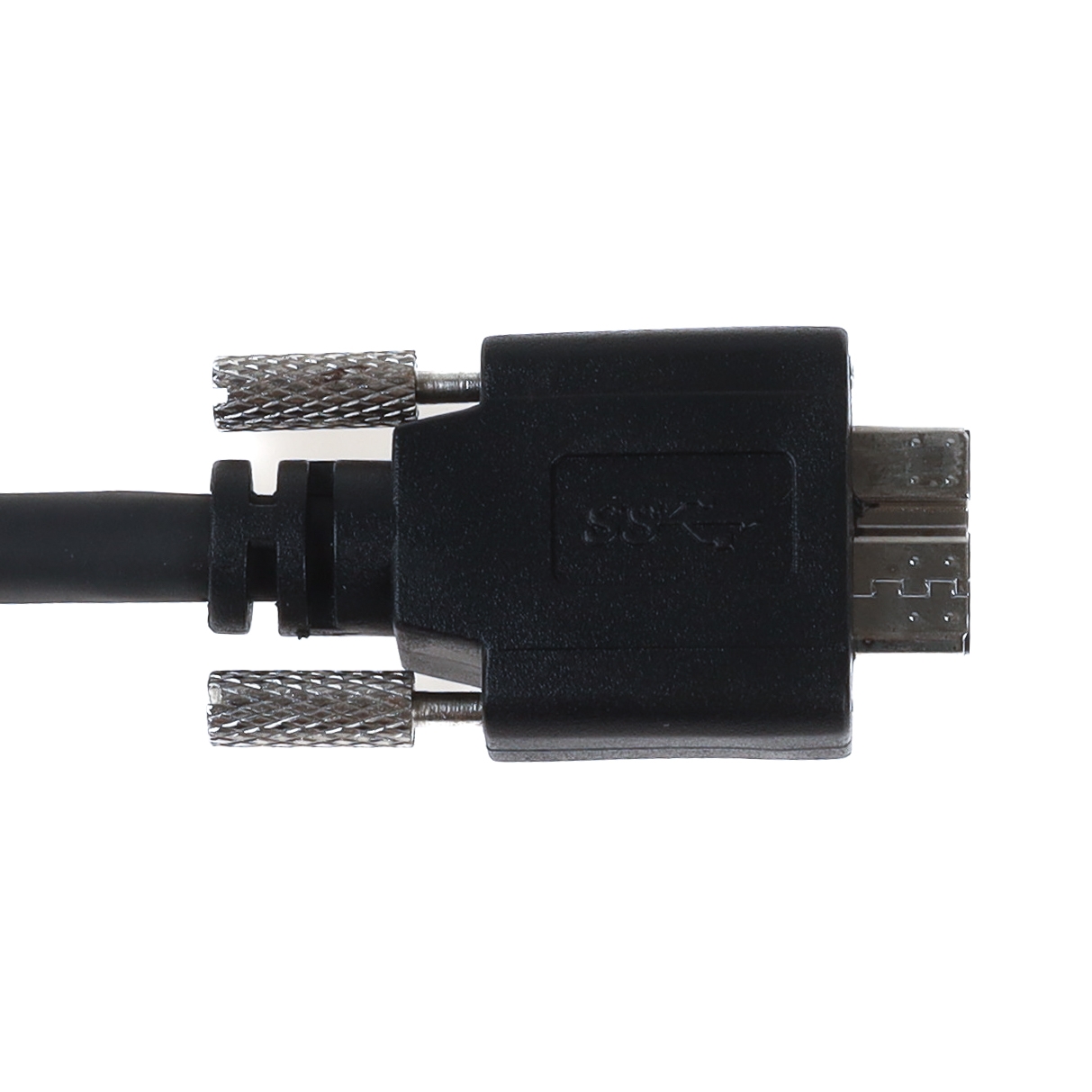

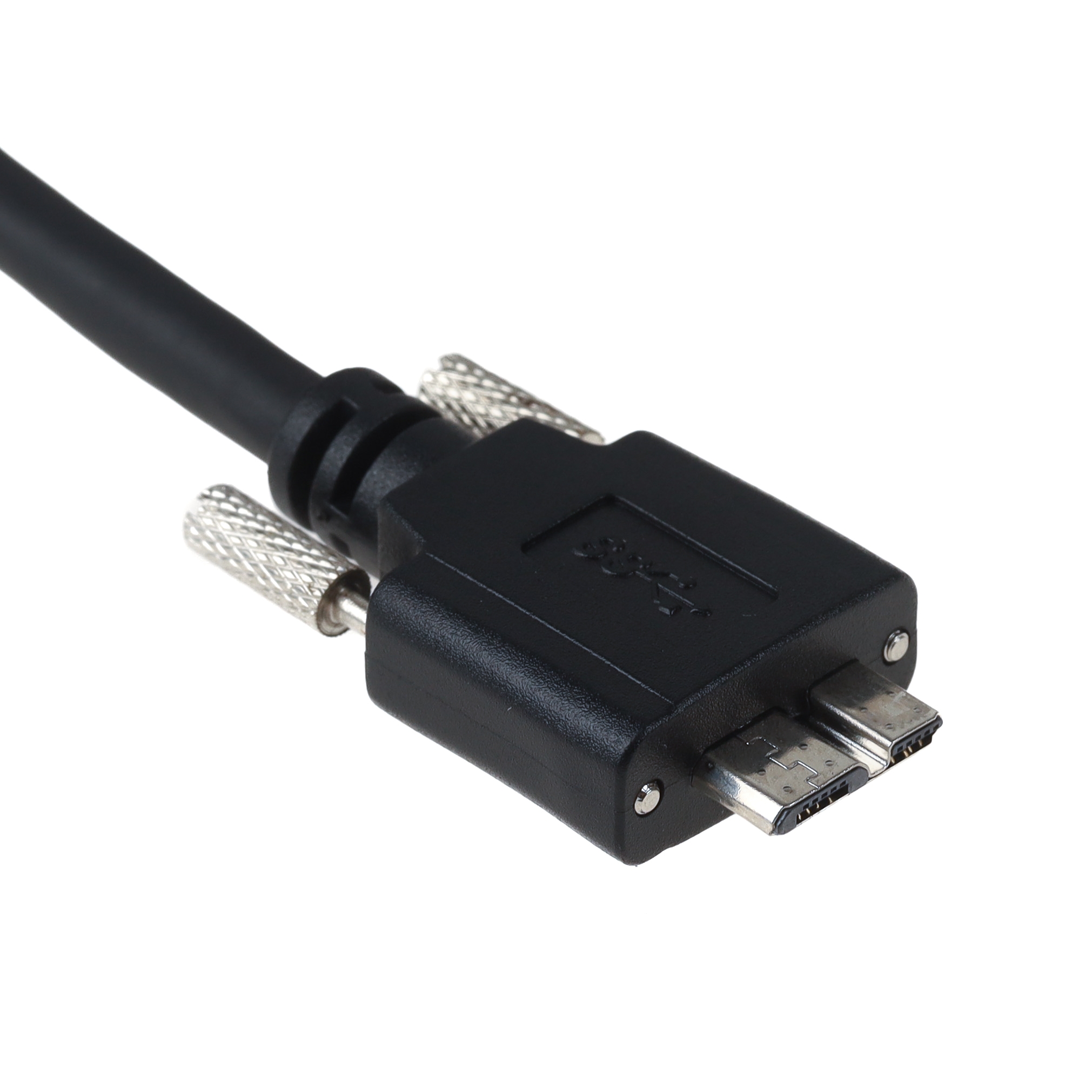

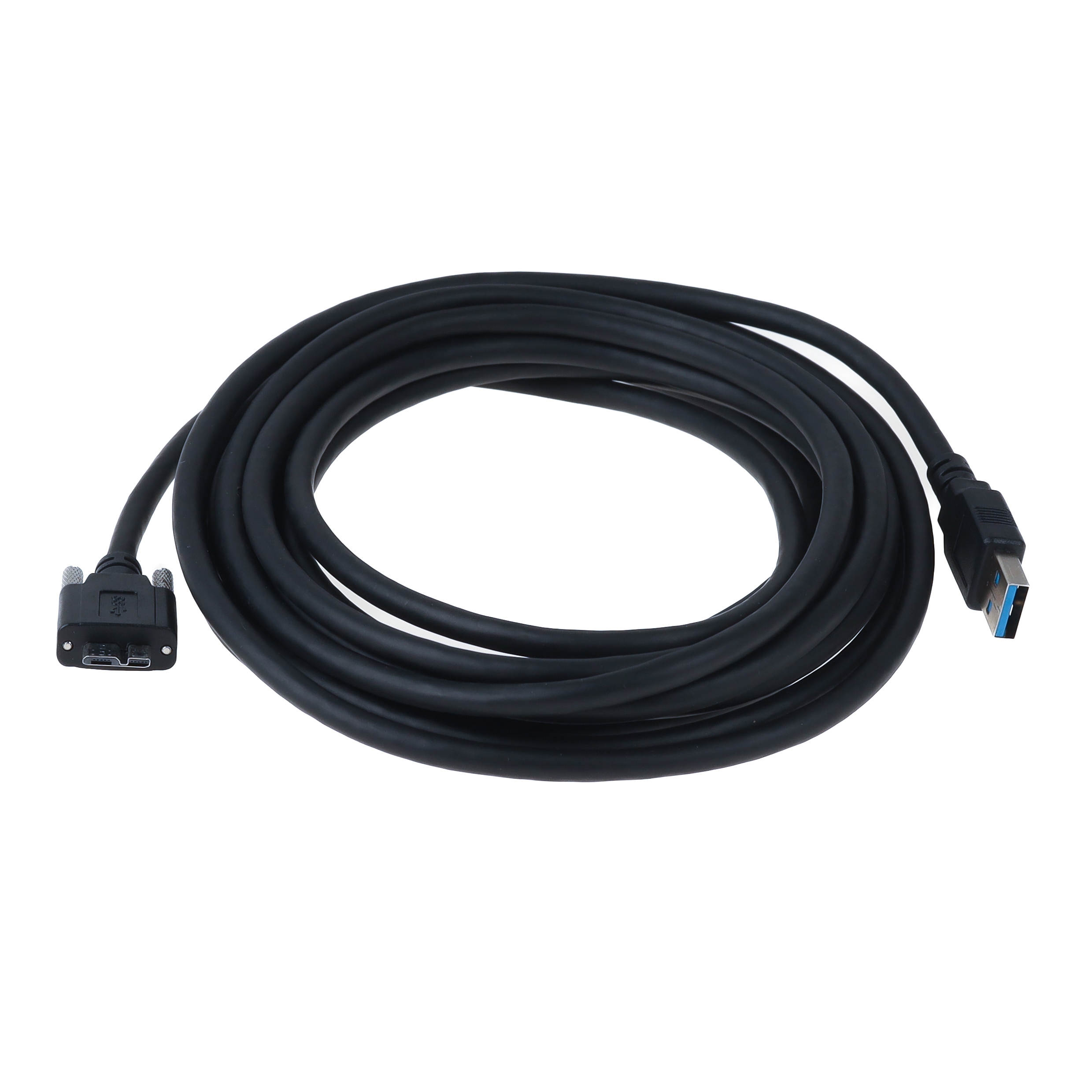

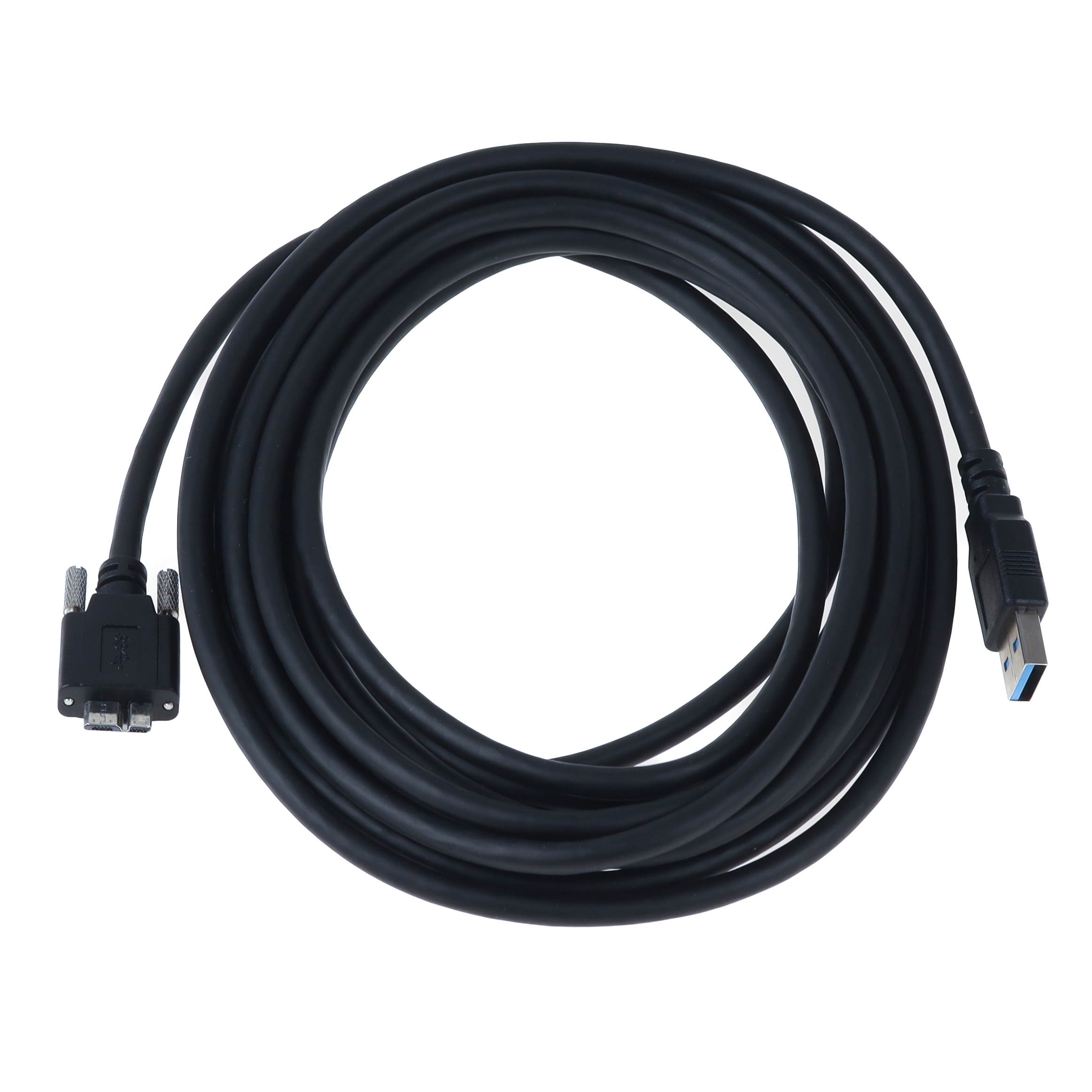

USB 3.0 cable A to MICRO B with screws 5m

DR. ZELLMER

€49.98*

4 in stock

Item no. BUM-S18-50

USB 3.0 Micro B cable, length 5m, plug USB 3.0 A to USB 3.0 Micro B with screws, screw spacing 18mm, screw type M2 x 0.4, AWG24/26, double shielded, Super-Speed-Modus (max. 5Gbps), black

Important note

The 5m cable length is outside the recommended maximum length (3m) for USB 3.0. It is therefore possible that the 5m cable offered here will not function reliably. Reliable operation depends on the USB 3.0 chipsets used in the devices.

Technical data

Screw-on USB 3.0 Micro B cable
Length: 5 metres | 5m
for industrial cameras according to USB3 Vision Standard™
USB 3.0 type A plug to USB 3.0 type Micro B plug with screws
Screw type: M2 x 0.4
Never exceed a max. torque of 0.3 Nm when fastening the M2 screws.
Screw distance: 18 mm according to USB3 Vision Standard™
Cable diameter: approx. 5.5 mm
Data transfer rate up to 5 Gb/s
Contact carrier in blue according to USB 3.0 standard
Colour: black
Customs tariff no. for USB 3.0 cable: 85444290

Für dieses Produkt stehen zur Zeit keine Downloads zur Verfügung.
