Item no.
U4-X-10

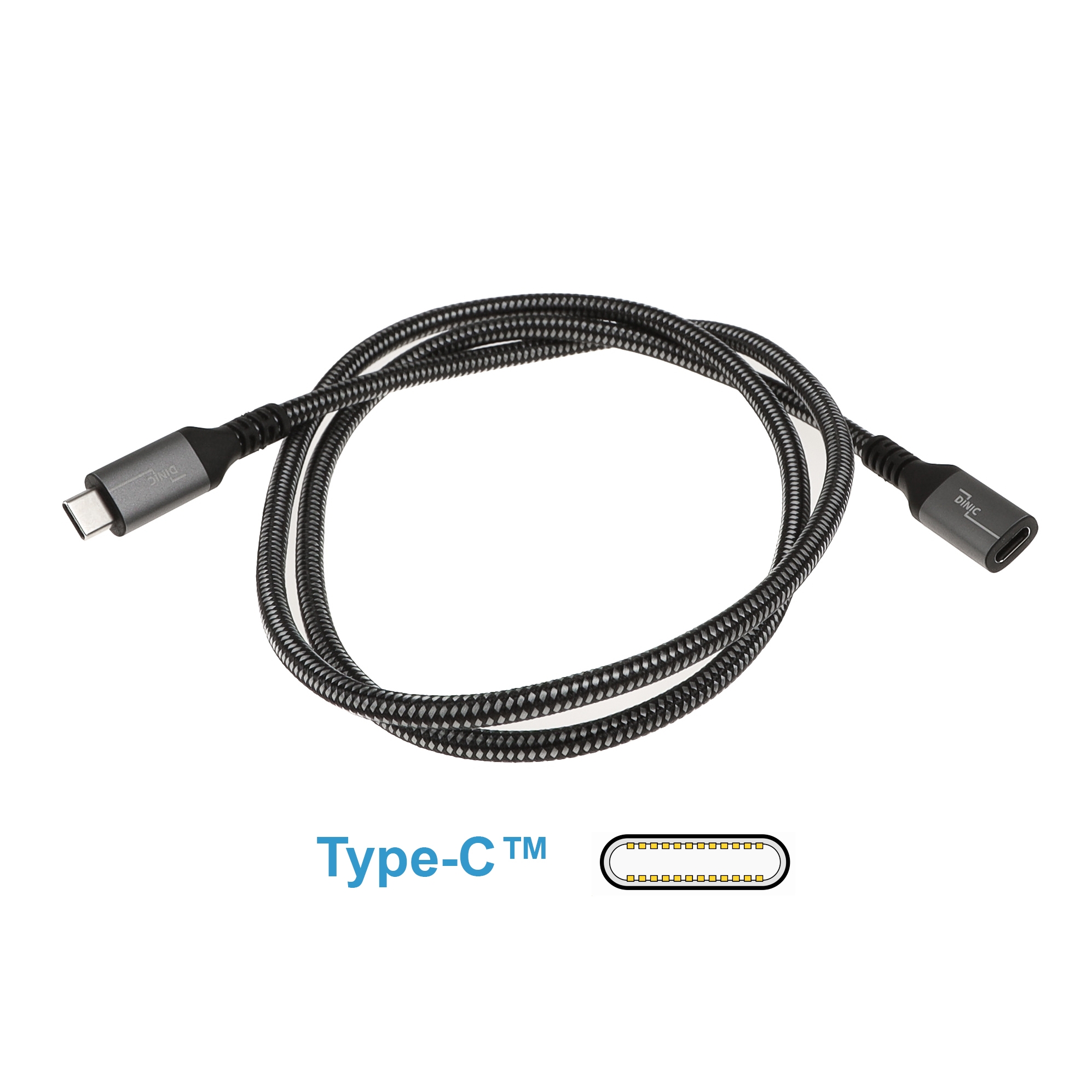

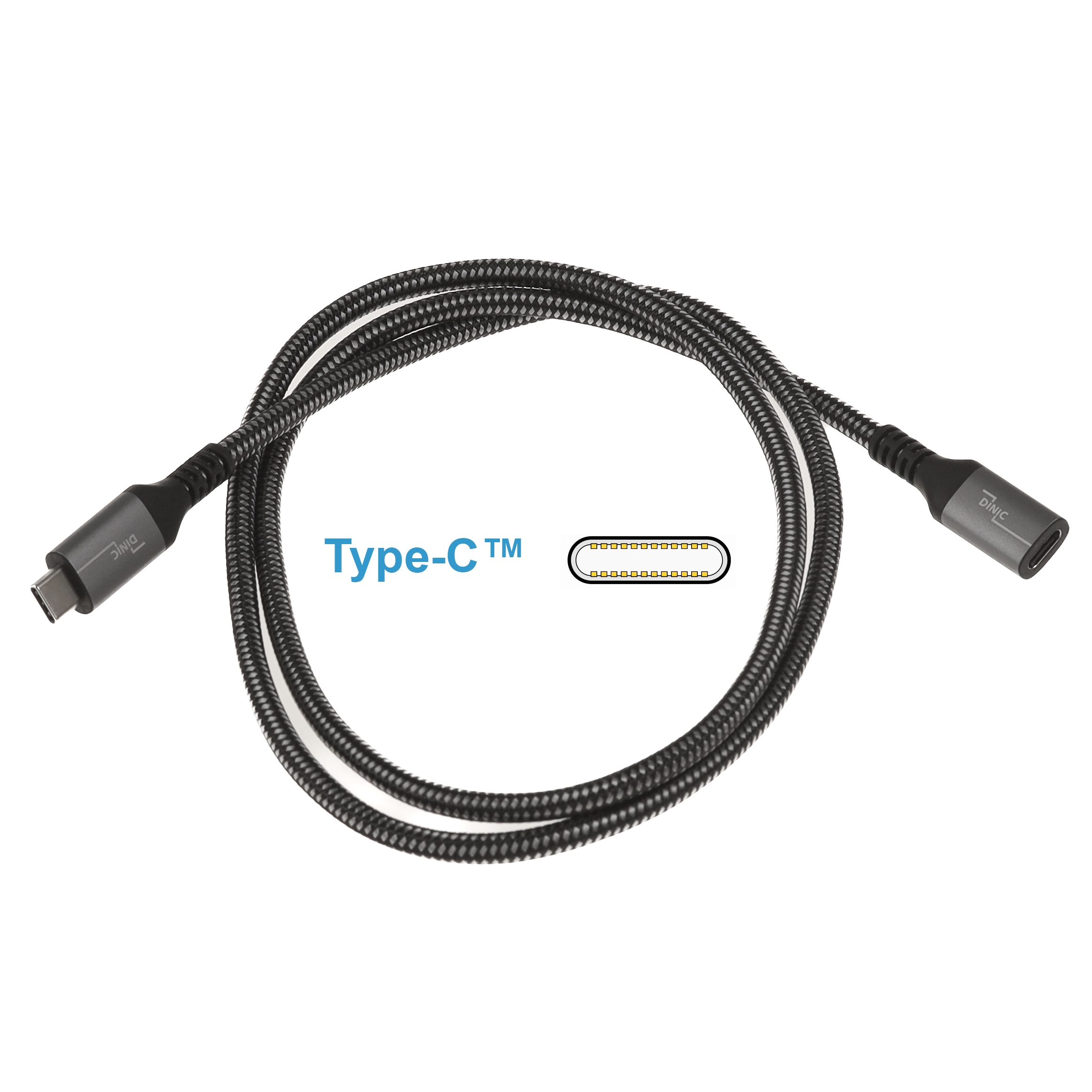

USB 4.0 extension cable, Type-C™ male to Type-C™ female, 40 Gbps, 240 watts, display resolution 8K@60 Hz, Thunderbolt™ 4 compatible, 1m
Highlights
- Ultra-high data transfer speed: 40 Gbps
- Powerful power supply: Power Delivery 3.0 with 240W (48V / 5A), extended power range
- Exceptionally high image resolution possible: 8K/60 Hz
- Thunderbolt™ 4 compatible
Technology
- USB 4.0 extensioncable
- Connector 1: USB 4.0 Type-C™ plug (male)
- Connector 2: USB 4.0 Type-C™ socket (female)
- PREMIUM quality
- Specification: USB 4.0 Gen.3x2
- triple shielding
- internal wires: highly conductive copper (CU), twisted cable structure
- gold-plated contacts
- plug with aluminium housing and good strain relief
- PVC jacket with nylon/cotton braiding for increased durability
- colour: elegant black-silver, suitable for any modern device
- length: 1 metre | 100cm
- operating temperature from -10°C to 50°C
- storage temperature from -20°C to 60°C
- delivery incl. protective cap for type C plug
- protocols such as DisplayPort, PCI Express (PCIe) or host-to-host transmission are supported by USB4
- universally usable: downward compatible with USB 3.2, USB 2.0, Thunderbolt™ 3

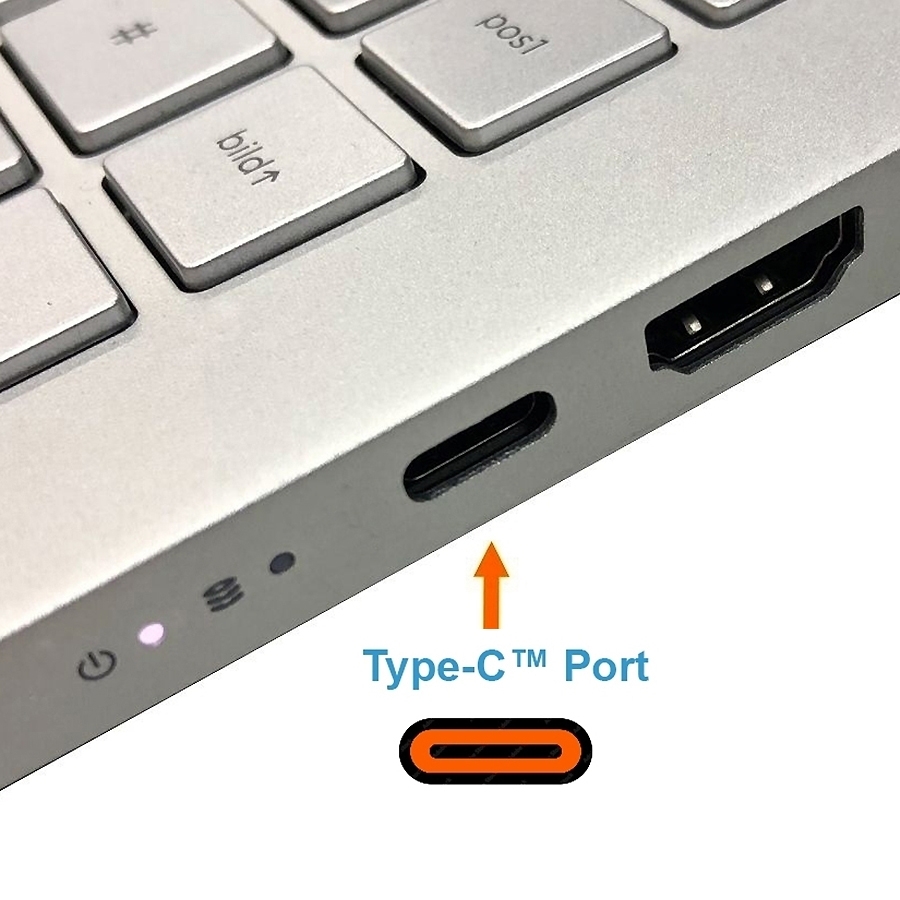

- e.g. for connecting smartphones, monitors, external housings and docking stations
- CE, WEEE, RoHS compliant (Restriction of Hazardous Substances)
