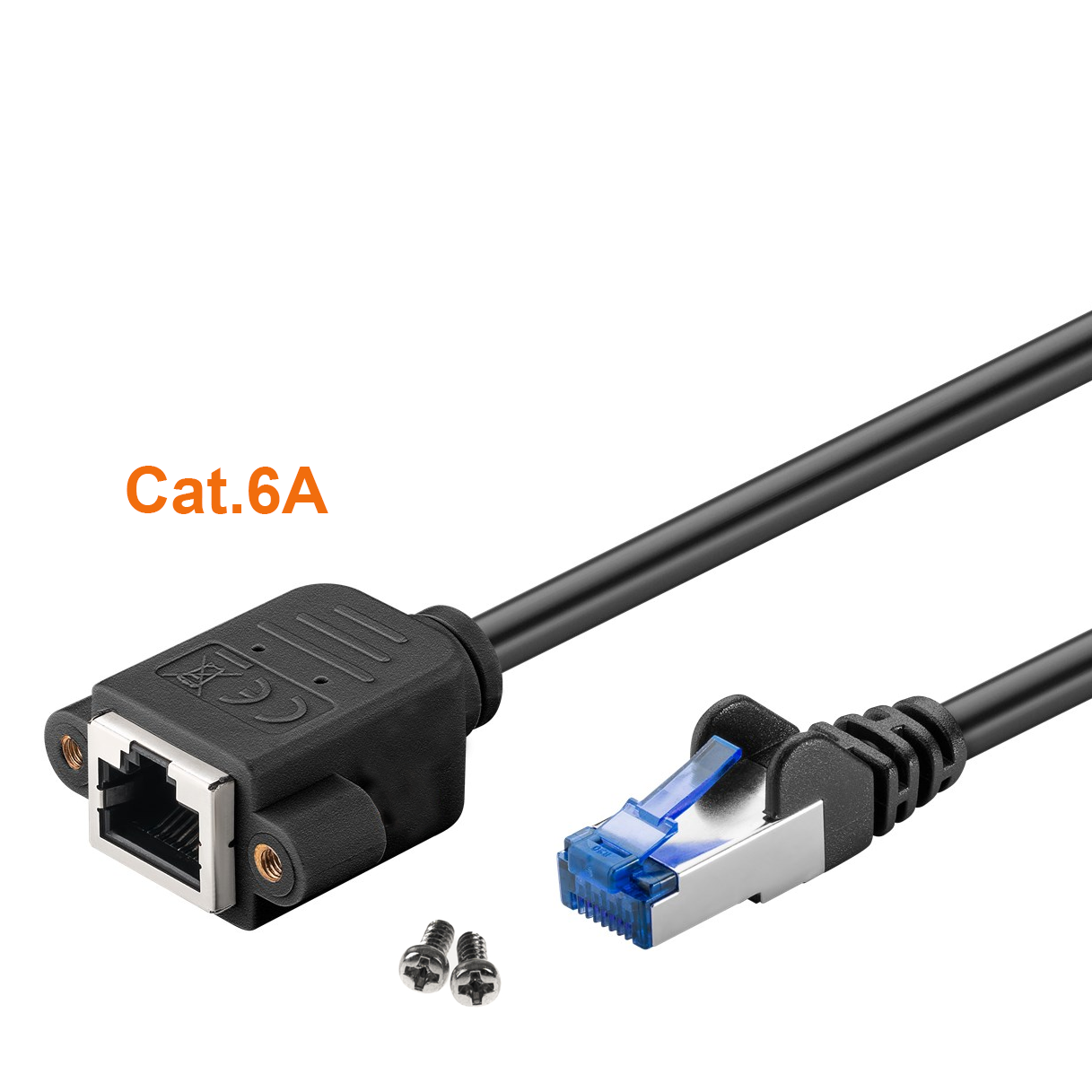

Cat. 6A Panel Mount Cable RJ45 male-female with 2 screws, 50cm

WENTRONIC

€6.95*

41 in stock

PDF-Datasheet

Item no. HX-NM25-05

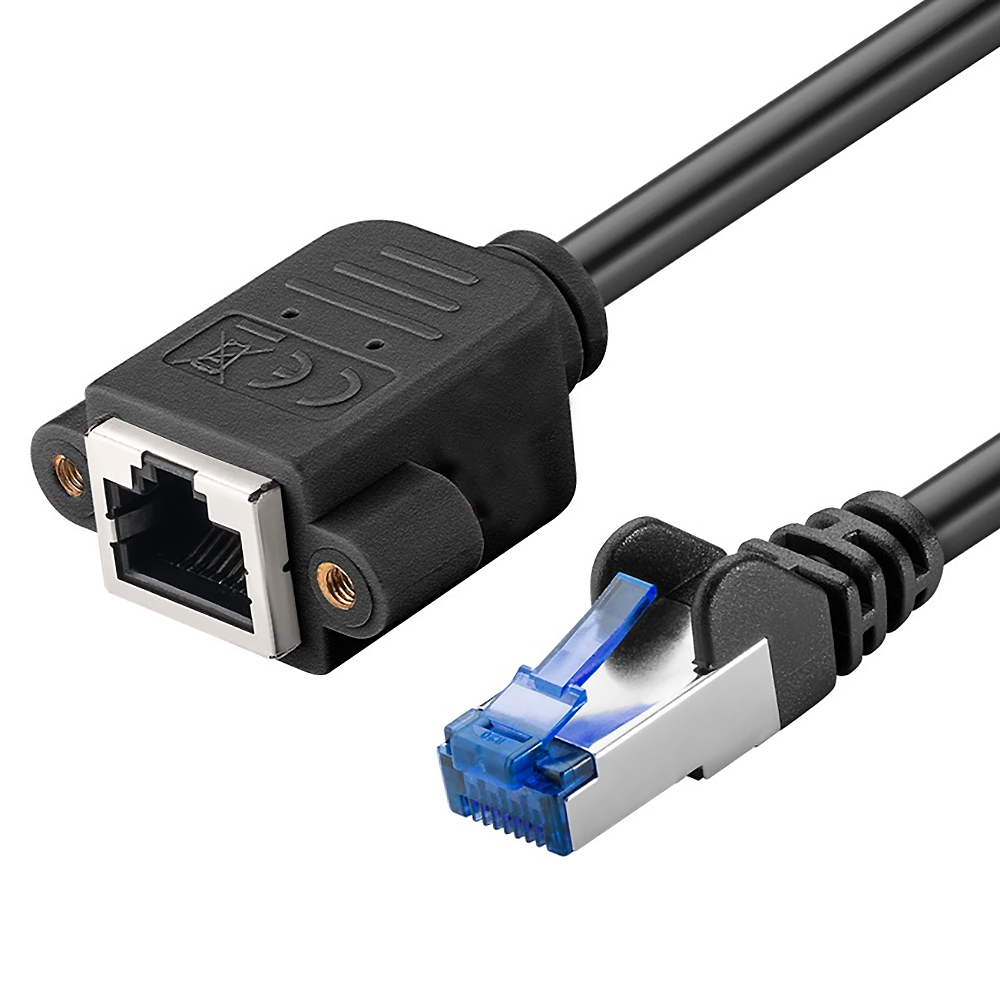

Cat. 6A Panel Mount Cable, RJ45 male-female with 2 screws, 50cm

Key features

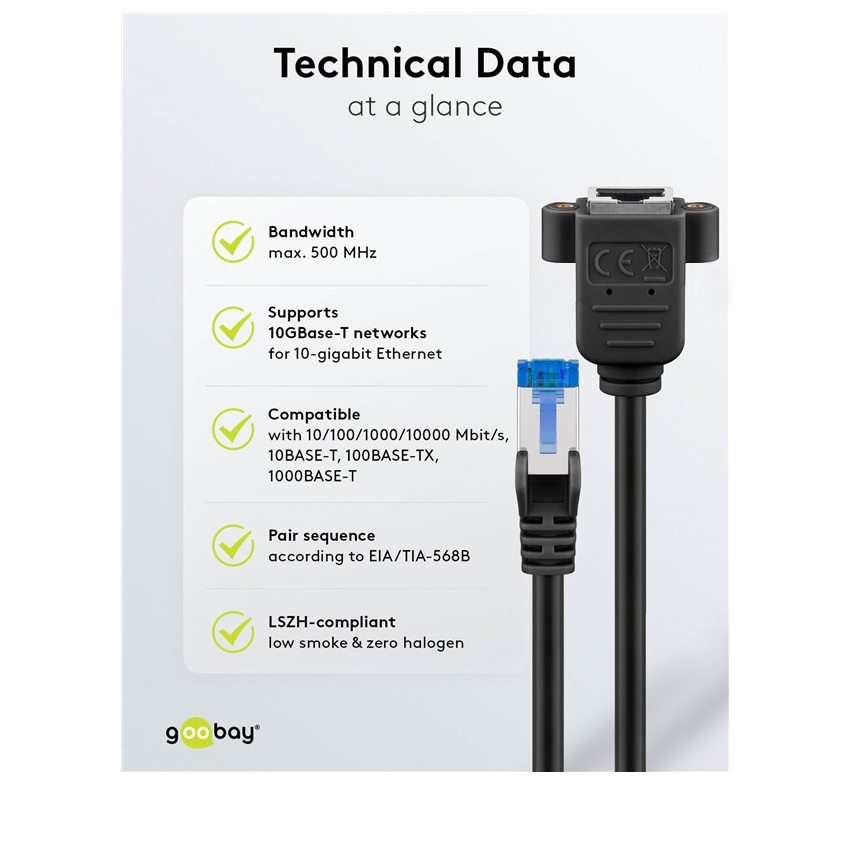

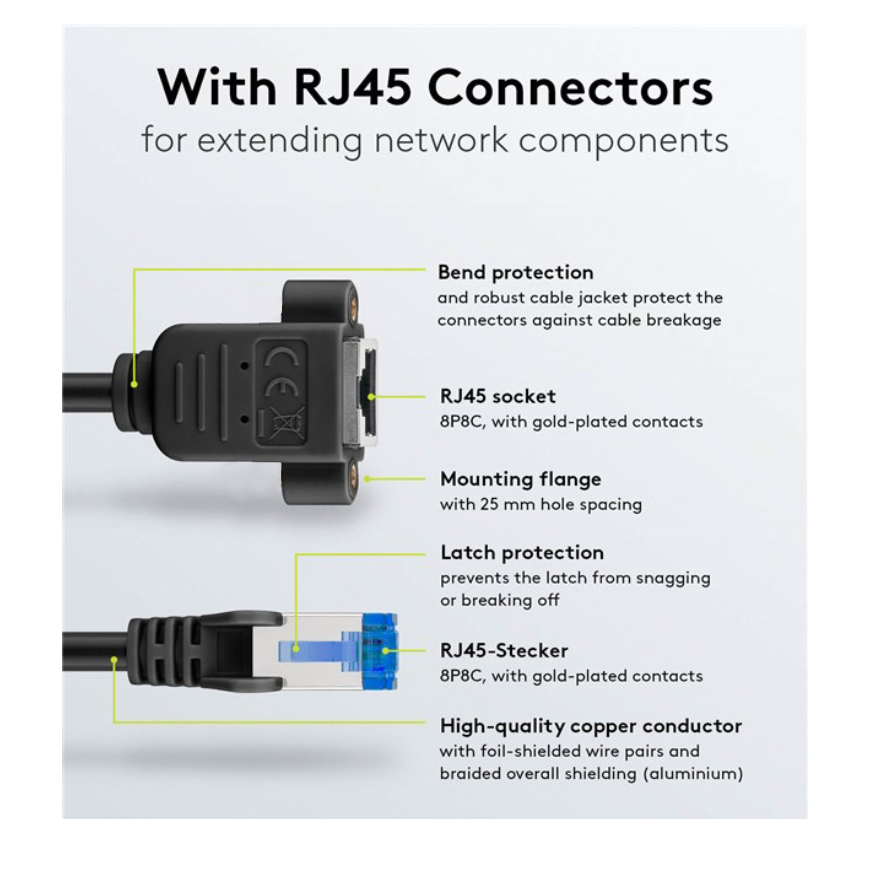

RJ45 panel mount cable for network Cat. 6A
for mounting on an enclosure with corresponding cut-out

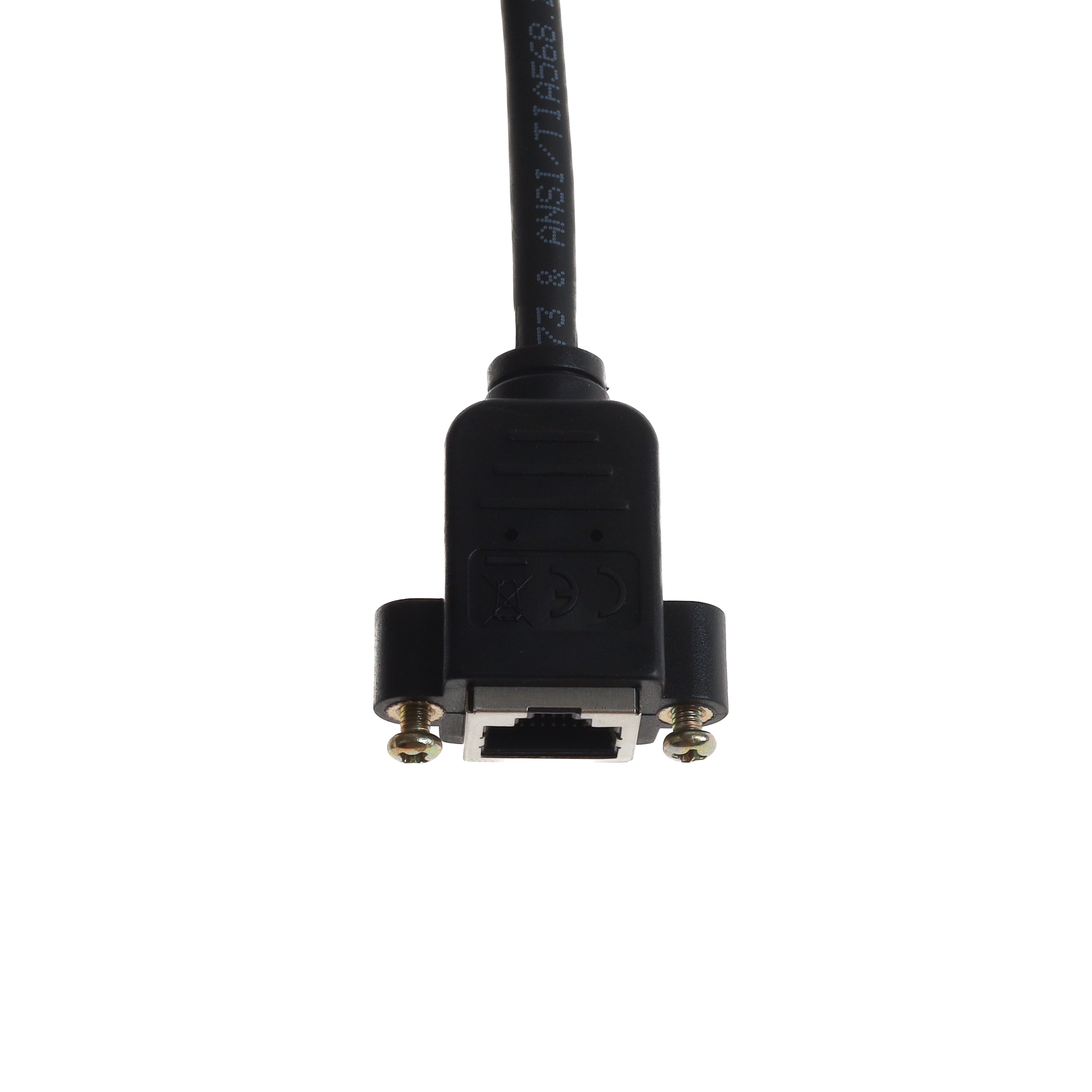

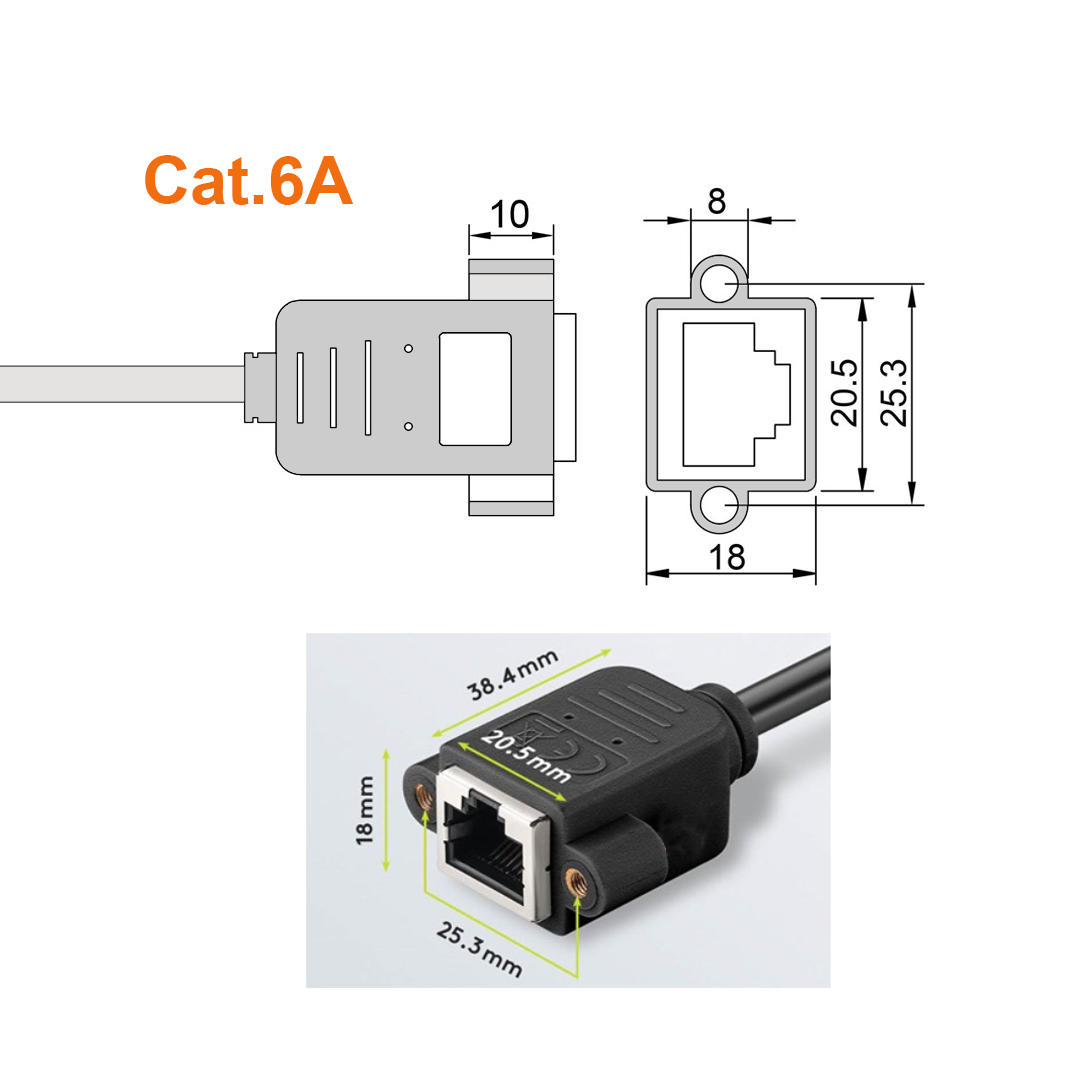

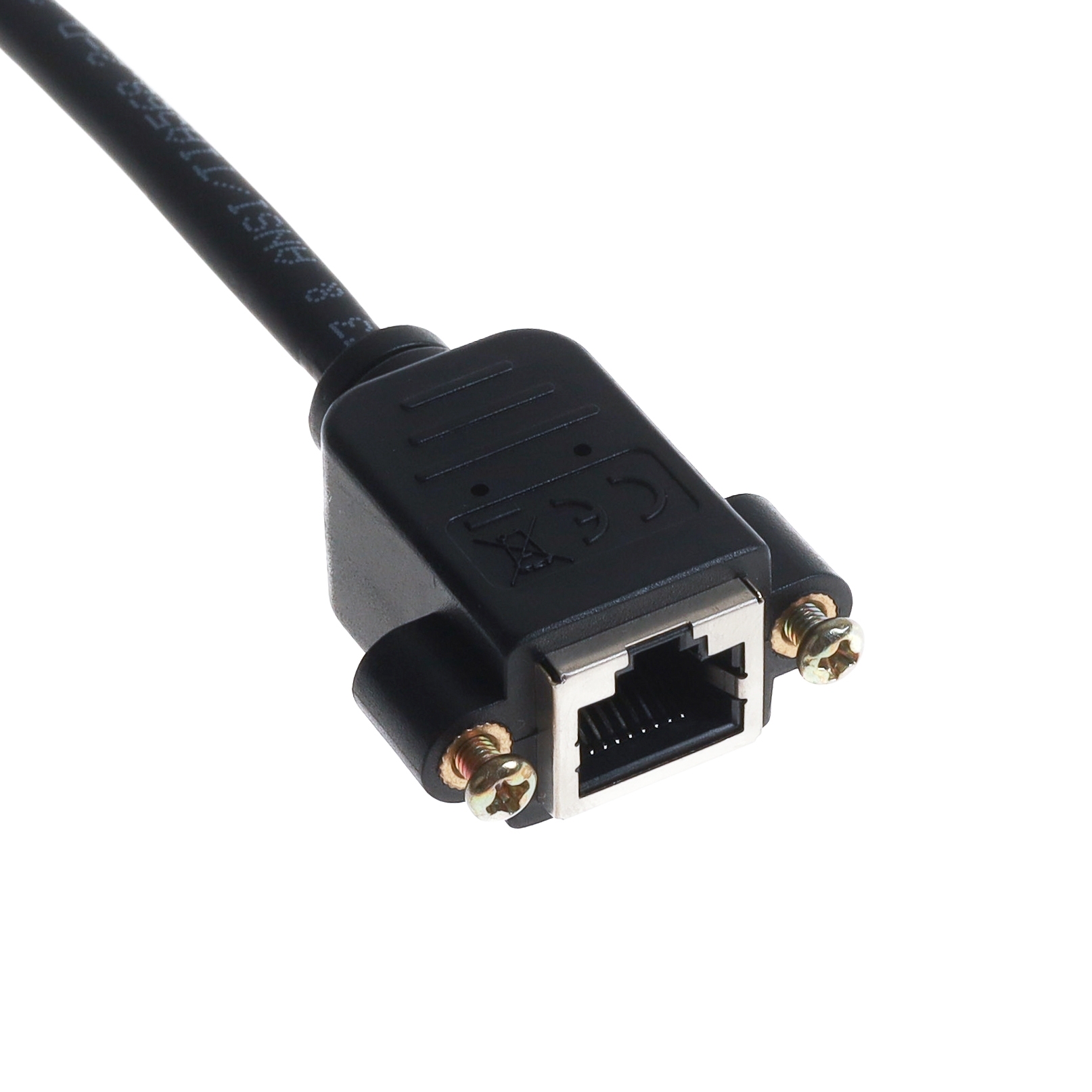

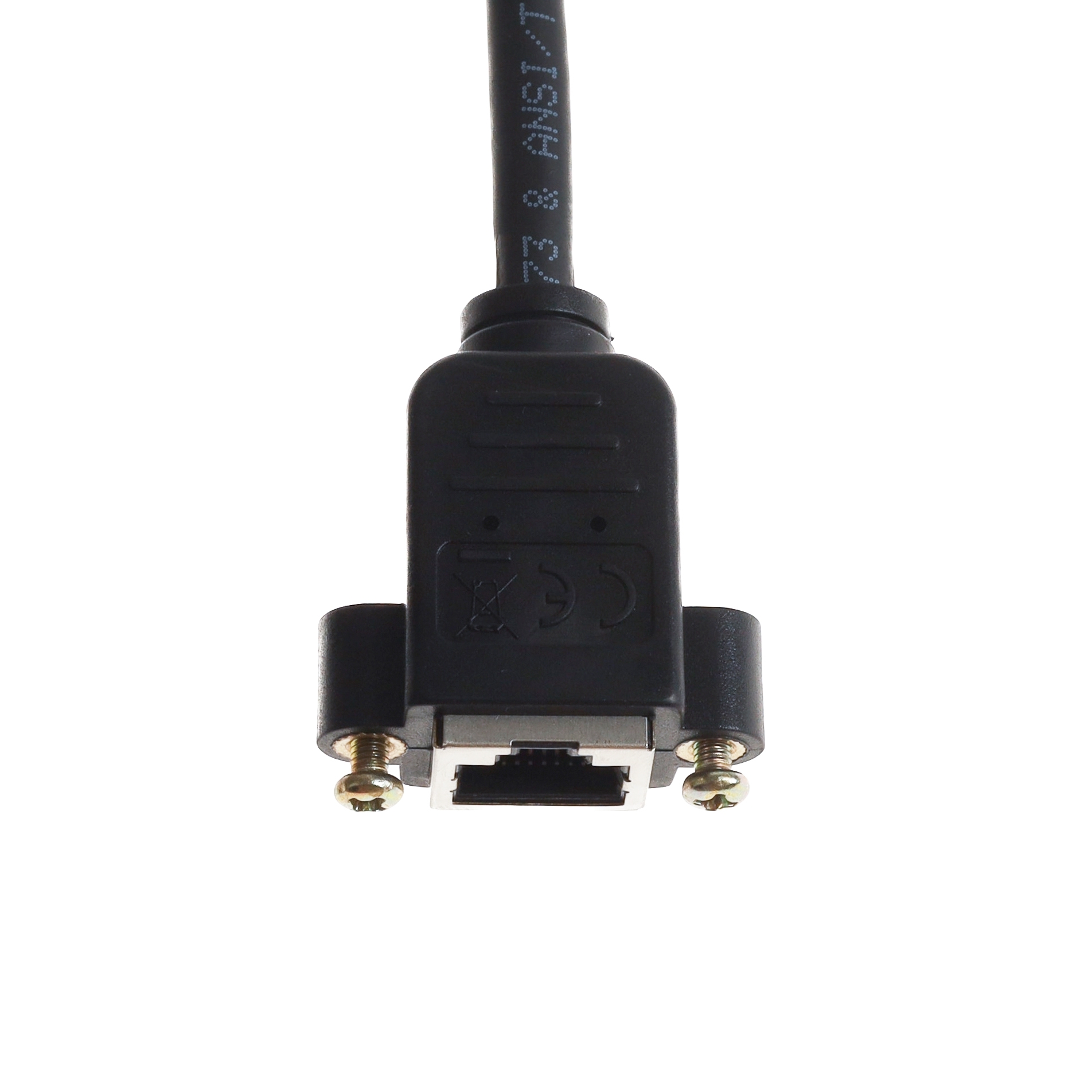

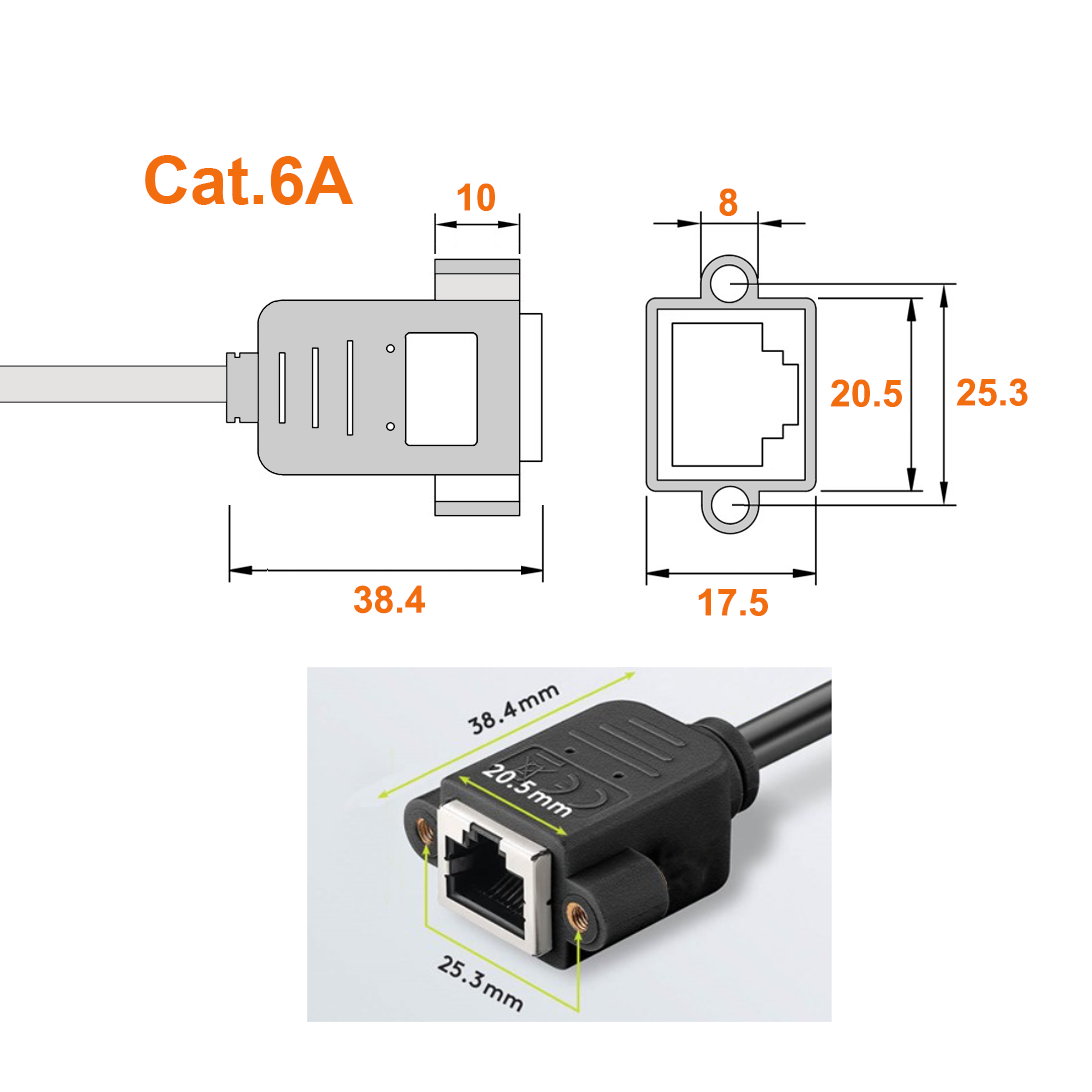

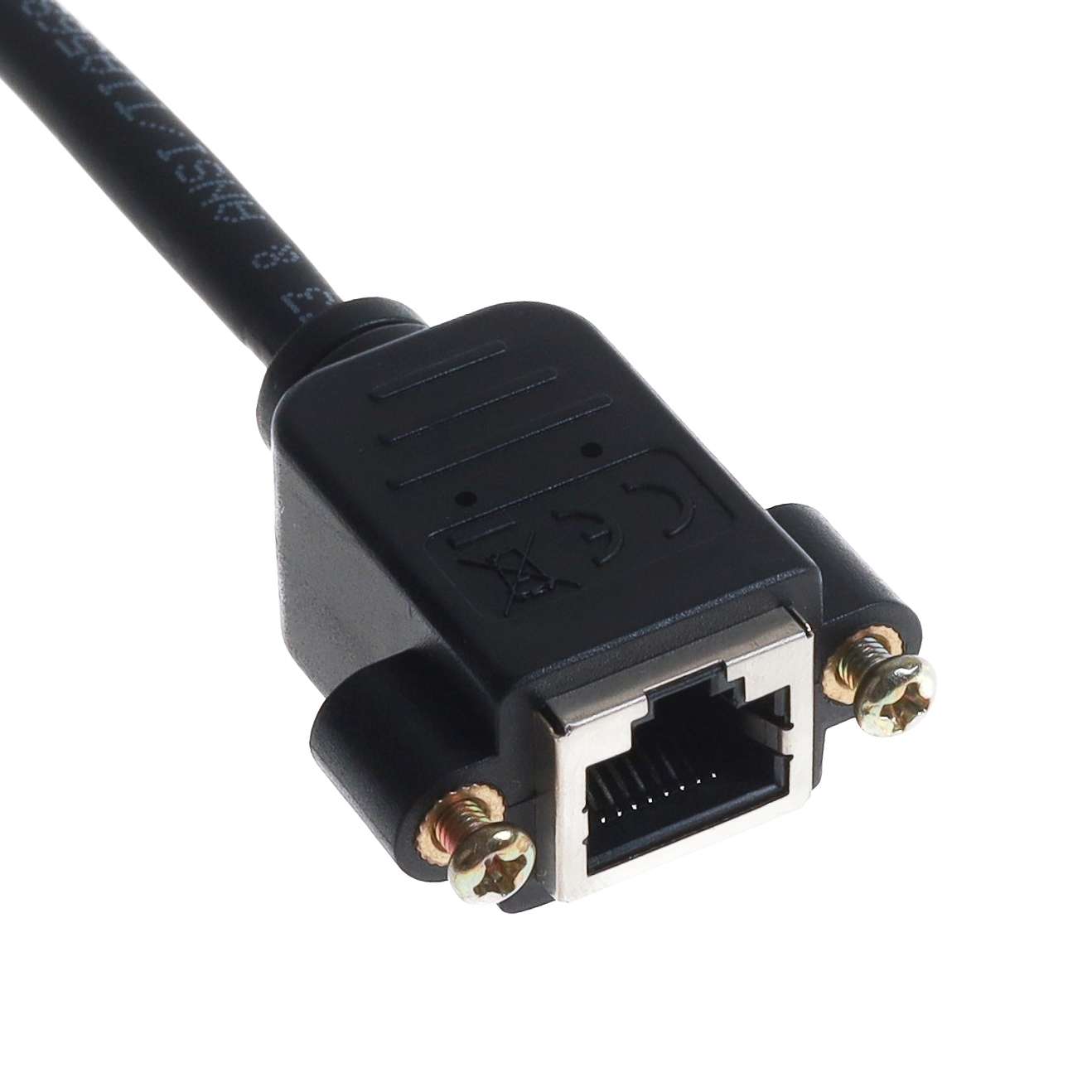

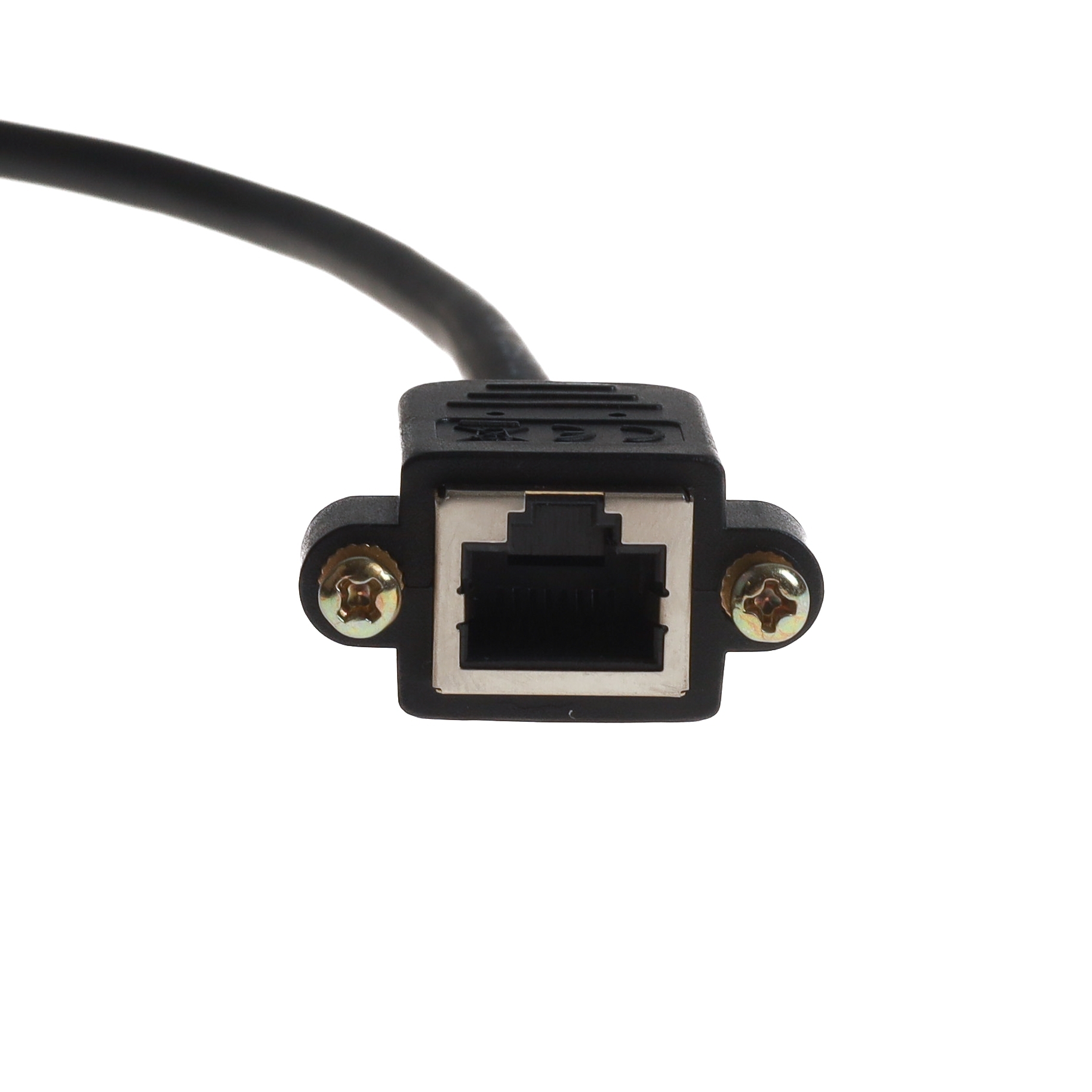

CONNECTION 1: Screw-on RJ45 socket (8P8C, female), screw spacing 25mm (hole spacing for fastening)
CONNECTION 2: RJ45 plug (8P8C)
gold-plated contact surfaces guarantee an excellent, high-performance network connection
specification: Cat. 6A, also suitable for Cat.6, Cat.5e or other RJ45 connections
suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
shielding class S/FTP (PiMF, Pairs in Metal Foil)
also braided overall shielding (aluminium)
high-quality thick copper conductor (CU) with AWG 27 BC (7/0.16mm, stranded)
halogen-free: LSZH LS0H (Low Smoke Zero Halogen)
max. bandwidth 500 Mhz
colour: black
colour coding/contacting: EIA/TIA 568B, assignment 1:1
operating temperature from -20°C
operating temperature up to 75°C
scope of delivery: Cable incl. 2 screws (pre-assembled)
cable diameter (approx.): 5.8 mm

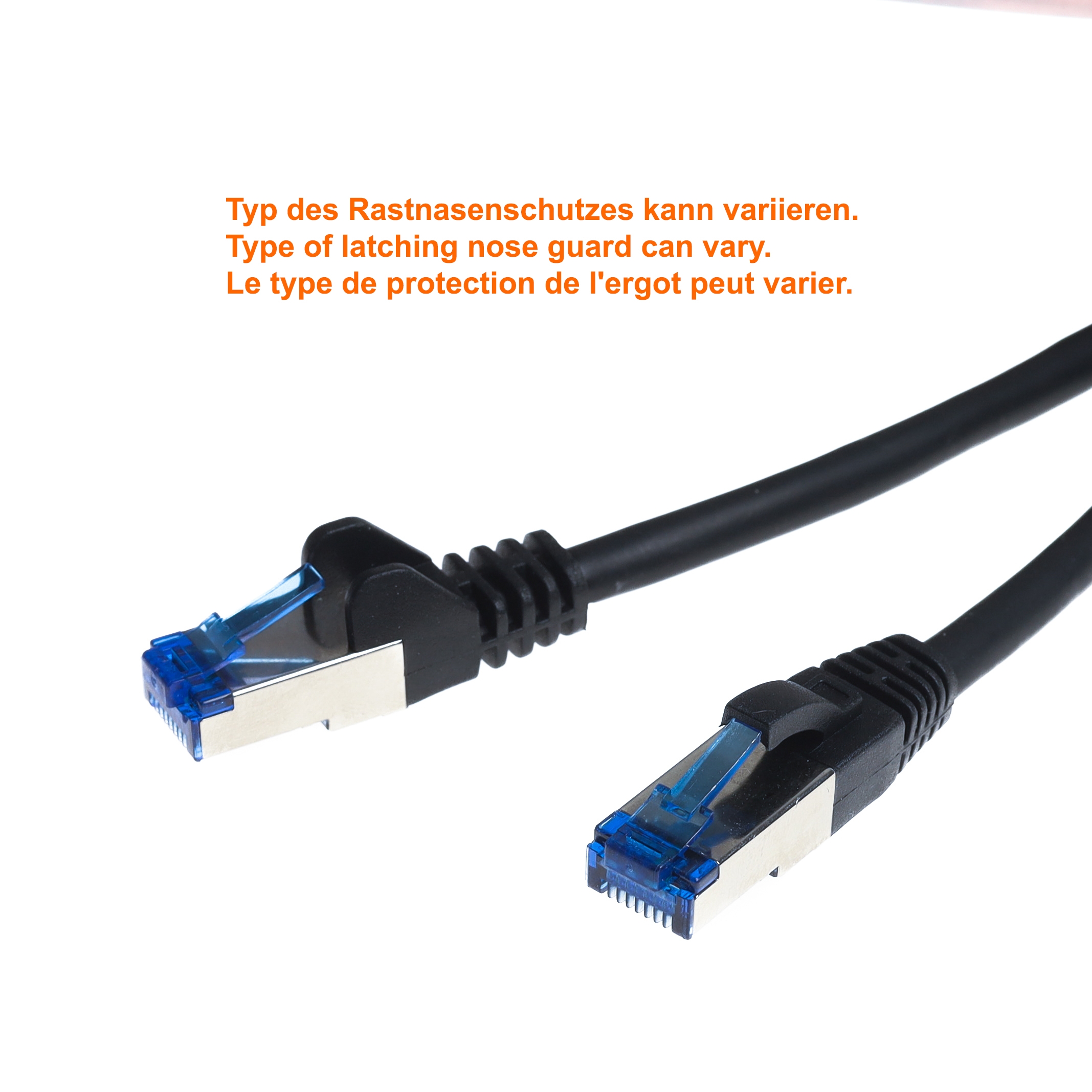

plug bend protection sleeve and latching lug protection
CE, WEEE, RoHS compliant
