Item no.
HX-HDMI-10-G
HDMI panel mounting cable, A female screwable to A male, 4K2K, 1m, screws included, compatible with HDMI High Speed with Ethernet
Key features
- Panel mounting cable HDMI
- Adapter cable for installation with 2 screws
- Length: approx. 1 Meter | 1m
- HDMI 4K2K@60Hz (4096x2160@60HZ 4:2:0 8bit, HD-TV)

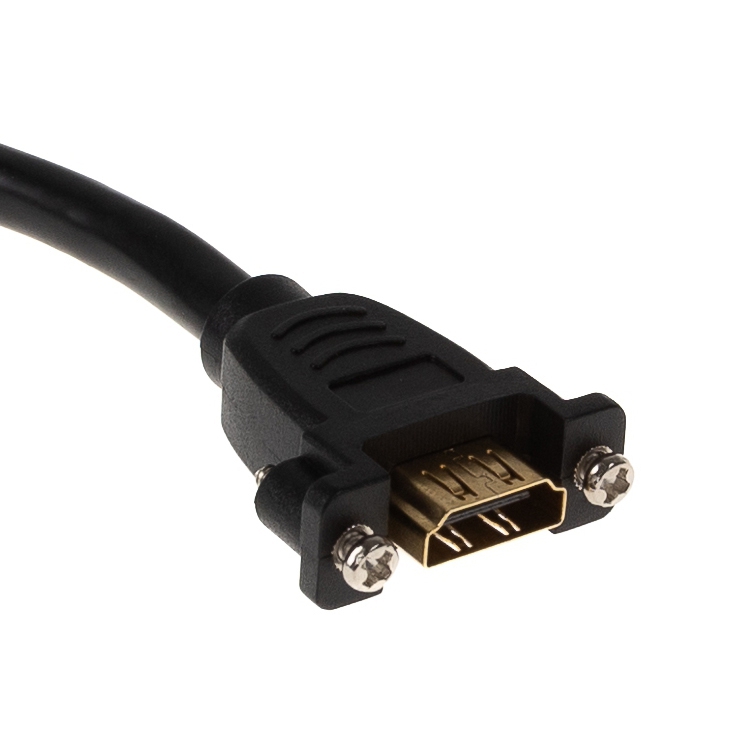

- Connector 1: HDMI A female (19-pin) can be screwed on

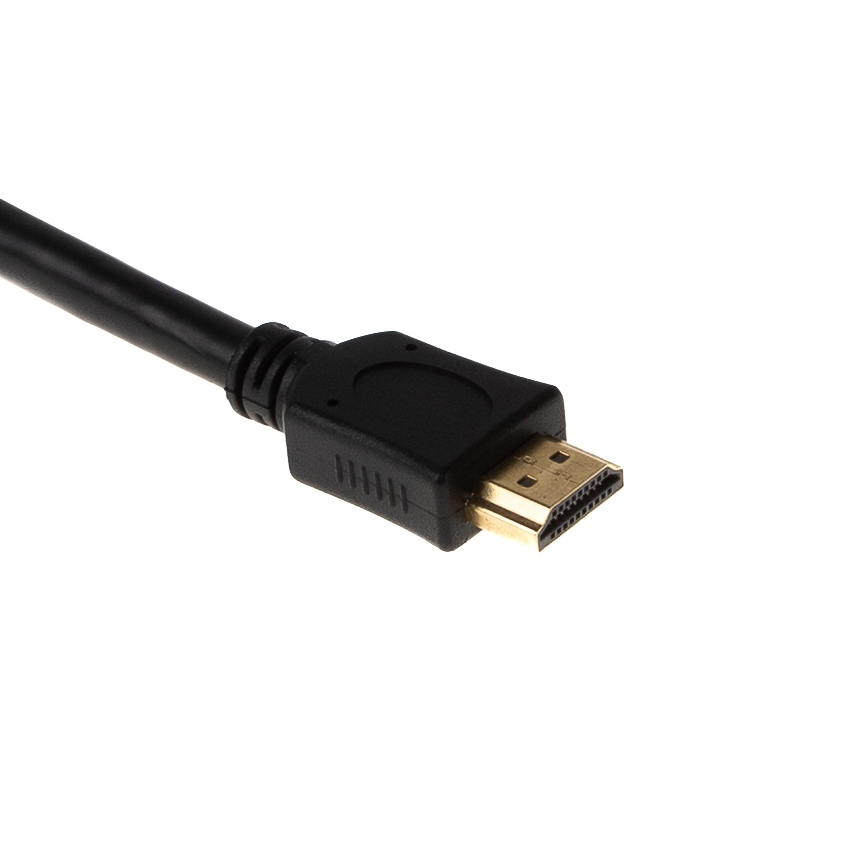

- Connector 2: HDMI A male (19-pin)

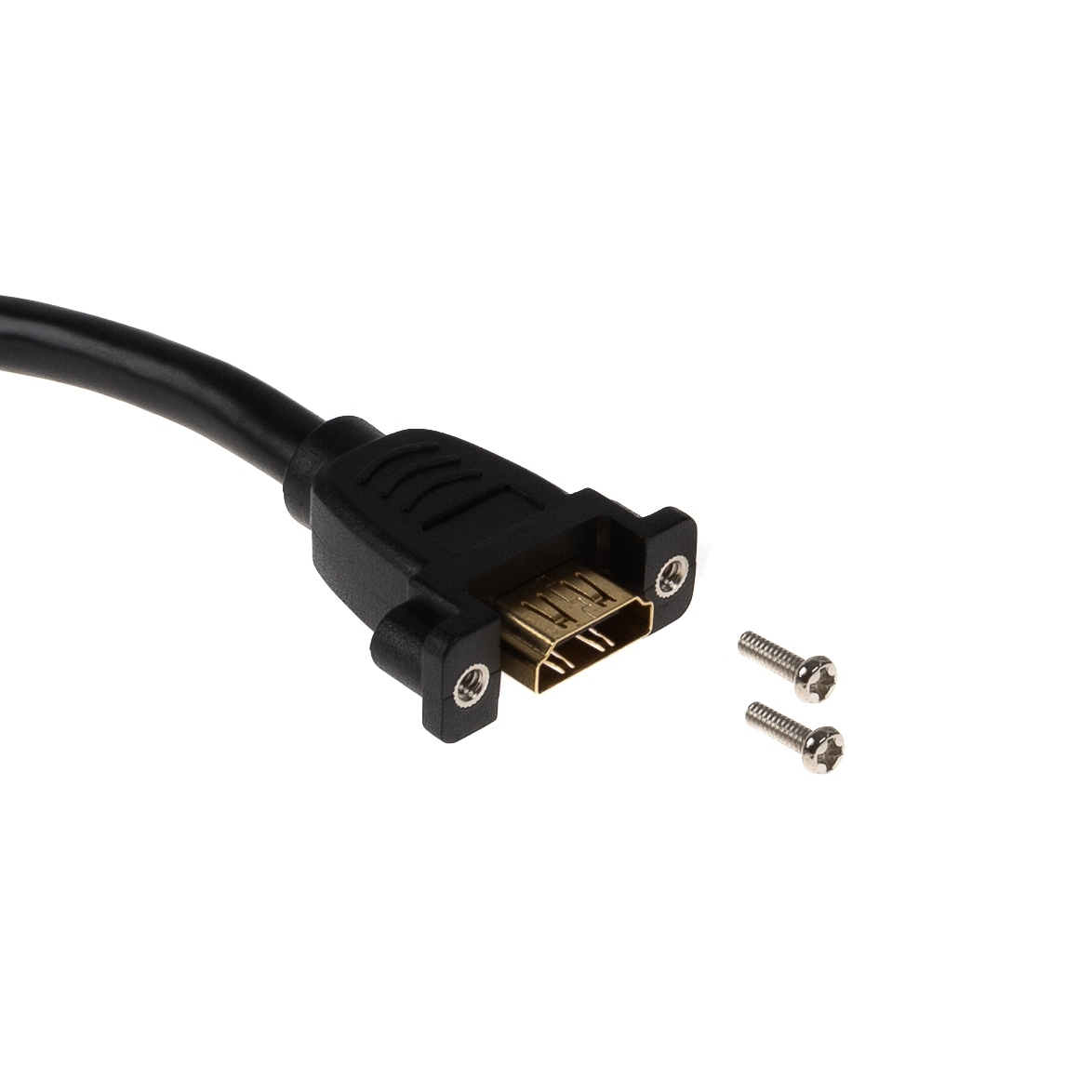

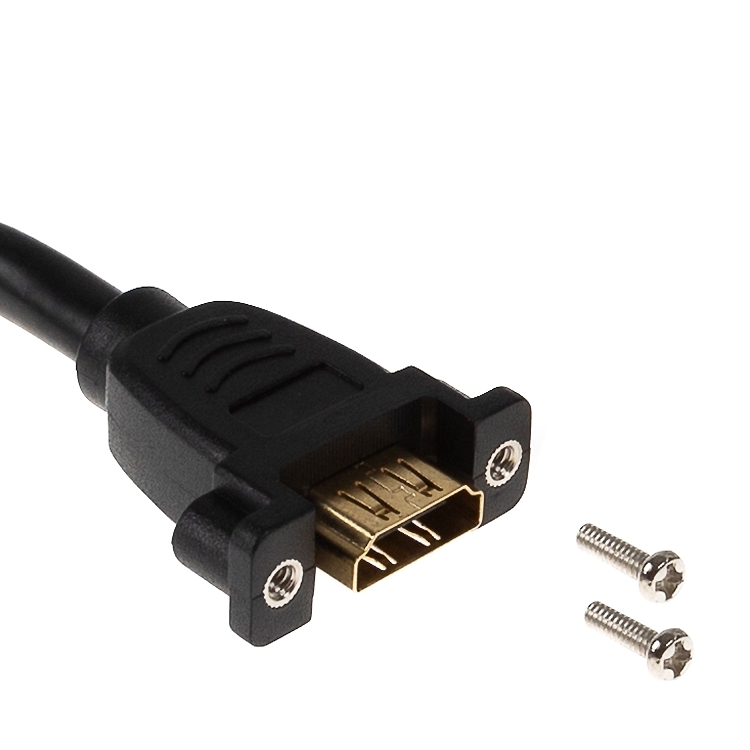

- 2x screw type UNC-4/40 (included in the scope of delivery)

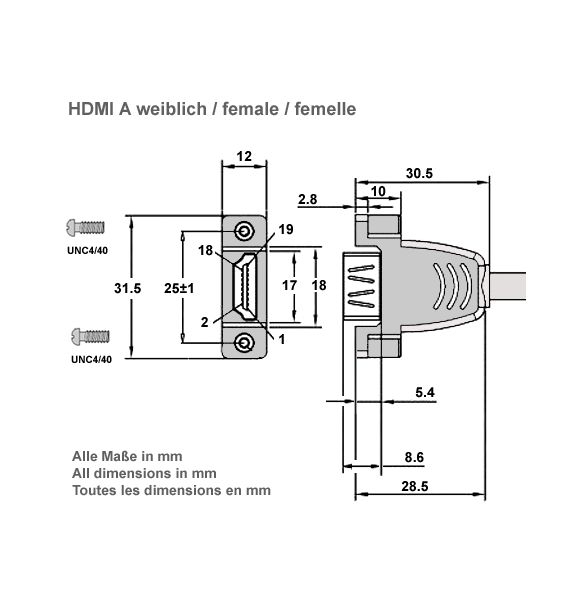

- Required housing opening of the screw-on HDMI socket: approx. 8x18mm
- Hole spacing of the screws: 25mm
- HDMI cable assignment: 1-to-1 (all 19 contacts)
- HDMI compatibility: with Ethernet
- Colour: black
- Customs tariff no. for HDMI cable: 85444290
- Alternative designations: HDMI built-in socket, HDMI rack mount, HDMI housing feed-through, mounting flange, HDMI mounting extension
- CE, WEEE, RoHS compliant according to EU directives: (EU) 2015/863 and 2011/65/EU
