Item no.
HX-M1

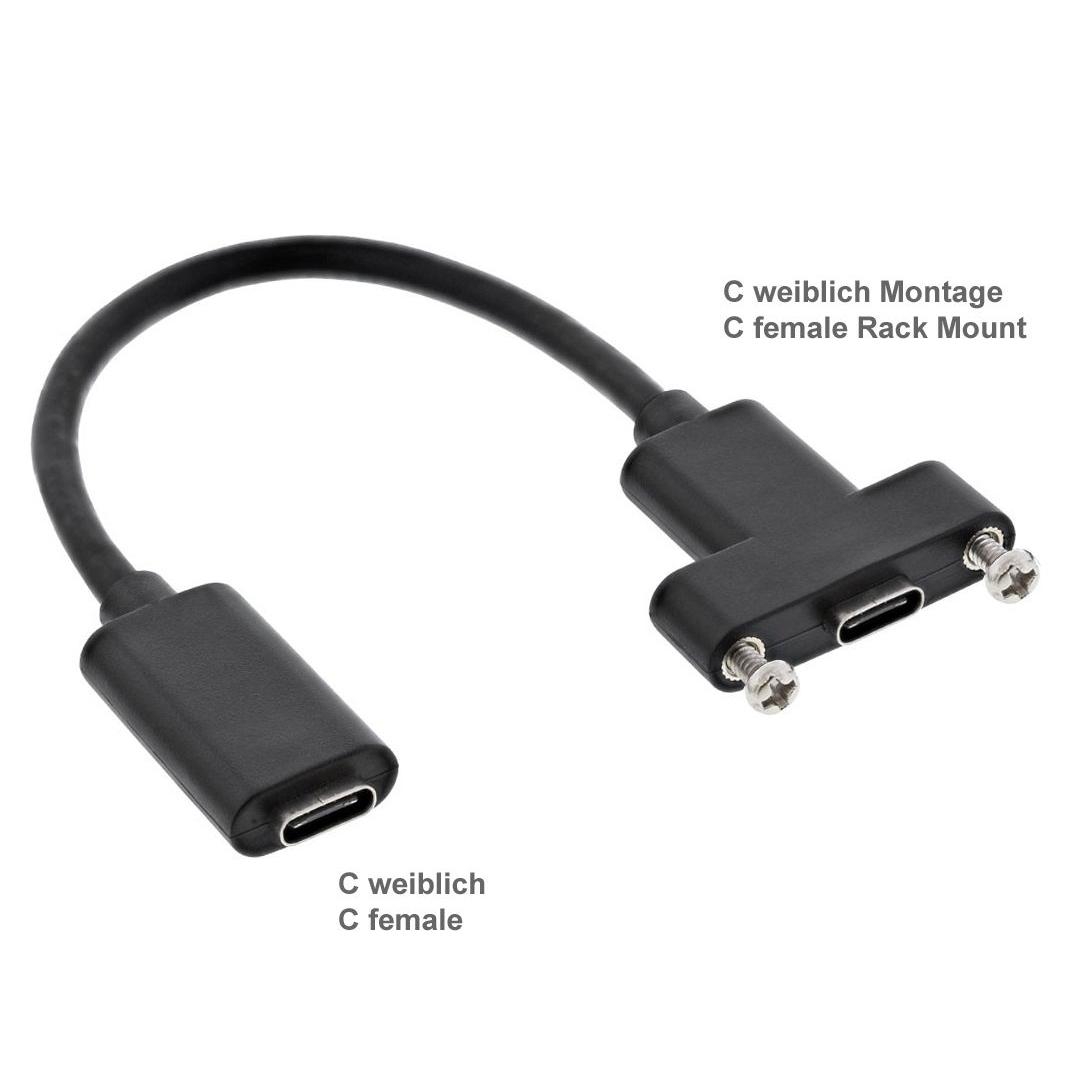

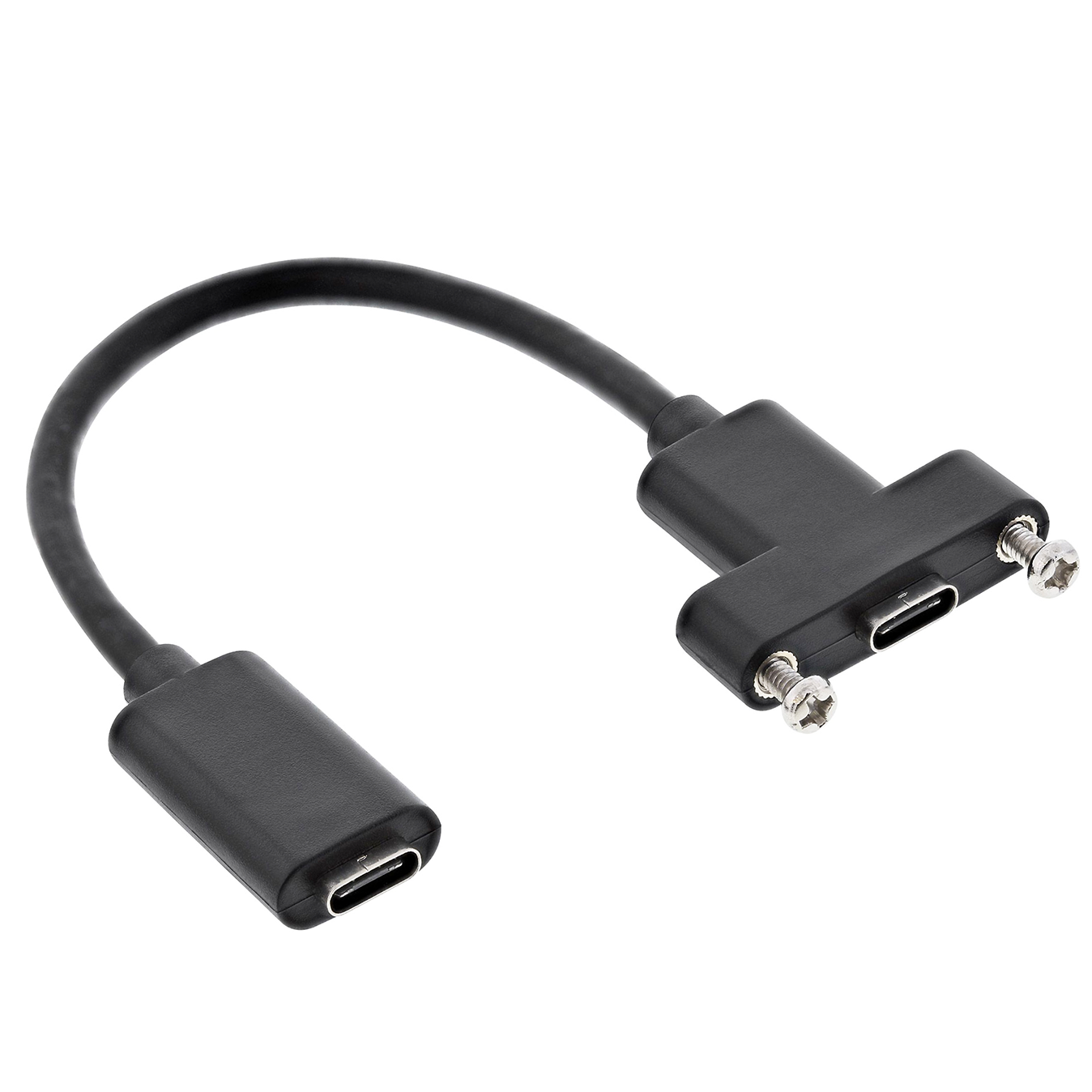

USB Type-C™ panel mount cable, female to female, 20cm
Key features
- USB Type-C™ panel mounting cable / panel mount cable / rack mount cable / USB C REAR

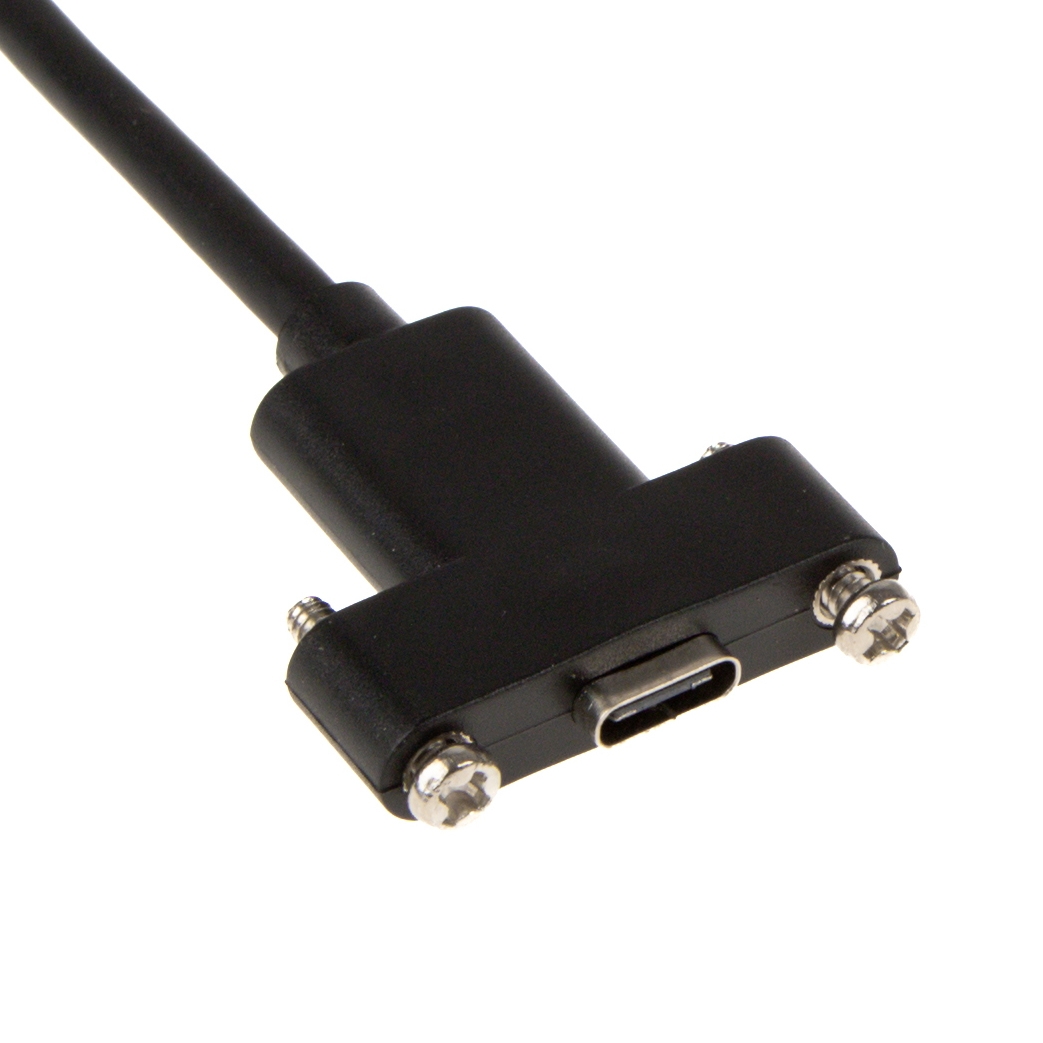

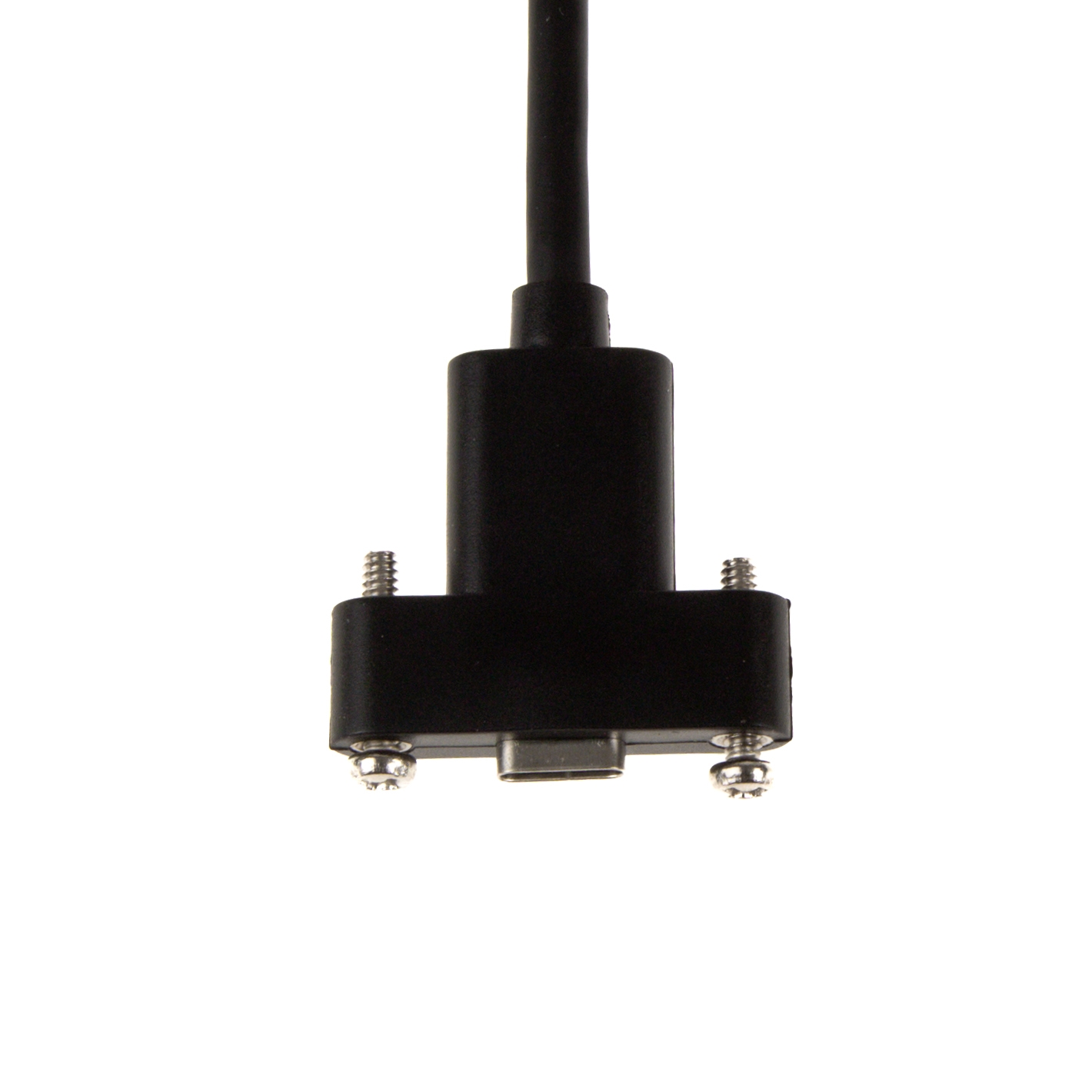

- connection 1: USB Type-C™ socket screw-on (panel mount socket)
- screw type: UNC 4/40, approx. 15mm thread length

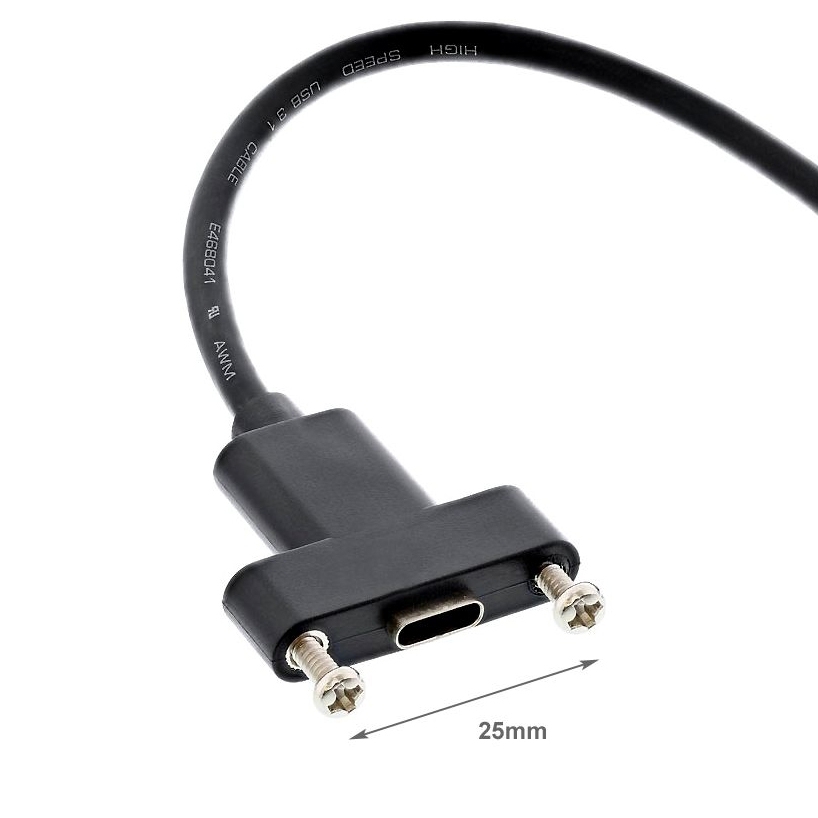

- hole spacing approx. 25mm
- cutout for Type-C™ socket approx. 9 x 3.5mm

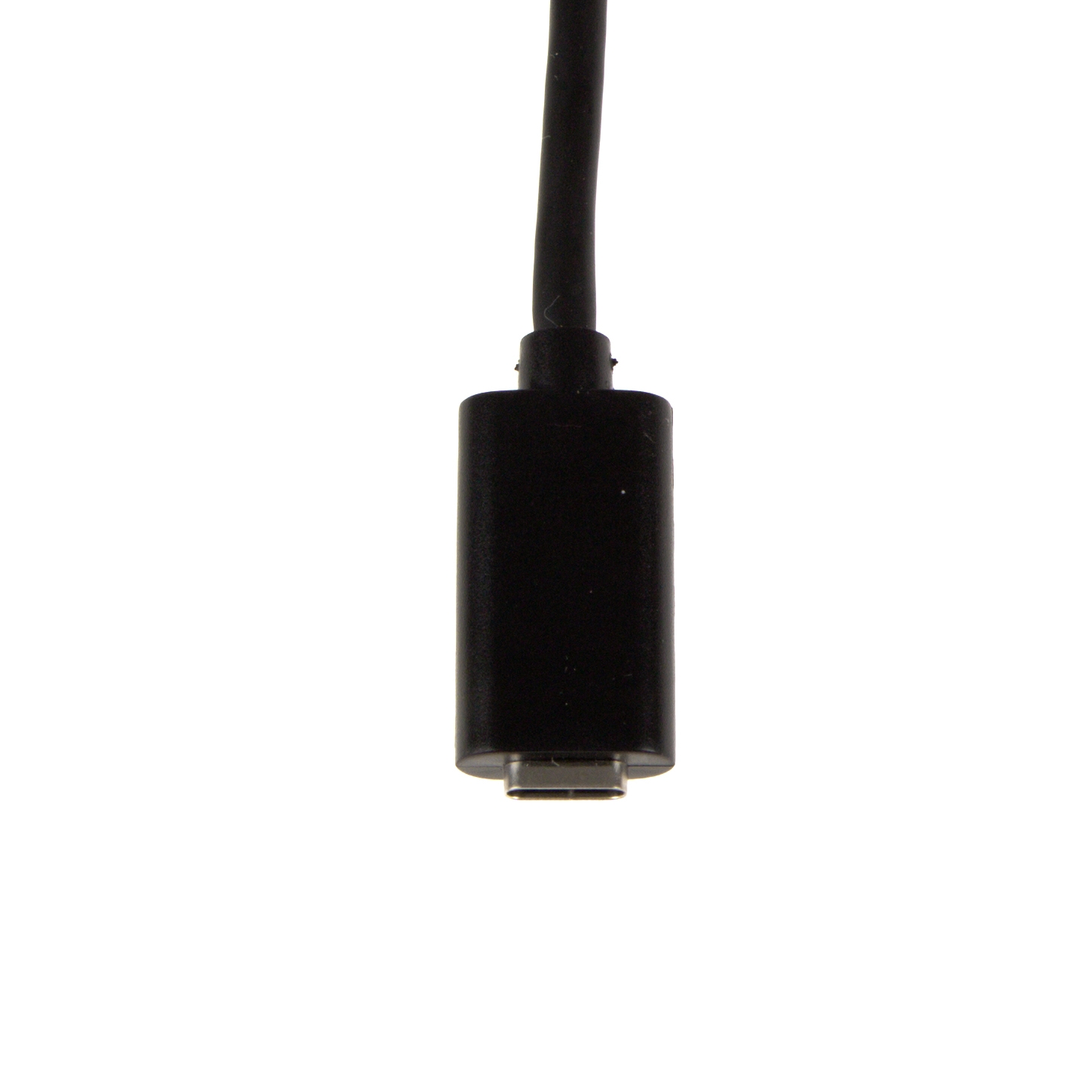

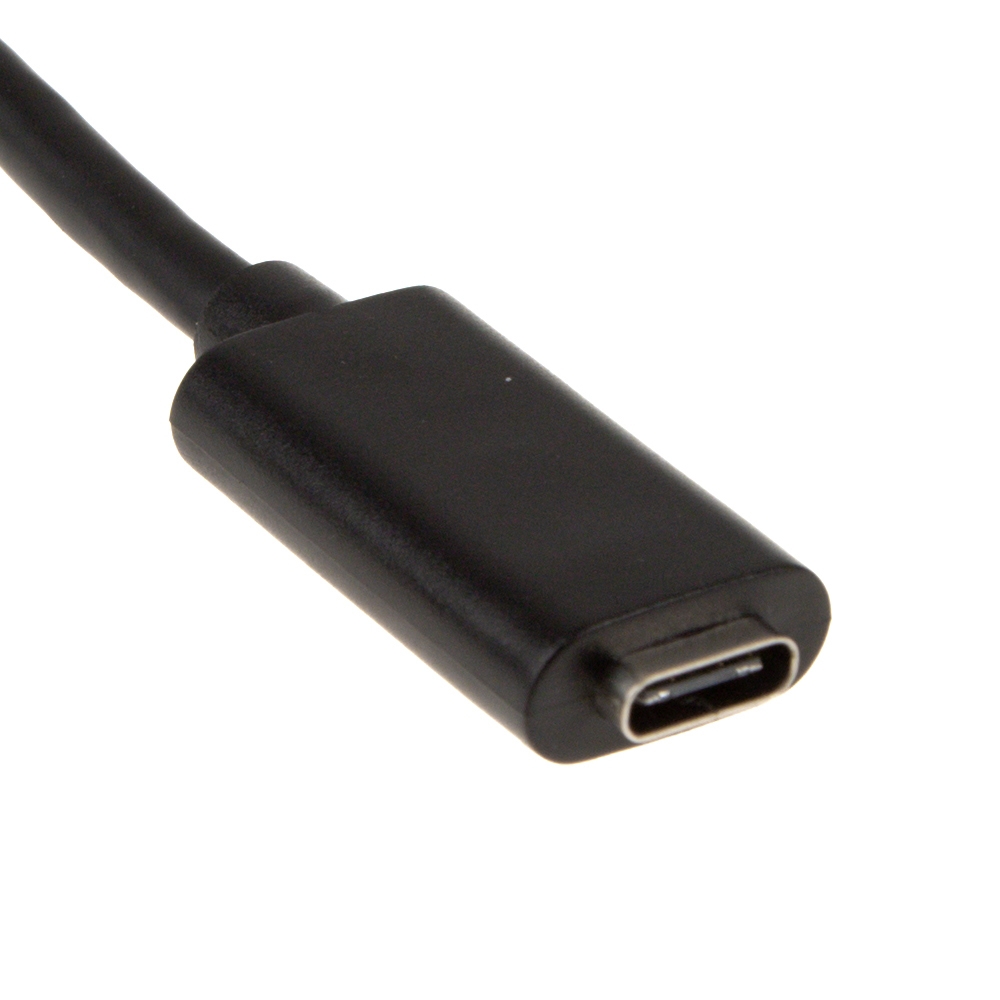

- connection 2: USB Type-C™ socket

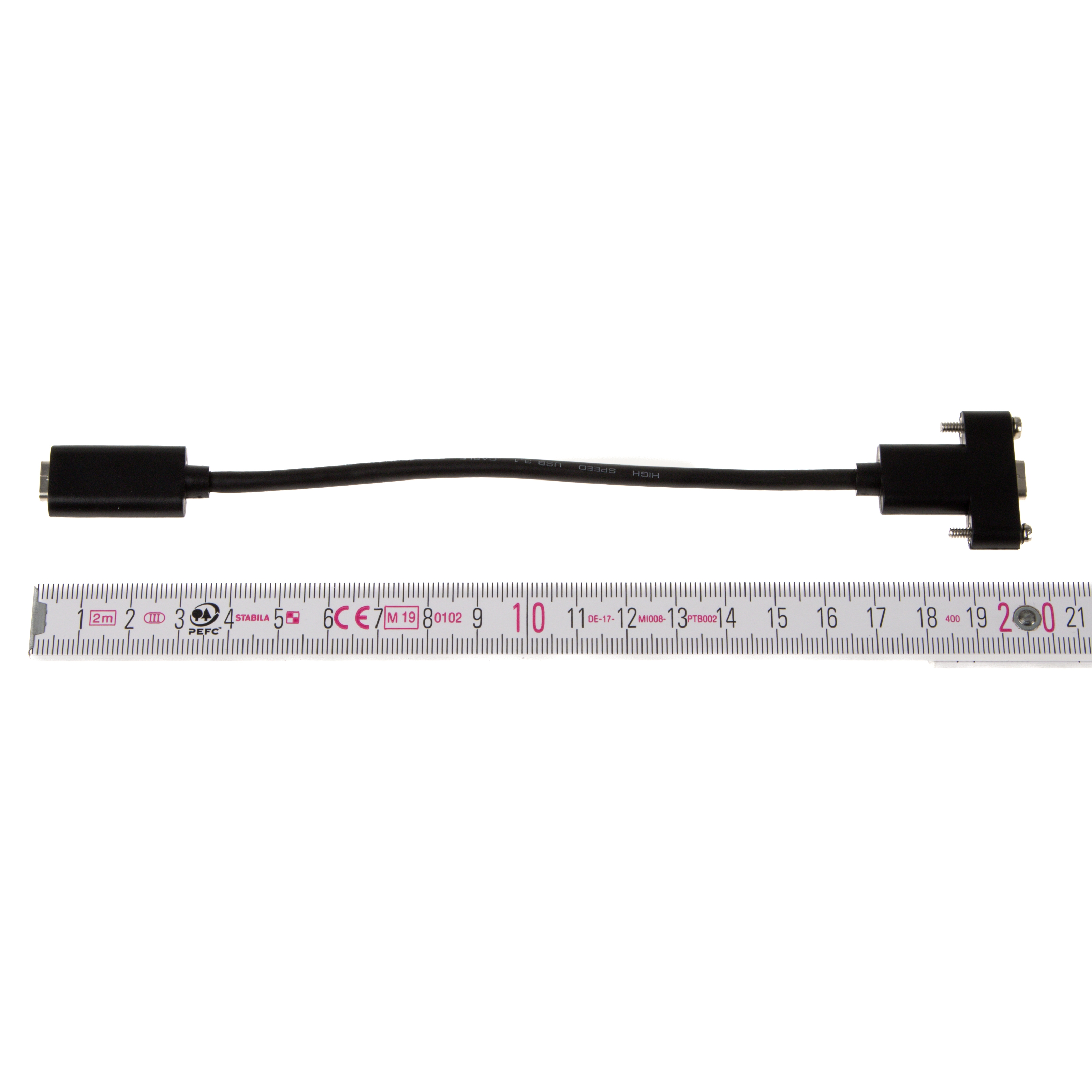

- length: approx. 20cm
- PREMIUM quality
- double shielding with braided and foil shielding
- conductor material: copper (CU)
- UL 2725 cable material e.g. E321484 80°C 30C VW-1 APBG Electronic Co., Ltd. and others
- max. 10 Gb/s (USB 3.2 Gen.2)
- component/cable for mounting in end device
- weight 16g (without packaging)
- CE, WEEE, RoHS compliant (environmentally friendly according to EU directives)
