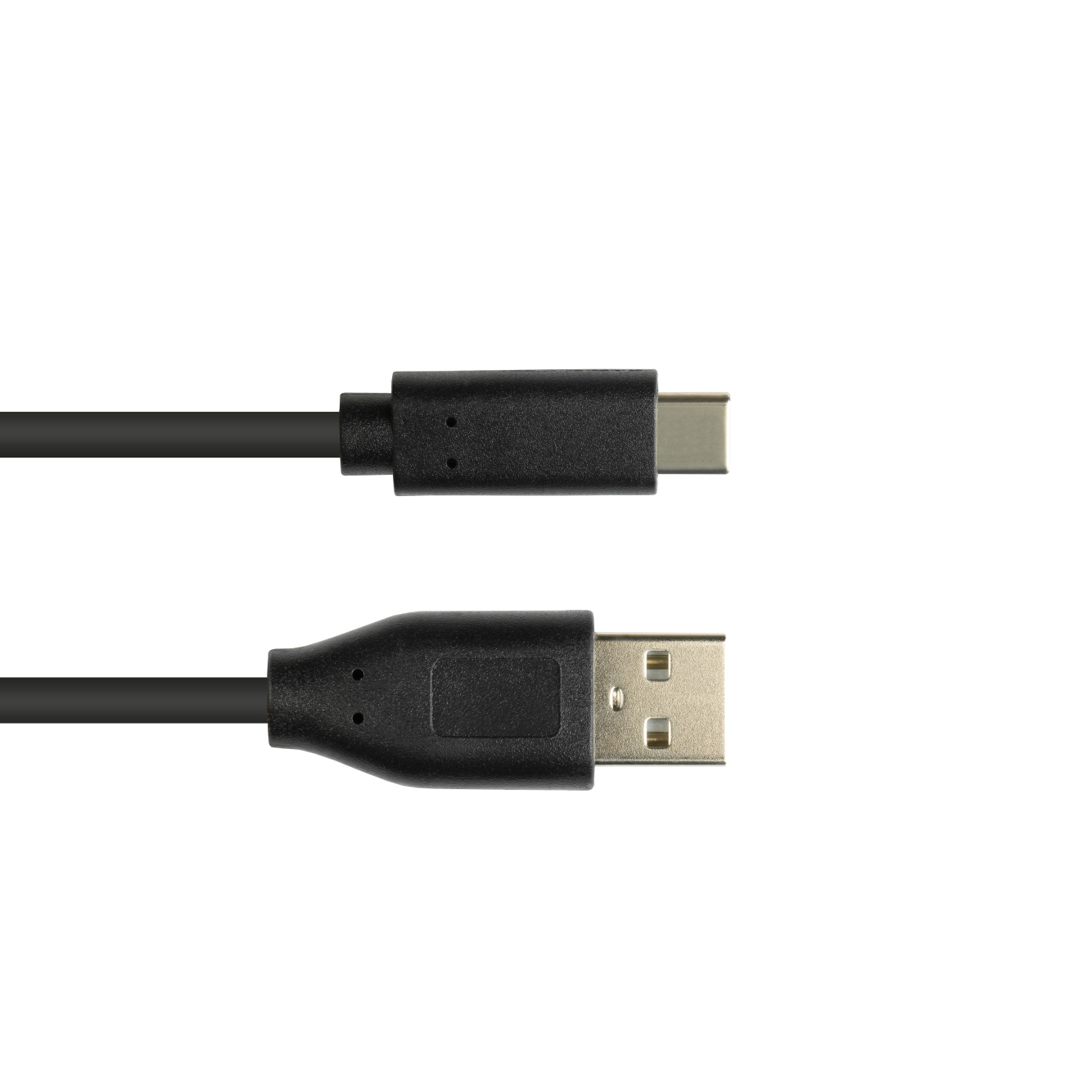

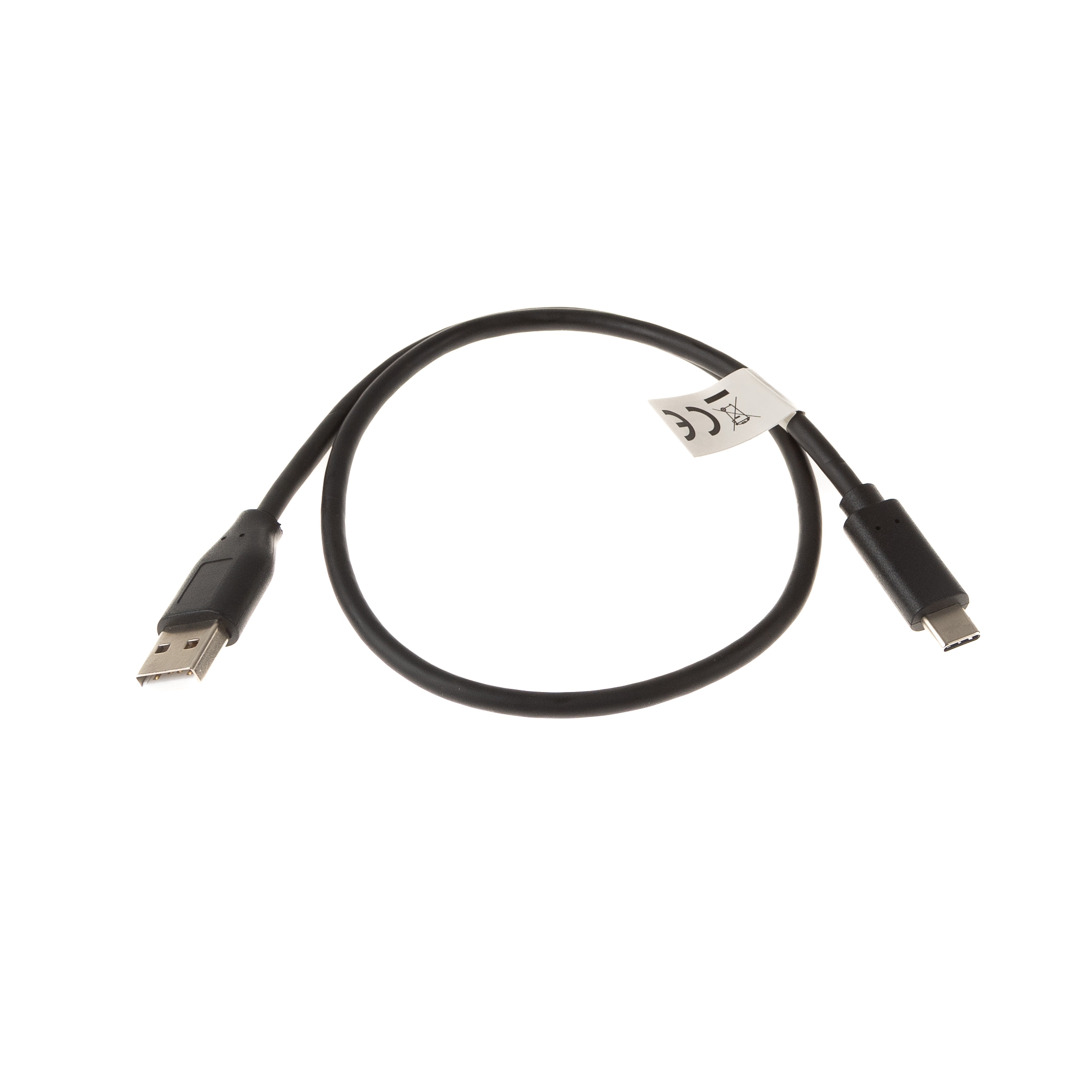

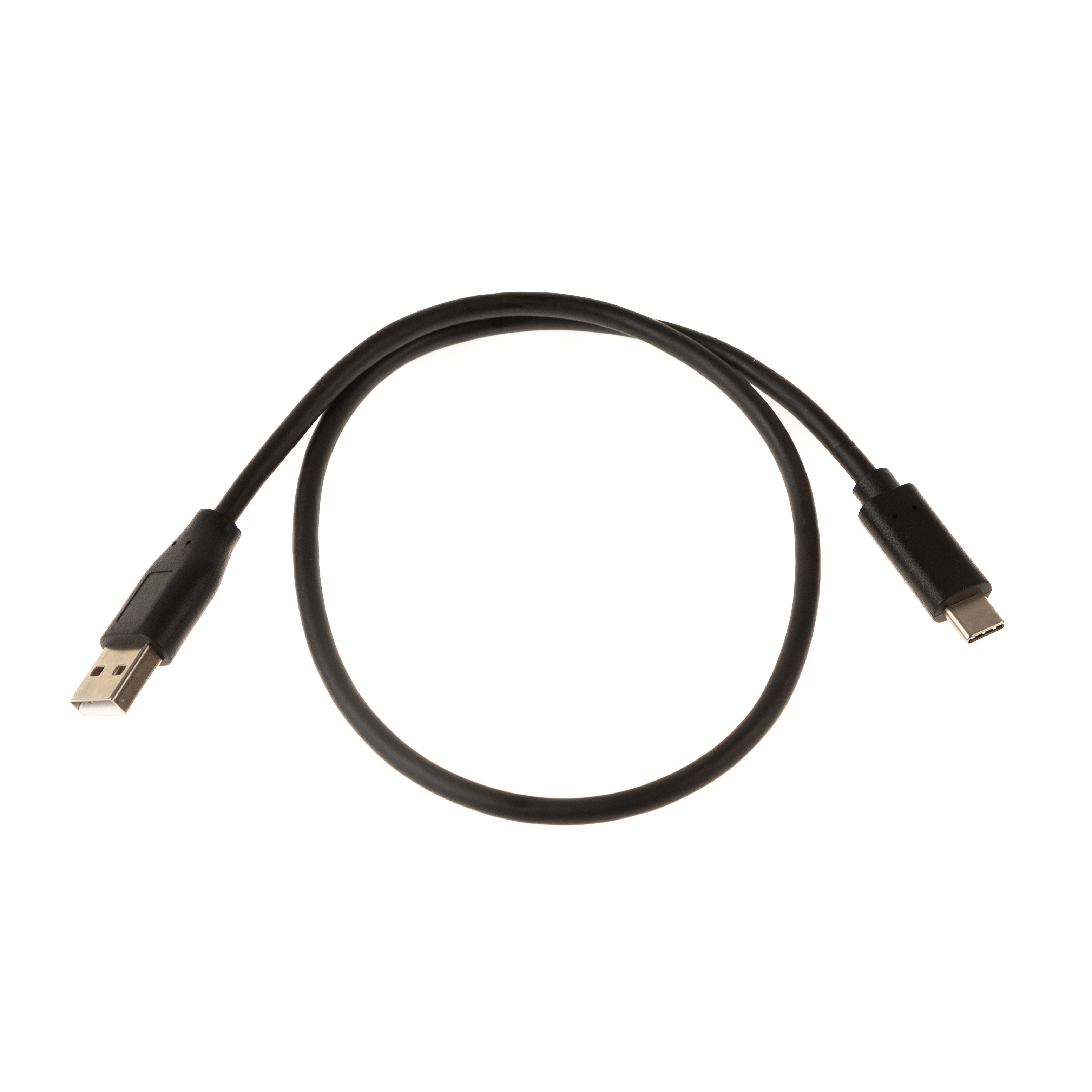

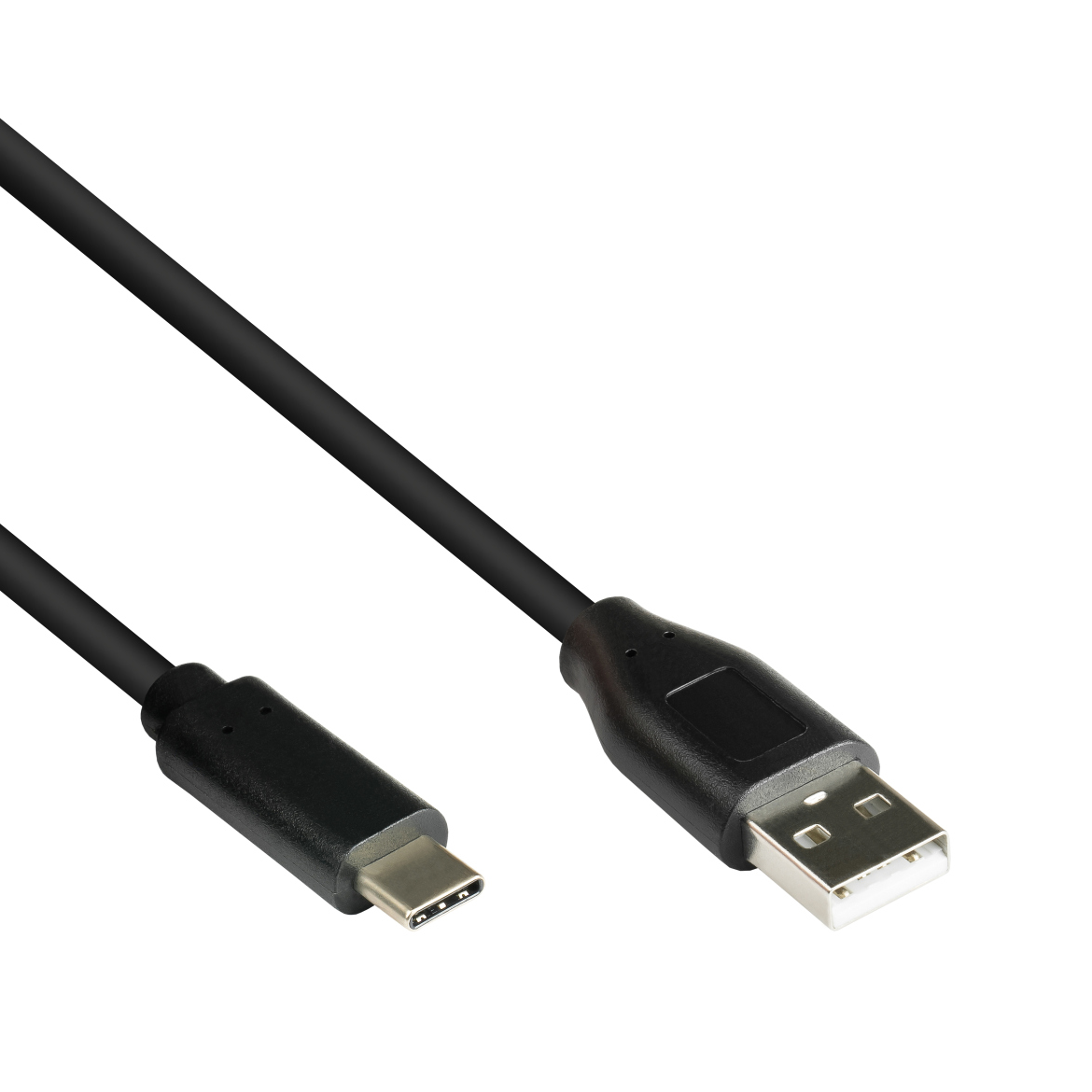

USB cable Type-C™ male to USB 2.0 A male 50cm

ALCASA

€4.52*

46 in stock

PDF-Datasheet

Item no. HX-CA2-05A

USB cable Type-C™ male to USB 2.0 A male 50cm, AWG 28/1P AWG 23/2C, black

Key features

USB 2.0 cable C/A

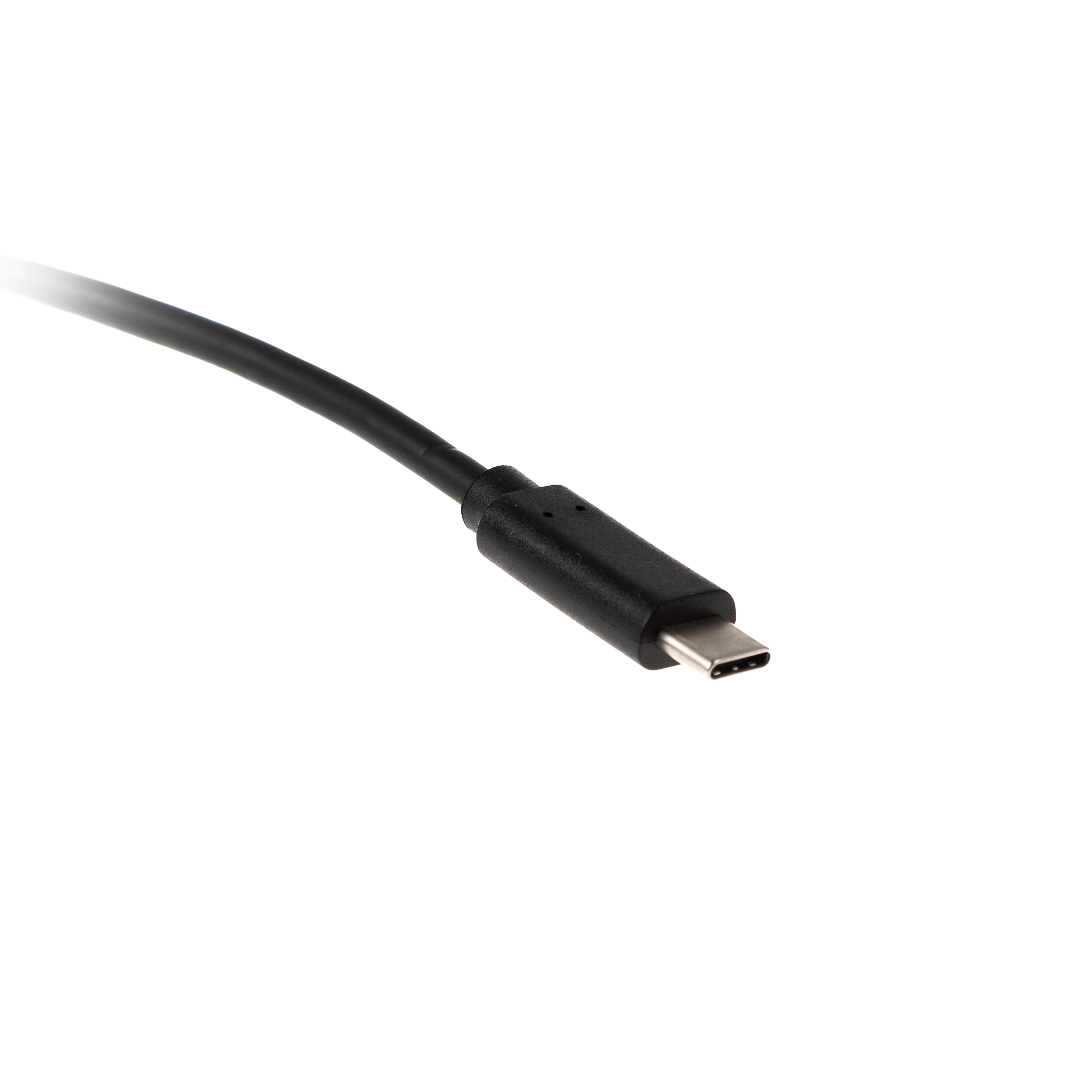

CONNECTOR 1: USB type C plug (type-C™, male)

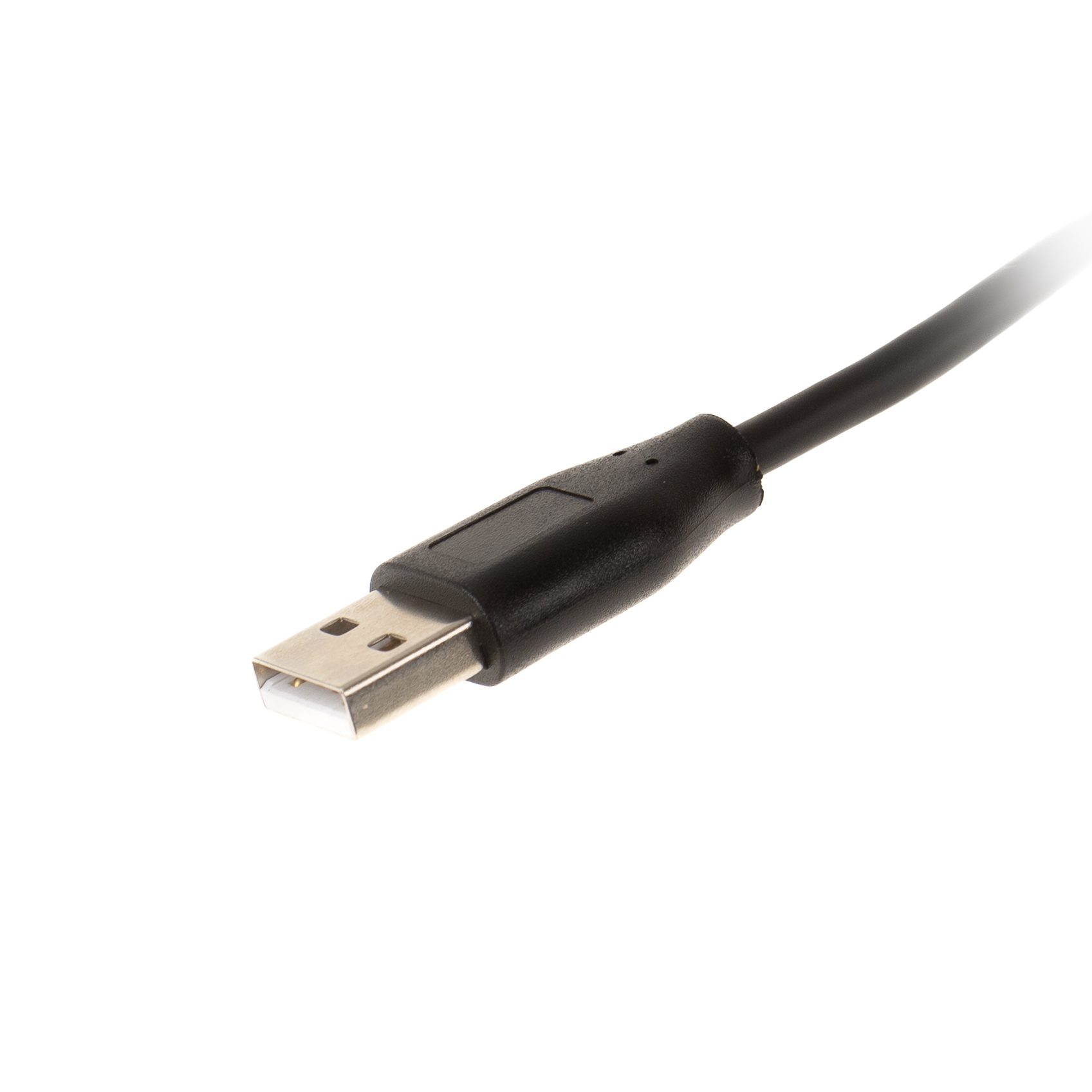

CONNECTOR 2: USB 2.0 A plug (male)
Length: 0.5 metre | 50m
PREMIUM quality

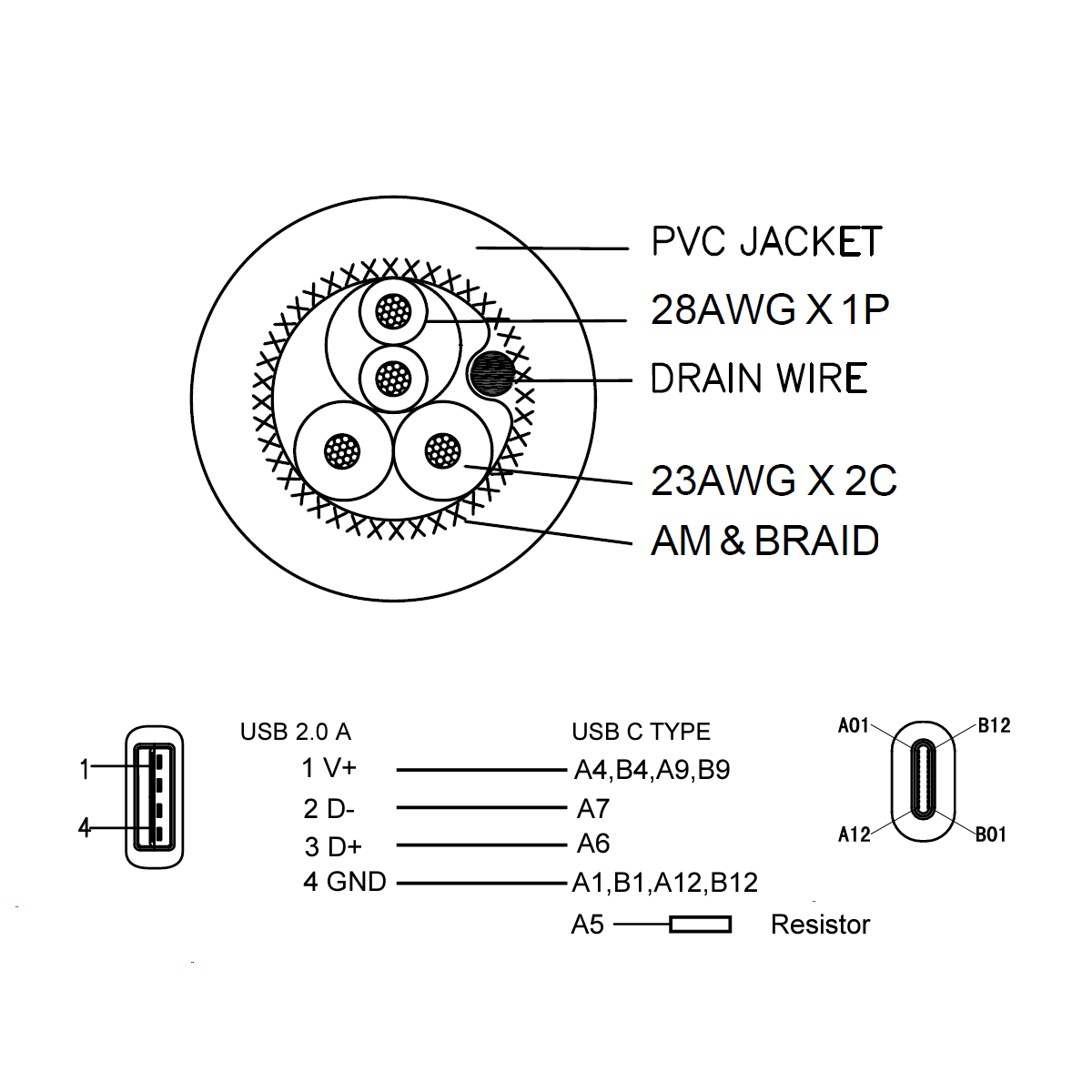

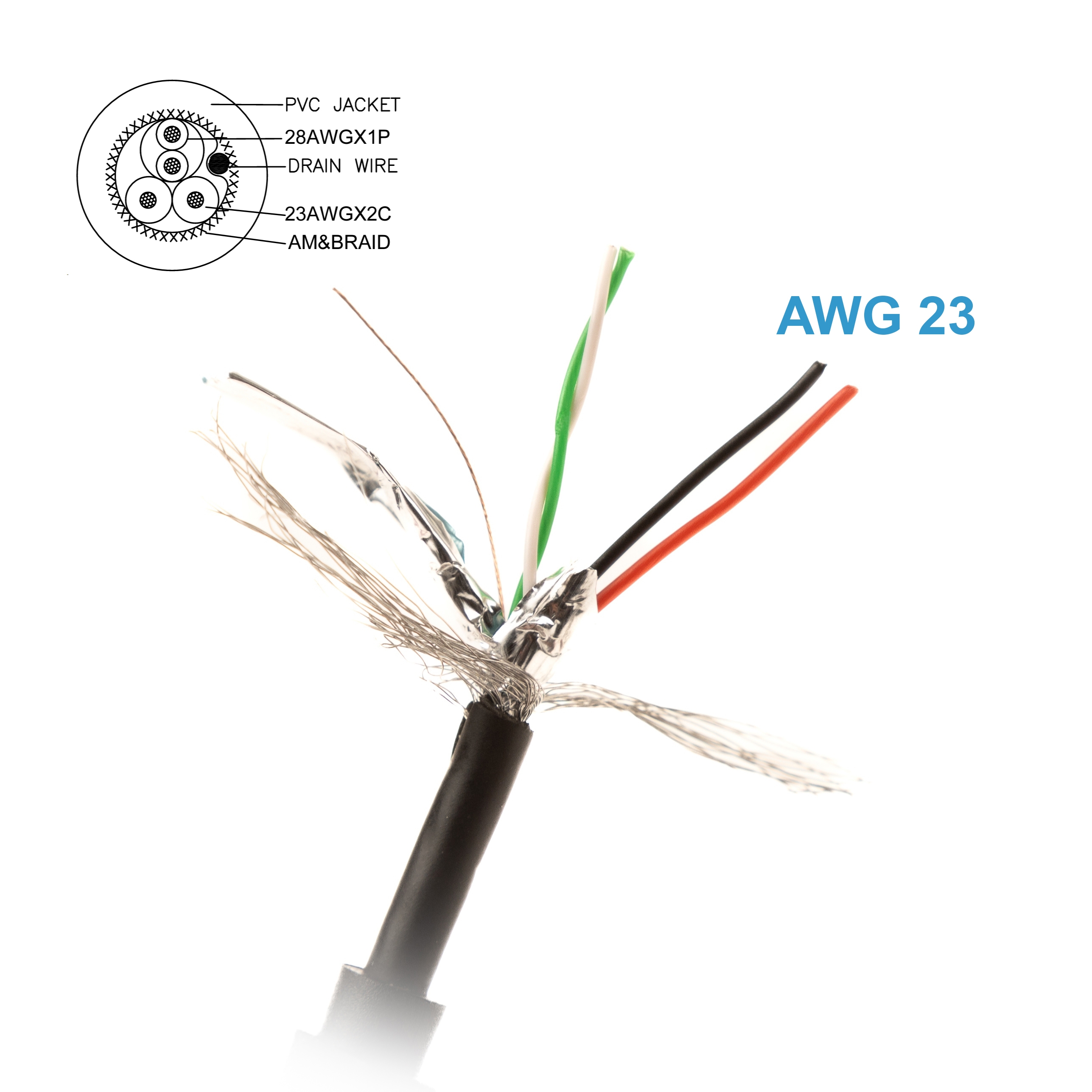

Double shielding: braided shield + foil shield + drain wire
Conductor material: 99.9% oxygen-free copper (OFC/CU)
Wire gauges: Data AWG 28/1P and Power AWG 23/2C (copper cores)
i.e. extra thick power cores
Data cores twisted in pairs (1P)
Cable diameter 4.5mm ±0.2mm
shielded connectors
gold-plated contacts
USB 2.0 compatible + downward compatible with USB 1.1
suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) + 1.5 MBit/s (low speed)
with integrated resistor
Colour: black
tested with TOTAL PHASE Advanced Cable Tester (www.totalphase.com)
Weight: 23gr (without packaging)
CE, WEEE, RoHS compliant (environmentally friendly according to EU directives)
