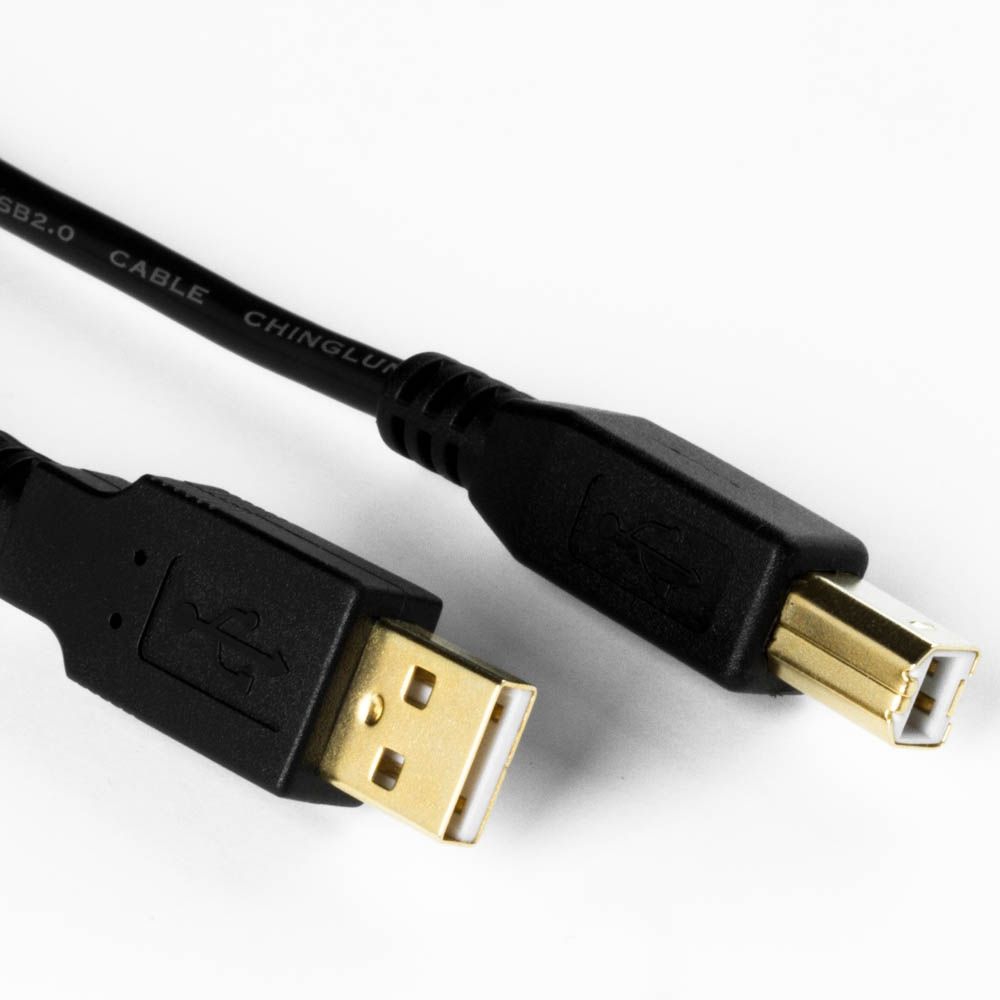

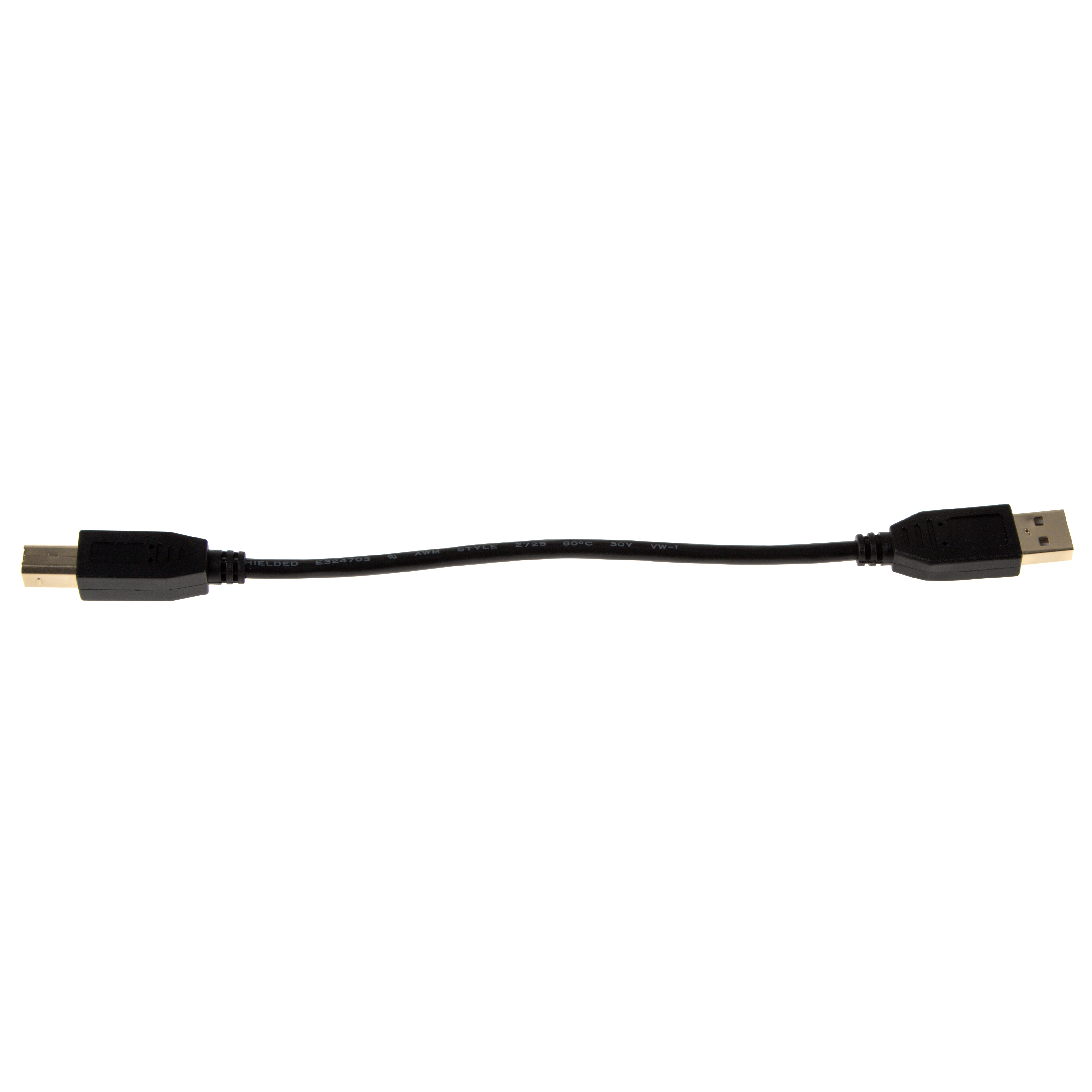

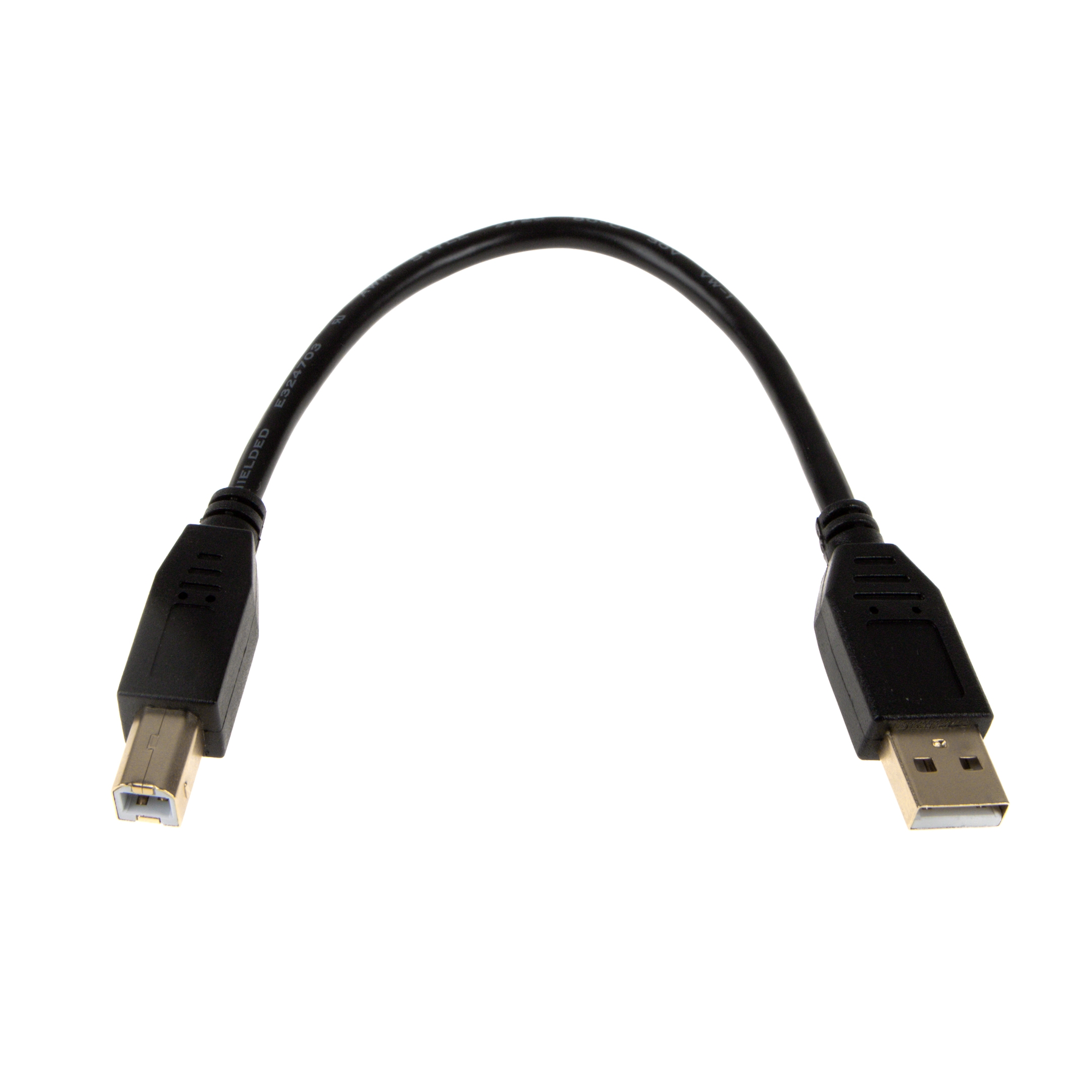

Short USB 2.0 cable AB PREMIUM quality, gold plated plugs, black, 20cm
Very short USB 2.0 cable, 20cm, gold plated connectors, for USB 2.0 and USB 1.1, high quality with 28AWG1P / 24AWG2C (CU), USB plug A to USB plug B, colour: black
key features
- USB 2.0 connection cable type A/B

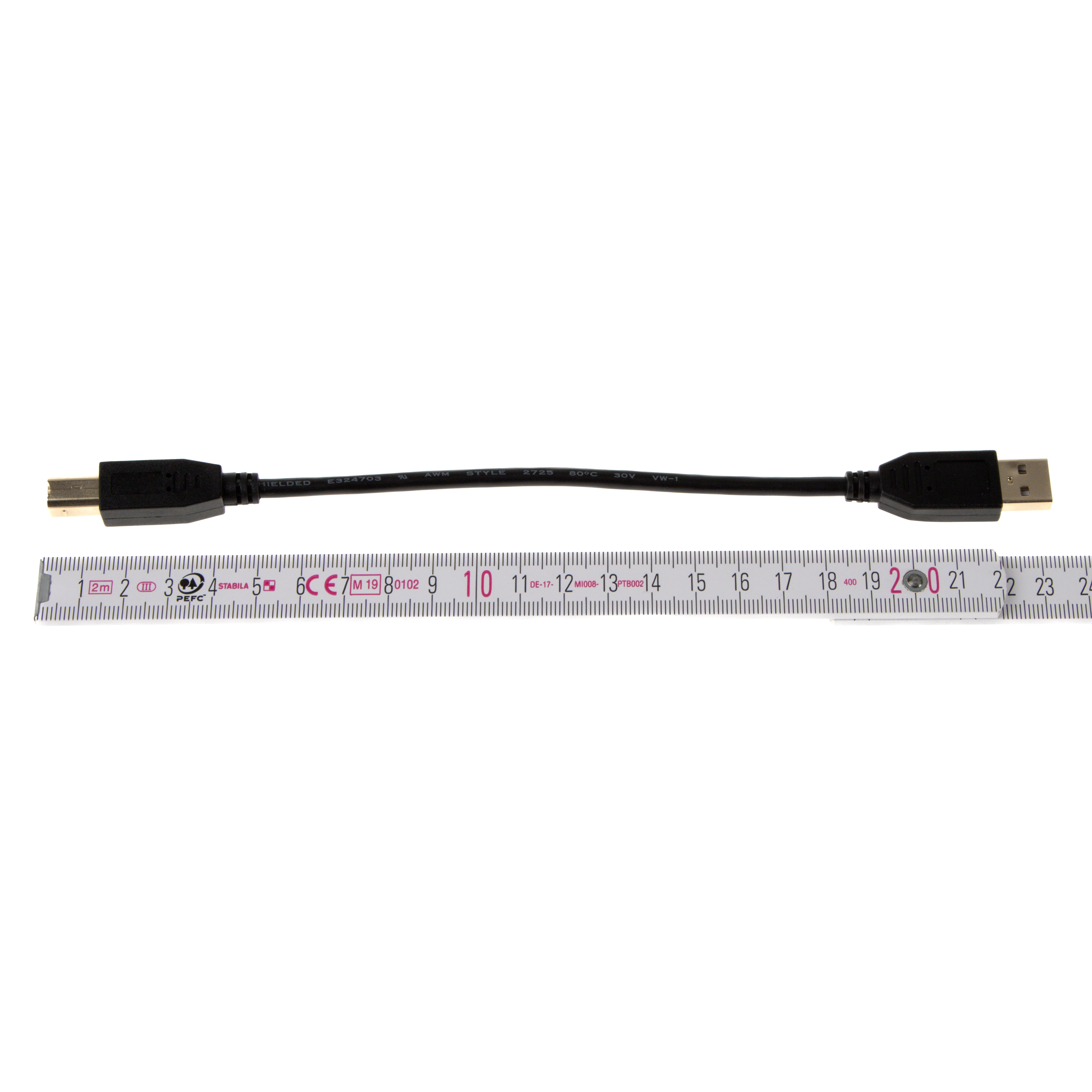

- length: extra short approx. 20cm
- PREMIUM quality

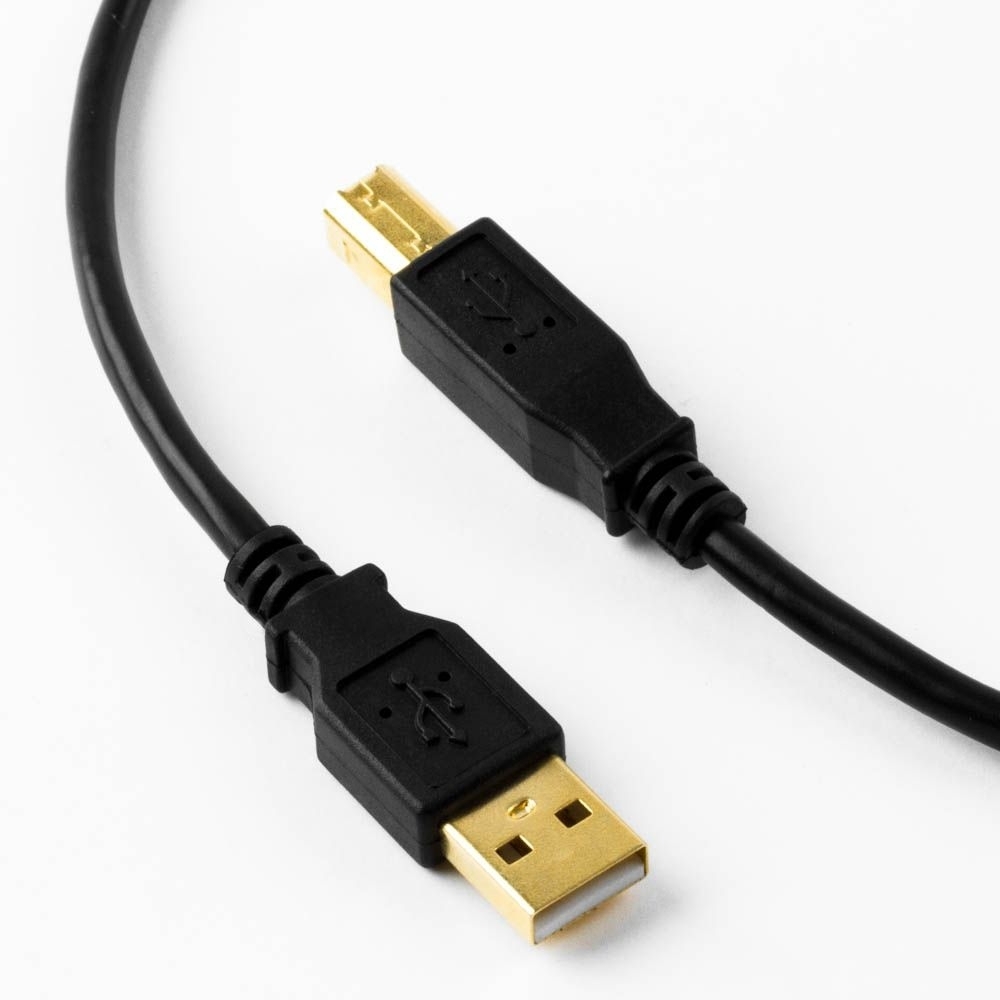

- gold plated pins and gold plated shell

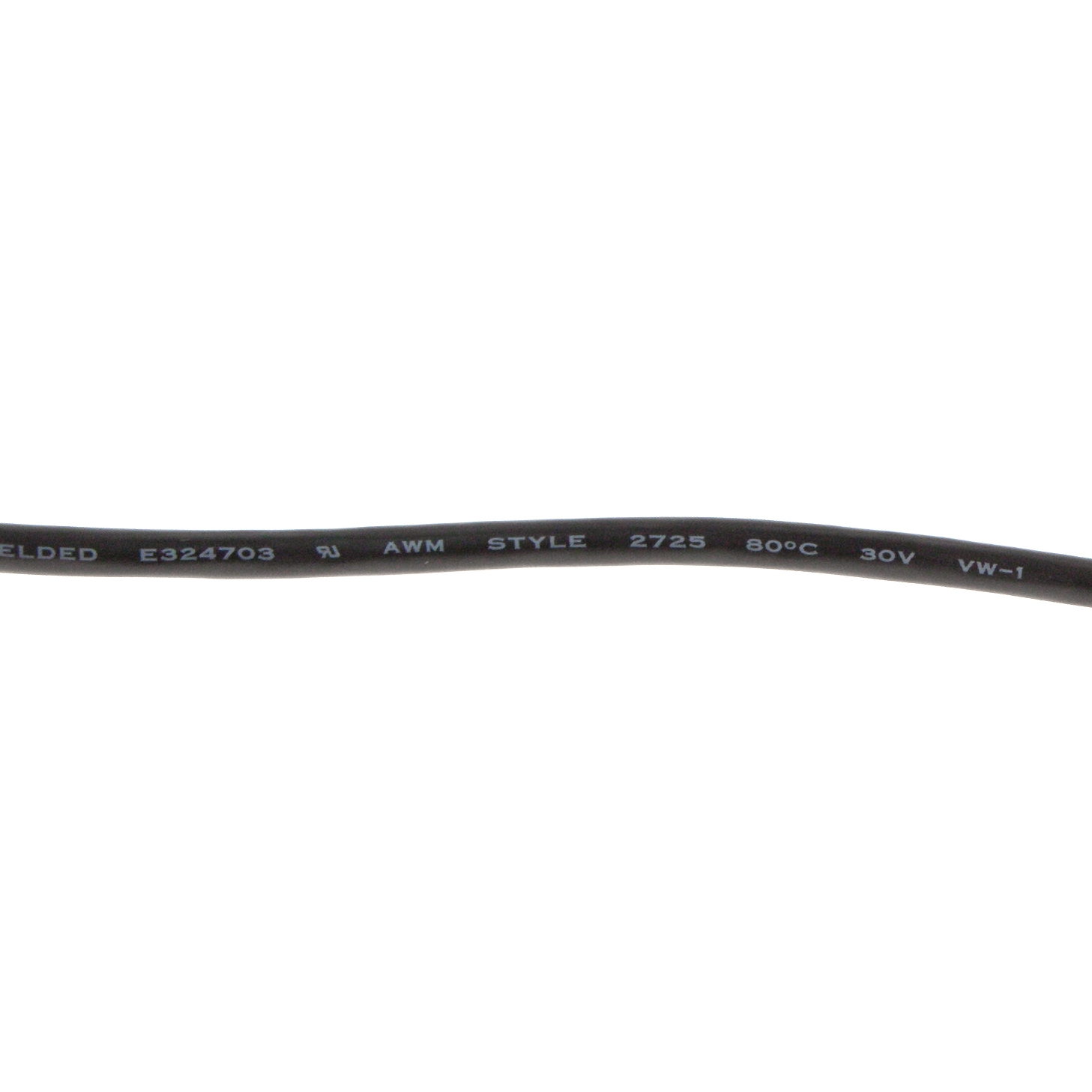

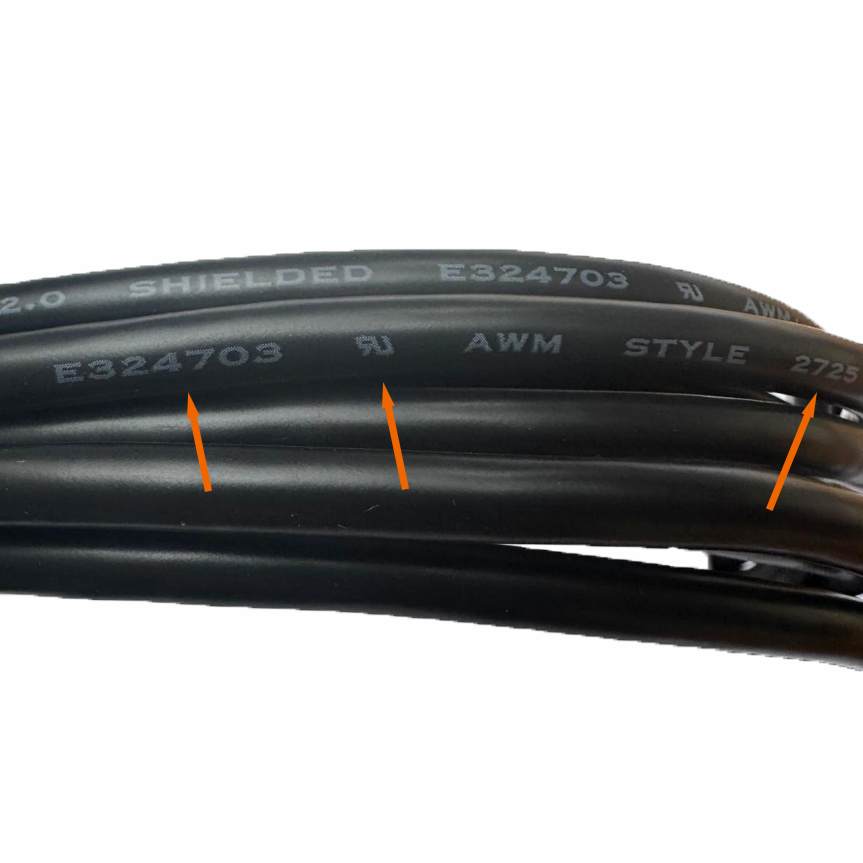

- UL 2725 cable material e.g. E324705 UL AWM STYLE 2725 80°C 30V VW-1
- double shielding: foil shield + braid shield

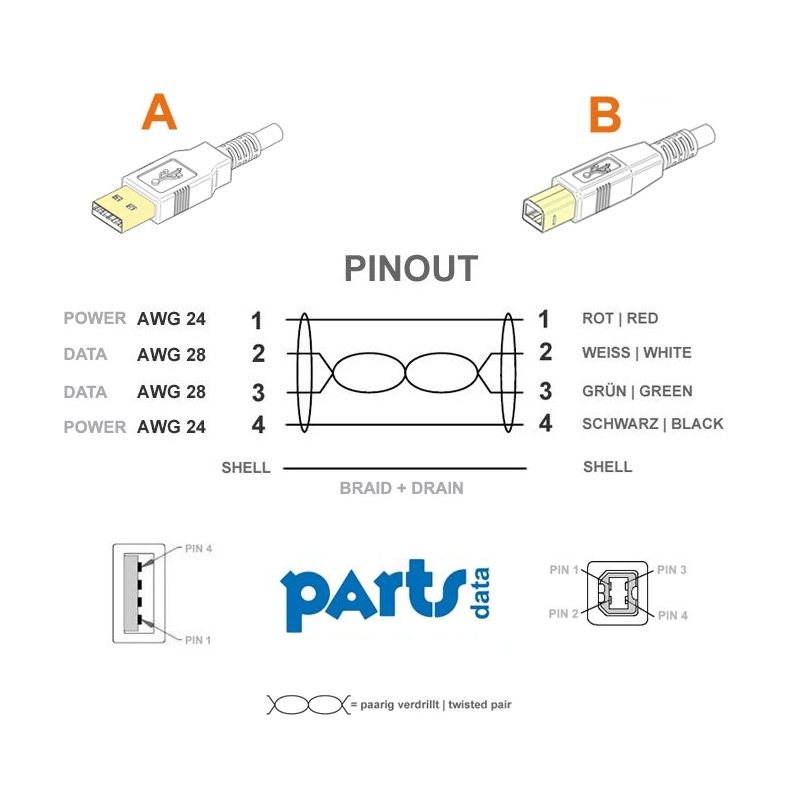

- data wires (white/green): twisted pair with AWG28 (7/0.12 BC*1P), copper (CU)
- 5V power wires (red, black): AWG24 (7/0.20 BC*2C), copper (CU)
- shielded connectors

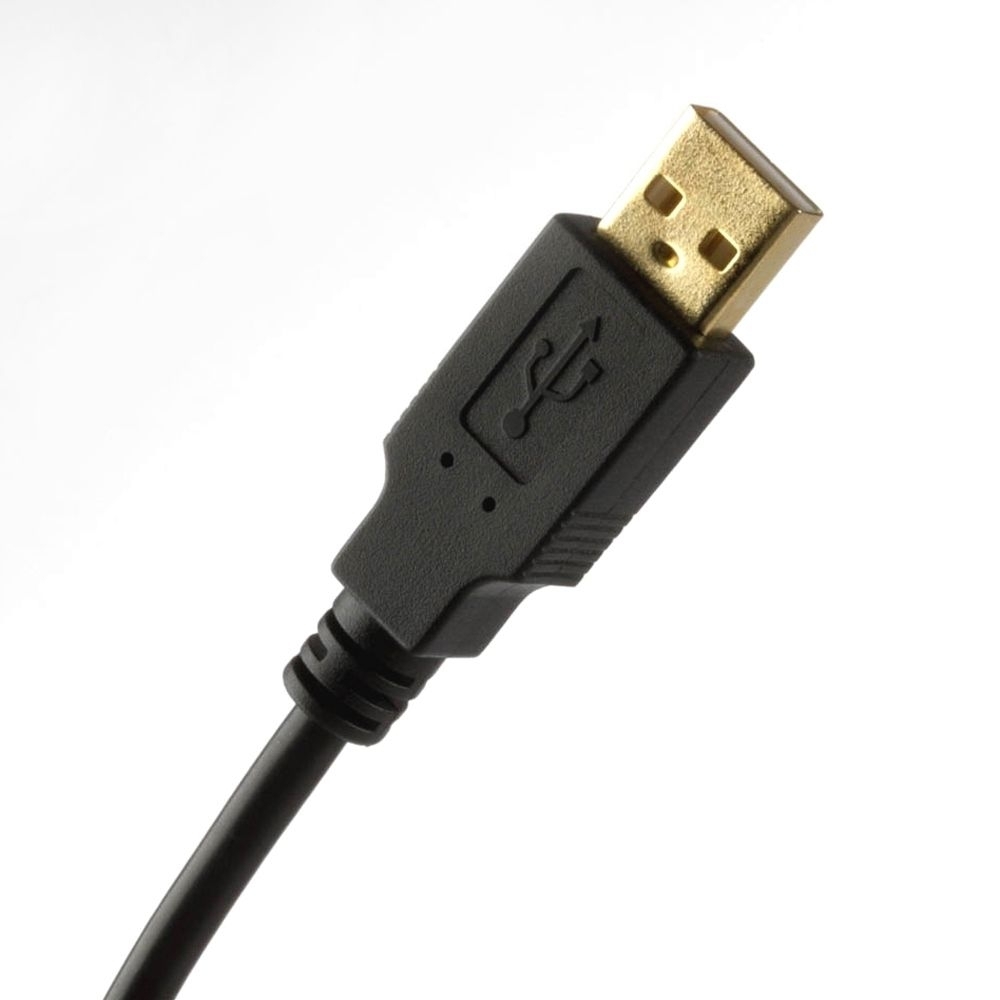

- USB 2.0 plug type A (system side/upstream)

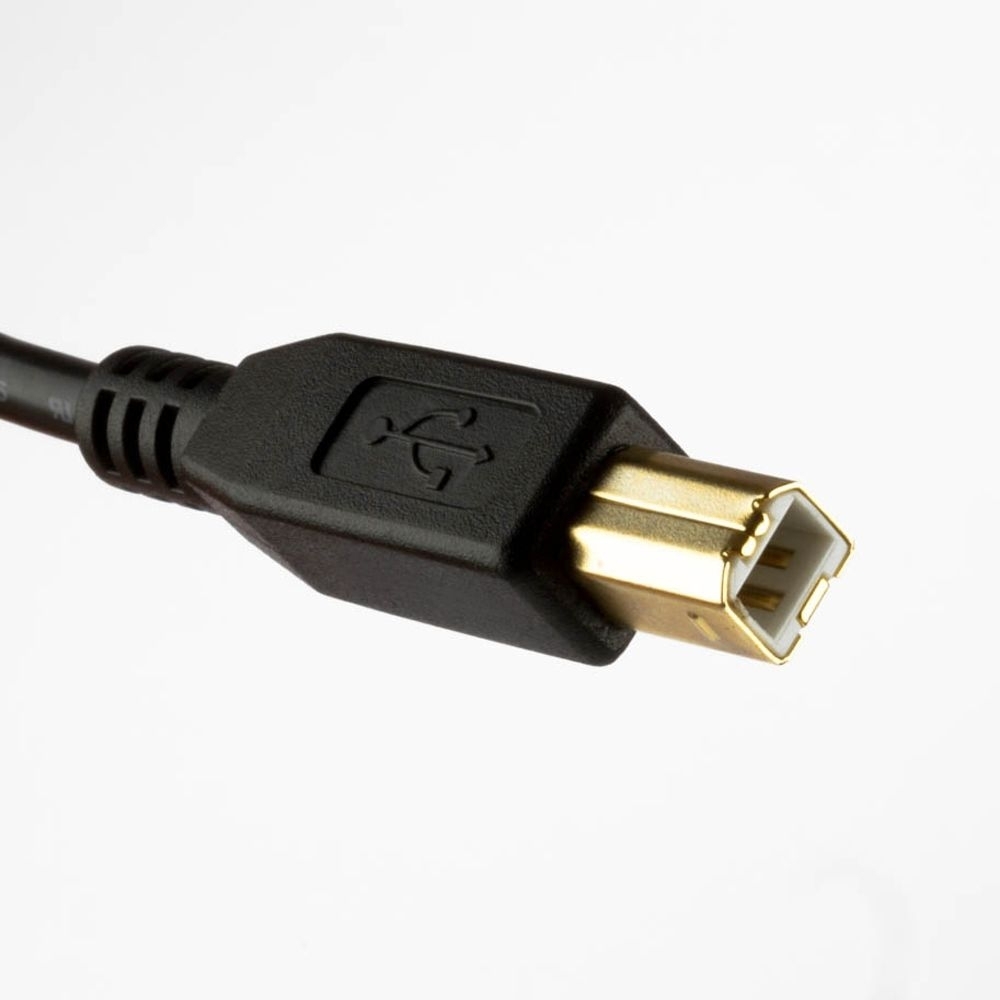

- USB 2.0 plug type B (to peripheral device/downstream)
- USB 2.0 compatible + backwards compatible with USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
- weight: approx. 19gr (without packaging)
- colour: black
- CE, WEEE, RoHS compliant (environmentally friendly according to EU directives)
Manufacturer/Importer: Dr. Zellmer GmbH, Im Erlengrund 29, 53757 Sankt Augustin, Germany - Technical advice via support@partsdata.de
