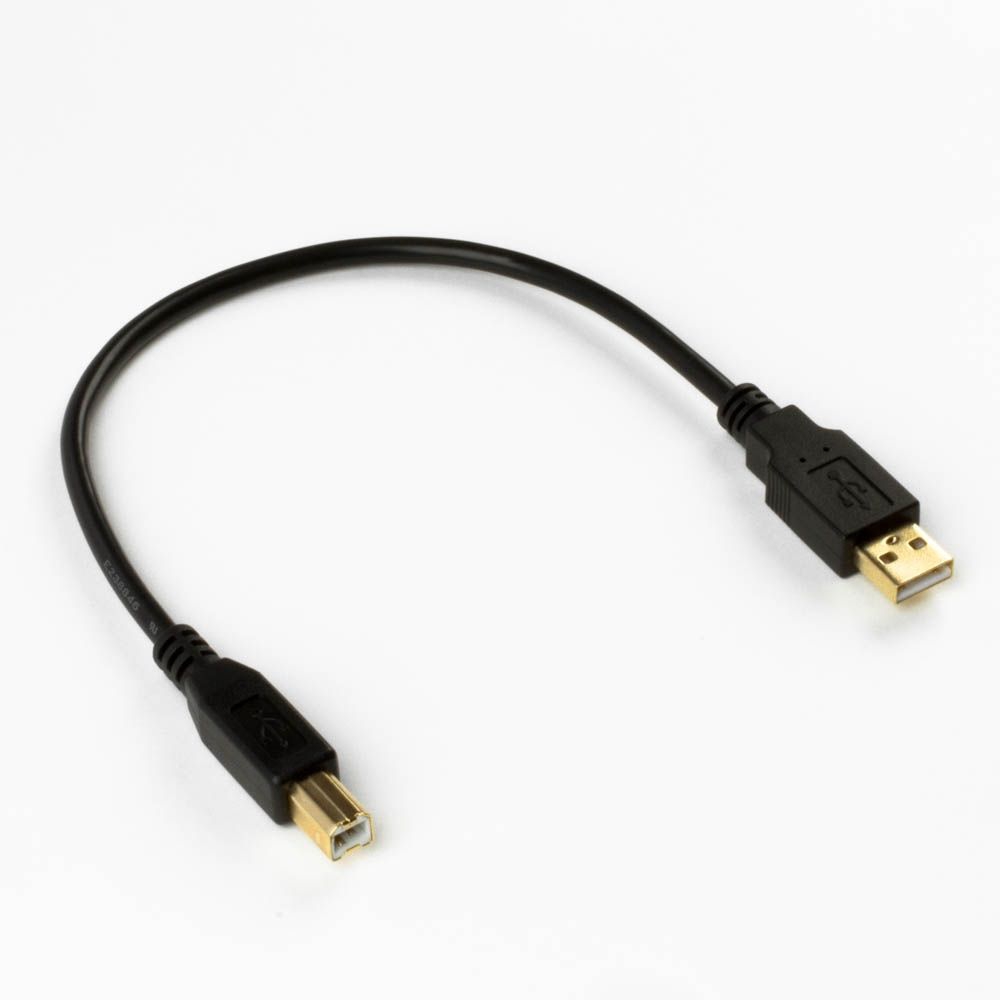

Short USB 2.0 cable AB PREMIUM quality, gold plated plugs, black, 30cm

DR. ZELLMER

€3.65*

1053 in stock

PDF-Datasheet

Item no. CU-03-BK

Very short USB cable, about 30cm, gold plated connectors, for USB 2.0 and USB 1.1, high quality (28AWG1P / 24AWG2C), USB plug A to USB plug B (USB standard), colour: black

Highlights

very very short USB cable: partsdata has it
PREMIUM quality
UL cable material, ideal for exports

PREMIUM

The reliability of the cable is enhanced by gold-plated contacts. The high-end cable material is double-shielded (flexible aluminium foil + braided sheathing) and both connectors are completely metal-shielded internally. The strain relief is moulded onto both connectors. 480 Mbit/s (= 60 MByte/s).

Use

The short cable is ideal for internal cabling of machines.

Details

USB 2.0 connection cable type A/B
Double shielding with foil shield + braided shield
Shielded connectors
Copper wires (CU)
Wire thicknesses: AWG28/1P + AWG24/2C (i.e. thicker 5V power wires)
Twisted pair data cable
Gold-plated plugs and contacts

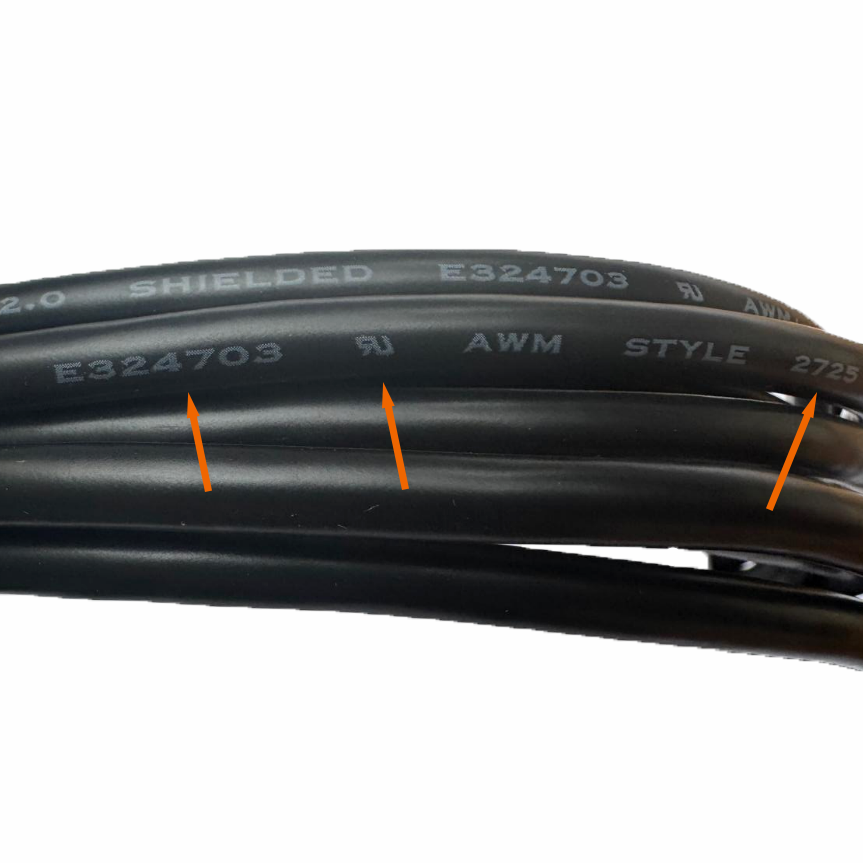

UL cable material, e.g. E324703 UL AWM STYLE 2725 80°C 30V VW-1

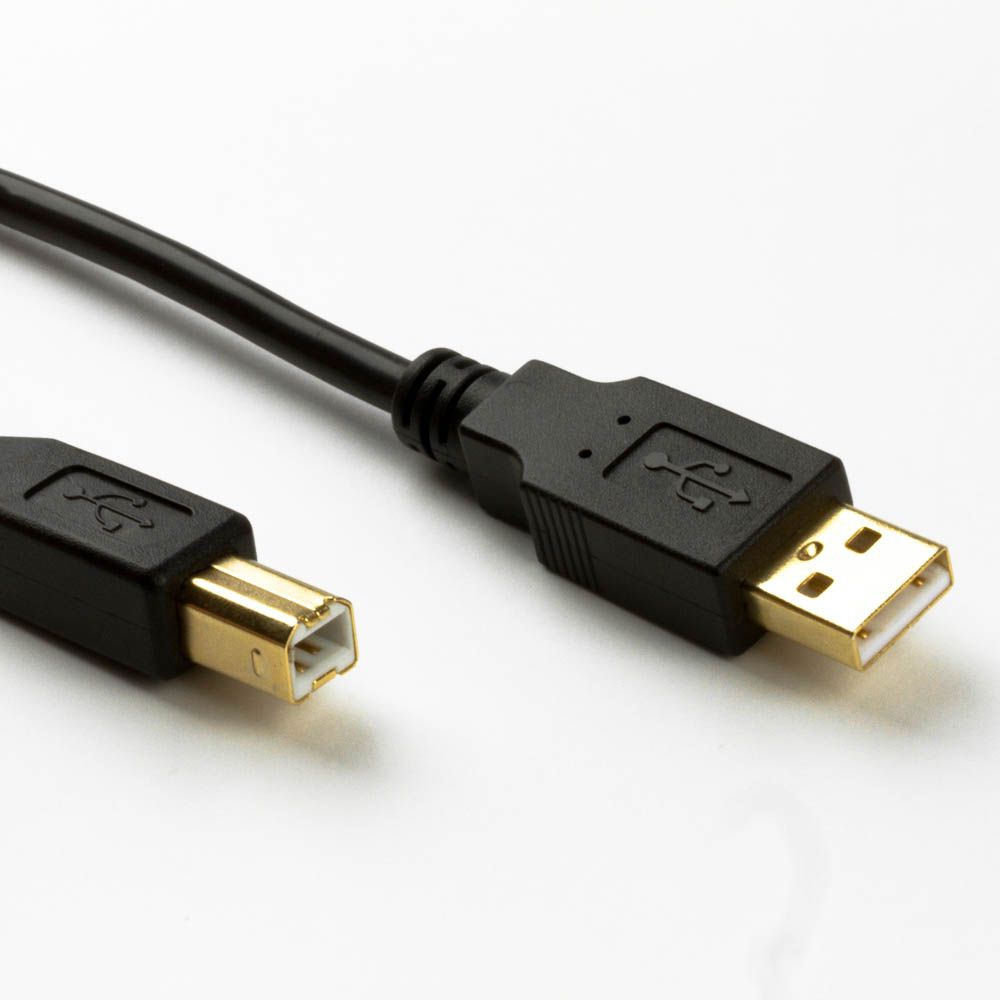

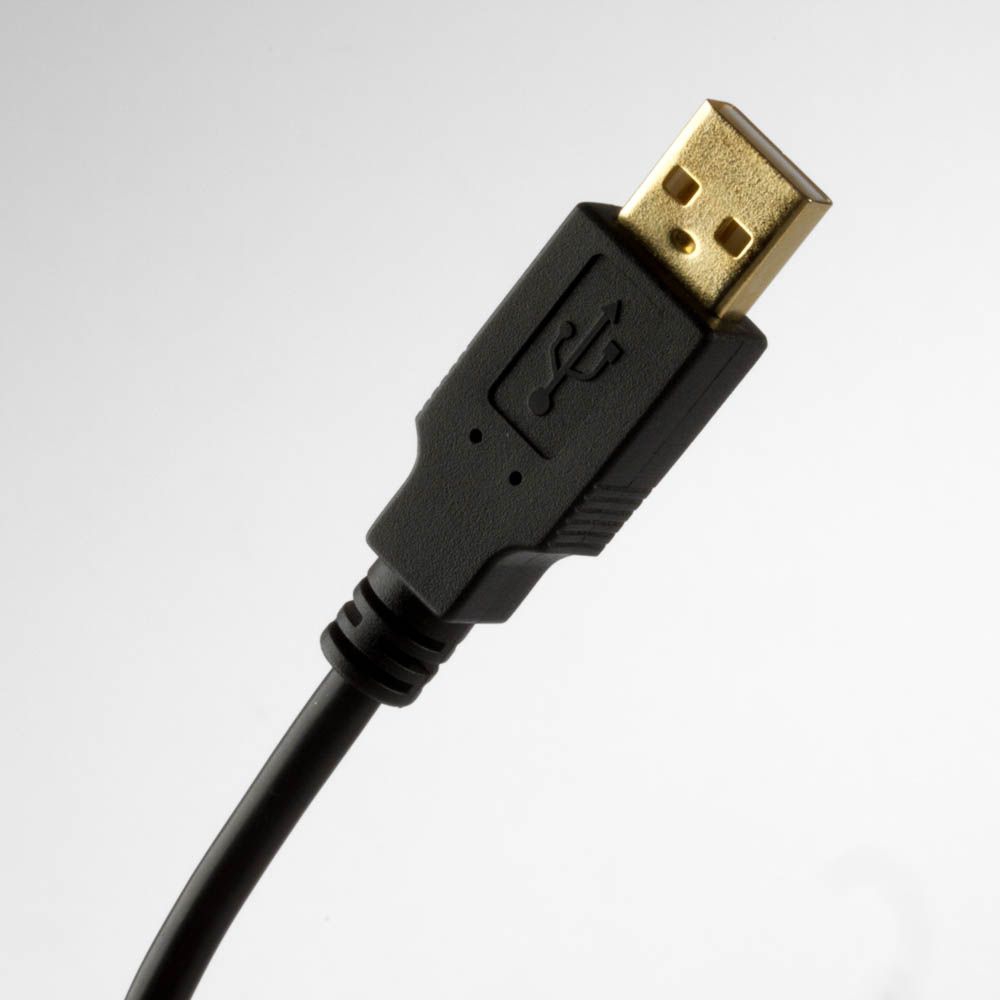

Connection 1: USB 2.0 plug type A male (system side/upstream)

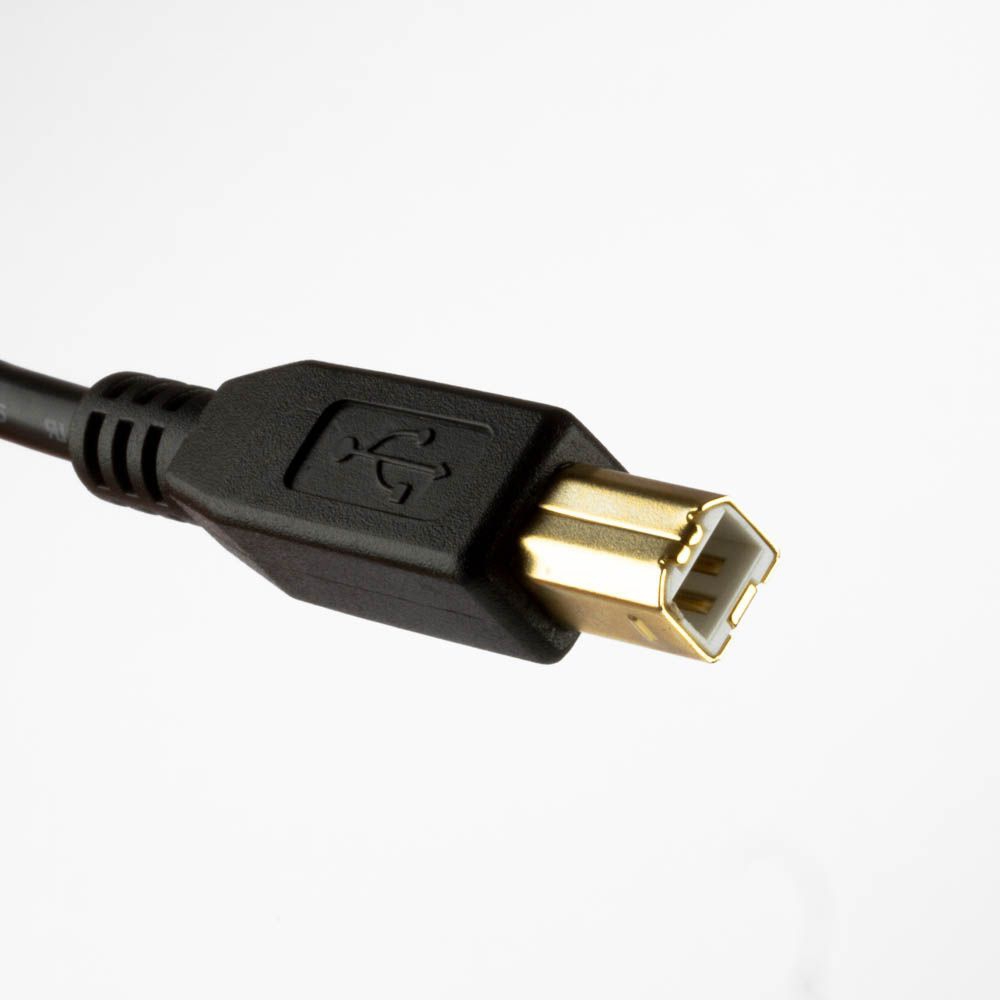

Connection 2: USB 2.0 plug type B male (to peripheral device / downstream)
USB 2.0 compatible + backwards compatible with USB 1.1
Suitable for 480 Mbit/s (high speed), 12 Mbit/s (full speed) and 1.5 Mbit/s (low speed)
Cable diameter approx. 4.5 mm
Colour: black
Length: very short 30 cm !
Tariff number: 85444290, Made in PRC

Environment

CE, WEEE, RoHS compliant
