Item no.
ANG-D-030

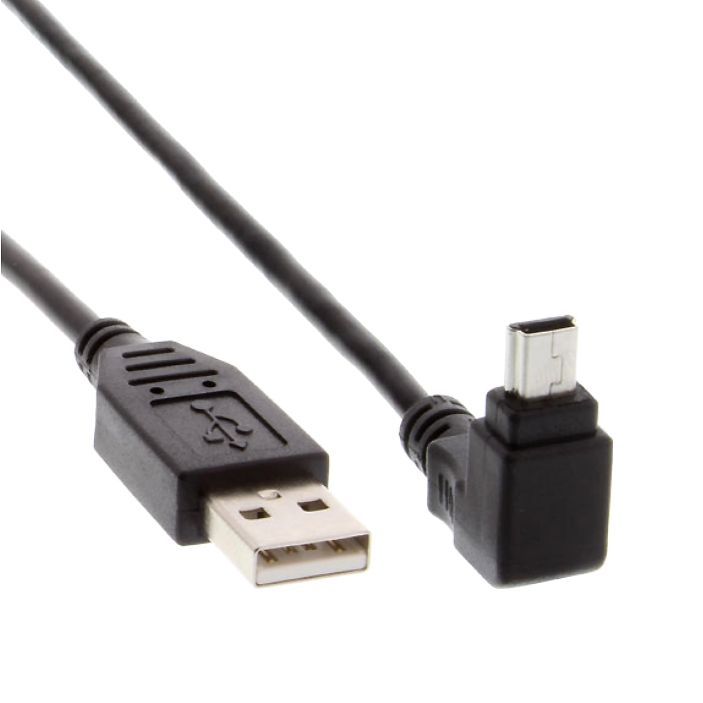

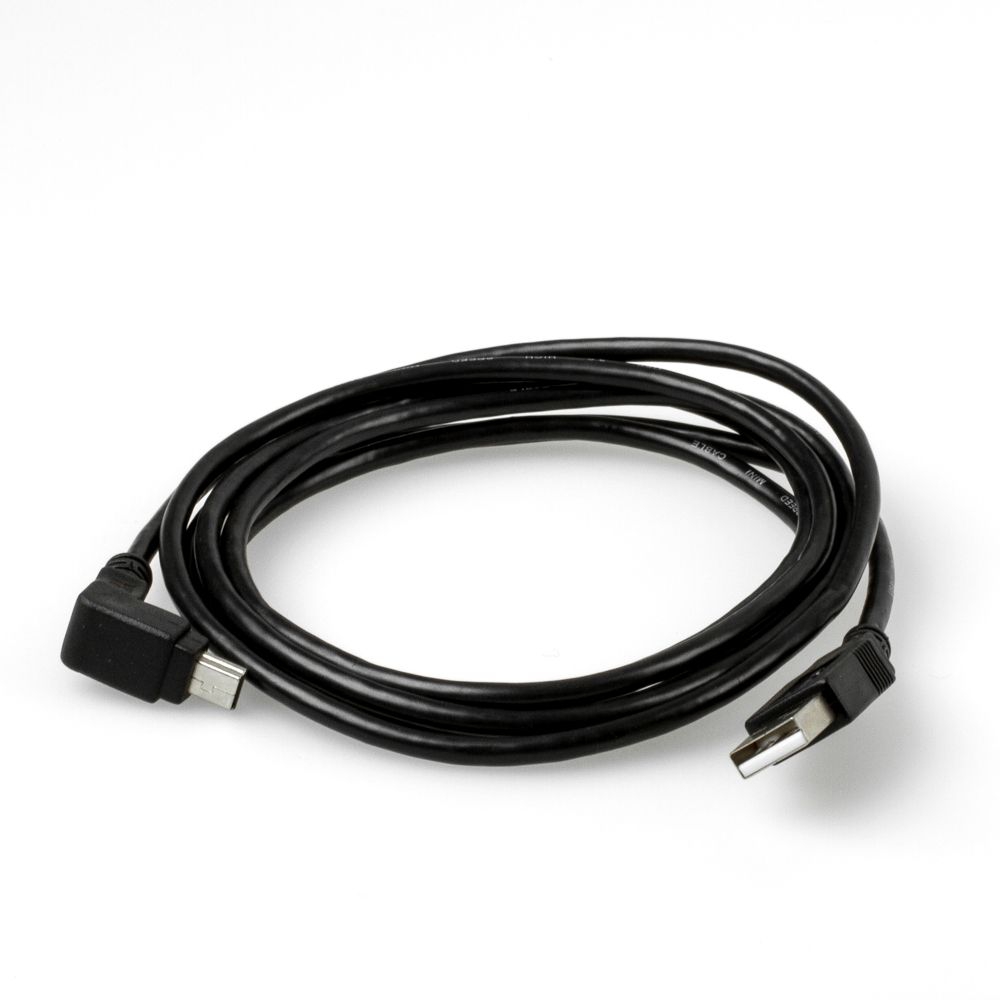

USB 2.0 cable with angled Mini B plug, ANGLE DOWN, AWG28 (CU), A male (straigth) to Mini B male 90°, length 3m
Key features
- USB 2.0 angled cable MINI B
- Connection 1: USB 2.0 A plug straight (male)
- Connection 2: USB 2.0 MINI B plug angled 90° DOWN (male)
- Double shielding with foil shield + braided shield
- Copper cores (CU)
- Wire gauges: 28AWG/1P & 28AWG/2C (7x 0.12 BC)
- Twisted pair data cables (green and white), 'twisted pair'
- Cable diameter: 3.5mm +/- 0.1mm
- USB 2.0 compatible + downward compatible to USB 1.1
- Suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)

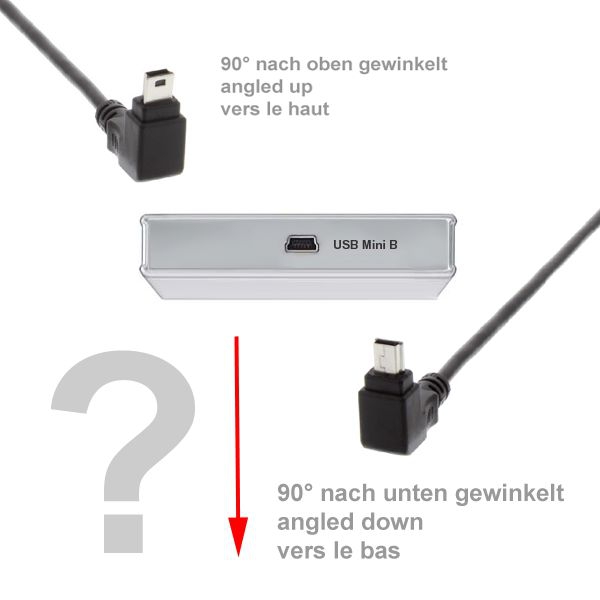

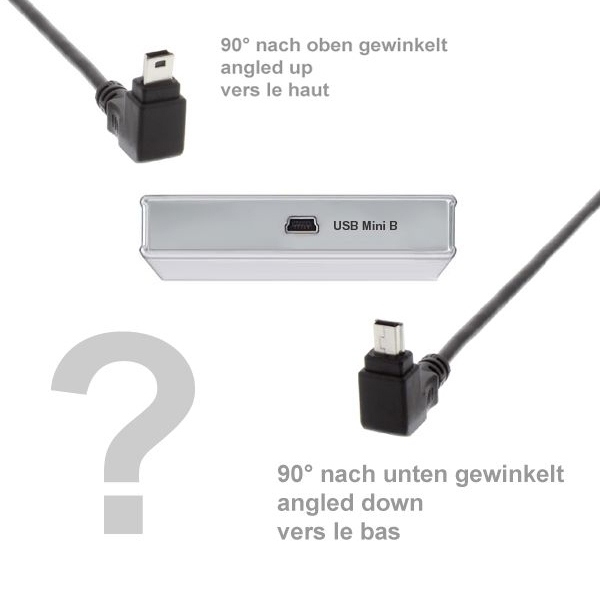

- Angled DOWN means: 90° angle to the wide side of the MINI B connector
- Application: Connection of USB 2.0 devices such as USB hubs, card readers, digital cameras, etc. to the PC
- Colour: black
- Customs tariff n°: 85444290
- CE, WEEE, RoHS compliant
