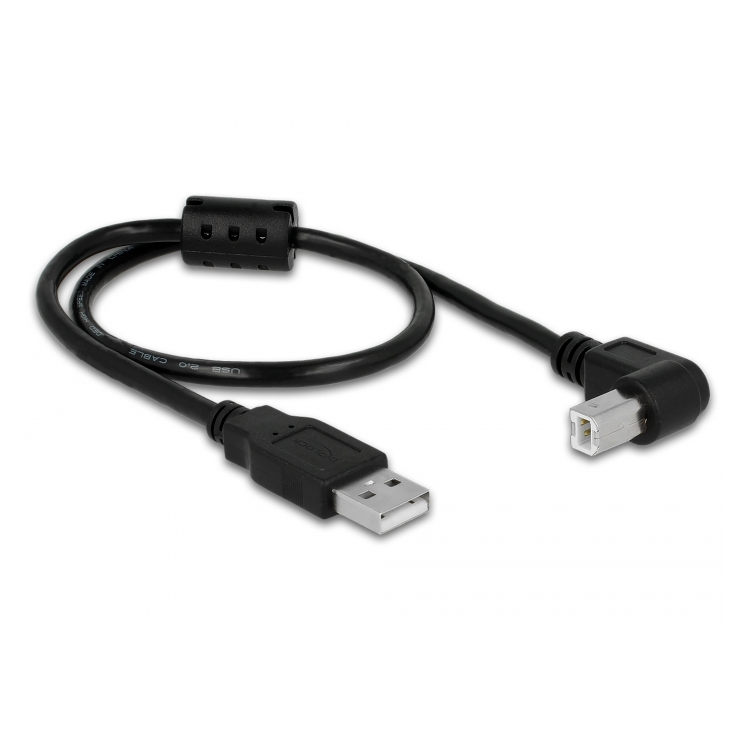

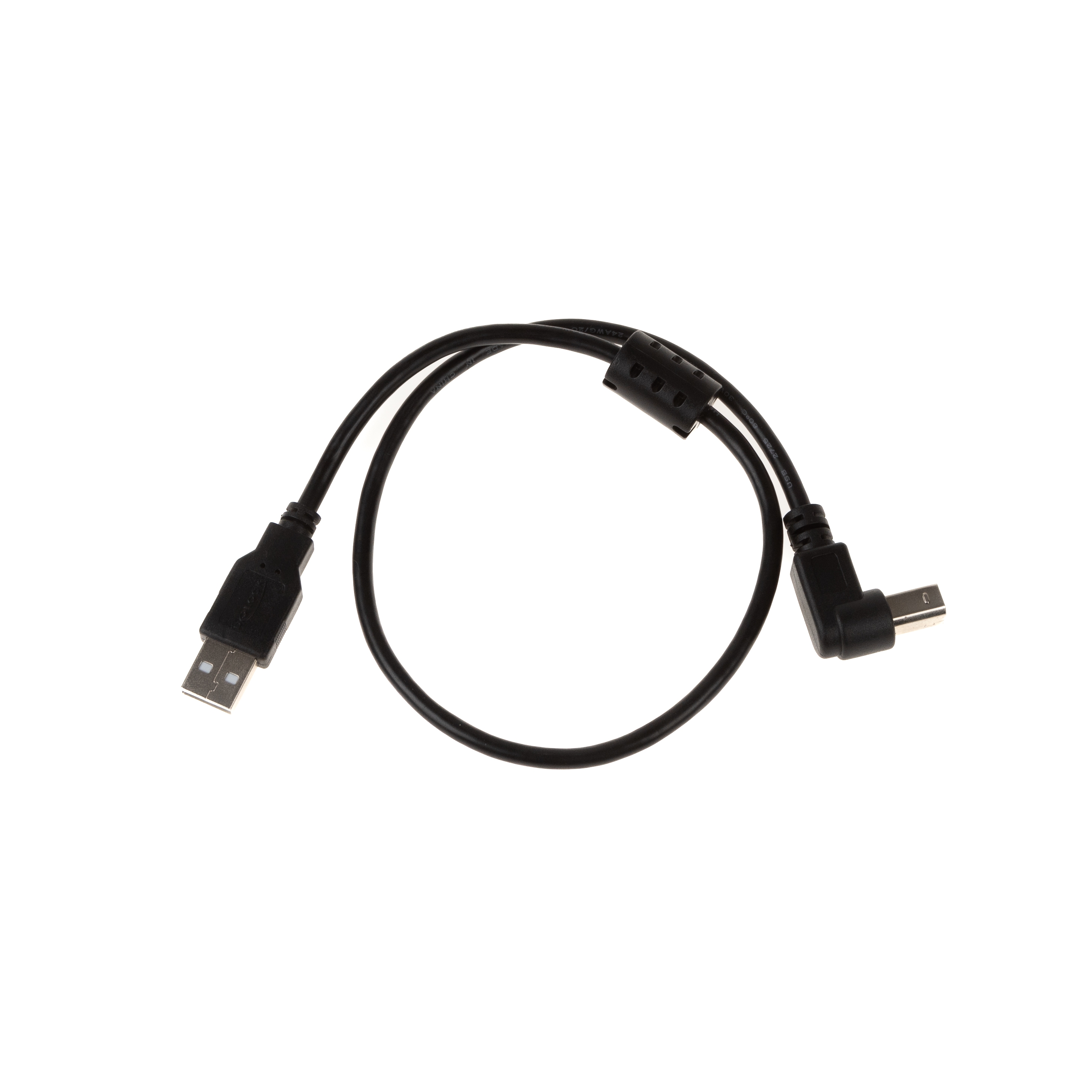

USB 2.0 cable with B plug 90° ANGLED DOWN with ferrite core 50cm

DELOCK

€5.95*

10 in stock

PDF-Datasheet

Item no. CU-BD-F-05

USB 2.0 cable with angled B connector (90° DOWN), with ferrite core, double shielded, high qualtity with AWG28/24, gold plated contacts, 50cm

Technical data

USB 2.0 cable A-to-B with 90° B angled plug
with ferrite core on the side of the A plug
USB plug type B angled 90° DOWN
USB plug type A straight
USB 2.0 compatible / downwards compatible USB 1.1
suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 Mbit/s (low speed)
Double shielding (foil shielding & braided shielding)
28 AWG data cable, 24 AWG power cable

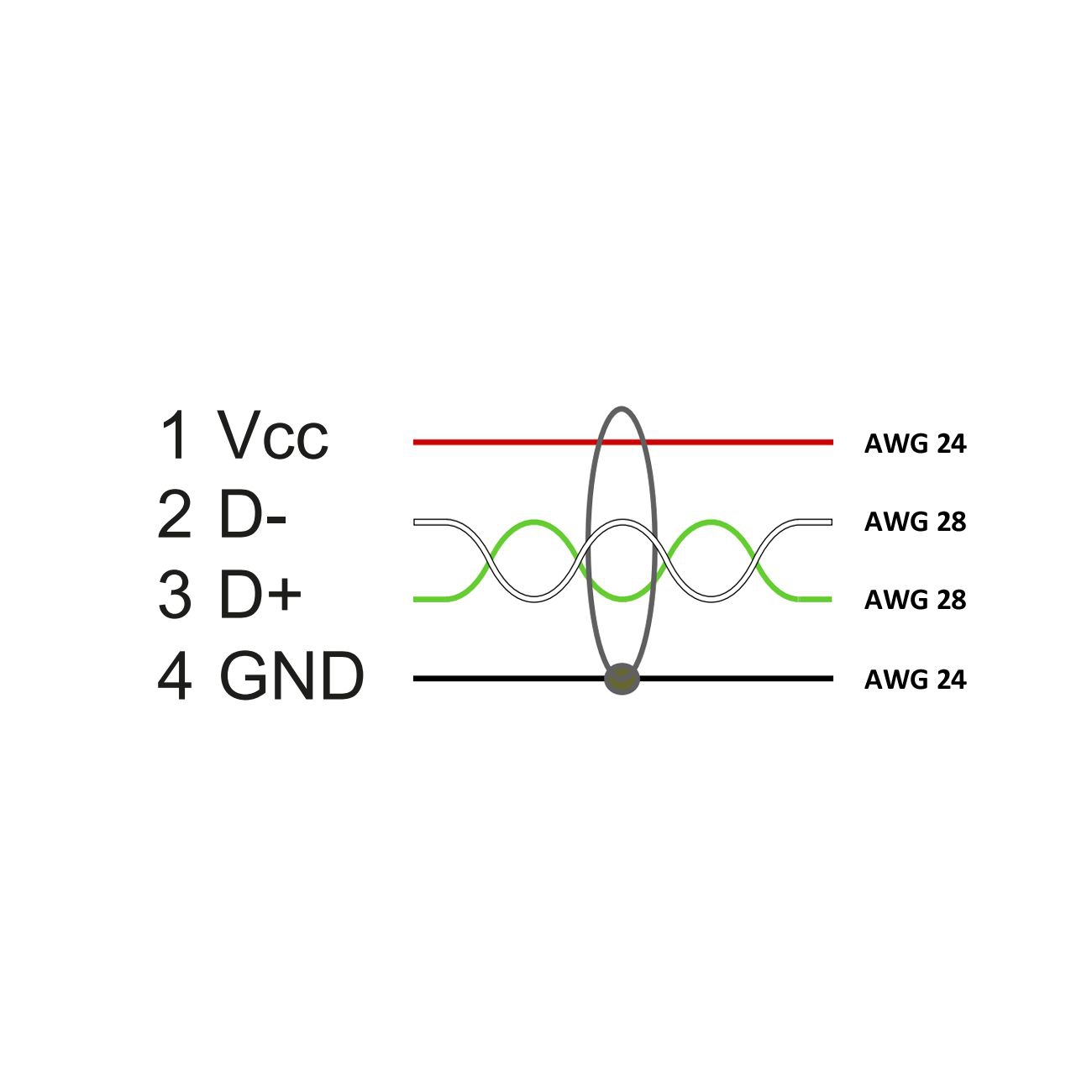

Core colours (internal): white, green, red, black
Cable diameter approx. 4.5mm
Gold-plated contacts
Colour: black
Customs tariff number: 85444290
e.g. for printers, cash drawers, measuring devices, multi-media applications, HUBs, telephones, scanners or webcams
CE, WEEE, RoHS compliant (according to EU directives)
