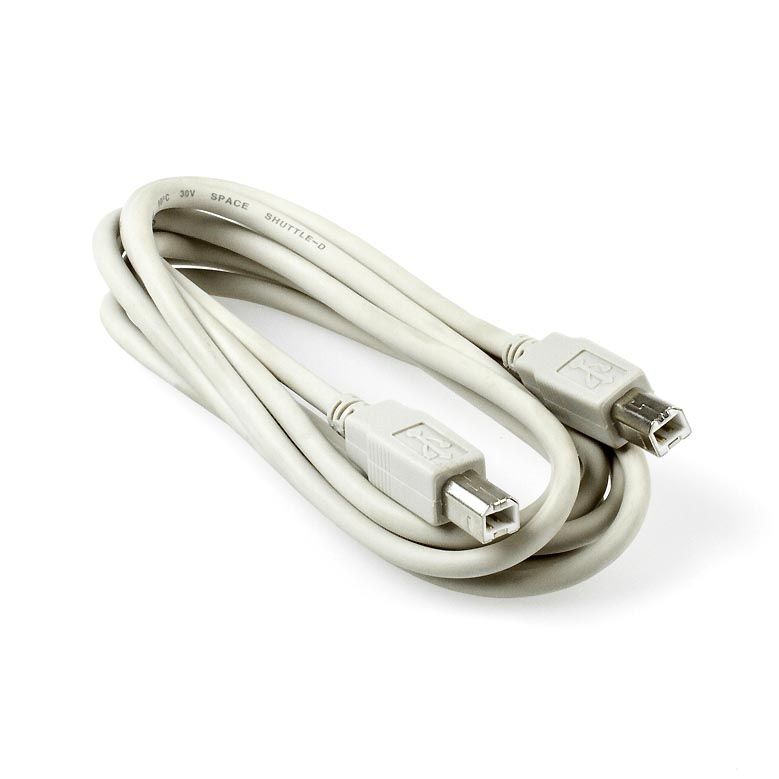

USB 2.0 special cable with 2x USB B plug male 2m
Special USB 2.0 cable with plug USB B male to USB B male (BB does not comply with the USB standard), for USB 2.0 + USB 1.1 (max. 480 MBit/s), grey beige, length 2m
key features
- special USB 2.0 cable BB
- with two identical plugs type B male
- PLEASE NOTE: 2x USB B connector does not match the USB standard
- compatible USB 2.0 high speed
- data lines (white and green): twisted pair
- 28AWG/1P 24AWG/2C
- double shielded
- backward compatible with USB 1.1
- 480 Mbps (high speed), 12 Mbps (full speed) und 1.5 Mbps (low speed)

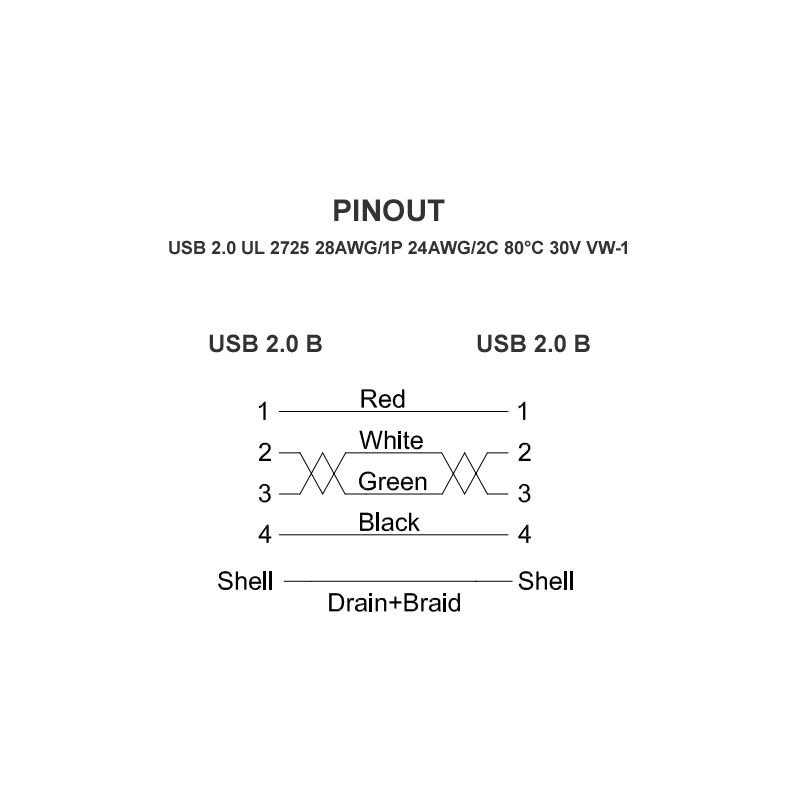

- connection 1-to1 all 4 pins
- colour: grey beige
- length: 2m
- Electrical test: 100% short, open, miss wire test
- Electrical test: Conduct resistance: 2 Ohm max.
- Electrical test: lnsulator resistance: 10Mohm min.
- Electrical test: Dielectric test: DC 300V
- RoHS compliant (environmentally friendly according to EU standard)
