Item no.
HX-M2-02

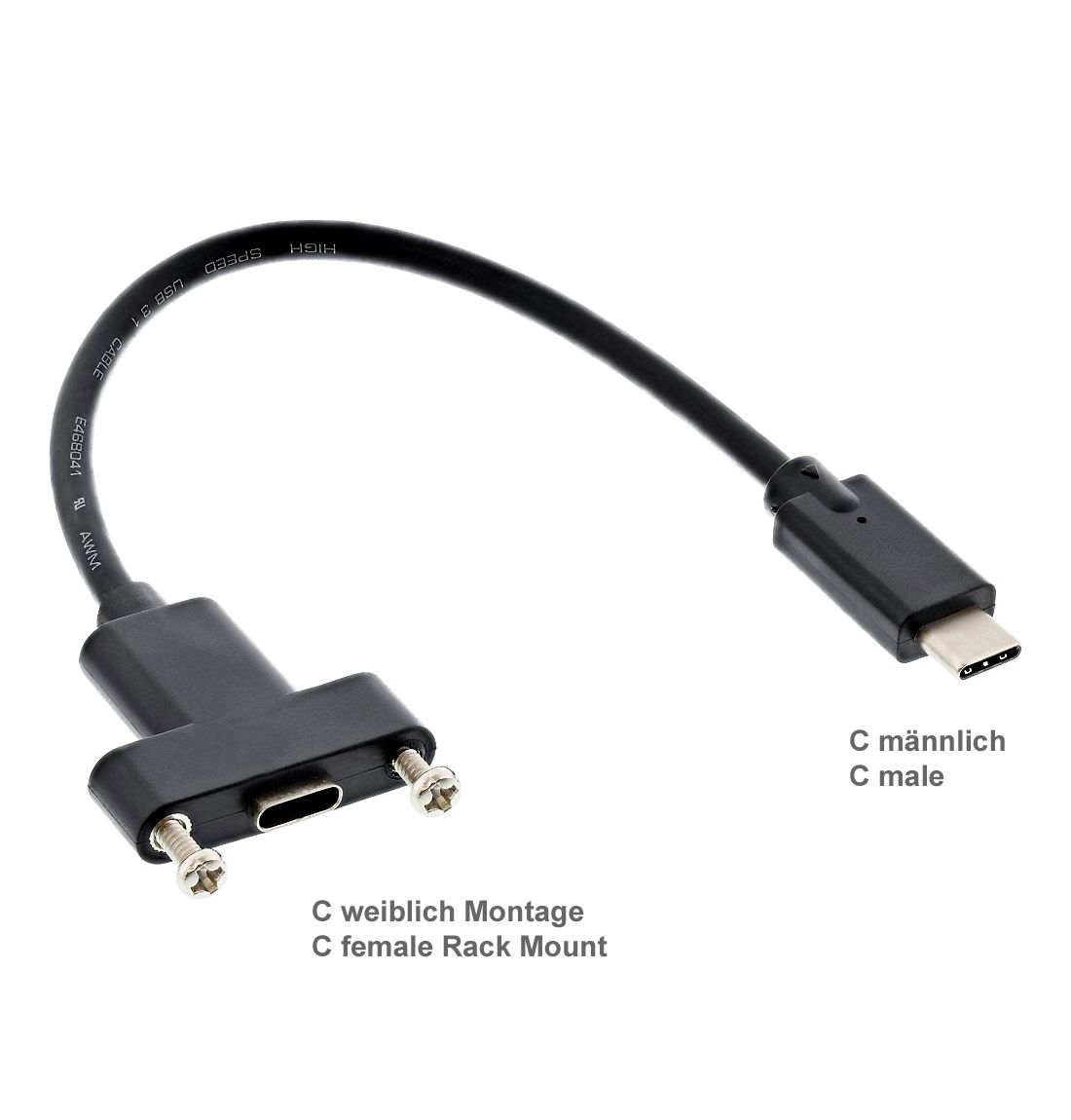

USB Type-C™ rack mount cable, female (with screws) to male, 5Gbps, 20cm, , USB 3.2 Gen.2
Technical data
- USB Type-C™ panel mounting cable / panel mount cable
- length: approx. 20cm
- Connector 1: USB Type-C™ female (can be screwed)

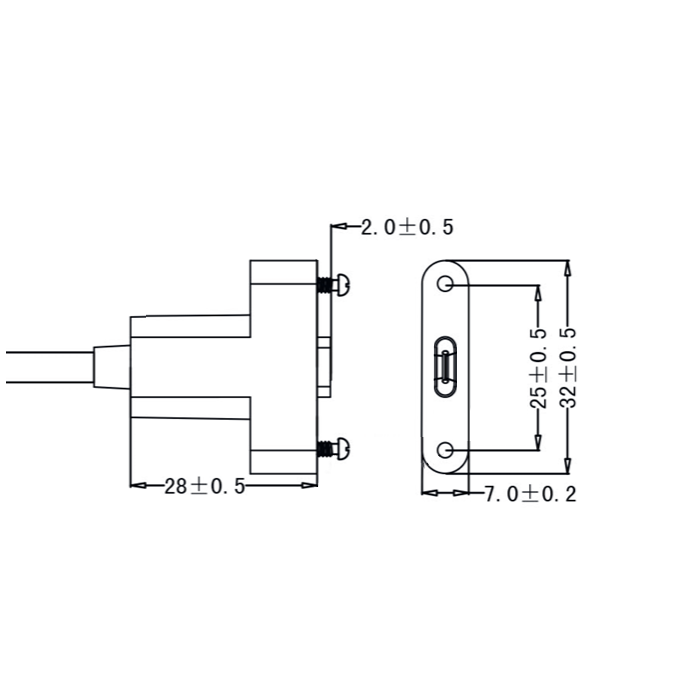

- screw type UNC 4/40, approx. 15mm thread length

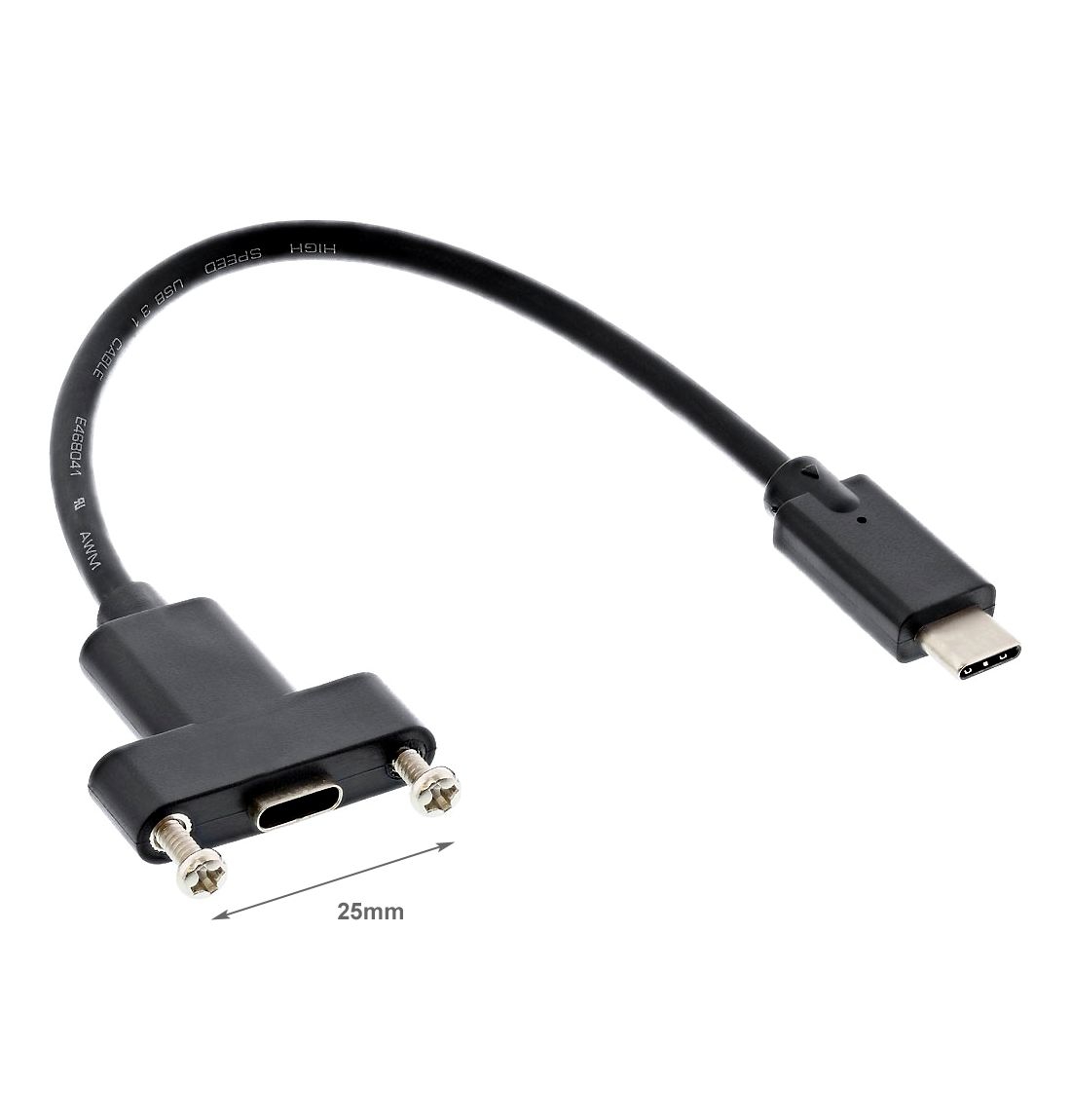

- hole spacing approx. 25mm
- cutout for Type-C™ socket approx. 9 x 3.5mm
- Connector 2: USB Type-C™ male
- PREMIUM quality
- double shielding with braided and foil shielding
- conductor material: copper (CU)
- max. 10 Gb/s (USB 3.2 Gen.2)
- weight: 15gr (without packaging)
- component / cable for mounting in end device
- other designations: Rack Mount Cable, USB C REAR
- CE, WEEE, RoHS compliant (environmentally friendly according to current EU directives)
Für dieses Produkt stehen zur Zeit keine Downloads zur Verfügung.
