Item no.
CU-AI-07-T

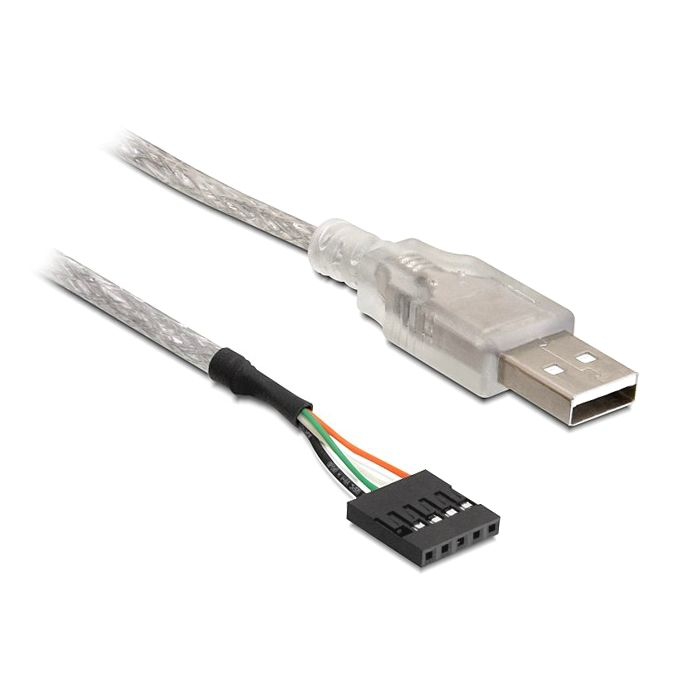

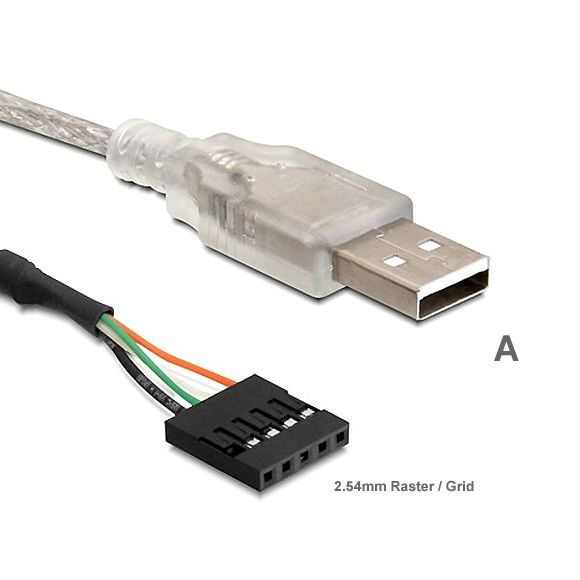

Special USB cable: USB plug A male to 5 pin board connector (grid 2.54mm), 70cm, compatible USB 2.0, silver-translucent
Key Features

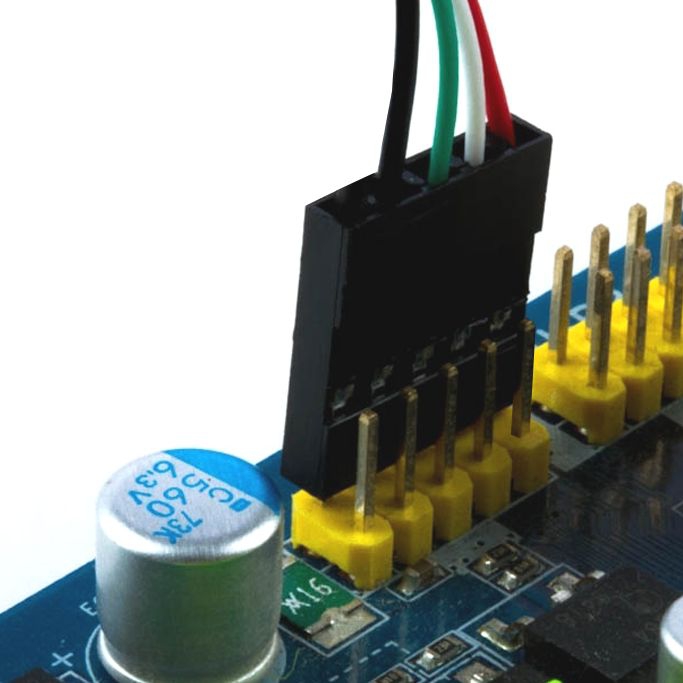

This USB 2.0 cable is designed to connect a device with a USB interface to an internal pin header of the mainboard.
Technical details
- cable USB 2.0 A male to pin header
- for internal to external applications
- connector 1: USB 2.0 A male to pin
- connector 2: pin header 5 pin

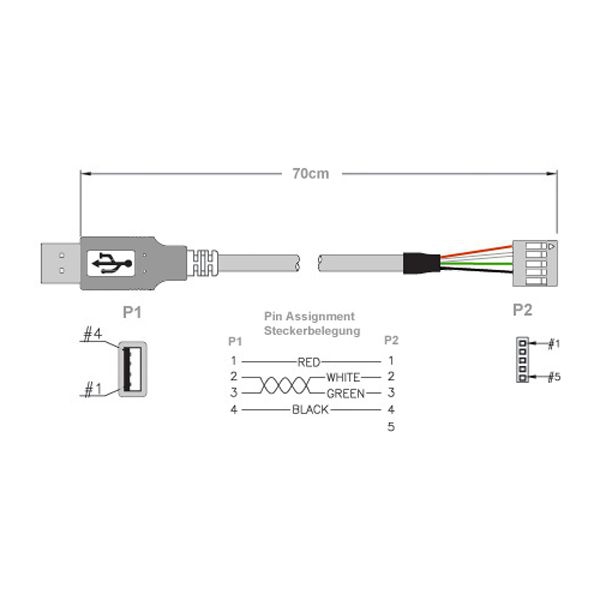

- Pin header: red=VCC(+5 V), green=Data+(D+), white=Data-(D-), black=GND (Ground)
- for internal connection
- cable length: about 70 cm
