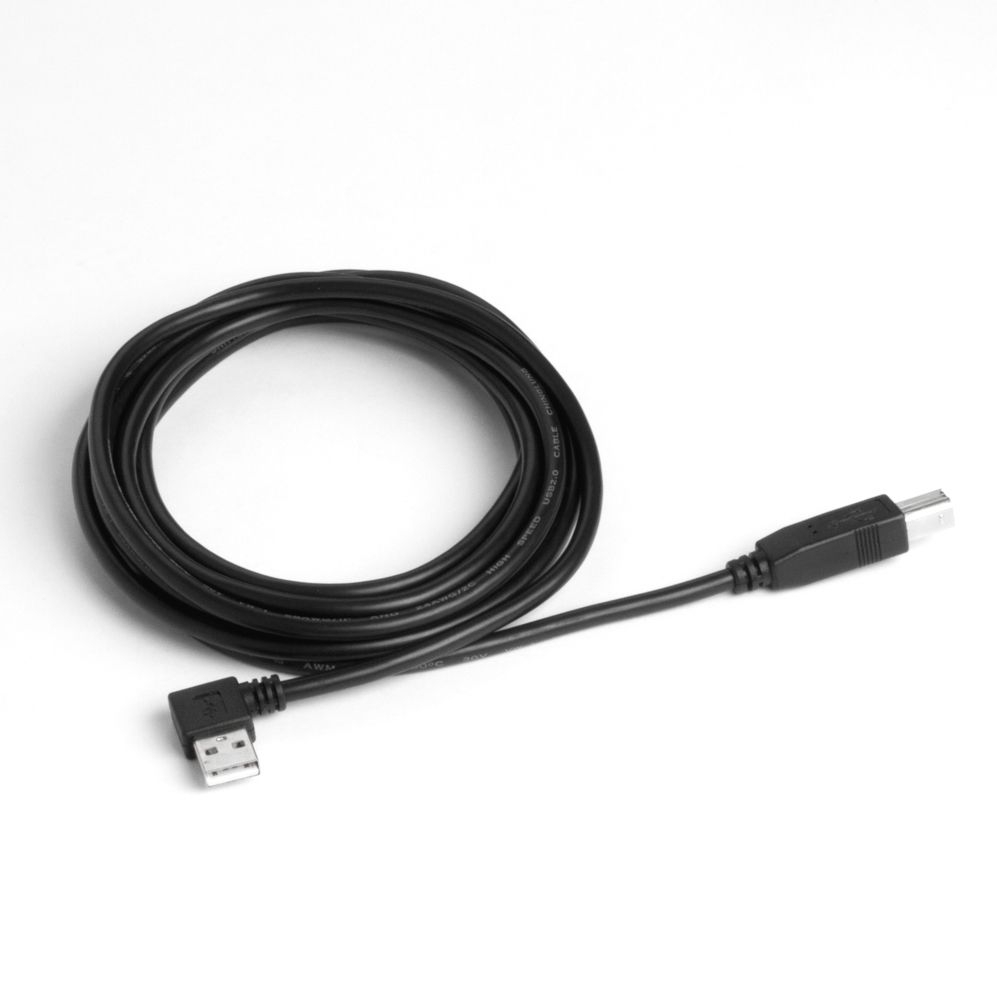

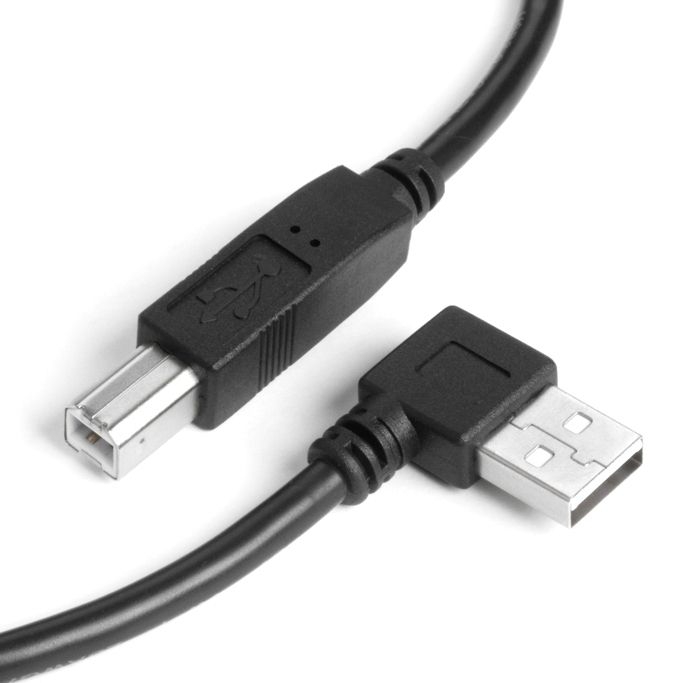

Angled USB cable, A plug angled (left) to B plug straight, 5m, for USB 2.0 and USB 1.1, high quality, color: black
Key features
- USB 2.0 cable A/B with angled A plug
- Connection 1: USB 2.0 A male plug, angled 90° to the left
- Connection 2: USB 2.0 B male connector, straight
- very small angeld A plug
- PREMIUM quality with 4 copper wires (no CCA)
- data cables (CU) AWG28/1P, twisted pair
- thicker 5V power cables (CU) AWG24/2C
- double shielded: braid shield + aluminium foil shield
- shielded connectors
- UL 2725 approval of the cable material
- USB 2.0 compatible + downward compatible with USB 1.1
- suitable for 480 MBit/s (high speed), 12 MBit/s (full speed) and 1.5 MBit/s (low speed)
- wire colours: red, white, green, black
- customs tariff no.: 85444290
- brand: HORXX industrial
- colour: black
- CE, WEEE, RoHS compliant
partsdata tips
Angled saves space

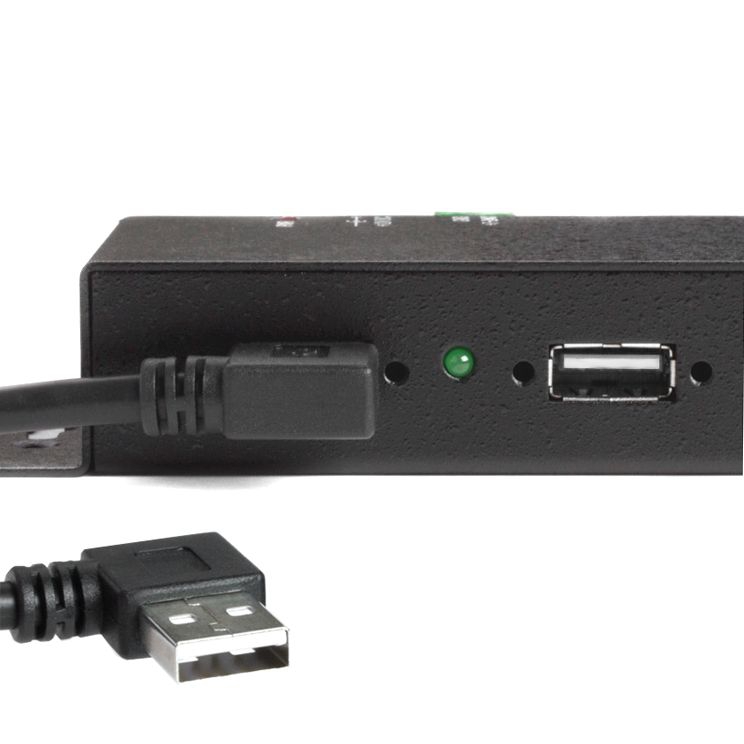

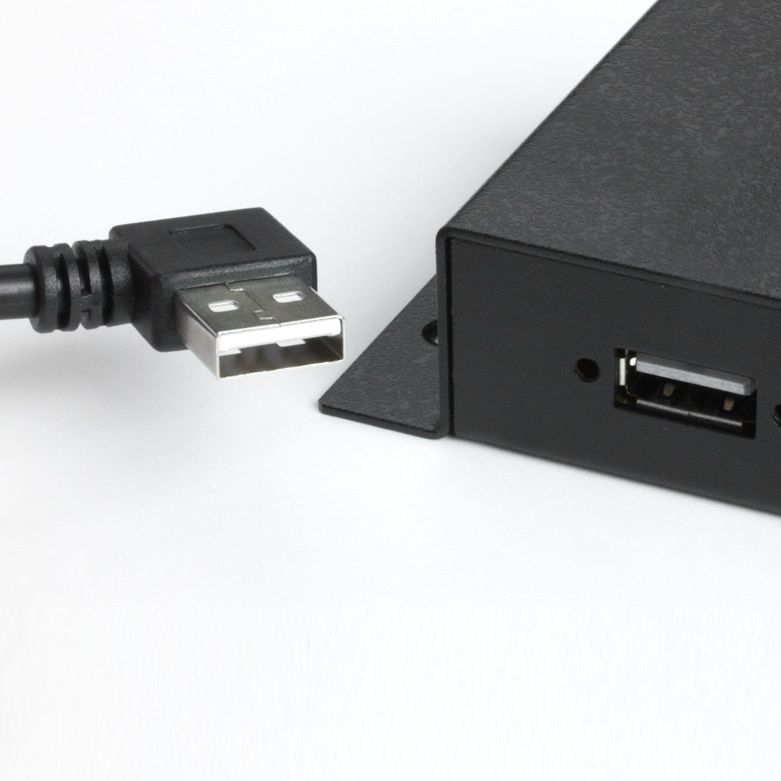

The USB 2.0 cable offered here has a type A USB plug angled at 90°. This makes the cable particularly suitable for space-saving connection to a PC or notebook.
Right or left angled?
We describe the cable as angled 90° TO THE LEFT. Please check the orientation of the USB-A socket on your PC. You must note the position of the white contact carrier in the USB-A socket. It is possible that what we refer to as 'to the left' is up, down or to the right in your case. Please take a look at the example applications and angles above.
Angled variants available
We also offer the USB cable with angled plug type A in a version angled 90° to the right, and there are also two versions angled downwards or upwards.
Possible applications for angled cables
The angled cables are ideal, for example, in notebook cases, in control cabinet and device construction or for DJ racks.
