Angled MICRO USB cable: A male to Micro B 90° ANGLED DOWN 180m

Angled MICRO USB cable: A male to Micro B 90° ANGLED DOWN 180m

USB 2.0 Micro B angled plug

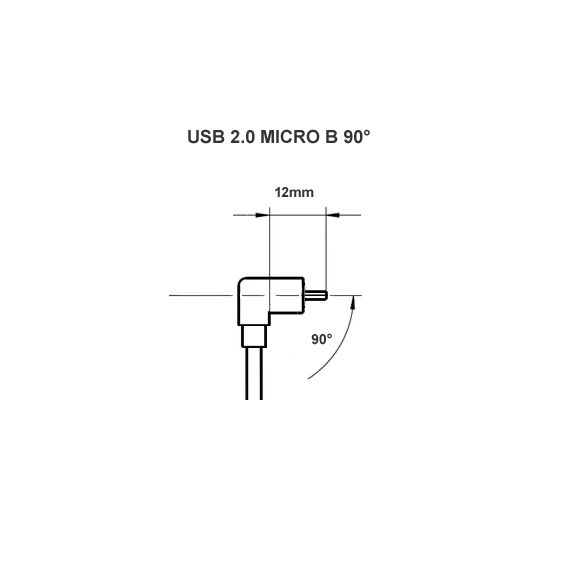

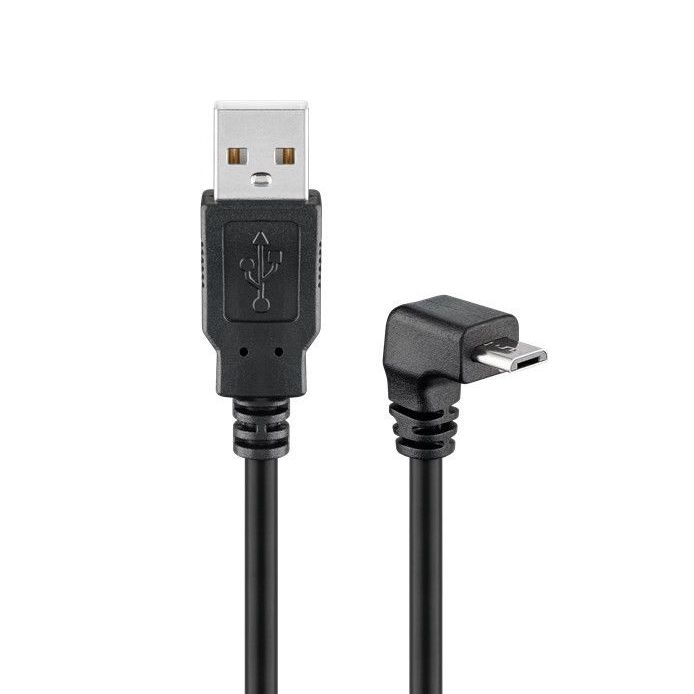

This USB 2.0 cable is characterised by its very small 90° angled USB Micro B plug.

Space-saving and better grip due to 90° angle

The small 90° angled plug provides a firmer hold in the USB 2.0 Micro socket and can be used in hard-to-reach places.

Angle direction

We describe the cable offered here as angled 90° DOWN. However, whether the angle is correct for your application depends on the position of the micro jack of the USB device. Therefore, please check the orientation of the Micro B port of your USB device. The Micro B socket is trapezoidal and has slightly rounded corners.

Technical data

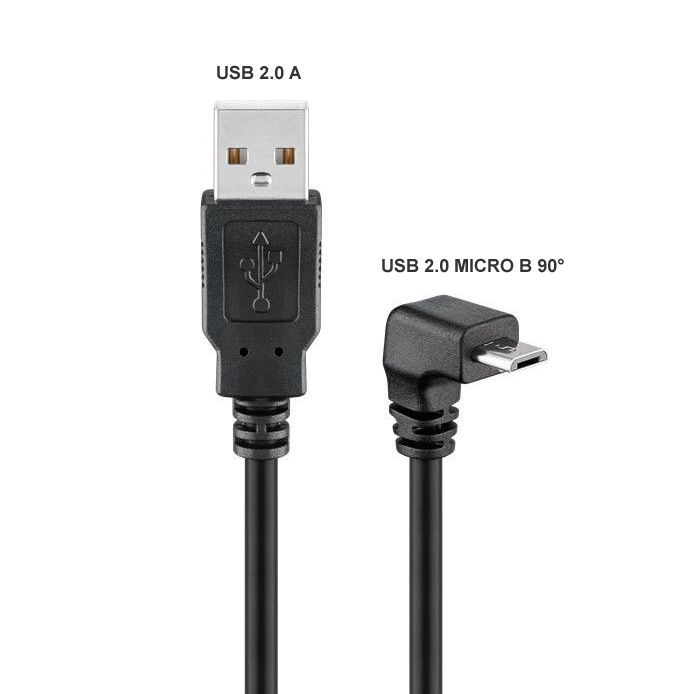

• USB 2.0 cable with angled Micro B connector
• Cable length: approx. 1.8 metres | 180cm
• Connection 1: USB 2.0 A plug (male)
• Connector 2: USB 2.0 MICRO B male angled 90° DOWN.
• Double shielding with Al-foil shield and braided shield (45/0.13mm)
• Core size: AWG28 (7/0.12mm), copper
• USB 2.0 compatible, max. 480Mbit/s
• e.g. for mobile phones, smartphones, digital cameras, tablets
• Customs tariff no. for USB cable: 85444290
• Colour: black
• Weight: 46gr (without packaging)
• CE, WEEE, RoHS compliant
